1963 Rear Window Identification

Early A-Body Discussions

  1. Beams

    Beams Well-Known Member

    Messages:
    133
    Likes Received:
    148
    Joined:
    Feb 24, 2019
    Location:
    Modesto, CA
    Local Time:
    2:05 AM
    Hello FABO,

    Hoping to get some help confirming that I have a 1963 Dart rear window.

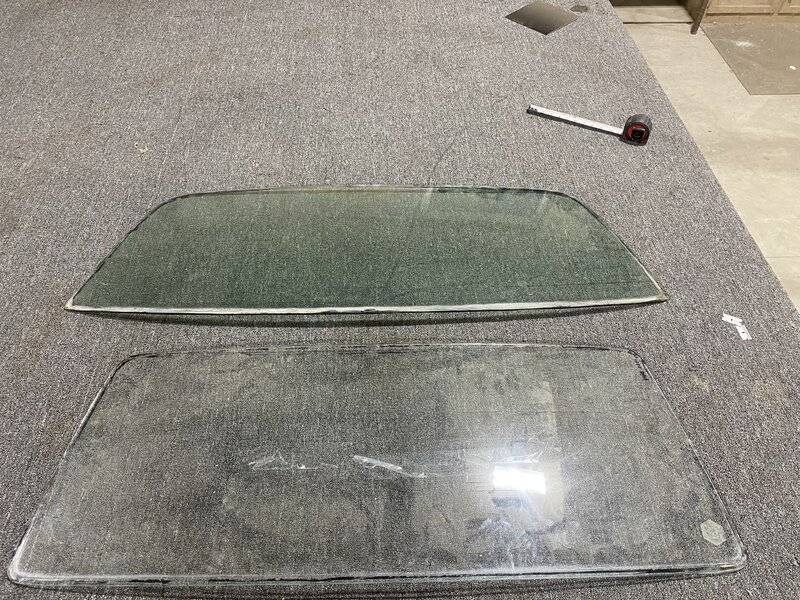

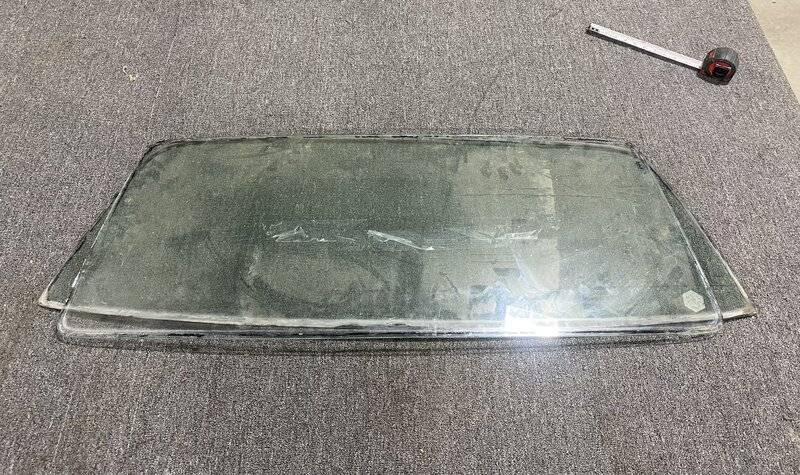

    Previous owner pulled the window, and marked it. I have a spare 64-66 window to compare it to. (See pictures). The tinted window is the later one.

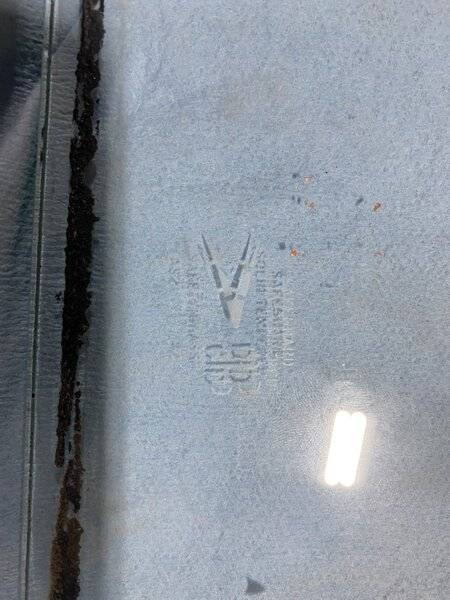

    The markings show on AS2 82. As far as I can tell, that’s not necessarily enough to make a determination.

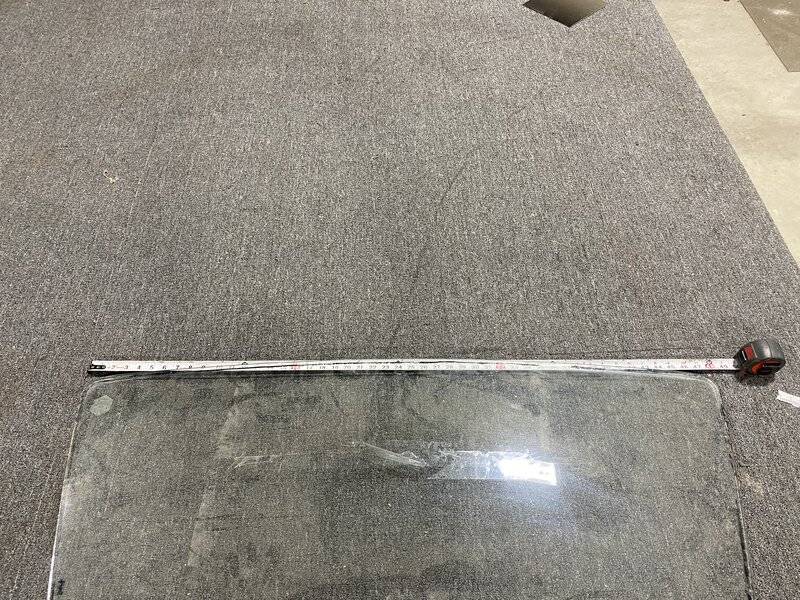

    The window is about 42.25” wide at the top, and 48.25” at the bottom. Approx 18.75” tall. Happy to take any additional measurements that might help in the process.






  2. Beams

    Beams Well-Known Member

    Messages:
    133
    Likes Received:
    148
    Joined:
    Feb 24, 2019
    Location:
    Modesto, CA
    Local Time:
    2:05 AM
    I did check the parts catalog, and found part number 23-64-314. Not seeing anything similar on the window itself though.


  3. jysnflem

    jysnflem Well-Known Member

    Messages:
    497
    Likes Received:
    14
    Joined:
    Feb 29, 2008
    Local Time:
    4:05 AM
    1963 window is definitely a smaller window. I remember seeing a 1963 Dart parts car and was amazed how different the window compared to my 64 Dart

  4. Mineallmine

    Mineallmine Well-Known Member

    Messages:
    326
    Likes Received:
    416
    Joined:
    Apr 20, 2019
    Location:
    Ontario
    Local Time:
    5:05 AM
    I can measure the opening of my 63 when I get home. I have the rear glass out but it is still packed in a wooden crate from when I had it shipped from texas.

    Something, however doesn't look right between the 2. The 63 glass has a smaller opening so it should be shorter in height. It should also be narrower. Other than that the shape should be pretty close to the same I would think as the 64 is bigger but follows the same roof line.

    Either way, I will let you know what mine measures out to be.

  5. RustyRatRod

    RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

    Messages:
    88,261
    Likes Received:
    71370
    Joined:
    Jun 7, 2010
    Location:
    Georgia
    Local Time:
    5:05 AM
    It's not just smaller, it's also almost FLAT compared to other early A bodies. It does not "wrap around" like the others do.

  6. Beams

    Beams Well-Known Member

    Messages:
    133
    Likes Received:
    148
    Joined:
    Feb 24, 2019
    Location:
    Modesto, CA
    Local Time:
    2:05 AM
    Appreciate it!

  7. Mineallmine

    Mineallmine Well-Known Member

    Messages:
    326
    Likes Received:
    416
    Joined:
    Apr 20, 2019
    Location:
    Ontario
    Local Time:
    5:05 AM
    Just took some measurements. From pinch weld to pinch weld about 43" at top, 48 3/4 at bottom and 19 1/8 high. Take away for the rubber seal and your glass looks right for a 63 Dart

    • Thanks! Thanks! x 1
    • slantsixdan

      slantsixdan =..=

      Messages:
      7,009
      Likes Received:
      2358
      Joined:
      Jan 7, 2007
      Location:
      Vancouver BC
      Local Time:
      2:05 AM
      That's not a part number, that's a part type identification code. That same code, 23-64-314, is for the backglass on all the different cars. You page past the illustrations to find the part number listings, and look under that type code to find the part numbers for the backglasses for all the various cars.

      AS2 indicates tempered safety glass (AS-1 means laminated). 82 is not a meaningful code.

      • Like Like x 1
      • Beams

        Beams Well-Known Member

        Messages:
        133
        Likes Received:
        148
        Joined:
        Feb 24, 2019
        Location:
        Modesto, CA
        Local Time:
        2:05 AM
        Well shoot. Missed that by a long shot. Thanks, Dan.
