1965 Formula S w/AC: What is Factory Correct Fan?

Early A-Body Discussions

  1. dibbons

    dibbons FABO Gold Member FABO Gold Member

    Messages:
    4,480
    Likes Received:
    2594
    Joined:
    Nov 6, 2009
    Location:
    La Paz, B.C.S., Mexico
    Local Time:
    4:14 AM

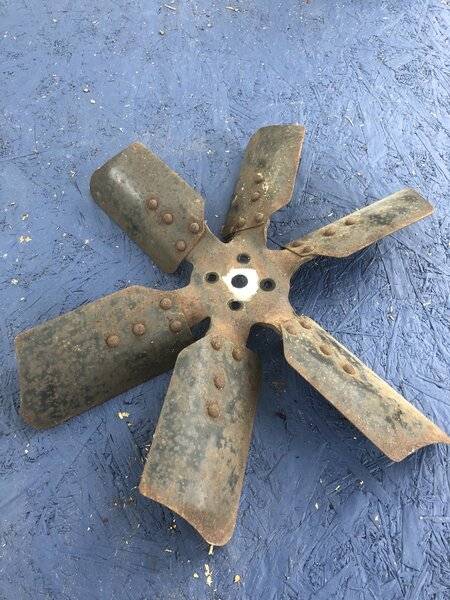

    PO did an engine swap, currently have a six-blade fixed fan. I was wondering if this was the original fan or a replacement? If a replacement, I would like to know what the factory fan looked like. I don't see any part numbers on the present fan. Thank you.

    fan Fornula S.JPG

  2. 65 Dartman

    65 Dartman FABO Gold Member FABO Gold Member

    Messages:
    11,768
    Likes Received:
    3312
    Joined:
    Sep 24, 2006
    Location:
    Strasburg, VA
    Local Time:
    7:14 AM
    I have what I believe to be 2 65 OEM fans. I will try and get some pics this afternoon

    • Thanks! Thanks! x 1
    • Bob Jasinski

      Bob Jasinski FABO Gold Member FABO Gold Member

      Messages:
      140
      Likes Received:
      35
      Joined:
      Mar 7, 2019
      Location:
      Danville CA
      Local Time:
      4:14 AM
      Dibbons, I have both a '65 factory AC fan and a non AC fan. Here are front and back pictures, the AC fan is on the right.


      DSC_3146[1].JPG DSC_3147[1].JPG

      • Thanks! Thanks! x 1
      • cosgig

        cosgig MoBro Inc. FABO Gold Member

        Messages:
        11,343
        Likes Received:
        4379
        Joined:
        Jul 20, 2008
        Location:
        Pinckney, Michigan
        Local Time:
        6:14 AM
        Here is the correct factory fan for A/C cars. For anybody that needs the info, the fan is 17”, no other fan is correct as the later ones are a little bigger and won’t fit the early A body fan shroud. There is also a 7 blade version of this fan, I believe I have one of those on my car. No clutch was ever used on an early A body either, only the hard spacer.


        • Agree Agree x 3
        • Like Like x 1
        • dibbons

          dibbons FABO Gold Member FABO Gold Member

          Messages:
          4,480
          Likes Received:
          2594
          Joined:
          Nov 6, 2009
          Location:
          La Paz, B.C.S., Mexico
          Local Time:
          4:14 AM
          Looking closer at my fan, measures 17" tip to tip, one side I can make out what looks to be a manufacturer's logo "dcPd BS", the other side has a small sticker "engine side".

        • cosgig

          cosgig MoBro Inc. FABO Gold Member

          Messages:
          11,343
          Likes Received:
          4379
          Joined:
          Jul 20, 2008
          Location:
          Pinckney, Michigan
          Local Time:
          6:14 AM
          yours is the correct fan then, brother!

          • Thanks! Thanks! x 1
          • Bob Jasinski

            Bob Jasinski FABO Gold Member FABO Gold Member

            Messages:
            140
            Likes Received:
            35
            Joined:
            Mar 7, 2019
            Location:
            Danville CA
            Local Time:
            4:14 AM
            I beg to differ. The fan you have shown is a stock non-AC fan, just like the one on the left I provided. The AC fan I show pictured was taken off of a factory '65 Barracuda AC system. The '65 parts book lists a "Fan fluid or thermal drive unit" PN 2536675 for Valiant/Dart, 8 cyl.

            • Agree Agree x 1
            • dibbons

              dibbons FABO Gold Member FABO Gold Member

              Messages:
              4,480
              Likes Received:
              2594
              Joined:
              Nov 6, 2009
              Location:
              La Paz, B.C.S., Mexico
              Local Time:
              4:14 AM
              Just to act as a moderator here, perhaps both fans were used with A/C, but we have not figured out under which conditions/options the thermal fan was used. I only say this because my Formula "S" certainly had A/C and it has the non-thermal fan. Not saying it could not have been swapped some time in the past, but I have a hunch both contributors to this thread may be correct! Maybe a mid-year change/update perhaps?

              I guess if we really want to delve deeper into the mystery, we could begin by looking up our production/delivery dates.

            • chryslerfat

              chryslerfat Well-Known Member

              Messages:
              13,701
              Likes Received:
              8215
              Joined:
              Aug 23, 2008
              Location:
              Monroe,Michigan
              Local Time:
              7:14 AM
              The no A/C cars I have looked at through the years are a 4 lade fan.

              • Thanks! Thanks! x 1
              • dibbons

                dibbons FABO Gold Member FABO Gold Member

                Messages:
                4,480
                Likes Received:
                2594
                Joined:
                Nov 6, 2009
                Location:
                La Paz, B.C.S., Mexico
                Local Time:
                4:14 AM
                I think (not sure) the four-blade fans were used on the slant six motors. Here is a foto of the six-blade fan currently on my '65 Signet convertible (no a/c, no p/s, no p/b).

                Signet fan.JPG

                • Agree Agree x 1
                • chryslerfat

                  chryslerfat Well-Known Member

                  Messages:
                  13,701
                  Likes Received:
                  8215
                  Joined:
                  Aug 23, 2008
                  Location:
                  Monroe,Michigan
                  Local Time:
                  7:14 AM
                  I have seen the 4 blade ones on 273 2bbl motors and my 65 factory Commando 273 has a 4 blade fan.

                  • Thanks! Thanks! x 1
                  • dibbons

                    dibbons FABO Gold Member FABO Gold Member

                    Messages:
                    4,480
                    Likes Received:
                    2594
                    Joined:
                    Nov 6, 2009
                    Location:
                    La Paz, B.C.S., Mexico
                    Local Time:
                    4:14 AM
                    Depends on history of local climate where shipped when new (lol)? I know A/C on vehicles sold in Alaska was not that common.

                    • Agree Agree x 1
                    • Bob Jasinski

                      Bob Jasinski FABO Gold Member FABO Gold Member

                      Messages:
                      140
                      Likes Received:
                      35
                      Joined:
                      Mar 7, 2019
                      Location:
                      Danville CA
                      Local Time:
                      4:14 AM
                      I have the '65 parts book open to Fan Assembly. It shows 2121971 for 6 cyl Valiant/Dart no AC (no blade number shown) and 2206356, (six blade) for trailer towing and AC 6 Cyl Val/Dart cars. For the 8 cyl Valiant/Dart it shows 2658984 (no blade number shown) and 2532257 (six blade) for trailer towing/heavy duty fan, and a 2463657 (seven blade) Field Installation fan. I believe that is what I have pictured. Yes, it's confusing, there appears to be several fan options.

                      Last edited: Sep 14, 2020
                    • dibbons

                      dibbons FABO Gold Member FABO Gold Member

                      Messages:
                      4,480
                      Likes Received:
                      2594
                      Joined:
                      Nov 6, 2009
                      Location:
                      La Paz, B.C.S., Mexico
                      Local Time:
                      4:14 AM
                      You did not mention the ... 675 fan in post #13? What happened?

                    • Bob Jasinski

                      Bob Jasinski FABO Gold Member FABO Gold Member

                      Messages:
                      140
                      Likes Received:
                      35
                      Joined:
                      Mar 7, 2019
                      Location:
                      Danville CA
                      Local Time:
                      4:14 AM
                      Not sure I understand. That's the part number listed, why would I repeat the same info?

                    • Bob Jasinski

                      Bob Jasinski FABO Gold Member FABO Gold Member

                      Messages:
                      140
                      Likes Received:
                      35
                      Joined:
                      Mar 7, 2019
                      Location:
                      Danville CA
                      Local Time:
                      4:14 AM
                      The fan clutch is a separate part that bolts to the fan.

                    • dibbons

                      dibbons FABO Gold Member FABO Gold Member

                      Messages:
                      4,480
                      Likes Received:
                      2594
                      Joined:
                      Nov 6, 2009
                      Location:
                      La Paz, B.C.S., Mexico
                      Local Time:
                      4:14 AM
                      OK, I thought it was a completely different fan option.

                    • 65 Dartman

                      65 Dartman FABO Gold Member FABO Gold Member

                      Messages:
                      11,768
                      Likes Received:
                      3312
                      Joined:
                      Sep 24, 2006
                      Location:
                      Strasburg, VA
                      Local Time:
                      7:14 AM

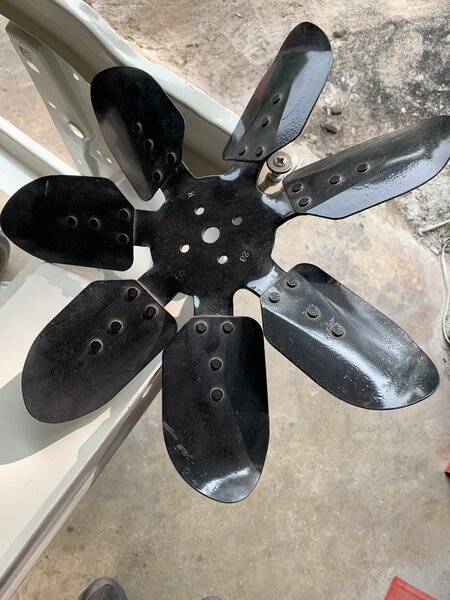

                      The nice shiny black 7 blade fan was on a 65 273/235 4 speed Dart with factory AC as the only option. I ended up parting the car out. 222919B9-6DE3-4FF4-9441-EC621FE96211.jpeg

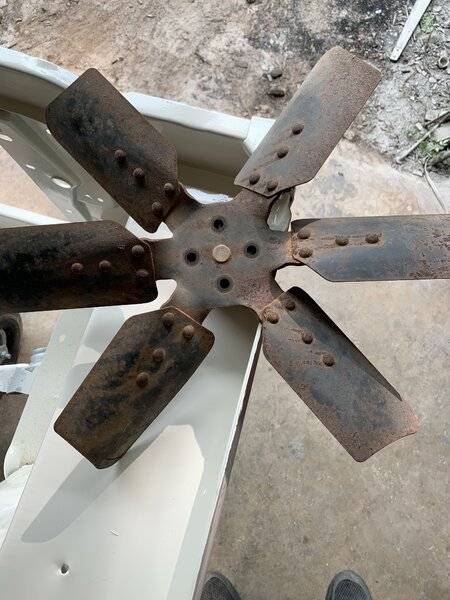

                      107ED527-D200-4734-9677-BF4FAF7BFAB3.jpeg while the rusty 6 blade fan was on a 65 273/180 4 speed non-AC Barracuda I parted out. Both fans are 17 inches in diameter.

                      Last edited: Sep 15, 2020
                      • Thanks! Thanks! x 1
                      • Bob Jasinski

                        Bob Jasinski FABO Gold Member FABO Gold Member

                        Messages:
                        140
                        Likes Received:
                        35
                        Joined:
                        Mar 7, 2019
                        Location:
                        Danville CA
                        Local Time:
                        4:14 AM
                        Its crazy how many fans were used, surprised to see so many in the parts book. Your 7 blade fan is a bit different than the one I have pictured. I did a bit more research on the car I got the 7 blade fan from (pictured in post #3). It was about 15 years ago, but I took some pictures of the car and the fender tag, which I just looked at, and it indicates E-1 on the plate, which translates to A/C with heater. Believe it to be a California car, locally owned at that time. The AC was all removed and given to me, he changed the engine and put a 5 speed Tremec in it. The dash still had the AC buttons. These are 55 year old cars though, things do get changed out.

                      • SSVDP

                        SSVDP FABO Gold Member FABO Gold Member

                        Messages:
                        5,407
                        Likes Received:
                        6998
                        Joined:
                        Feb 6, 2009
                        Location:
                        Clarksville, Tn
                        Local Time:
                        7:14 AM
                        The service manual has the fan info for each different application.
                        Mine manual is packed away but when I find it I can post a pic of that page.
                        From memory most early-A with AC had six or seven blade fans and there was at least one that had a viscous clutch.

                      • dibbons

                        dibbons FABO Gold Member FABO Gold Member

                        Messages:
                        4,480
                        Likes Received:
                        2594
                        Joined:
                        Nov 6, 2009
                        Location:
                        La Paz, B.C.S., Mexico
                        Local Time:
                        4:14 AM
                        Even with the factory service manual it still may appear pretty confusing, I just dug one of mine up out of storage.

                        • Agree Agree x 1
                        • Bob Jasinski

                          Bob Jasinski FABO Gold Member FABO Gold Member

                          Messages:
                          140
                          Likes Received:
                          35
                          Joined:
                          Mar 7, 2019
                          Location:
                          Danville CA
                          Local Time:
                          4:14 AM
                          Regarding the the fan/clutch assembly I uploaded in post #3, my curiosity drove me to clean up and remove the '65 AC fan clutch and look for part numbers. I found the factory DPCD stamp on the fan blade, and the factory part number on the fan clutch. It matches the '65 parts book as the only AC fan clutch offered for V8 A bodies in '65, part number 2536675. So this is a correct '65 assembly for V8 AC cars with a fan clutch, but leaves open the possibility that some factory AC cars didn't use a clutch, and therefore used a different fan because this fan must be used with a clutch due to the larger diameter hole. 1965 was the first year for factory AC in A bodies, so there could have been several approaches, and/or mid years changes.

                          DSC_3154[1].JPG DSC_3156[1].JPG DSC_3157[1].JPG DSC_3158[1].JPG DSC_3153[1].JPG

                          • Agree Agree x 1
                          • dibbons

                            dibbons FABO Gold Member FABO Gold Member

                            Messages:
                            4,480
                            Likes Received:
                            2594
                            Joined:
                            Nov 6, 2009
                            Location:
                            La Paz, B.C.S., Mexico
                            Local Time:
                            4:14 AM
                            That's one nasty lookin' fan, must blow some good air!

                          • Bob Jasinski

                            Bob Jasinski FABO Gold Member FABO Gold Member

                            Messages:
                            140
                            Likes Received:
                            35
                            Joined:
                            Mar 7, 2019
                            Location:
                            Danville CA
                            Local Time:
                            4:14 AM
                            I'm considering using it in my non AC '65 Barracuda, thinking the fan clutch would reduce drag and increase usable HP.
