1970 Duster Radiator mount dimensions

[FDNY340]

Maybe this will clarify what I need. Replacing the lower support and Im looking to make sure I have the correct bolt locations for the radiator. Id hate to weld all this together just to have to relocate the screw holes.. Its gonna be a 22 in radiator. If you have a car or radiator laying around, please help!!! Thanks!!!!

This may be a more appropriate forum for this.

1970 Radiator mount screw dimensions. Need centerline dimension top bolt to bottom bolt. dimension on car, not radiator.

Thanks



[FDNY340]

Maybe this will clarify what I need. Replacing the lower support and Im looking to make sure I have the correct bolt locations for the radiator. Id hate to weld all this together just to have to relocate the screw holes.. Its gonna be a 22 in radiator. If you have a car or radiator laying around, please help!!! Thanks!!!!

This may be a more appropriate forum for this.

1970 Radiator mount screw dimensions. Need centerline dimension top bolt to bottom bolt. dimension on car, not radiator.

Thanks

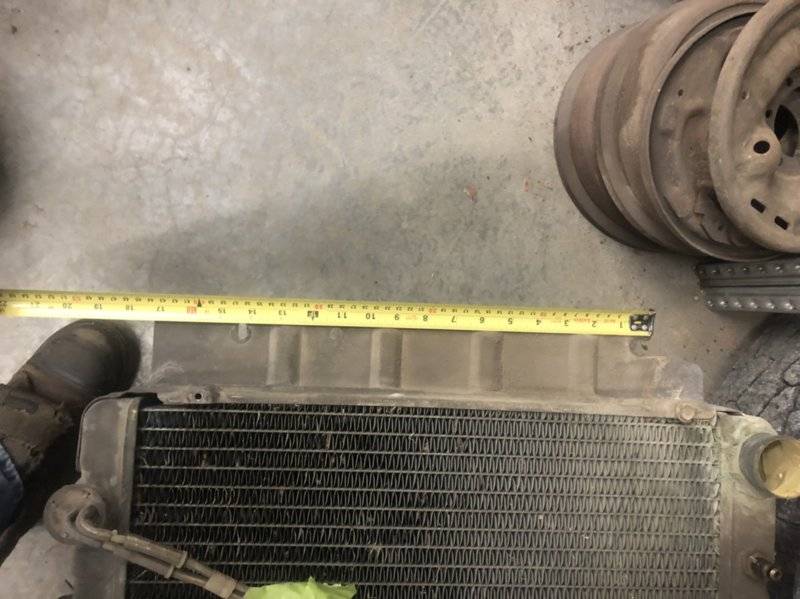

View attachment 1715494463

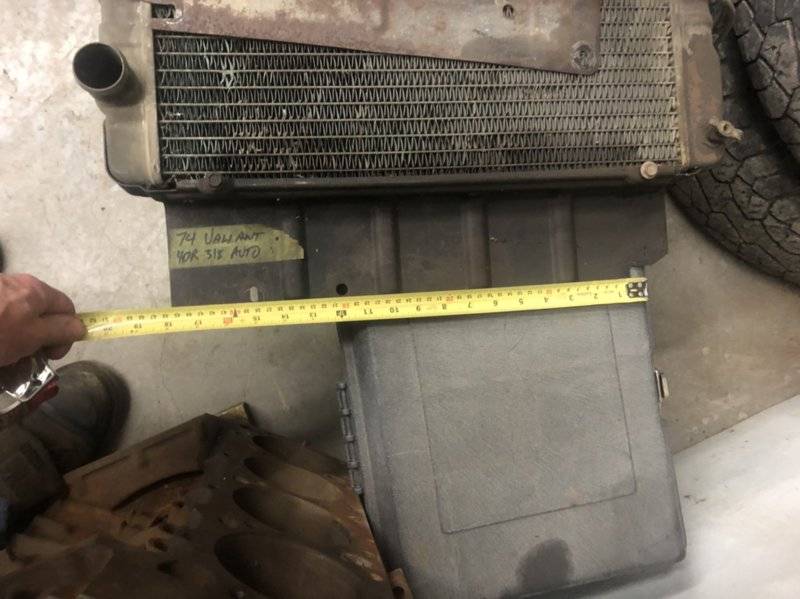

View attachment 1715494464

BUMP



[gdrill]

Weld it together. The inner lines where you cut were stamped. That is your measurement. The rad holes have tolerance. Or did you not measure the cut pieces prior to snipping them? You have plenty of structural pieces there to make the fit. The frame rails vs inner fenders are solid. The hood latch support has a slight tolerance but only so much.



[gdrill]



[FDNY340]

Weld it together. The inner lines where you cut were stamped. That is your measurement. The rad holes have tolerance. Or did you not measure the cut pieces prior to snipping them? You have plenty of structural pieces there to make the fit. The frame rails vs inner fenders are solid. The hood latch support has a slight tolerance but only so much.

Thanks!!!!!!
The bottoms were chopped off long ago so i had no measurement
Much appreciated!!
