1972 A Body (Demon) Spare Tire Hardware/Install

Tires and Wheels (Mopar Hubcaps Too)

  1. 19Duster71

    19Duster71 FABO Gold Member FABO Gold Member

    Messages:
    251
    Likes Received:
    60
    Joined:
    May 5, 2015
    Location:
    Minnesota
    Local Time:
    4:44 AM
    Does someone have a diagram of the correct spare tire install for a 1972 A body/Demon? Is just the jack base used in the center hole to hold down the wheel and tire or is there a round disc that goes under the wing nut? Thanks

  2. dmoore

    dmoore NO IT'S NOT RESTORED FABO Gold Member

    Messages:
    1,789
    Likes Received:
    137
    Joined:
    Nov 20, 2008
    Location:
    Eastern Shore of Virginia
    Local Time:
    4:44 AM
    Jack base used in center hole


  3. 19Duster71

    19Duster71 FABO Gold Member FABO Gold Member

    Messages:
    251
    Likes Received:
    60
    Joined:
    May 5, 2015
    Location:
    Minnesota
    Local Time:
    4:44 AM
    Perfect.So is there also a cardboard/fiber cover that goes over the spare with a hole in the center or none?Also,is both the base and jack mech painted gray? Thanks again

  4. dmoore

    dmoore NO IT'S NOT RESTORED FABO Gold Member

    Messages:
    1,789
    Likes Received:
    137
    Joined:
    Nov 20, 2008
    Location:
    Eastern Shore of Virginia
    Local Time:
    4:44 AM
    No hole and yes grey

  5. 19Duster71

    19Duster71 FABO Gold Member FABO Gold Member

    Messages:
    251
    Likes Received:
    60
    Joined:
    May 5, 2015
    Location:
    Minnesota
    Local Time:
    4:44 AM
    Thank you!!

    • Like Like x 1
    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM
      Hi, I dig up this thread, but where is your jack hook?

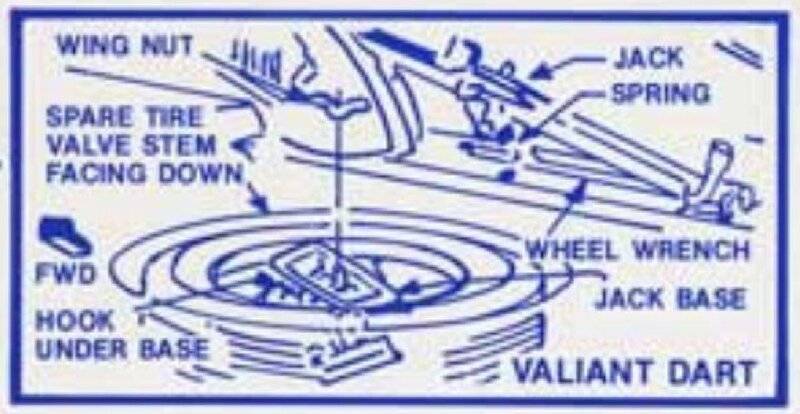

      On the period Dodge trunk sticker, it's successively from bottom to top : the spare tire (valve stem down), the hook, the base and the wing nut.

      Other problem : my spare tire seems to be too large for the wheel well depth (205/70R14).
      It protudes from the trunk floor.
      What's the max spare tire width compatible?

      And my last question : are these parts original?
      A black painted metal cup with a central hole and a cardboard wheel cover.
      Jack parts.jpg Spare tire cover.jpg


      Thank you,
      Francois

      Last edited: Jan 10, 2021
    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM
      Nobody?

      I saw that original and standard Demon tires were 6.45X14", so I plan to install a 175/80R14 on my spare wheel.
      This way, I hope that the spare tire will be flush with the trunk floor and that I'll be able to install the cardboard wheel cover.

      A 175/80R14 tire has the same outer diameter than my 205/70R14 tires.
      So I think that it could be a narrower but compatible "space saver" spare tire as we can find one on all modern cars, no?

      What do you think about?

    • - Marvin -

      - Marvin - Well-Known Member

      Messages:
      485
      Likes Received:
      518
      Joined:
      Mar 9, 2015
      Location:
      Vienna, Austria
      Local Time:
      11:44 AM
      My 72 Demon has a different base-plate for the jack, because of his swiss origin.

      But my 71 Duster has the same cardboard (with hole) and also the black metal cup - it is missing on the picture above, it is mounted between the wing-nut and the jack-base - to fix it better.

    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM
      Hello Marvin

      What's the spare tire size in your Duster?

      For the black metal cup, I found another theory on a french forum : installed in the spare wheel hole (and under the jack hook), the metal cup helps the stud to be centered.

      :thankyou: for your answer...
      Francois

    • - Marvin -

      - Marvin - Well-Known Member

      Messages:
      485
      Likes Received:
      518
      Joined:
      Mar 9, 2015
      Location:
      Vienna, Austria
      Local Time:
      11:44 AM

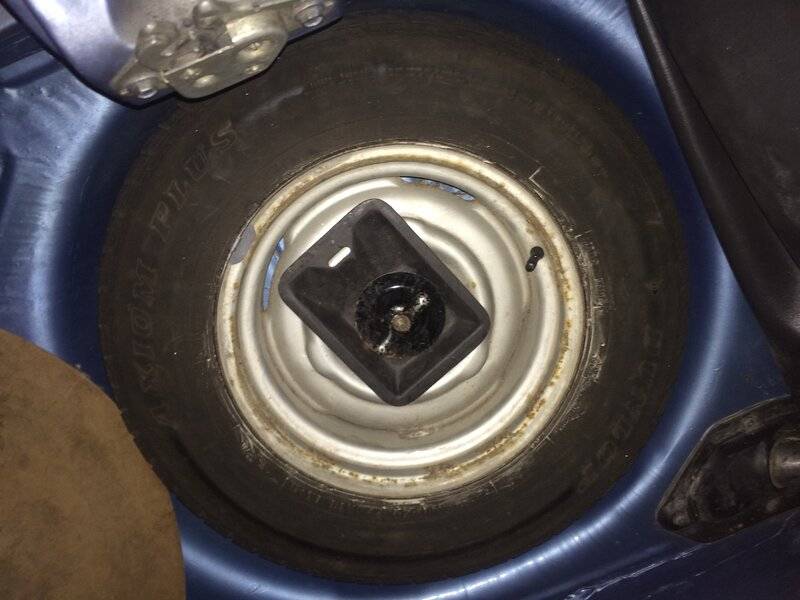

      Ok, I went into the garage:

      Zeugs 006.jpg

      Zeugs 005.jpg

      Zeugs 004.jpg

      Zeugs 003.jpg

      Zeugs 001.jpg

      Zeugs 002.jpg

    • - Marvin -

      - Marvin - Well-Known Member

      Messages:
      485
      Likes Received:
      518
      Joined:
      Mar 9, 2015
      Location:
      Vienna, Austria
      Local Time:
      11:44 AM
      My spare tire is a 205/70/14 on a 5,5 wheel - too big (or too high) - You can see....
      Original was a 185/70/14 on a 4,5 wheel in the trunk - this combination makes a flat floor.

      It doesn't mind for me, but have a round cardboard - not like Yours.

      For the black metal cup, I found another theory on a french forum : installed in the spare wheel hole (and under the jack hook), the metal cup helps the stud to be centered.

      This sounds nice - and I tried it, but it doesn't work - because of the form of the holder - the fixing metal part/slot in the trunk.
      But it fits exactly on/in the base of the jack.

      Last edited: Jan 12, 2021
    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM
      Thank you very much Marvin for your time, taking the pictures and descriptions.
      I noticed that your spare tire isn't installed in the right manner : it must be upside down (the valve stem facing down)
      This way, you will get more lenght on the stud and space to install the jack hook.

      I will have a try tomorrow with a bare wheel rim :
      Wheel + metal cup + jack hook + jack base + wing nut.
      I'll take some pictures.

      Francois

      PS : excuse me for my poor english... :rolleyes:

    • - Marvin -

      - Marvin - Well-Known Member

      Messages:
      485
      Likes Received:
      518
      Joined:
      Mar 9, 2015
      Location:
      Vienna, Austria
      Local Time:
      11:44 AM
      Interesting - but in my cars the spare tire was always mounted this way - otherwise Yiou cannot check the tire-pressure without taking the tire out of the trunk.
      And this is something You should do at least once a year.
      I have in both cars long studs - about 2 inches longer as in A-Bodies in the 60s - with a short stud, You can only mount it the way You told.
      The hook is stored with the jack.

      And here You can see how the Swiss have handled the storage of the jack:

      Diverses 006.jpg

    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM

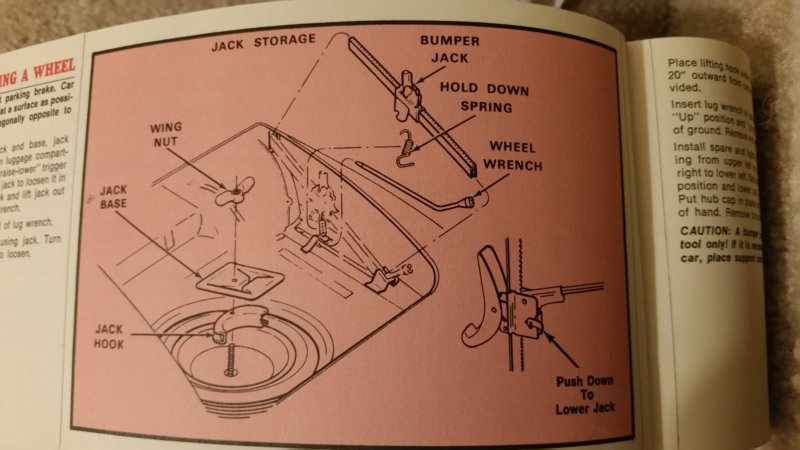

      I only relate the Dodge prescription about the jack storage and the spare wheel.
      roue de secours.JPG


      Here's my jack (sorry for the bad picture, I will take a better one tomorrow)

      Is your jack bag original or is it an accessory?

    • - Marvin -

      - Marvin - Well-Known Member

      Messages:
      485
      Likes Received:
      518
      Joined:
      Mar 9, 2015
      Location:
      Vienna, Austria
      Local Time:
      11:44 AM
      The bag is a Swiss original - only found in Swiss Demons.

      I know this mounting instruction - but I‘m not sure if it is for Duster/Demons also.
      The different length of the studs seems to confirm this.

    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM

      It's for Demons also.

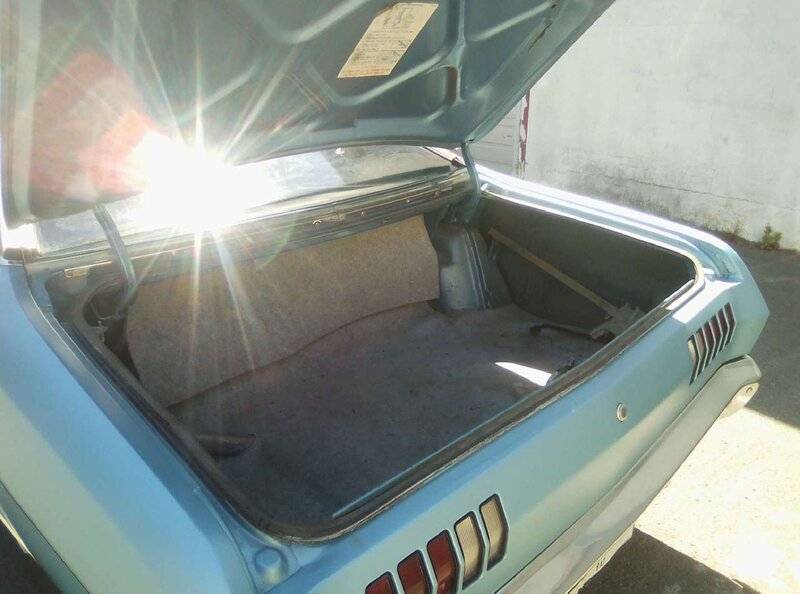

      My '71 Demon still have the original sticker in the trunk lid.
      I will measure my stud.


    • Johnny Dart

      Johnny Dart Well-Known Member

      Messages:
      8,030
      Likes Received:
      2635
      Joined:
      Nov 30, 2006
      Location:
      So Cal
      Local Time:
      2:44 AM
      70-72 A body.


    • French demon

      French demon Well-Known Member

      Messages:
      117
      Likes Received:
      91
      Joined:
      Jul 12, 2020
      Location:
      South of France
      Local Time:
      11:44 AM
      Thank you Johnny and in theory, it's the method recommended by Chrysler.
      But in fact, the stud is too short (16cm) and it's impossible to overlap all the parts.
      I tried in several ways, but it's impossible.


      I finally tried like that :
      The wheel well

      A bare steel rim (all my other wheels have too much wide tires to make a test), upside down.
      The stud is loose.

      With the metal cup installed, the stud is centered.

      The only way to position the jack hook (not over the stud..!)

      The jack base, upside down, presses down the hook.

      The wing nut.

      The cardboard.

      The trunk mat.

      In my opinion, this is the only way to store the wheel, hook and base in the wheel well and to obtain a flush cardboard on the trunk floor.

      Francois

    • Johnny Dart

      Johnny Dart Well-Known Member

      Messages:
      8,030
      Likes Received:
      2635
      Joined:
      Nov 30, 2006
      Location:
      So Cal
      Local Time:
      2:44 AM
      There are different length hold down bolts.
      You don't want the jack hook rattling/bouncing around in your spare tire.

      faucet pics 887.jpg

    • Johnny Dart

      Johnny Dart Well-Known Member

      Messages:
      8,030
      Likes Received:
      2635
      Joined:
      Nov 30, 2006
      Location:
      So Cal
      Local Time:
      2:44 AM
      Here is a way to hold the jack hook down.

      faucet pics 888.jpg

      faucet pics 891.jpg

      faucet pics 892.jpg

      • Thanks! Thanks! x 1
      • French demon

        French demon Well-Known Member

        Messages:
        117
        Likes Received:
        91
        Joined:
        Jul 12, 2020
        Location:
        South of France
        Local Time:
        11:44 AM
        You have two wing nuts?

      • Cuda Al

        Cuda Al Well-Known Member

        Messages:
        1,189
        Likes Received:
        1335
        Joined:
        Oct 21, 2007
        Location:
        Lompoc, CA
        Local Time:
        2:44 AM
        Bottom up

        1. Spare tire
        2. Jack Base
        3. Jack Hook (forgot, not used on the Barracuda)
        4. Large wing nut
        5. Large hardboard panel (floor)
        6. Large cup washer
        7. Small wing nut.


        Alan

        Last edited: Jan 13, 2021
      • French demon

        French demon Well-Known Member

        Messages:
        117
        Likes Received:
        91
        Joined:
        Jul 12, 2020
        Location:
        South of France
        Local Time:
        11:44 AM
        I miss the small wing nut... :(

      • dmoore

        dmoore NO IT'S NOT RESTORED FABO Gold Member

        Messages:
        1,789
        Likes Received:
        137
        Joined:
        Nov 20, 2008
        Location:
        Eastern Shore of Virginia
        Local Time:
        4:44 AM
        1972 Did not use a "jack hook" The jack itself goes into slots in the bumper.

        • Thanks! Thanks! x 1
        • French demon

          French demon Well-Known Member

          Messages:
          117
          Likes Received:
          91
          Joined:
          Jul 12, 2020
          Location:
          South of France
          Local Time:
          11:44 AM
          OK, I didn't know that.
          Your 340 Duster is gorgeous. :thumbsup:

          What's your spare tire size?
