273 Pilot Bushing/Bearing Problem / Fix

Manual Transmission & Clutch Discussions

  1. "Dart67"

    "Dart67" Well-Known Member

    Messages:
    492
    Likes Received:
    149
    Joined:
    Jan 7, 2012
    Location:
    Jessieville, Arkansas
    Local Time:
    11:50 AM

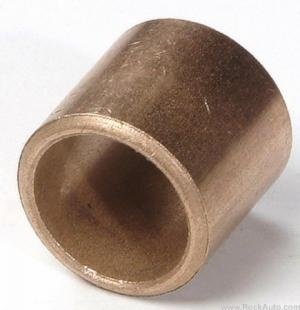

    I ran into this problem when I went to drive in the standard National PB 286 bronze pilot bushing.
    View attachment BronzePilotBushing.jpg

    I also tried using the Dakota National FC 69907 Pilot Bearing.
    View attachment DakotaPilotBearing.jpg

    Neither one would work due to the crank register.

    The crank is from a 1965 273 4bbl engine that "had" a 904 automatic bolted to it.

    The pilot bushing hole in the crank is a unfinished bore and the large hole has a 45* chamfer instead of a square sholder for the dakota bearing to seat in. See photo below.

    My solution was to measure the inside diameter of the large crank register hole which was 1.544".
    Then chuck the dakota bearing up in my metal lathe and turn it to 1.549 so that when driven into the crank it will be a snug fit.
    I also cut a small 45* chamfer on the back side of the bearing so that it would seat against the crank hub.
    I drilled and tapped three 10 x 24 holes evenly spaced on the diameter of the bearing so that I can thread long machine screws into them to push the bearing from the hole in the future for replacement.


    View attachment Crankpilot.jpg

    View attachment PilotDrilledTappedChamfered.jpg

    I then made a driver tool that will work for either the bronze busing orn the dakota bearing.

    View attachment PilotDriver.jpg

    The tool is made from a scrape piece of 3/4" steel shaft and a 3/4"
    washer welded square on the shaft.

    Here is the modified bearing installed in the crank hub.
    I used a little loctite blue around the outside diamter and the back side of the bearing when I tapped it in place.

    View attachment PilotInstalled.jpg

    Here is the how the bearing is removed from the hub. Tighten each screw a turn or two at at a time to push the bearing out.

    View attachment PilotRemovalScrews.jpg


    Herb

  2. oldkimmer

    oldkimmer FABO Gold Member FABO Gold Member

    Messages:
    10,449
    Likes Received:
    1291
    Joined:
    Nov 11, 2006
    Location:
    Kindersley, Saskatchewan,
    Local Time:
    11:50 AM
    .................Good job..............kim..............

  3. pishta

    pishta I know I'm right....

    Messages:
    14,046
    Likes Received:
    3726
    Joined:
    Oct 13, 2004
    Location:
    Tustin, CA
    Local Time:
    9:50 AM
    That 3/4-1 INA SCE bearing is the same one that's in a T&D rocker....Nice job. I heard you could pack grease into the pilot and hammer a input ahft in there and it would pop out the brass bushing hydraulically? I like your method better.

  4. Dukeboy

    Dukeboy Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    May 21, 2012
    Location:
    Va
    Local Time:
    11:50 AM
    Just FYI here, but there's TWO different bushings for Chrysler engines. One is the standard size and one is .030 smaller....NAPA has them. I believe the Smaller one is called the "Conversion" bushing.


    Rule of thumb, if the car was an automatic and your going 4-speed, you will most likely need the conversion bushing...This is NOT always the case though, but if you find one bushing doesn't fit, try the other one.

  5. "Dart67"

    "Dart67" Well-Known Member

    Messages:
    492
    Likes Received:
    149
    Joined:
    Jan 7, 2012
    Location:
    Jessieville, Arkansas
    Local Time:
    11:50 AM
    I am aware of the smaller bushing.

    None of the NAPA stores I checked with could find a current listing for it or said it was discontinued and unavailable.

    Herb

  6. Claydart

    Claydart Well-Known Member

    Messages:
    193
    Likes Received:
    53
    Joined:
    Mar 27, 2013
    Location:
    Brockton, Ma.
    Local Time:
    11:50 AM
    Just now reading this, and I have the same problem with my 1965 273. Summit has the conversion bushings now I think. I was googling pilot bushings and I saw a picture of one of those conversion bushings, and I clicked on it and it brought me to Summit. By the way, my clutch kit that came from rockauto came with both bushings in the box.

  7. 67Dart273

    67Dart273 Well-Known Member

    Messages:
    39,269
    Likes Received:
    6920
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    9:50 AM
    Don't know about 273, or other SB, but be careful of the DEPTH as well. This is a problem I ran into "in the seventies" with a 440 / was automatic. I pulled the crank and had it drilled.

    Many "back then" advocated chopping 3/8 or so off the 4 speed shaft, which I did not want to do

  8. dibbons

    dibbons Well-Known Member

    Messages:
    2,793
    Likes Received:
    1164
    Joined:
    Nov 6, 2009
    Location:
    La Paz, B.C.S., Mexico
    Local Time:
    9:50 AM
    I tried that once, nothing doing.

  9. pishta

    pishta I know I'm right....

    Messages:
    14,046
    Likes Received:
    3726
    Joined:
    Oct 13, 2004
    Location:
    Tustin, CA
    Local Time:
    9:50 AM
    If it didnt work, I could imagine the shot of grease coming out the hole under a 5lb sledge whack.
