273 Rocker Arm modification jig for locking adjusters

Small Block Mopar Engine

  1. daves66valiant

    daves66valiant Hibernation over. 1968 Dart V8 swap in full swing FABO Gold Member

    Messages:
    2,844
    Likes Received:
    627
    Joined:
    Nov 24, 2005
    Location:
    SoCal
    Local Time:
    8:05 AM

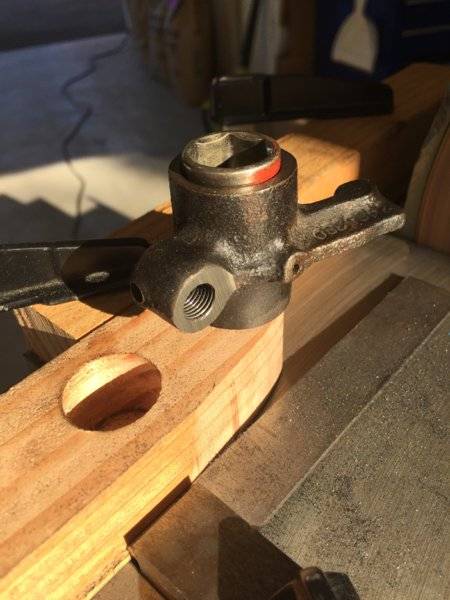

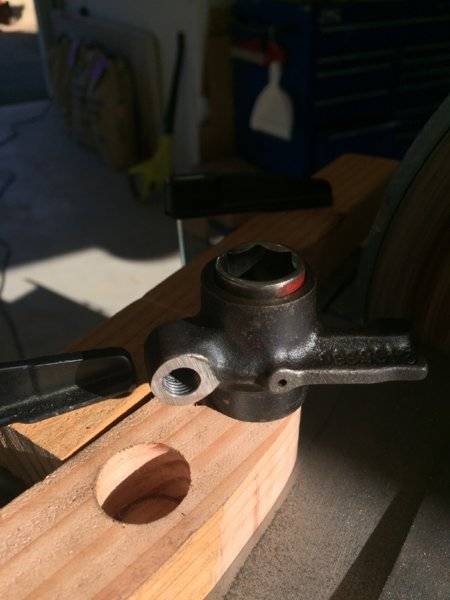

    I made a quick jig today to flatten the casting surface on these 273 rockers for locking adjuster nuts. As you can see the original castings are way off


    Measured the rocker shaft and it was .87”. It just so happens a craftsman 5/8” deep socket is also .87”. Well I drilled a 7/8 in hole in some straight scraps and the socket fit snug. Then I squared everything up to the disc sander.

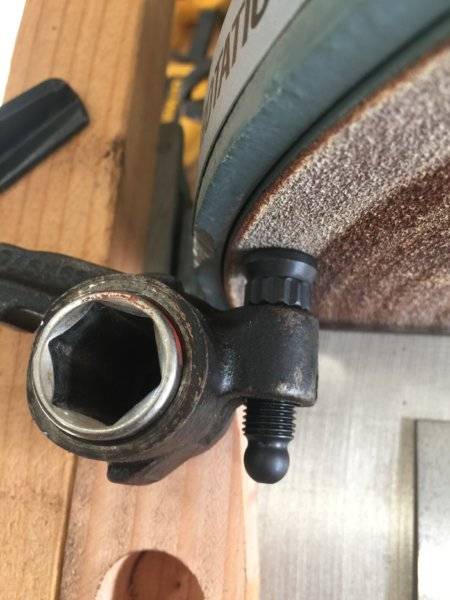

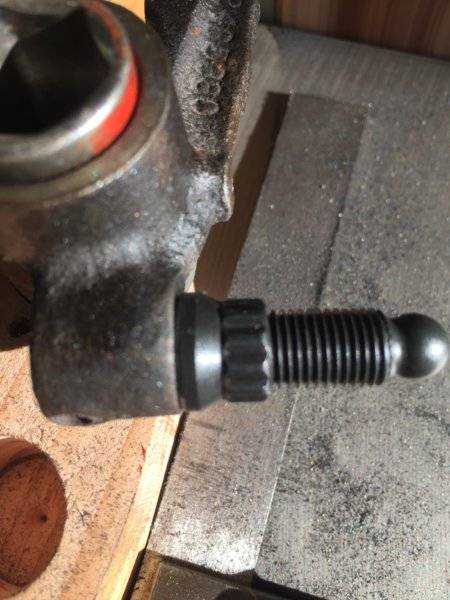

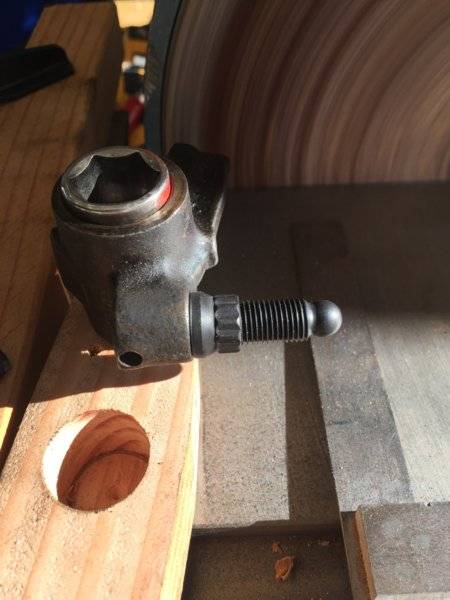

    I screwed in the adjuster nut and then flipped the locking nut. I referenced it to the flat surface of the sanding disc

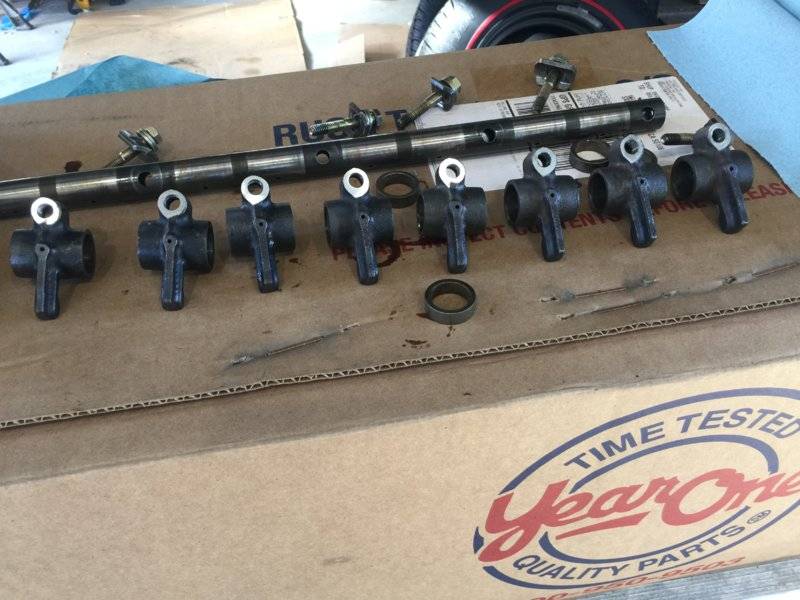

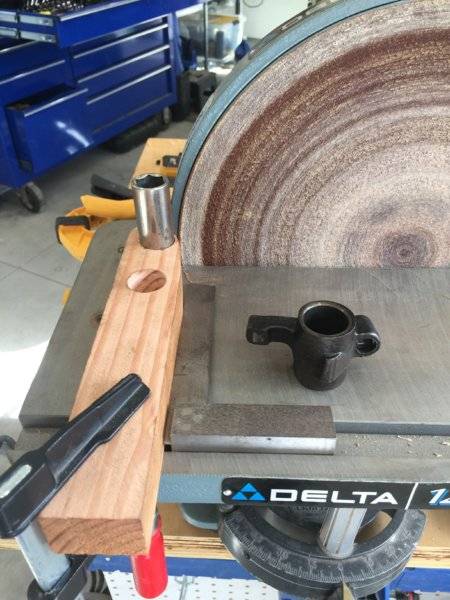

    I set up a couple of fences to keep things squared up. Went through all 16 rockers in about 20 minutes carefully checking each locking nut. Pretty happy with this set up.







    • Like Like x 7
    • Thanks! Thanks! x 4
    • brian6pac

      brian6pac Well-Known Member

      Messages:
      3,162
      Likes Received:
      1681
      Joined:
      Nov 15, 2016
      Location:
      N.E.Ohio
      Local Time:
      11:05 AM
      I made a adapter for my lathe that cuts them perfectly flat.

    • pishta

      pishta I know I'm right....

      Messages:
      13,684
      Likes Received:
      3417
      Joined:
      Oct 13, 2004
      Location:
      Tustin, CA
      Local Time:
      8:05 AM
      brilliant! Chuck a lifter in a 1" drill and reface it on a concave wet wheel. I saw a Sioux or Black & Decker valve grinder that had a lifter facer attachment on it. So cool.....

    • RustyRatRod

      RustyRatRod 30 Degrees Outta Whack FABO Gold Member

      Messages:
      47,922
      Likes Received:
      13289
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      11:05 AM
      Nice job!

      • Thanks! Thanks! x 1
      • j par

        j par Well-hung Member

        Messages:
        11,105
        Likes Received:
        4119
        Joined:
        Jul 2, 2014
        Location:
        Portland Oregon
        Local Time:
        8:05 AM
        I remember when triple-R told me I had to get a flat surface on mine and I just put mine in a vise and used a file and gently made them nice and flat by hand. But this looks a lot more precise.

        • Thanks! Thanks! x 1
        • rustycowll69

          rustycowll69 Well-Known Member

          Messages:
          1,686
          Likes Received:
          642
          Joined:
          Feb 19, 2016
          Location:
          Pacific northwest
          Local Time:
          8:05 AM
          yeah, I got one of those attachment jigs on my Sioux valve refacer. It does a great job.

          I made an arbor for my lathe to face the top of the rocker arm threaded end. I sort of cut threads on to the end of like a 5/8" drill rod, and I chuck the other end of the rod up into a 3 or 4 jaw, then I just thread the rocker onto the threads, rocker top facing lathe tailstock, until it bottoms out, then face the rocker off until it cleans up. Super easy, super quick, and the facing is exactly 90 degrees to the thread centerline.

        • daves66valiant

          daves66valiant Hibernation over. 1968 Dart V8 swap in full swing FABO Gold Member

          Messages:
          2,844
          Likes Received:
          627
          Joined:
          Nov 24, 2005
          Location:
          SoCal
          Local Time:
          8:05 AM
          Lathe would be nice to have. I’m running out of space already in my garage. Wifey has to have room for her car. Otherwise, I’d have more tools :)))

          I’m happy with how everything squared up. Simple jig for anyone who has a disc sander of any size. Mine happens to be a 12”. I’m sure it would work on a smaller disc sander as well

          • Like Like x 2
          • nm9stheham

            nm9stheham Well-Known Member

            Messages:
            9,919
            Likes Received:
            2302
            Joined:
            Dec 20, 2013
            Location:
            Waynesboro, VA
            Local Time:
            11:05 AM
            A great example of how a lot of good things can be done with simple tools. Thanks for the pix!

            • Like Like x 1
            • Agree Agree x 1
            • '63GT

              '63GT Well-Known Member

              Messages:
              453
              Likes Received:
              364
              Joined:
              Jun 9, 2018
              Location:
              Turlock, CA.
              Local Time:
              8:05 AM
              You're exactly right.. Too much emphasis is focused upon the 'tool', instead of the 'know how'.

              • Agree Agree x 1
              • Wyrmrider

                Wyrmrider Well-Known Member

                Messages:
                915
                Likes Received:
                295
                Joined:
                Sep 5, 2016
                Location:
                los angeles
                Local Time:
                8:05 AM
                Reminds me of "adjusting" the lifter buttons on an E Jag on the grinder
                Great Idea and a must do
                the old rockers had interference jam adjusters which took a special tap PITA

              • crackedback

                crackedback FABO Gold Member FABO Gold Member

                Messages:
                18,029
                Likes Received:
                2040
                Joined:
                Aug 7, 2005
                Location:
                92201
                Local Time:
                8:05 AM
                Nice piece of "Hillbilly Engineering"! Good job.

                • Thanks! Thanks! x 1
                • Agree Agree x 1
                • daves66valiant

                  daves66valiant Hibernation over. 1968 Dart V8 swap in full swing FABO Gold Member

                  Messages:
                  2,844
                  Likes Received:
                  627
                  Joined:
                  Nov 24, 2005
                  Location:
                  SoCal
                  Local Time:
                  8:05 AM
                  Okie style lol

                • gzig5

                  gzig5 FABO Gold Member FABO Gold Member

                  Messages:
                  213
                  Likes Received:
                  92
                  Joined:
                  May 3, 2018
                  Location:
                  Mequon, WI
                  Local Time:
                  10:05 AM
                  If you don't have a disk or belt grinder, turn the fixture on its side and mount a grinding disk in the drill press. Will go a little slower due to less disk surface speed, but it will make it happen. Of course if you are a caveman, a file will be sufficient. :poke:

                • Jadaharabi

                  Jadaharabi FABO Gold Member FABO Gold Member

                  Messages:
                  3,874
                  Likes Received:
                  3308
                  Joined:
                  Jan 8, 2016
                  Location:
                  Peoria, Illinois
                  Local Time:
                  10:05 AM
                  .
                  Just out of curiosity anybody have a way to resurface your hydraulic lifter faces?

                  • Thanks! Thanks! x 1
                  • Mopar Sam

                    Mopar Sam Well-Known Member

                    Messages:
                    185
                    Likes Received:
                    49
                    Joined:
                    Jul 18, 2008
                    Location:
                    Indiana
                    Local Time:
                    10:05 AM
                    Rustycowl, can you post a picture of this?

                  • rustycowll69

                    rustycowll69 Well-Known Member

                    Messages:
                    1,686
                    Likes Received:
                    642
                    Joined:
                    Feb 19, 2016
                    Location:
                    Pacific northwest
                    Local Time:
                    8:05 AM
                    I don't know how to post a picture on here.

                  • Mopar Sam

                    Mopar Sam Well-Known Member

                    Messages:
                    185
                    Likes Received:
                    49
                    Joined:
                    Jul 18, 2008
                    Location:
                    Indiana
                    Local Time:
                    10:05 AM
                    OK,I don't either.

                  • DesertRat

                    DesertRat FABO Gold Member FABO Gold Member

                    Messages:
                    2,598
                    Likes Received:
                    1445
                    Joined:
                    Jan 22, 2005
                    Location:
                    Moses Lake, Washington
                    Local Time:
                    8:05 AM
                    I am going to use this method to prep mine for the new Smith Brothers adjusters I have on the way.

                    • Like Like x 1
                    • pishta

                      pishta I know I'm right....

                      Messages:
                      13,684
                      Likes Received:
                      3417
                      Joined:
                      Oct 13, 2004
                      Location:
                      Tustin, CA
                      Local Time:
                      8:05 AM
                      see post #3

                      • Like Like x 1
                      • toolmanmike

                        toolmanmike FABO Staff Staff Member FABO Gold Member

                        Messages:
                        35,148
                        Likes Received:
                        17122
                        Joined:
                        Jan 18, 2006
                        Location:
                        Iowa
                        Local Time:
                        10:05 AM
                        Click on "Upload photos" next to "post reply" . There should be a option to your photo file. Find your photo and click on it. It should load on your screen. Then click "post reply".

                      • toolmanmike

                        toolmanmike FABO Staff Staff Member FABO Gold Member

                        Messages:
                        35,148
                        Likes Received:
                        17122
                        Joined:
                        Jan 18, 2006
                        Location:
                        Iowa
                        Local Time:
                        10:05 AM
                        Sometimes I wish I had an old valve/seat grinder.

                        • Agree Agree x 2
