360 Magnum Build w/ V Belt Configuration Question

Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
Hi everyone! Been reading threads on here for quite some time, learning as much as I can about Magnum engines. Also on the Magnum Swap site. But I can't really find an answer to this one question.

So, we are building a '71 Demon for my daughter. With the purchase of the car came a 1994 360 Magnum (not installed but was previously in a '68 Charger). The engine has a MOPAR M1 single plane intake and LA style brackets for power steering and alternator (Alternator was still bolted to the engine). As you may know, this intake has the correct style thermostat/bypass inlet for the v belt configuration.

This M1 single plane is not compatible for what we want to do, need a dual plane.

Have any of you been successful with running the LA style water pump/pulleys and accessories (power steering pump/alternator) with the the Edelbrock 7577 Magnum Air Gap intake? I know the bypass inlet sticks straight out on that one as compared to the M1 single plane where it sticks out on an angle.

If the Air Gap is not really compatible with the older v belt configuration, I'm thinking of trying to find a MOPAR M1 dual plane for the Magnum. I know they don't make them any more so I will be hunting. I've been researching 2 other intake options: Assault Magnum intake and the Crosswind Magnum intake. Both of these seem to have mixed reviews with leaking and what not, but some people seem to like them. I just figured the MOPAR M1 may be a better fit? Not sure?

I really don't want to try and hunt down the serpentine configuration just so we can use the Air Gap intake, not when we already have the v belt pulleys and accessories.

Anyway, thanks for any info you can share.

Bill


RammerJammer75

Well-Known Member
Joined
Aug 28, 2020
Messages
1,458
Reaction score
1,906
Location
Kingsport, TN
I don't think you'll have a problem. I have a Magnum with said Airgap, but I only have an Alternator/waterpump/crank belt. No A/C or powersteering on the engine. But I don't think you'll have an issue with the ps pump and an Airgap.


Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
I guess I'm wondering if the inlet bypass on the Air Gap causes issues with the long snout water pump and pulley. And also, what hose would work? Do you just make something up with the correct size hose or can you order the exact hose?

If you happen to have any pictures of your set up that would be awesome.


Bobzilla

Well-Known Member
Joined
Aug 10, 2017
Messages
1,327
Reaction score
1,047
Location
Southeast Michigan
If you already have an LA style timing cover, water pump, and v-belt pulleys, you can run any intake you want, including the Magnum specific 7577. The straight bypass hose of the intake can still be connected to the LA bypass connection. Some people use different angle fittings at the intake.
LA style power steering should be no problem either.
What is the reason for changing from M1 single plane to a dual plane setup? The M1 single plane is a good intake. Will you be selling or trading the M1 after the swap? Can you post a picture of your current setup from the front showing pulley setup and intake?


rumblefish360

I have escaped the evil Empire State!
FABO Gold Member
Joined
Jun 21, 2005
Messages
44,981
Reaction score
17,717
Location
Florida
There should be no real issue running anV belt configuration with the magnum engine. The best way to get everything in line is a total swap over to the LA front. Use the timing cover forward.

The short cam poses a minor problem with ether a cam nose extension from Hughesengines or a swap back to a Hyd. cam. Personally I’d stay with the roller cam, though expensive by itself, you just reuse the OE roller tappets and maybe a new set of pushrods. That depends on the ew cams lift. Just remember LA Hyd. cams are given lift values at a 1.5 rocker ratio and the Magnum has a 1.6 ratio.


Bobzilla

Well-Known Member
Joined
Aug 10, 2017
Messages
1,327
Reaction score
1,047
Location
Southeast Michigan
I guess I'm wondering if the inlet bypass on the Air Gap causes issues with the long snout water pump and pulley. And also, what hose would work? Do you just make something up with the correct size hose or can you order the exact hose?

If you happen to have any pictures of your set up that would be awesome.
If you use a long brass fitting at the intake the hose connection to an LA water pump gets tricky because the hose wants to kink. Using an angle fitting sometimes helps. Using an actual Mopar intake fitting can help too because the fitting is shorter, reducing the tight hose kink.


rumblefish360

I have escaped the evil Empire State!
FABO Gold Member
Joined
Jun 21, 2005
Messages
44,981
Reaction score
17,717
Location
Florida
That M1 single is really a 3500 - 7000 rpm intake. While it can be used on the street just fine & even with smallish cams, the torque loss is hard to overcome. There very effective on strokers.

If I didn’t dump 90% percent of my Magnum parts already, been I’d purchase that intake from you or trade it out for a Edelbrock Magnum RPM intake. The M1 line is still a pretty darn good intake.


RammerJammer75

Well-Known Member
Joined
Aug 28, 2020
Messages
1,458
Reaction score
1,906
Location
Kingsport, TN
I do have some pictures. The reason for the 45* inlet is the engine is quite a bit higher than the radiator cap, so that really helped an issue I had with air pockets and overheating.

Don't pay attention to the rat's nest of wiring. I was in the middle of wiring the truck.


Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
Thanks everyone for your replies!

I wish I would have taken more pics before I tore it down. Here's the LA stuff, sounds like I'll be good to go since I have the timing chain cover and other bits.

And yes, my daughter will be using this car for street duty. So the rpm range on the M1 single plane is not what we want. I will be getting rid of it. It is an awesome intake though.



RammerJammer75

Well-Known Member
Joined
Aug 28, 2020
Messages
1,458
Reaction score
1,906
Location
Kingsport, TN
The worst part was the bypass hose. Just take your time, and cut very little off of it at a time. I was careful and thankfully got it right the first time. you should still have plenty of room for ps, my upper hose is so low due to the engine location.


Bobzilla

Well-Known Member
Joined
Aug 10, 2017
Messages
1,327
Reaction score
1,047
Location
Southeast Michigan
The M1 single plane operating range is the “sweet spot” but it works fine on the street.
Why is it all torn down now; major changes or just little stuff?
RammerJammer75 shows how well the bypass hose will work in his second picture. Nice picture.

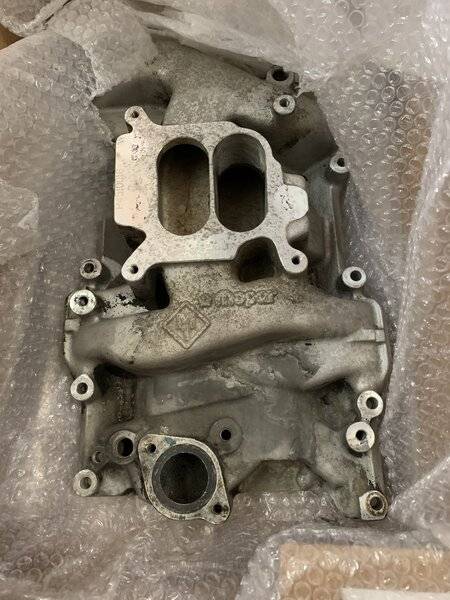

Just for reference, I will attach a picture of an M1 dual plane for Magnum heads and with Magnum bypass hose and thermostat.


Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
Ok, so you just bought the correct fit hose and then modified it to fit with no kinks.

I did find a pic of the engine the day picked up the car.


Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
The M1 single plane operating range is the “sweet spot” but it works fine on the street.
Why is it all torn down now; major changes or just little stuff?
RammerJammer75 shows how well the bypass hose will work in his second picture. Nice picture.
Just for reference, I will attach a picture of an M1 dual plane for Magnum heads and with Magnum bypass hose and thermostat.
View attachment 1715625159

We tore it down because we had no idea the condition of the engine. It freaking looks brand new inside. We are going to change heads, cam, intake and possibly bump compression any way.


RammerJammer75

Well-Known Member
Joined
Aug 28, 2020
Messages
1,458
Reaction score
1,906
Location
Kingsport, TN
There really isn't a correct hose to use an LA water pump with a Magnum intake. I think I used an LA bypass hose and cut it to fit, but I can't remember.


Bobzilla

Well-Known Member
Joined
Aug 10, 2017
Messages
1,327
Reaction score
1,047
Location
Southeast Michigan
We tore it down because we had no idea the condition of the engine. It freaking looks brand new inside. We are going to change heads, cam, intake and possibly bump compression any way.
This is what I wondered. Before selecting an intake, figure out which heads you are going to run. The only decent Magnum head right now is the Edelbrock Magnum head. But if you definitely want to change heads and intake, and definitely want to use v-belt LA front accessories, you could convert to LA heads and rocker gear, and an LA air gap manifold at the same time.
Not trying to steer your build, but you may have more parts to choose from if you go that way.


66fyssh

Don't Stop Believin'
FABO Gold Member
Joined
Jun 22, 2013
Messages
7,481
Reaction score
8,206
Location
Northwest GA
I bought a short fitting and a hose from Summit. The fitting worked but the hose did not. So I took the original hose to the parts store and looked through to find a molded one that would work. Power steering but no a/c. 2001 Magnum with an Air Gap. I went with a mechanical temperature gauge. You can see setup in the second picture.



Last edited:

Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
I do have some pictures. The reason for the 45* inlet is the engine is quite a bit higher than the radiator cap, so that really helped an issue I had with air pockets and overheating.
View attachment 1715625149 View attachment 1715625150
Don't pay attention to the rat's nest of wiring. I was in the middle of wiring the truck.

As far as the thermostat housing is concerned (in the rats nest pic :)), do you remember what you bought that for? I know the thermostat style is a little different compared to the older LA style.


66fyssh

Don't Stop Believin'
FABO Gold Member
Joined
Jun 22, 2013
Messages
7,481
Reaction score
8,206
Location
Northwest GA
I think the Summit hose fitting part number is PRS-1060.

Last edited:

YY1

Well-Known Member
Joined
Oct 11, 2011
Messages
9,882
Reaction score
5,837
Location
FL
Just a foot note but the bypass hose is a PITA and wants to kink on a Magnum engine with a factory intake as well.


Bobzilla

Well-Known Member
Joined
Aug 10, 2017
Messages
1,327
Reaction score
1,047
Location
Southeast Michigan
We tore it down because we had no idea the condition of the engine. It freaking looks brand new inside. We are going to change heads, cam, intake and possibly bump compression any way.
Do you have the pistons out of the bores? Any picture available of a piston? Is there a yellow tag or sticker anywhere on the engine block or cylinder heads with a Mopar part number on it?


Six Barrel Bill

Well-Known Member
Joined
Jul 24, 2019
Messages
75
Reaction score
24
Location
Syracuse, UT
Do you have the pistons out of the bores? Any picture available of a piston? Is there a yellow tag or sticker anywhere on the engine block or cylinder heads with a Mopar part number on it?

Yes, it's completely tore down. There is zero lip on the piston bore, pretty happy with it. We are meeting with our machinist this weekend to make sure everything is in spec and will go from there.


rumblefish360

I have escaped the evil Empire State!
FABO Gold Member
Joined
Jun 21, 2005
Messages
44,981
Reaction score
17,717
Location
Florida
For cylinder heads, there are available for you in;

Iron, stock replacement style.
Once such example below, do shop around though.
CHRYSLER 5.2/5.9 MAGNUM New Full - PROMAXX Performance Products

Edelbrock aluminum for the first step up in performance.
Edelbrock Performer RPM Chrysler Magnum Cylinder Heads 61775

Trick Flow heads that will then use a LA intake but yet you will still be able to oil through the pushrods with the correct Harland Sharp rocker arms.
Parts and Accessories - cylinder-heads part-type - trick-flow-powerport-190-cylinder-heads-for-small-block-mopar product-line

You can also use Comp Cams Pro Magnum rocker arms to use oil through pushrods on stock or Edelbrock heads since they allow pushrod oiling. The last two options allow the use of cheaper & a wider verity of LA intake manifolds.


rumblefish360

I have escaped the evil Empire State!
FABO Gold Member
Joined
Jun 21, 2005
Messages
44,981
Reaction score
17,717
Location
Florida
Choose head flow over compression! Better air flow is better than compression. This is and has been proven before.


Bobzilla

Well-Known Member
Joined
Aug 10, 2017
Messages
1,327
Reaction score
1,047
Location
Southeast Michigan
