'65 Dart No brake lights. Brake light switch failure?

Joined
Jan 7, 2007
Messages
7,104
Reaction score
2,663
Location
Vancouver BC
The brake lamp wire doesn't route thru the turn signal switch in 1965.

Does so; that's how the brake and turn signal functions are provided by the same filament. Brake light power runs from +12v to the brake light switch, to the turn signal switch, to the left and right rear lights. The turn signal switch is designed to supply power to the rear lights either via the brake light switch or via the turn signal flasher, depending on the position of the lever:

Left turn: left rear lamp fed from flasher; right rear lamp fed from brake light switch (if it's sending power because your foot's on the brake)

Right turn: right rear lamp fed from flasher; left rear lamp fed from brake light switch (if it's sending power because your foot's on the brake)

No turn: both rear lamps fed from brake light switch (if it's sending power because your foot's on the brake).

This is why, with the ignition off and the brake and turn signal switches in good working order, stepping on the brake and moving the turn signal lever to the left or right position will kill the left or right brake light: the turn signal switch is breaking that lamp's brake light power feed and connecting that lamp's turn signal flasher feed, but there's nothing coming from the flasher because that's an ignition-switched circuit.

You needn't believe me on this, but you'd get in a knock-down/drag-'em-out quarrel about it with the factory wiring diagrams.

It did by the time of my 1969 Dart. You can tell because the replaceable plastic cam in later cars has 2 wires on it vs just-plastic in earlier ones.

No, those two wires you see on the 1969 switch are part of the lane-change feature added around that time (flash as long as you hold the turn signal lever slightly up or down from the neutral position, without clicking it into the left or right position). And those two wires you're talking about aren't necessarily indicative; the final-revision version of the switch without the lane-change feature (this one) also has two wires, one red and one white, on the underside of the cam.

A faulty turn signal switch on an A-body of any year can certainly cause one or both brake lights not to light up, even if the brake light switch is good.

OP, if you wind up needing a new turn signal switch, shop carefully—there's a lot of poorly-made junk on the market; mine don't suck. :-D


Stumpy

Well-Known Member
Joined
Aug 10, 2020
Messages
151
Reaction score
91
Location
WA
OP, if you wind up needing a new turn signal switch, shop carefully—there's a lot of poorly-made junk on the market; mine don't suck. :-D

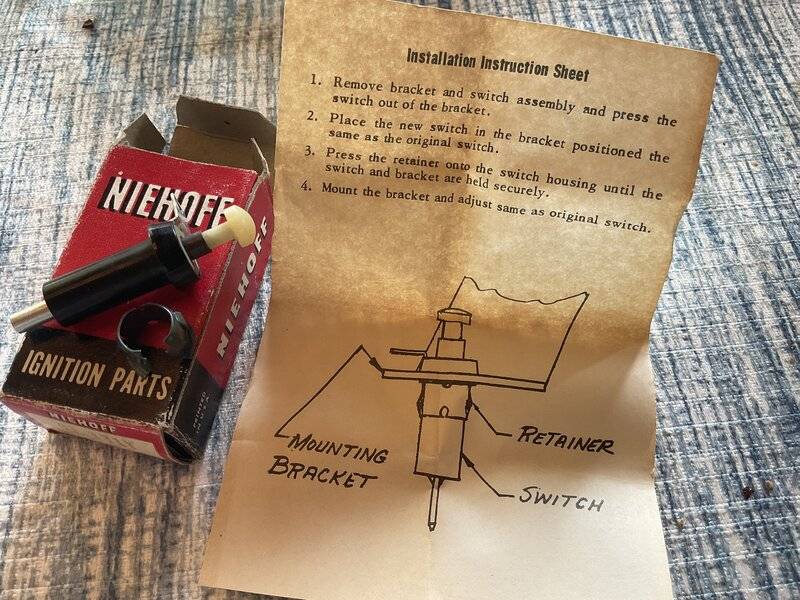

The brake light switch was faulty. I replaced it with this. It wasn’t $9.95. :)

Works great now.


Last edited:

BillGrissom

Well-Known Member
Joined
May 10, 2009
Messages
7,807
Reaction score
821
Location
Sacramento
Does so; that's how the brake and turn signal functions are provided by the same filament. Brake light power runs from +12v to the brake light switch, to the turn signal switch, to the left and right rear lights. The turn signal switch is designed to supply power to the rear lights either via the brake light switch or via the turn signal flasher, depending on the position of the lever:
k-down/drag-'em-out quarrel about it with the factory wiring diagrams.

Left turn: left rear lamp fed from flasher; right rear lamp fed from brake light switch (if it's sending power because your foot's on the brake)



Right turn: right rear lamp fed from flasher; left rear lamp fed from brake light switch (if it's sending power because your foot's on the brake)



No turn: both rear lamps fed from brake light switch (if it's sending power because your foot's on the brake).



This is why, with the ignition off and the brake and turn signal switches in good working order, stepping on the brake and moving the turn signal lever to the left or right position will kill the left or right brake light: the turn signal switch is breaking that lamp's brake light power feed and connecting that lamp's turn signal flasher feed, but there's nothing coming from the flasher because that's an ignition-switched circuit.



You needn't believe me on this, but you'd get in a knoc


No, those two wires you see on the 1969 switch are part of the lane-change feature added around that time (flash as long as you hold the turn signal lever slightly up or down from the neutral position, without clicking it into the left or right position). And those two wires you're talking about aren't necessarily indicative; the final-revision version of the switch without the lane-change feature (this one) also has two wires, one red and one white, on the underside of the cam.

A faulty turn signal switch on an A-body of any year can certainly cause one or both brake lights not to light up, even if the brake light switch is good.

OP, if you wind up needing a new turn signal switch, shop carefully—there's a lot of poorly-made junk on the market; mine don't suck. :-D
Thanks for the correction and explanation of what those wires on my 1969 turn signal cam were for. 67Dart273 beat you to the correction, which I agreed with before your post (after pulling out my 1965 Shop Manual).

Joined
Jan 7, 2007
Messages
7,104
Reaction score
2,663
Location
Vancouver BC
One of the problems with blocking/ignoring someone is that occasionally this kind of apparent copycatting happens. I find that's the lesser of the two possible kinds of annoyance, so ¯\_(ツ)_/¯


67Dart273

Well-Known Member
Joined
Oct 14, 2010
Messages
56,523
Reaction score
28,313
Location
Idaho
Yeh see Danny boi just can't ******* stand that someone else might be correct once in awhile. That is what happens when your ego is so damn big that it gets in the way of your brain and eyesight


BillGrissom

Well-Known Member
Joined
May 10, 2009
Messages
7,807
Reaction score
821
Location
Sacramento
Wow, who would block 67Dart273? He always gives useful info. Sounds like two old retired guys who hang out in front of the barber shop and stopped talking to each other over some issue they long forgot. Might finally talk once one is on their deathbed. I have two sisters still in our hometown. Once one related, "I no longer talk to her". Never found out what about, perhaps over caring for our parents since departed, but whatever it was they now talk. Just saw the film "Rescue Dawn", a factual story about a new USN pilot coming to a Laotian POW camp with long-time Air America prisoners. One stopped talking to the others years ago over something they long forgot. BTW, I doubt "******* stand" is correct for Dan. Nobody does the nasty standing up, even if depicted in the Kama Sutra.
