71 Dart 410 stroker ..

Mopar Racers Forum

  1. 70aarcuda

    70aarcuda Master Hoader of SBM FABO Gold Member

    Messages:
    14,652
    Likes Received:
    2860
    Joined:
    Jan 16, 2005
    Location:
    las vegas
    Local Time:
    12:43 AM
    Refreshing 360 after 10 years....

    Well the upgrading of the old engine is done...coming out in a couple of weeks with a new 410 going in...new K1 4 inch crank next to OEM 3.58 crank. 20170709_104956.jpg

    • Like Like x 7
    • 70aarcuda

      70aarcuda Master Hoader of SBM FABO Gold Member

      Messages:
      14,652
      Likes Received:
      2860
      Joined:
      Jan 16, 2005
      Location:
      las vegas
      Local Time:
      12:43 AM
      crank is in...piston on rods...I think i got the even bank pistons on backwards...at least in the picture...no spiro locks yet..so easy fix...LOL



      Last edited: Jul 9, 2017
      • Like Like x 1
      • 70aarcuda

        70aarcuda Master Hoader of SBM FABO Gold Member

        Messages:
        14,652
        Likes Received:
        2860
        Joined:
        Jan 16, 2005
        Location:
        las vegas
        Local Time:
        12:43 AM
        driver side......Heads coming off old engine as they are fresh with maybe 10 runs on them since Brian updated them ....


        • Like Like x 2
        • 70aarcuda

          70aarcuda Master Hoader of SBM FABO Gold Member

          Messages:
          14,652
          Likes Received:
          2860
          Joined:
          Jan 16, 2005
          Location:
          las vegas
          Local Time:
          12:43 AM
          Rest of engine...

          Eddy heads originally cnc at hughes...updated last October by Brian at IMM after 7 yrs...installed 2.08 intake and performed necessary unshrouding of chamber for bigger valve..
          Hughes 264/268 Flat tappet...Howards direct luber lifters.with 1.6 rockers...on non grooved shafts...lol...Eddy Victor intake..the old hooker 5204 headers..

          next race Sept 8....

        • 70aarcuda

          70aarcuda Master Hoader of SBM FABO Gold Member

          Messages:
          14,652
          Likes Received:
          2860
          Joined:
          Jan 16, 2005
          Location:
          las vegas
          Local Time:
          12:43 AM

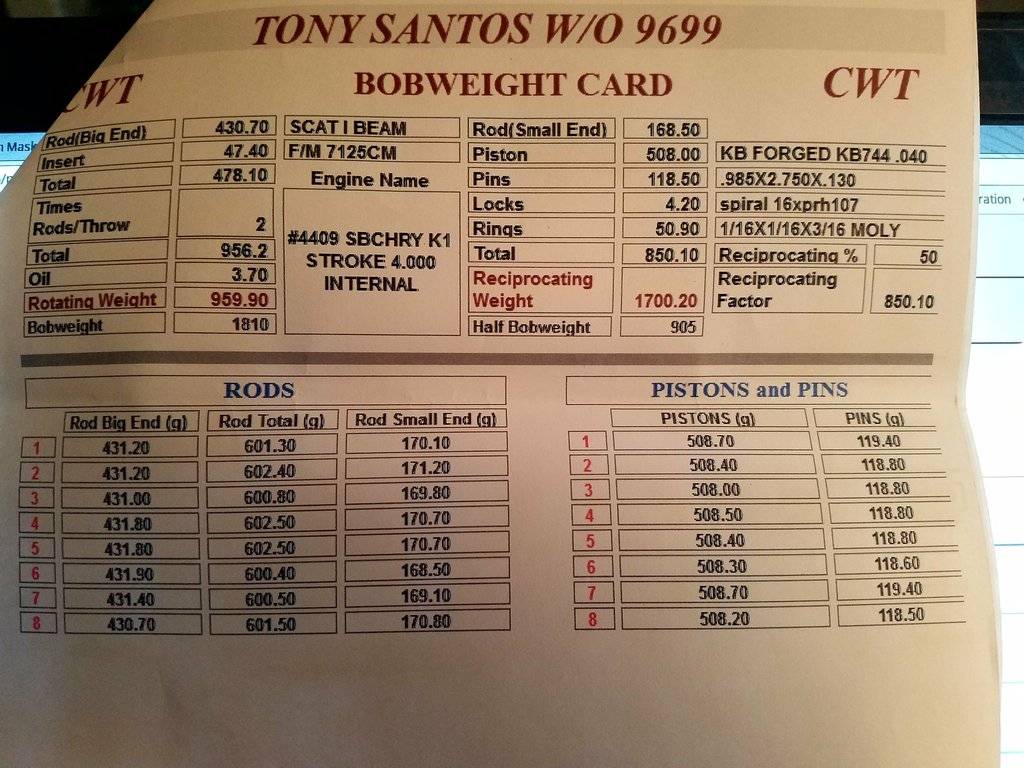

          balanced sheet...


          • Like Like x 1
          • Thanks! Thanks! x 1
          • Abodybomber

            Abodybomber Breaking street machines , since 1983.....:) Legendary Member

            Messages:
            31,729
            Likes Received:
            10462
            Joined:
            May 21, 2011
            Location:
            Arroyo grande ca
            Local Time:
            12:43 AM
            That's a nice combo, Tony... Best of luck.

          • j par

            j par Well-hung Member

            Messages:
            17,254
            Likes Received:
            8343
            Joined:
            Jul 2, 2014
            Location:
            Portland Oregon
            Local Time:
            12:43 AM
            I don't remember reading that any of your cars where strokers before?

          • 70aarcuda

            70aarcuda Master Hoader of SBM FABO Gold Member

            Messages:
            14,652
            Likes Received:
            2860
            Joined:
            Jan 16, 2005
            Location:
            las vegas
            Local Time:
            12:43 AM
            They are not...

          • j par

            j par Well-hung Member

            Messages:
            17,254
            Likes Received:
            8343
            Joined:
            Jul 2, 2014
            Location:
            Portland Oregon
            Local Time:
            12:43 AM
            So are you expecting any kind of learning curve with the new Power curve/torque curve?

          • 70aarcuda

            70aarcuda Master Hoader of SBM FABO Gold Member

            Messages:
            14,652
            Likes Received:
            2860
            Joined:
            Jan 16, 2005
            Location:
            las vegas
            Local Time:
            12:43 AM
            Good question...expecting it to run faster then the 360...lol

            • Thanks! Thanks! x 1
            • o1heavy

              o1heavy 1974 dart sport

              Messages:
              802
              Likes Received:
              243
              Joined:
              Jan 7, 2009
              Location:
              tarkington
              Local Time:
              2:43 AM
              You sure know how to party
              Your not changing anything but the engine correct And wasn't the 360 running high 10's

            • j par

              j par Well-hung Member

              Messages:
              17,254
              Likes Received:
              8343
              Joined:
              Jul 2, 2014
              Location:
              Portland Oregon
              Local Time:
              12:43 AM
              The way I understand this, this is going to be pretty much the same as everything you had before except the longer stroke? Will there be any difference in compression?
              You know I kind of jokingly pose this question between the two combinations on a thread I had and it seems the majority would think that you're old combination wood have more power? Now course I don't want to bring up any crazy arguments and start any of my brand of insanity on your thread so if that's starts I'm out. But with that said I'm extremely curious to see what kind of difference the extra stroke makes at the drag strip. In my personal opinion you bringing and posting timeslips from the Dragstrip Carries 10 times more weight then anybody running there neck or any dyno.
              I think you mentioned your first race on September 8th, I'm setting my calendar on my phone to to revisit this thread on September 9th.
              ( likely I will before then but that one I don't wanna miss)



            • 70aarcuda

              70aarcuda Master Hoader of SBM FABO Gold Member

              Messages:
              14,652
              Likes Received:
              2860
              Joined:
              Jan 16, 2005
              Location:
              las vegas
              Local Time:
              12:43 AM
              yes..the 410 will have more compression...and little more camshaft....Yes..it will be using the same heads off the 360......yes..the heads will probably be the limiting higher rpm horse power....BUT...that is to say the 360 was using all of the head...and we did upgrade the head with a 2.08 valve....

              Yes....as I say...the clocks don't lie...So come 9/8 we will see...and even better...Nov 3-4 we will be in Bakersfield...Should see the best air ever for that car.....Hopefully by then we should have the bugs worked out as there are 3 bracket races in Sept plus a TnT....

            • 70aarcuda

              70aarcuda Master Hoader of SBM FABO Gold Member

              Messages:
              14,652
              Likes Received:
              2860
              Joined:
              Jan 16, 2005
              Location:
              las vegas
              Local Time:
              12:43 AM
              Actually that 360 had run 10.30s in Bakersfield...but last sept it blew a head gasket there...and I decided to refresh the engine...so now the refreshed engine is having issues as it apparently having issues with ring seal....just got done doing a leak down...no. 8 has 25% leakage...and another 3 cylinders are right at 10%....and it is all blowing pass the rings...with the 360 being ..060 I am not wanting to spend anymore time and money on it....so we are moving on.....

            • 70aarcuda

              70aarcuda Master Hoader of SBM FABO Gold Member

              Messages:
              14,652
              Likes Received:
              2860
              Joined:
              Jan 16, 2005
              Location:
              las vegas
              Local Time:
              12:43 AM
              And the pistons on the even bank were on backwards....corrected today and spiro locks are on...busted the rod caps off...going to wipe down the bores again...and hopefully get this short block together by this weekend.

              • Agree Agree x 1
              • 70aarcuda

                70aarcuda Master Hoader of SBM FABO Gold Member

                Messages:
                14,652
                Likes Received:
                2860
                Joined:
                Jan 16, 2005
                Location:
                las vegas
                Local Time:
                12:43 AM
                also putting a 408 that i bought the short block a couple of years ago back in service.....it is heading for the 71 Duster....not sure on it project date of race...as car needs to get painted....has MP forged crank scat rods and same KB744 .030.....same hughes cam..and shady dell ported eddy heads..

              • j par

                j par Well-hung Member

                Messages:
                17,254
                Likes Received:
                8343
                Joined:
                Jul 2, 2014
                Location:
                Portland Oregon
                Local Time:
                12:43 AM
                My mind goes to the possible added torque at launch and maybe possible suspension adjustments or something?
                LOL, I'm already overthinking it LOL

              • 318willrun

                318willrun Stomper 4x4... we kept energizer in business

                Messages:
                10,940
                Likes Received:
                10115
                Joined:
                Sep 13, 2013
                Location:
                I'm here
                Local Time:
                2:43 AM
                J par..... relax :D.... the extra cubes makes more power BUT.... this is not comparing the difference in stroke because the stroker will have more cam and compression. Thus, it will eliminate any chance of having a fair comparison of what the extra stroke was worth.

                • Like Like x 1
                • j par

                  j par Well-hung Member

                  Messages:
                  17,254
                  Likes Received:
                  8343
                  Joined:
                  Jul 2, 2014
                  Location:
                  Portland Oregon
                  Local Time:
                  12:43 AM
                  Yup, different cam and compression was my first clue also.
                  I'm sure that's been done somewhere.


                • 70aarcuda

                  70aarcuda Master Hoader of SBM FABO Gold Member

                  Messages:
                  14,652
                  Likes Received:
                  2860
                  Joined:
                  Jan 16, 2005
                  Location:
                  las vegas
                  Local Time:
                  12:43 AM
                  The GF knows what the extra stroke is worth..

                • Abodybomber

                  Abodybomber Breaking street machines , since 1983.....:) Legendary Member

                  Messages:
                  31,729
                  Likes Received:
                  10462
                  Joined:
                  May 21, 2011
                  Location:
                  Arroyo grande ca
                  Local Time:
                  12:43 AM
                  He know's chassis, gear's & logs response according(ly). ..It isn't easy, simple , or cheap?. Heck no, it isn't.. And that's truth...

                • 70aarcuda

                  70aarcuda Master Hoader of SBM FABO Gold Member

                  Messages:
                  14,652
                  Likes Received:
                  2860
                  Joined:
                  Jan 16, 2005
                  Location:
                  las vegas
                  Local Time:
                  12:43 AM
                  Well...it started off great today...I never had a crank turn so easy...wow..
                  i began knocking in the pistons on the odd side of the engine...everything goes great..turns over so smooth...
                  start on even bank...wow...it does not turn over so easy...and after two pistons...houston we got a problem...
                  I know the crank needs narrow rod bearing...and I thought that is what i ordered from Sealed Power 8-7125CH..but taking a second look at the bearing they appear not to be narrowed...ok...so have i have set of Clevite CB481HN coming from summit ...hopefully tomorrow..

                • flyfish

                  flyfish C8H18+N2O = :-D

                  Messages:
                  1,943
                  Likes Received:
                  477
                  Joined:
                  Apr 16, 2007
                  Location:
                  Indy
                  Local Time:
                  3:43 AM
                  I'll be using that same Hughes cam when I rebuild my 410...and shady dell ported heads (mine are 57cc)...possibly the same pistons (have not decided yet between KB, Icon, and Wiseco). Should be real close to the same. I'm hoping it will run 10.30's or better, but only time will tell.

                • 70aarcuda

                  70aarcuda Master Hoader of SBM FABO Gold Member

                  Messages:
                  14,652
                  Likes Received:
                  2860
                  Joined:
                  Jan 16, 2005
                  Location:
                  las vegas
                  Local Time:
                  12:43 AM
                  new bearing...no problem....moving on to degree in cam......1st try....with lining up the dots....106...looking for 104.....with correct it up this weekend as it was too hot in the garage even with the swamp cooler blowing me...LOL

                  With the blocking being squared for the 360 crank...I had the machine shop machine cut it to 9.545...about .015 cut...pistons are .003 in the hole....going to have some pop...

                  71 Duster goes in Saturday to begin body work....

                  • Like Like x 1
                  • 273

                    273 Well-Known Member

                    Messages:
                    2,873
                    Likes Received:
                    683
                    Joined:
                    May 14, 2012
                    Location:
                    Ontario
                    Local Time:
                    3:43 AM
                    Top end makes the power, displacement decides where that power is made (powerband) and gearing matches the car abilities to the engines powerband.

                    To me the rise of 408's is due to most don't want to run more gear than 3.55.

                    Eg. Say 450 hp 360 and 408
                    408 500 lbs-ft x 3.55 = 1775 lbs-ft
                    360 433 lbs-ft x 4.10 = 1775 lbs-ft
                    360 433 lbs-ft x 3.55 = 1537 lbs-ft
