Advice small block K frame with Schumacher conversion mounts for a big block

Big Block A body Tech

  1. Bigboy 68

    Bigboy 68 it is what it is

    Messages:
    2,029
    Likes Received:
    318
    Joined:
    May 16, 2017
    Location:
    Middletown, Delaware
    Local Time:
    2:03 PM
    I’m not sure but I think I read in another thread that mods need to be done to a small block K frame with using Schumacher big block conversion mounts any help on this would be appreciated

  2. 383Duster

    383Duster Well-Known Member

    Messages:
    2,113
    Likes Received:
    958
    Joined:
    Jan 11, 2009
    Location:
    Dallas, TX.
    Local Time:
    1:03 PM
    You have to cut a notch to clear the oil pump

    • Like Like x 2
    • Agree Agree x 2
    • d55dave

      d55dave Well-Known Member

      Messages:
      2,547
      Likes Received:
      1059
      Joined:
      May 20, 2010
      Location:
      Kelowna, British Columbia
      Local Time:
      1:03 PM
      Are you starting with a spool or biscuit mount k frame?

    • Bigboy 68

      Bigboy 68 it is what it is

      Messages:
      2,029
      Likes Received:
      318
      Joined:
      May 16, 2017
      Location:
      Middletown, Delaware
      Local Time:
      2:03 PM
      Biscuit Mount

    • mopar65

      mopar65 Well-Known Member

      Messages:
      1,894
      Likes Received:
      1356
      Joined:
      Mar 23, 2008
      Location:
      Laquey MO
      Local Time:
      1:03 PM
      '67-72 A-Body B/RB Installation

      On my 73 dart with spool mounts, I also had to drill a new hole on the drivers side mount. But you said Biscuit mounts, so what i said won't matter to you. Don't forget to post pics of your build.

      • Like Like x 1
      • Agree Agree x 1
      • 383Duster

        383Duster Well-Known Member

        Messages:
        2,113
        Likes Received:
        958
        Joined:
        Jan 11, 2009
        Location:
        Dallas, TX.
        Local Time:
        1:03 PM
        My car had a 318 in it, biscuit mounts...just needed the notch for the big block oil pump

      • d55dave

        d55dave Well-Known Member

        Messages:
        2,547
        Likes Received:
        1059
        Joined:
        May 20, 2010
        Location:
        Kelowna, British Columbia
        Local Time:
        1:03 PM
        Yes, as you have biscuit mounts I believe that you have to notch for the oil pump.

        Last edited: Oct 22, 2019
      • Lefty71

        Lefty71 Well-Known Member

        Messages:
        556
        Likes Received:
        433
        Joined:
        Nov 7, 2013
        Location:
        Ohio
        Local Time:
        2:03 PM

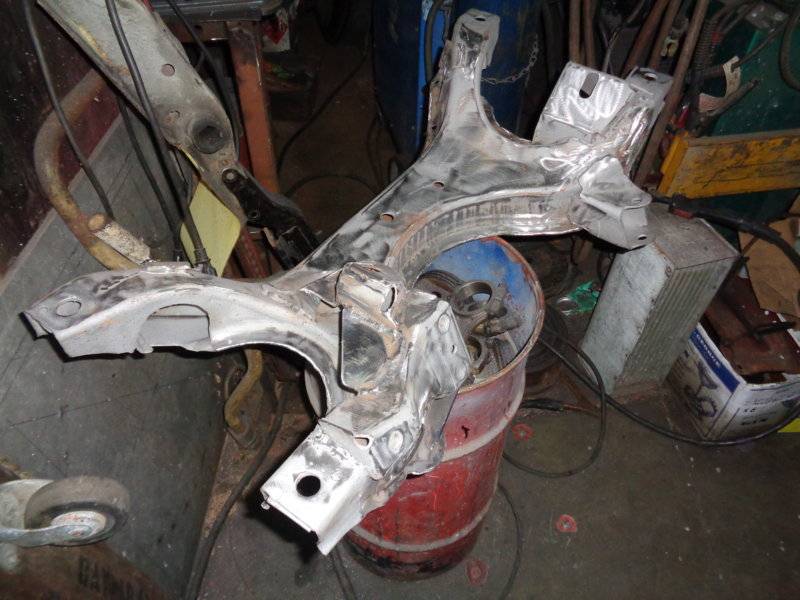

        I dont know if you can zoom in on the detail, and I'll try and find you a better pic, but this is a small block "K" in a '69 with Schumacher biscuit mounts and a notch for the pump.

      • Lefty71

        Lefty71 Well-Known Member

        Messages:
        556
        Likes Received:
        433
        Joined:
        Nov 7, 2013
        Location:
        Ohio
        Local Time:
        2:03 PM
        I dont know if you can zoom in on the detail, and I'll try and find you a better pic, but this is a small block "K" in a '69 with Schumacher biscuit mounts and a notch for the pump.

      • Lefty71

        Lefty71 Well-Known Member

        Messages:
        556
        Likes Received:
        433
        Joined:
        Nov 7, 2013
        Location:
        Ohio
        Local Time:
        2:03 PM

      • Lefty71

        Lefty71 Well-Known Member

        Messages:
        556
        Likes Received:
        433
        Joined:
        Nov 7, 2013
        Location:
        Ohio
        Local Time:
        2:03 PM

      • Princess Valiant

        Princess Valiant A.K.A. Rainy Day Auto

        Messages:
        25,151
        Likes Received:
        19923
        Joined:
        Dec 14, 2011
        Location:
        Colorado
        Local Time:
        12:03 PM
        Trial fit it before cutting the notch for the oil pump.
        I have done many of these conversations and every k frame is slightly different.

        I had one k frame that didn't require a notch cut at all, the ear sat back far enough that it didn't touch and this was how it was from the factory.

        Others I have done, the template didnt put the notch in the right place or the size of the notch on the template was off.

        Best way is trial fit and mark where your notch is needed with a marker.

        • Like Like x 1
        • Agree Agree x 1
        • Dragonsteel

          Dragonsteel Well-Known Member

          Messages:
          304
          Likes Received:
          366
          Joined:
          May 12, 2015
          Location:
          Missouri
          Local Time:
          1:03 PM
          Found a close up of when I did my K-member which was out of a 69' Barracuda with a small block.

          Screen Shot 2019-10-22 at 12.39.16 AM.png

          • Like Like x 1
          • Bigboy 68

            Bigboy 68 it is what it is

            Messages:
            2,029
            Likes Received:
            318
            Joined:
            May 16, 2017
            Location:
            Middletown, Delaware
            Local Time:
            2:03 PM
            Thank you all much appreciated!!

          • carguy47

            carguy47 Well-Known Member

            Messages:
            615
            Likes Received:
            95
            Joined:
            Feb 5, 2015
            Location:
            Phoenix, Arizona
            Local Time:
            12:03 PM
            I am having a similar problem. The motor is not centered and sits way to the passenger side of the car.
            I have the same setup in my 68 with Schumacher setup.
            Is this normal?

            • Thanks! Thanks! x 1
            • Lefty71

              Lefty71 Well-Known Member

              Messages:
              556
              Likes Received:
              433
              Joined:
              Nov 7, 2013
              Location:
              Ohio
              Local Time:
              2:03 PM
              Have you checked to see if the motor is sitting level in the K-frame, by checking it with the car on a level surface side-to-side, evenly loaded (or unloaded really). There is some room to jockey the biscuits in the K-frame to level it. You should realize that all motors are off center to the passenger side for steering clearance too, right??

            • jos51700

              jos51700 Green Bearing thread connoisseur

              Messages:
              6,214
              Likes Received:
              3034
              Joined:
              May 24, 2009
              Location:
              Bel-Ray
              Local Time:
              1:03 PM
              Motor isn't centered in the car. Never was. It's supposed to sit off center.

            • AndyF

              AndyF Well-Known Member

              Messages:
              1,955
              Likes Received:
              2212
              Joined:
              Feb 23, 2009
              Location:
              Oregon
              Local Time:
              11:03 AM
              Is the transmission centered in the tunnel? How about the driveshaft? It is hard to tell from your question whether or not you have an actual problem. The engine is supposed to be offset to the passenger side so you have to measure and look to make sure it is in the correct location.

            • A Body 440 WHY NOT

              A Body 440 WHY NOT Well-Known Member

              Messages:
              361
              Likes Received:
              143
              Joined:
              Sep 28, 2019
              Location:
              Jersey
              Local Time:
              11:03 AM
              pics are great. I will be swing a 440 into my 69 Dart. Did you pick up the engine and trans on the carb plate ? My 440 has alum heads , alum intake ... I am wondering if the engine / trans package is too heavy to pic up with 4 3/8 bolts into alum ? any input ? thanks,

            • Lefty71

              Lefty71 Well-Known Member

              Messages:
              556
              Likes Received:
              433
              Joined:
              Nov 7, 2013
              Location:
              Ohio
              Local Time:
              2:03 PM

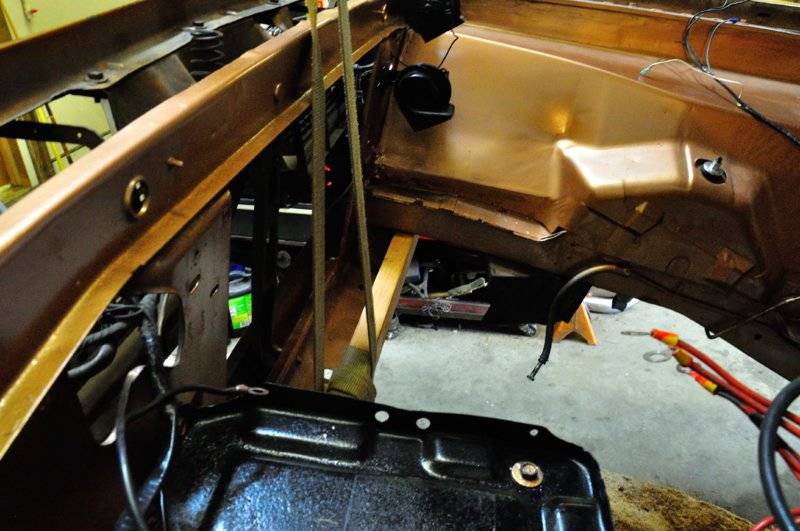

              I set the motors in there just like you see, but not with the added weight of the alt/pump and other stuff on the front of the motor. I make sure the bolts are torqued in place for the manifold, and the plate is snugged very well too. Those are iron heads, but aluminum would be no worry if it's all torqued down im sure.

            • 69B-Cuda

              69B-Cuda Well-Known Member

              Messages:
              1,339
              Likes Received:
              21
              Joined:
              Oct 19, 2009
              Location:
              Seatac, WA
              Local Time:
              11:03 AM
              I put the engine and trans combo with the headers on already onto the k-frame and then lowered the car onto it.



              • Like Like x 2
              • carguy47

                carguy47 Well-Known Member

                Messages:
                615
                Likes Received:
                95
                Joined:
                Feb 5, 2015
                Location:
                Phoenix, Arizona
                Local Time:
                12:03 PM
                I understand it is off center. I have maybe an inch of adjustment and the oil pan hits the K-member. Guess I will just notch the K-member.

                • Like Like x 2
                • A Body 440 WHY NOT

                  A Body 440 WHY NOT Well-Known Member

                  Messages:
                  361
                  Likes Received:
                  143
                  Joined:
                  Sep 28, 2019
                  Location:
                  Jersey
                  Local Time:
                  11:03 AM
                  I was going to drop the engine / trans in from the top. Is this a major prob going in from the top ?

                • pomonamissel

                  pomonamissel Well-Known Member

                  Messages:
                  2,109
                  Likes Received:
                  1187
                  Joined:
                  May 21, 2015
                  Location:
                  san jose , ca
                  Local Time:
                  1:03 PM
                  motor does sit to the passenger side of the bay , and the k frame must be notched for oil pump clearance . this is a slant k frame . with the whole thing welded up and reinforced . now its strong enough for a street a body with a rb powerplant . DSC00217.JPG DSC00218.JPG DSC00219.JPG DSC00220.JPG DSC00221.JPG DSC00222.JPG DSC00223.JPG DSC00224.JPG DSC00225.JPG

                • 69B-Cuda

                  69B-Cuda Well-Known Member

                  Messages:
                  1,339
                  Likes Received:
                  21
                  Joined:
                  Oct 19, 2009
                  Location:
                  Seatac, WA
                  Local Time:
                  11:03 AM
                  I originally wanted to drop mine in from the top as well, but followed advice on this forum and dropped the k-frame instead. On the plus side, you don't need to take the hood off!
                  Mine is a RB though, so taller than a B engine.(would hit heater motor and brake booster)
                  I can't speak to dropping it in from the top, sorry.

                  Last edited: Nov 25, 2019
