Anybody running a 360 tunnel ram on the street?

Small Block Mopar Engine

  1. Badart

    Badart Senior Member

    Messages:
    5,296
    Likes Received:
    83
    Joined:
    Feb 14, 2009
    Location:
    Northern Utah
    Local Time:
    9:08 AM
    I am debating. I have a chance to pick a 360 tunnel ram on a parts trade. I have always wanted to run dual quads sticking out to the hood. :toothy7: My 360 is done as soon as I pick up my heads from the machine shop. I planned on running a Eddy RPM and a 750 that I already have, but this might be too tempting. What carbs would you guys recommend? How would the street manners be? This will be a weekend cruiser and make the occasional trip to the track.

    Here is my combo

    Zero deck 360 shooting for 10:1 CR
    KB107 .030" over
    Stock rods and crank
    Comp XE275HL
    J heads 2.02 1.60 (mild porting and bowl blending by my engine builder)
    1.6 roller rockers

    904 with TF-2 and 3K stall convertor
    3.91 gears with detroit locker

    This is what it would be going into.

    View attachment ride3.jpg

    View attachment ride4.jpg

    • Like Like x 2
    • the wall

      the wall Well-Known Member

      Messages:
      258
      Likes Received:
      9
      Joined:
      Sep 19, 2010
      Location:
      nashville
      Local Time:
      10:08 AM
      390 holley

    • crackedback

      crackedback FABO Gold Member FABO Gold Member

      Messages:
      17,998
      Likes Received:
      2130
      Joined:
      Aug 7, 2005
      Location:
      92201
      Local Time:
      8:08 AM
      Depends on which tunnel ram.

      340 8bbl is pretty sharp on getting a TR to run on the street. Just takes time sorting them out.

    • JoeDust451

      JoeDust451 Well-Known Member

      Messages:
      1,365
      Likes Received:
      7
      Joined:
      Jul 1, 2005
      Local Time:
      10:08 AM
      Even though i'm not an eddy fan, I think a pair of 500s would work good once dialed in.

    • Kevin Jonker

      Kevin Jonker Well-Known Member

      Messages:
      498
      Likes Received:
      15
      Joined:
      Jan 24, 2005
      Location:
      Yucca Valley, Ca
      Local Time:
      4:08 PM
      I sure enjoy my 340 with 2 600 vac. secondary holleys on eddy street tunnel ram. I will have to give crackedback a ride so he can give his opinion.

    • Badart

      Badart Senior Member

      Messages:
      5,296
      Likes Received:
      83
      Joined:
      Feb 14, 2009
      Location:
      Northern Utah
      Local Time:
      9:08 AM
      I would like to see a pic of that.:prayer:

    • Chameleon

      Chameleon Dart Conissuer

      Messages:
      472
      Likes Received:
      22
      Joined:
      Apr 27, 2009
      Location:
      Jacksonville, Florida
      Local Time:
      11:08 AM
      Here is mine, its a little work to drive on the street with 2 600's.

      [ame="http://www.youtube.com/watch?v=sQolotFcSBA&feature=BFa&list=FLl8uIwMLgTNA&index=44"]‪TunnelRammed‬‏ - YouTube[/ame]

    • HawaiiDuster

      HawaiiDuster Well-Known Member

      Messages:
      2,574
      Likes Received:
      22
      Joined:
      May 22, 2004
      Location:
      Honolulu & Las Vegas
      Local Time:
      8:08 AM
      I always wanted to do a tunnel ram on the street, but with 2 throttle bodies and multi port injection.

    • jrlegacy23

      jrlegacy23 5.7 Hemi Dart

      Messages:
      2,389
      Likes Received:
      75
      Joined:
      Jun 27, 2006
      Location:
      Laurens, NY
      Local Time:
      11:08 AM
      X2, great carbs.

    • DJVCUDA

      DJVCUDA Well-Known Member

      Messages:
      1,083
      Likes Received:
      7
      Joined:
      May 26, 2004
      Local Time:
      4:08 PM
      I've had an Eddy Street Tunnel Ram on the street since 2005


      The smaller plenum helps a ton with a street car - the larger the plenum, the less velocity you have at lower rpm's

      My Combo :

      360 - std bore
      kb 107's for a 9.4:1 comp ratio
      stock 1978 small valve heads ( with air injection ports taped and plugged)
      mopar p4452992 cam ( 474 lift 280 adv duration ( 230 ish)
      stamped rockers
      904
      dynamic 9.5" converter
      3.23 gears

      The car has over 8000 miles on the street / strip with the setup - I've driven it in the rain( with a cover over the scoop )

      never had any issues !

      I started out buying the holley 450's - once i got them out of the box I returned them!
      They had a mechanical secondary but no accelerator pump for them, it seemed like it was goung to be bog city - and in talking over the years with others who went that route, it in fact was a PIA with the design.

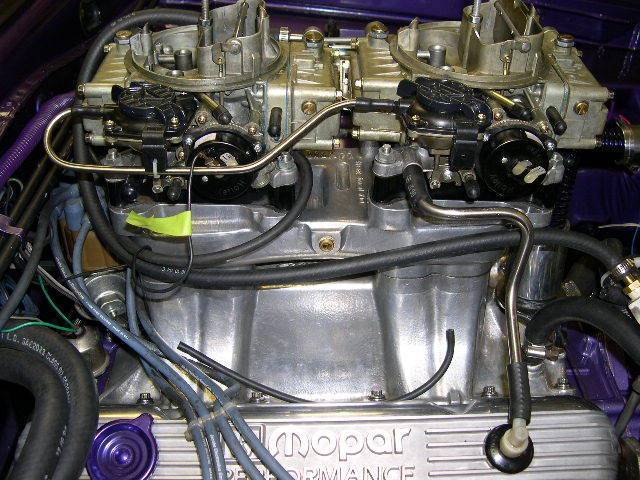

      I rent with a set of holley 390's ( vac secondary setup)

      I needed a holley balance tube to connect the secondary canisters together, to make them open at the same time :


      My best pass was a 1.74 60' - 12.56 best ET, and 108 best mph.

      with a ported 4 bbl intake and a holley 780 the best it would do was 1.84 60' - 13.20 @102

      the T-ram made power everywhere for my setup.
      I can get 16 mpg with the setup as long as I took it easy...lol

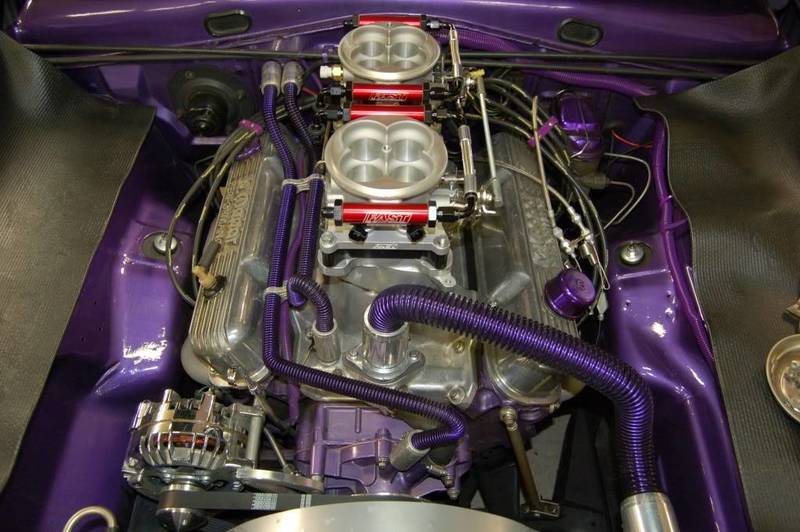

      Last year I went with a pair of EZ EFI dual throttle bodies :


      Talk about sweet! I gained 21 hp on the dyno, and have all the benifits of a modern efi system

      Here is a before and after vid of the car running with the carbs and efi :

      CARBS :


      EFI :

      http://youtu.be/JE8czQHBiqU?hd=1

      • Like Like x 1
      • Thanks! Thanks! x 1
      • dodge freak

        dodge freak Well-Known Member

        Messages:
        3,991
        Likes Received:
        27
        Joined:
        Nov 5, 2006
        Location:
        Too close to Detroit, lol
        Local Time:
        10:08 AM
        That looks and sounds awesome.

        I don't known thou, I think you should had played around more with the carbs. Carbs make more hp, they respond better to a/f ratio changes over f.i.

        I know, 80% of folks think f.i is better but not 100%

        carbs get a ram effect, that is were they can out hp a f.i. Those 390 carbs are very small, how much cfm is the f.i. units?

      • DJVCUDA

        DJVCUDA Well-Known Member

        Messages:
        1,083
        Likes Received:
        7
        Joined:
        May 26, 2004
        Local Time:
        4:08 PM
        the efi units are 1000 CFM a piece - my take on it is that the carbs were my bottle neck, but awesome for the street - the EFI units are the nest of both worlds - more hp from teh added CFM and no off idle issues like a set of large carbs would have.


        http://youtu.be/0C4Iy0QLKxE?hd=1

        • Like Like x 1
        • rickstershemi

          rickstershemi It's True....I'm Nutz

          Messages:
          320
          Likes Received:
          2
          Joined:
          Jun 2, 2010
          Local Time:
          11:08 AM
          Tunnel Ram.....I wouldn't.....Oh wait I did....Love the old school through the hood look :glasses7:

          [​IMG]

          Rickster

        • Kevin Jonker

          Kevin Jonker Well-Known Member

          Messages:
          498
          Likes Received:
          15
          Joined:
          Jan 24, 2005
          Location:
          Yucca Valley, Ca
          Local Time:
          4:08 PM

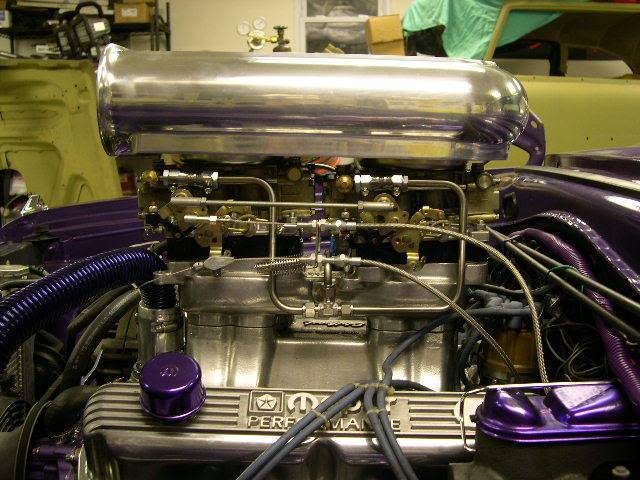

          heres mine


          Attached Files:

        • Badart

          Badart Senior Member

          Messages:
          5,296
          Likes Received:
          83
          Joined:
          Feb 14, 2009
          Location:
          Northern Utah
          Local Time:
          9:08 AM
          Thanks for all of the input and pictures. Keep them coming.

        • Abodybomber

          Abodybomber Breaking street machines , since 1983.....:) Legendary Member

          Messages:
          31,731
          Likes Received:
          10443
          Joined:
          May 21, 2011
          Location:
          Arroyo grande ca
          Local Time:
          8:08 AM
          Bumpola.

        • YY1

          YY1 Well-Known Member

          Messages:
          5,683
          Likes Received:
          1480
          Joined:
          Oct 11, 2011
          Location:
          FL
          Local Time:
          11:08 AM
          Dodgefreak- Nice!

          How do you have the o2 sensors?

          I thought about adapting a crossfire style 2 TBI setup and having the 02 for one in one header and one in the other.

          I know that's cheating because one side would tune one throttle body/injector set, but the factory let one side tune the whole system a lot of times.

        • Fisho

          Fisho Well-Known Member

          Messages:
          170
          Likes Received:
          79
          Joined:
          May 11, 2017
          Location:
          Barrie, Ontario
          Local Time:
          11:08 AM

          Did you ever end up putting this combo together? I have a very similar build in mind and an edelbrock TR1Y sitting on the shelf
