B&M Flexplate Install. Did I do it right?

Transmission and Drivetrain Tech

  1. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM
    I'm not feeling all warm and fuzzy but, did I install this flexplate correctly?
    :prayer:


    Attached Files:

  2. 412 Stroker

    412 Stroker Well-Known Member

    Messages:
    1,622
    Likes Received:
    28
    Joined:
    Jun 16, 2010
    Location:
    Green Bay, WI
    Local Time:
    9:18 PM
    ....looks like it to me. what were you concerned about??

  3. mrbill00

    mrbill00 Well-Known Member

    Messages:
    389
    Likes Received:
    5
    Joined:
    Mar 20, 2007
    Location:
    GA
    Local Time:
    10:18 PM
    it is correct

  4. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM
    LOL....50 50 guys. Do I need to rotate? Why?

  5. 6pakattack

    6pakattack Well-Known Member

    Messages:
    2,450
    Likes Received:
    33
    Joined:
    Sep 1, 2005
    Location:
    Sebastian, Fl.
    Local Time:
    9:18 PM
    Looks right to me !!:cheers:

  6. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM
    B&M has spoken:
    Brad,
    Yeah that is definitely on backwards.
    John Couch
    B&M RACING & PERFORMANCE PRODUCTS
    9142 INDEPENDENCE AVENUE
    CHATSWORTH, CA 91311 USA
    T 818-882-6422 EXT 365
    F 818-882-6694

    jcouch@bmracing.com

    Not getting any sleep last night paid off. Easy fix at this time. Thanks guys :prayer:

  7. Demonracer

    Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

    Messages:
    2,952
    Likes Received:
    974
    Joined:
    Jan 31, 2010
    Location:
    Cleveland, Texas
    Local Time:
    9:18 PM
    The flex plate should be marked, "Engine side".

    Bill S.

  8. 67Dart273

    67Dart273 FABO Gold Member FABO Gold Member

    Messages:
    42,354
    Likes Received:
    9989
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    7:18 PM

    Don't understand. According to your photos it IS correct as pictured

    Yup. I have an early plate, the kind with a weight instead of a cutout. clearly stamped.

  9. fishy68

    fishy68 Tyr Fryr's Inc. FABO Gold Member

    Messages:
    16,924
    Likes Received:
    913
    Joined:
    Jan 11, 2005
    Location:
    Central, IL (Hooterville)
    Local Time:
    9:18 PM
    You can only install all 6 bolts when it is on correct because the bolts are offset. Therefore it is not possible to install it backwards.

  10. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM
    I was wondering that as well because I tried it both ways. No there was not any stamp or marking stating "front" or "engine" side. Maybe B&M's tech rep is smoking Draino or something. :wack: will continue my research......

  11. crackedback

    crackedback FABO Gold Member FABO Gold Member

    Messages:
    18,493
    Likes Received:
    2788
    Joined:
    Aug 7, 2005
    Location:
    92201
    Local Time:
    7:18 PM
    You have it installed correctly.

    I have one sitting in front of me, engine side marking on mine would install it as yours pictured.

  12. Plym1948

    Plym1948 Well-Known Member

    Messages:
    135
    Likes Received:
    5
    Joined:
    Feb 2, 2009
    Location:
    Wilmington, DE
    Local Time:
    10:18 PM
    LOL, so much for B&M's tech support, You got it on right, as already stated, you won't be able to get all the bolts in if it were on backwards

  13. 805moparkid

    805moparkid SS And AFX Worker Bee

    Messages:
    11,528
    Likes Received:
    76
    Joined:
    Oct 29, 2008
    Location:
    Phoenix Az
    Local Time:
    7:18 PM
    i hope before you installed it you layed the converter on it and marked it for the offset bolts...

  14. Snake

    Snake Mopar Nut

    Messages:
    9,292
    Likes Received:
    269
    Joined:
    May 22, 2006
    Location:
    Belleville Canada
    Local Time:
    9:18 PM
    I put that same one on my 360 Itsssssssssss right.

  15. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM

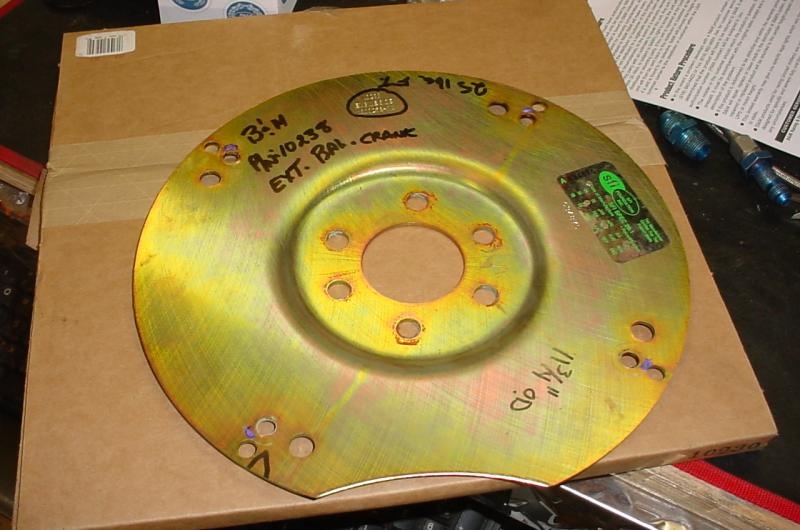

    News Flash! I drove over to http://www.mopacautosupply.com/index.html yesterday and talked with Chris Lunn, resedent Mopar expert that has a 69 Dart, LA 360, 727. Turns out my flexplate is on correct but, it is the wrong P/N flexplate. The one in my picture is for a externaly balanced engine. See the cut out. My engine is internal balanced and the flexplate has no cut out. The correct flexplate is stamped "Engine Side" as well. Looks like I have to change it out any way. FYI

  16. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM
    ......yes. both flex plates are stamped "Engine Side". I was a good thing I checked......I had the wrong flex plate installed correctly......:eek:ops:
    FYI


    Attached Files:

  17. airwoofer

    airwoofer Drivetrain limit explorer

    Messages:
    2,210
    Likes Received:
    37
    Joined:
    Jan 4, 2011
    Location:
    Huntsville, AL
    Local Time:
    9:18 PM
    The flexplate I got along with my stroker looked like that one but had a SFI sticker on it. Somebody made a piece of steel that would fit the cutout and welded it in, then drilled out 2 holes in the welded in piece, presumably to balance it. My engine is internally balanced and after several bounces off the 7000 pill still no issues. No vibration either.

    When we were bolting on the converter it took 4 tries before all the bolts would line up. Guess I started at B and went B - C - D - A before we got it right. I'll mark it next time.

  18. Brad426

    Brad426 Well-Known Member

    Messages:
    505
    Likes Received:
    121
    Joined:
    Sep 13, 2010
    Location:
    Red Deer, Alberta
    Local Time:
    7:18 PM
    Wow! Welding a flex plate is gutsy...I had the same issue with the flexplate the second time around but, I checked it on the converter first and marked. I must of got it right on the first install. Some luck...lol. Me 2 lesson learned.
