Brake drum removal HELP

Brakes for your Classic Mopar

  1. krazykuda

    krazykuda Well-Known Member FABO Gold Member How-To Section Editor

    Messages:
    60,353
    Likes Received:
    26494
    Joined:
    Aug 20, 2007
    Location:
    Orland Park, IL
    Local Time:
    10:21 PM

    Have you tried disconnecting the brake line and unscrewing the wheel cylinder??? That's most likely what is holding the top up, the nail studs from the wheel cylinder to the brake shoes...

  2. krazykuda

    krazykuda Well-Known Member FABO Gold Member How-To Section Editor

    Messages:
    60,353
    Likes Received:
    26494
    Joined:
    Aug 20, 2007
    Location:
    Orland Park, IL
    Local Time:
    10:21 PM

    Yeah, that top triangle washer with the springs for the shoes may cause a problem...

    But with the bottom looser and the wheel cylinder loose, he may be able to heat up the adjuster better...

  3. krazykuda

    krazykuda Well-Known Member FABO Gold Member How-To Section Editor

    Messages:
    60,353
    Likes Received:
    26494
    Joined:
    Aug 20, 2007
    Location:
    Orland Park, IL
    Local Time:
    10:21 PM
    Cut the fuckin' drum in half....

    • Like Like x 2
    • Dfr360cuda

      Dfr360cuda Diagnosis... Plum Crazy.

      Messages:
      1,862
      Likes Received:
      1243
      Joined:
      Aug 30, 2012
      Location:
      Finleyville, PA
      Local Time:
      11:21 PM
      Wafer wheel on an angle grinder.
      Cut a groove across it.
      Cut where you won't damage anything inside.
      Cut a notch for a wedge.
      Big hammer...... Bam bam bam.

      We cut rusty cast conduit fittings all the time when a big pipe wrench doesn't work. The crack will follow the groove you cut.

      • Thanks! Thanks! x 1
      • RustyRatRod

        RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

        Messages:
        79,449
        Likes Received:
        57887
        Joined:
        Jun 7, 2010
        Location:
        Georgia
        Local Time:
        11:21 PM
        The other side has had it done. It's not a bad idea because you don't have to remove the spindle nut and deal with "all that" if the drum will simply slide off. It's no big deal, because the drum is hub centric, not bolt pattern centric. The only ONE reason they swedged them on from the factory was to keep them from falling off going down the assembly line. Replacement drums have the holes so big, you couldn't swedge them if you wanted to.

      • RustyRatRod

        RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

        Messages:
        79,449
        Likes Received:
        57887
        Joined:
        Jun 7, 2010
        Location:
        Georgia
        Local Time:
        11:21 PM
        By either working the adjuster loose, or cutting the drum off. I agree with you. Cutting the pins really does nothing. Well......maybe gain him a couple of inches...and not where it counts.

      • Scamp Rhonda

        Scamp Rhonda Well-Known Member

        Messages:
        782
        Likes Received:
        740
        Joined:
        Jan 18, 2017
        Location:
        Blaine MN
        Local Time:
        10:21 PM
        I don't know if this applies to your situation but have you opened up the bleeder valve to relieve any pressure that might be built up? I say this because I just had a drum that was frozen on my right front on account of the brake cylinder being full of rust inside and acting like a one way valve. When I stepped on the brakes it pushed the shoes out but the pressure would not release unless I opened the valve. The drum was totally locked up. When I opened the valve the drum came right off.

        • Like Like x 1
        • Thanks! Thanks! x 1
        • Cuda Hunter

          Cuda Hunter Well-Known Member

          Messages:
          610
          Likes Received:
          362
          Joined:
          Jul 10, 2006
          Location:
          Colorado mountains
          Local Time:
          9:21 PM
          Ok, wow. Lots of comments really fast.
          Here is how it worked out.
          As 413 stated the stumbling blocks of the process up until now.
          By cutting the nails I was then able to pry the bottom of the drum open enough to see the entire inside. I blasted all of it several times. Then heated the adjuster, then blasted it, then heated it, then blasted it. Nothing.

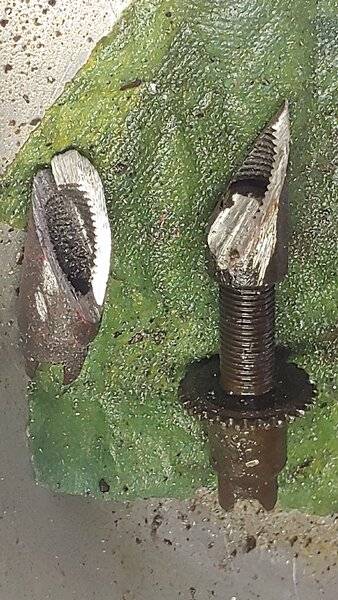

          I got out the sawzal and cut the adjuster into two pieces. Didn't damage the drum since I could pry it apart after cutting the nails.
          The second the adjuster was not in play the drum just fell off.
          However with the adjuster on the upper cylinder was definitely the problem. This would have never released.





          • Like Like x 3
          • Cuda Hunter

            Cuda Hunter Well-Known Member

            Messages:
            610
            Likes Received:
            362
            Joined:
            Jul 10, 2006
            Location:
            Colorado mountains
            Local Time:
            9:21 PM
            This is the car I was working on today.
            Thank you guys very much. Every single comment helped me get this drum removed. I'm very surprised how long it took. Hats off to every mechanic out there as I am impressed every time I complete a single small project.



            • Like Like x 2
            • RustyRatRod

              RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

              Messages:
              79,449
              Likes Received:
              57887
              Joined:
              Jun 7, 2010
              Location:
              Georgia
              Local Time:
              11:21 PM
              Well great! You got it off without a lot of carnage. That's always a good thing! Nice work!

              • Agree Agree x 2
              • 413

                413 Well-Known Member

                Messages:
                391
                Likes Received:
                457
                Joined:
                Nov 13, 2019
                Location:
                NW USA
                Local Time:
                8:21 PM
                Glad it’s done, feels good huh? Came right off with the swedge intact, It didn’t mean a thing as far as the binding problem.

                Hope all readers learned something. I’ve done this task far to many times. Oxy-acetylene torch is my favorite tool!

                • Thanks! Thanks! x 1
                • Scamp Rhonda

                  Scamp Rhonda Well-Known Member

                  Messages:
                  782
                  Likes Received:
                  740
                  Joined:
                  Jan 18, 2017
                  Location:
                  Blaine MN
                  Local Time:
                  10:21 PM
                  It's really nice to see a problem through to the end. Congrats!

                  • Like Like x 1
                  • Cuda Hunter

                    Cuda Hunter Well-Known Member

                    Messages:
                    610
                    Likes Received:
                    362
                    Joined:
                    Jul 10, 2006
                    Location:
                    Colorado mountains
                    Local Time:
                    9:21 PM
                    I bought it with intentions to cut it up for metal pieces for my true town driver. After getting it in the garage I realize that there is zero rust on the entire body. No holes. No bad rails.
                    I can't bring myself to cut the car up.
                    Figure I'm gonna stash it or sale it. Buy amd metal or piece's of other already cut up cars.


                    • Like Like x 1
                    • Cuda Hunter

                      Cuda Hunter Well-Known Member

                      Messages:
                      610
                      Likes Received:
                      362
                      Joined:
                      Jul 10, 2006
                      Location:
                      Colorado mountains
                      Local Time:
                      9:21 PM
                      I sure appreciate learning what the swedge is and why it was used.
                      Truely thankful. I'm glad to have a thread that hopefully someone will be able to read all the steps to get these drums off when problems arise.

                    • Cuda Hunter

                      Cuda Hunter Well-Known Member

                      Messages:
                      610
                      Likes Received:
                      362
                      Joined:
                      Jul 10, 2006
                      Location:
                      Colorado mountains
                      Local Time:
                      9:21 PM
                      I liked the idea of cutting a groove in the cast drum before smacking it to break it. Makes perfect sense.

                      • Agree Agree x 1
                      • Tooljunkie

                        Tooljunkie King of cobble/master of the broken bolt FABO Gold Member

                        Messages:
                        20,102
                        Likes Received:
                        22235
                        Joined:
                        Jul 22, 2017
                        Location:
                        Manitoba
                        Local Time:
                        10:21 PM
                        If you can get a decent pry bar between adjuster and shoes, it should pop off.
                        From all the replies i can see lots of us have dealt with this a time or two. And different methods have worked.
                        Flying drop kick and a sledge hammer. Cutting drum sucks, but i have had to do it. Front spindle complicates it.

                      • Tooljunkie

                        Tooljunkie King of cobble/master of the broken bolt FABO Gold Member

                        Messages:
                        20,102
                        Likes Received:
                        22235
                        Joined:
                        Jul 22, 2017
                        Location:
                        Manitoba
                        Local Time:
                        10:21 PM
                        Glad to see you didnt let it win.
                        And not wanting to cut car up for parts, i can respect that. They dont make em any more,should mean something.

                        • Like Like x 1
                        • Agree Agree x 1
                        • RustyRatRod

                          RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

                          Messages:
                          79,449
                          Likes Received:
                          57887
                          Joined:
                          Jun 7, 2010
                          Location:
                          Georgia
                          Local Time:
                          11:21 PM
                          I'm really glad he salvaged the drum. They are getting harder to find every day.

                        • mbaird

                          mbaird mbaird

                          Messages:
                          7,790
                          Likes Received:
                          4625
                          Joined:
                          Dec 10, 2005
                          Location:
                          boise, Id
                          Local Time:
                          9:21 PM
                          Next time I would pop the upper and lower ball joints , remove entire assembly and either buy a used assembly or soak the existing one in a deisel/acetone solution for a week .

                        • Lord Sparky

                          Lord Sparky Well-Known Member

                          Messages:
                          670
                          Likes Received:
                          502
                          Joined:
                          Dec 2, 2019
                          Location:
                          Carlsbad, California
                          Local Time:
                          8:21 PM
                          A happy ending.
