Building custom door panels

Mopar Interiors

  1. younggun2.0

    younggun2.0 Well-Known Member

    Messages:
    4,694
    Likes Received:
    867
    Joined:
    Jan 27, 2012
    Location:
    federal way, wa
    Local Time:
    1:36 AM
    so I need to put a roll bar in my car and the factory arm rest is going to be smack dab in the way. I don’t want to bend the door bar into the sitting area either. So I decided to basically redo everything. Purist turn away now. Shits about to get custom......

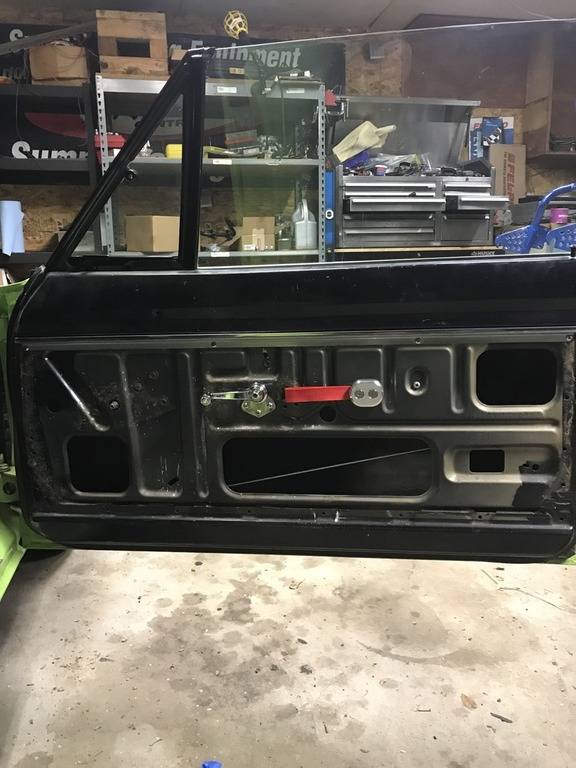

    The factory door lock removed.

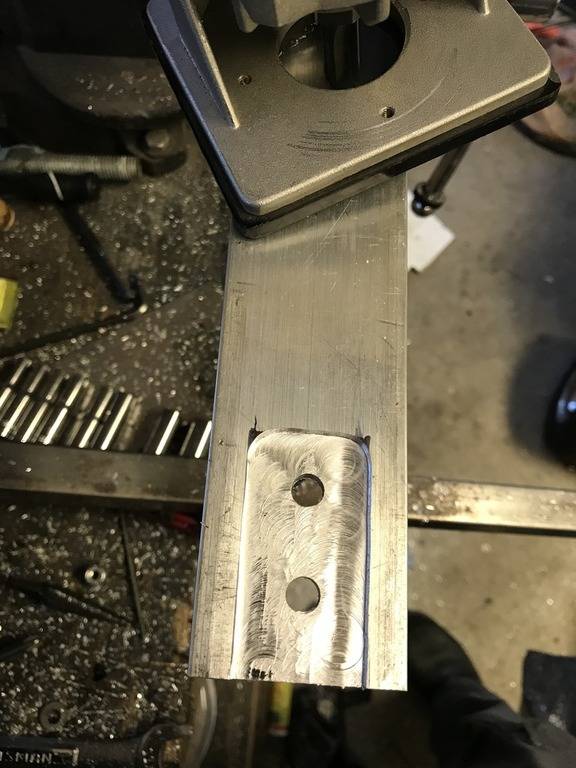

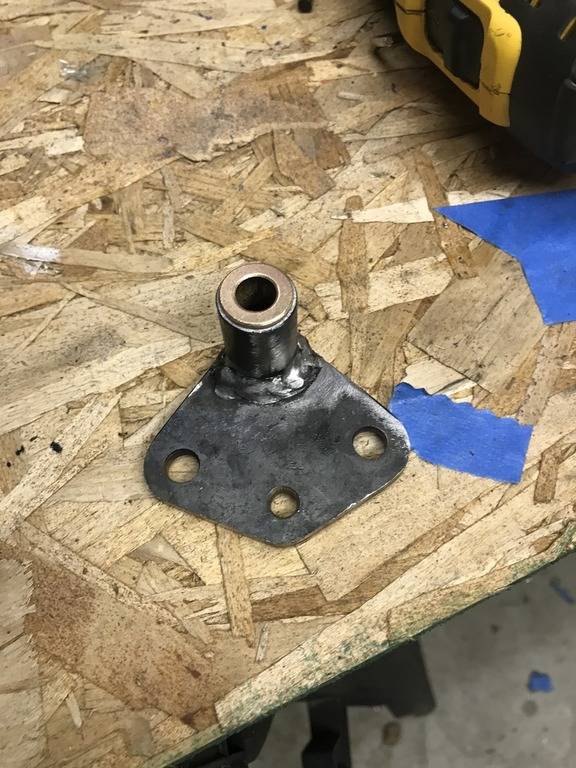

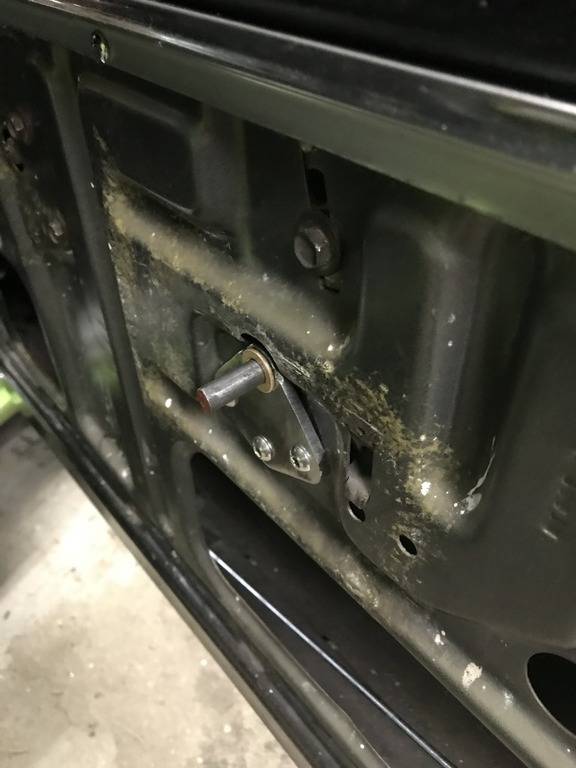

    Then I started the brackets for new door handle mechanism.





    Then installed 3/8” shaft

    • Like Like x 2
    • krazykuda

      krazykuda FABO Gold Member FABO Gold Member

      Messages:
      46,014
      Likes Received:
      11134
      Joined:
      Aug 20, 2007
      Location:
      Orland Park, IL
      Local Time:
      3:36 AM
      Nice problem solving... :thumbsup:

    • krazykuda

      krazykuda FABO Gold Member FABO Gold Member

      Messages:
      46,014
      Likes Received:
      11134
      Joined:
      Aug 20, 2007
      Location:
      Orland Park, IL
      Local Time:
      3:36 AM
      TMI... :poke:

    • younggun2.0

      younggun2.0 Well-Known Member

      Messages:
      4,694
      Likes Received:
      867
      Joined:
      Jan 27, 2012
      Location:
      federal way, wa
      Local Time:
      1:36 AM

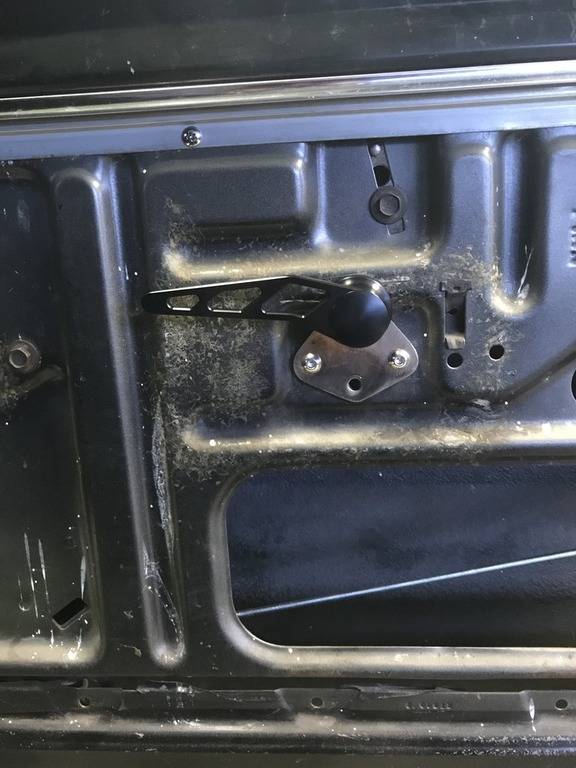

      so nobody makes door handles or window cranks for Mopars so I got a Chevy kit and chopped it up

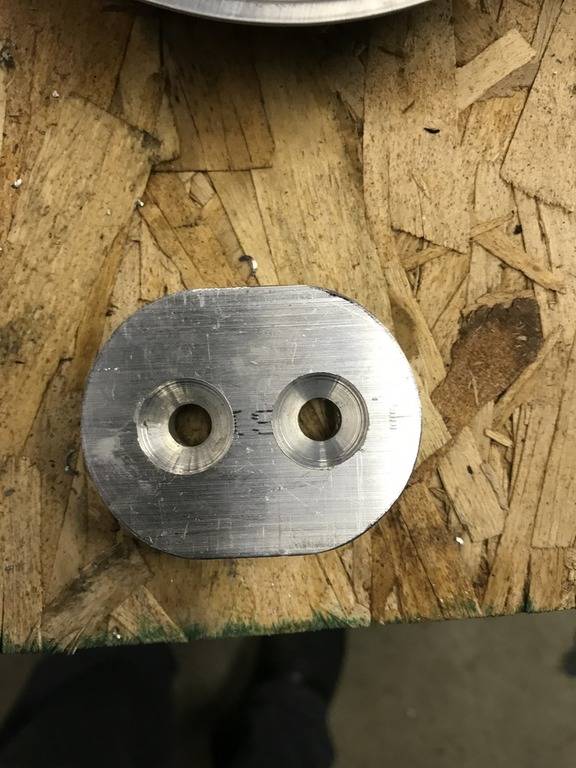

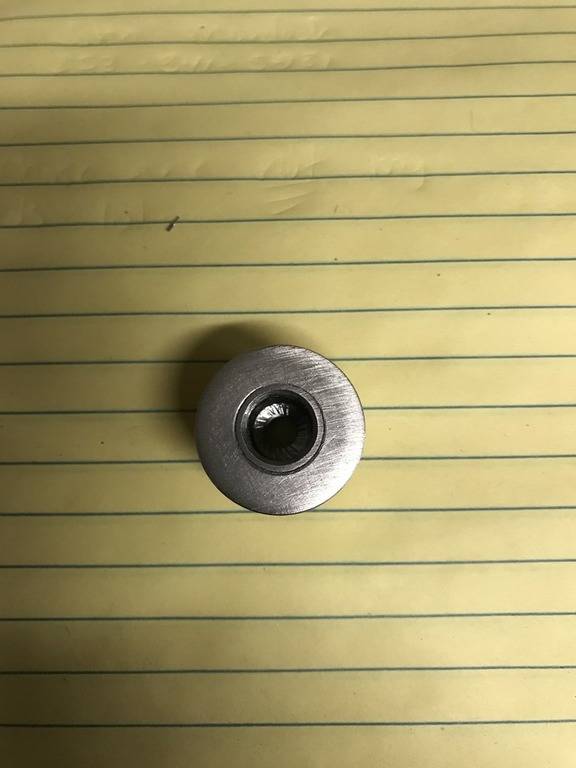

      I drilled out the splines and pressed in a steel sleeve


      • Like Like x 1
      • younggun2.0

        younggun2.0 Well-Known Member

        Messages:
        4,694
        Likes Received:
        867
        Joined:
        Jan 27, 2012
        Location:
        federal way, wa
        Local Time:
        1:36 AM


        • Like Like x 2
        • younggun2.0

          younggun2.0 Well-Known Member

          Messages:
          4,694
          Likes Received:
          867
          Joined:
          Jan 27, 2012
          Location:
          federal way, wa
          Local Time:
          1:36 AM

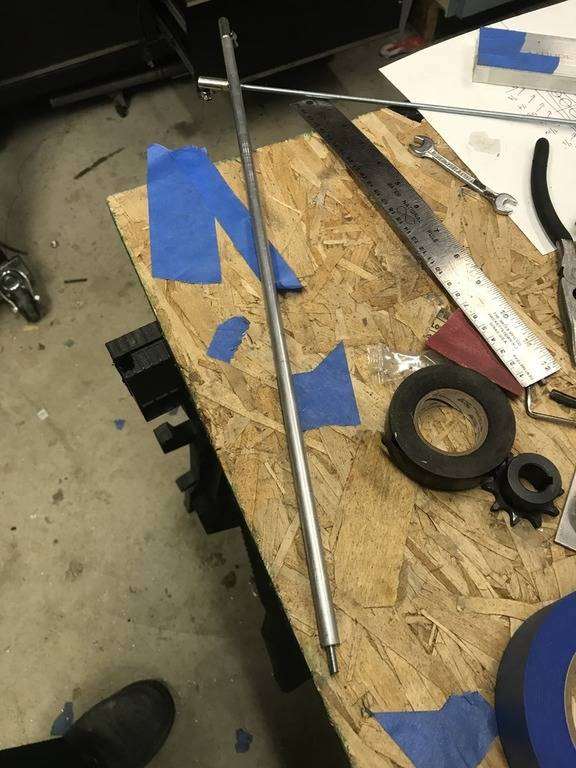

          Then I started the linkage side

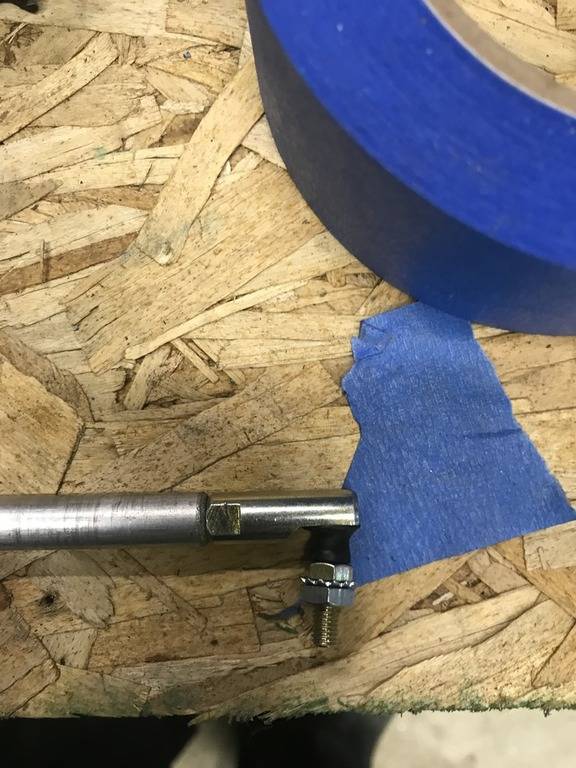

          Used 3/8 aluminum rod with 10-24 all thread threaded into the ends



          • Like Like x 1
          • younggun2.0

            younggun2.0 Well-Known Member

            Messages:
            4,694
            Likes Received:
            867
            Joined:
            Jan 27, 2012
            Location:
            federal way, wa
            Local Time:
            1:36 AM

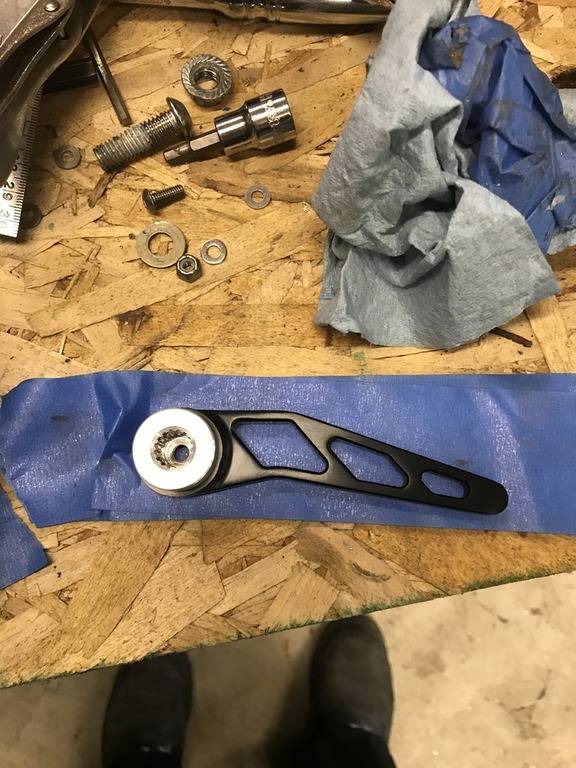

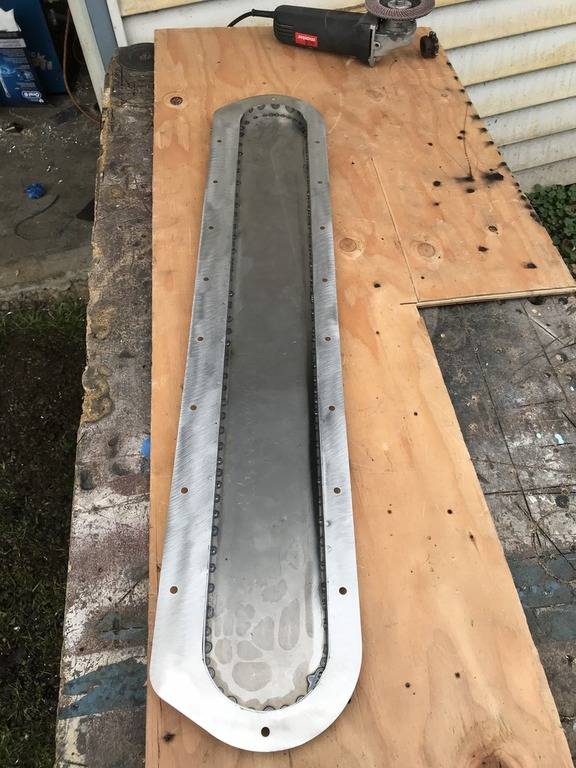

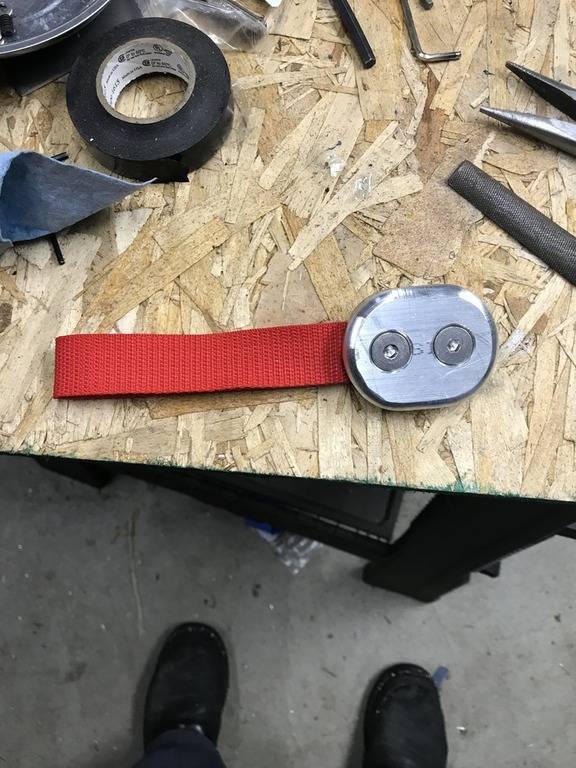

            Then it was time to build brackets for my new door pulls. Since arm rest was gone needed something to close door with


            Poured me a glass of wine, pulled my hair back, put on my apron and got to sewing.


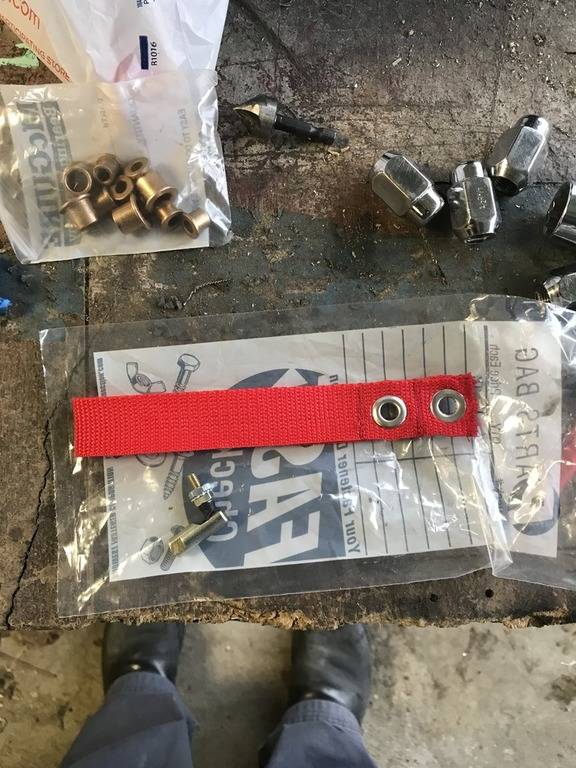

            Then installed the grommets

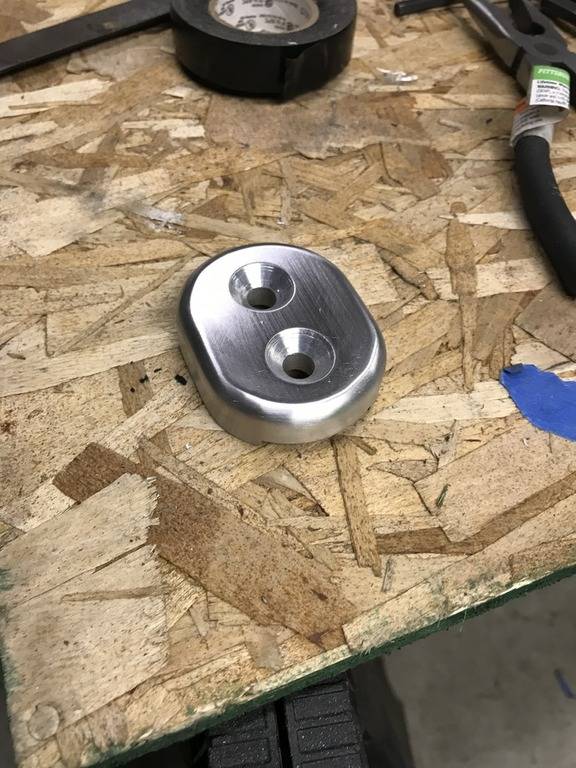

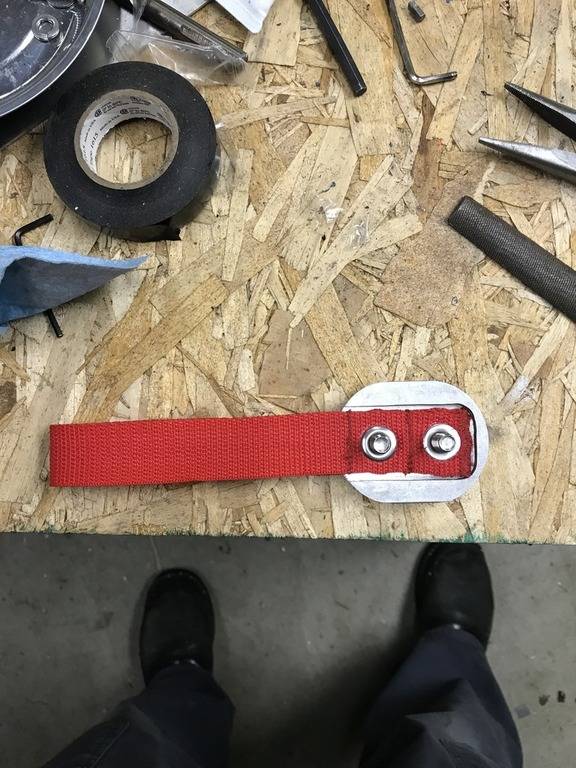

            Then I made the mounts








            • Like Like x 3
            • younggun2.0

              younggun2.0 Well-Known Member

              Messages:
              4,694
              Likes Received:
              867
              Joined:
              Jan 27, 2012
              Location:
              federal way, wa
              Local Time:
              1:36 AM

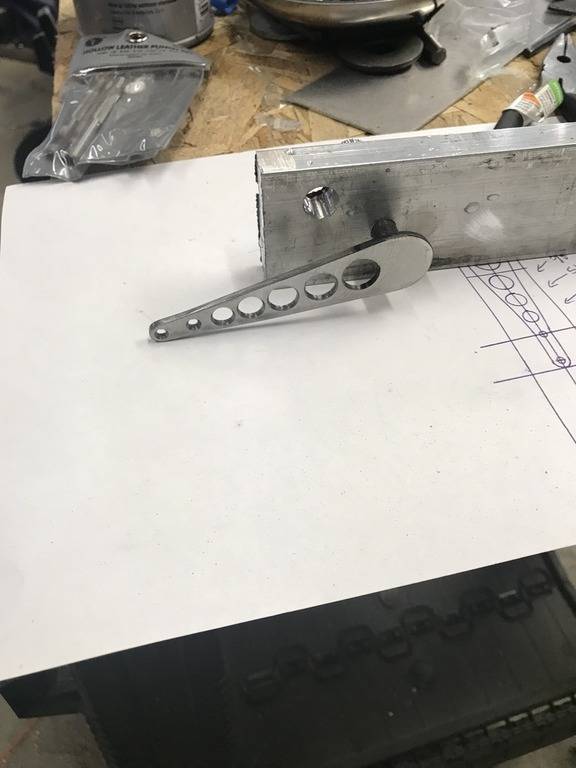

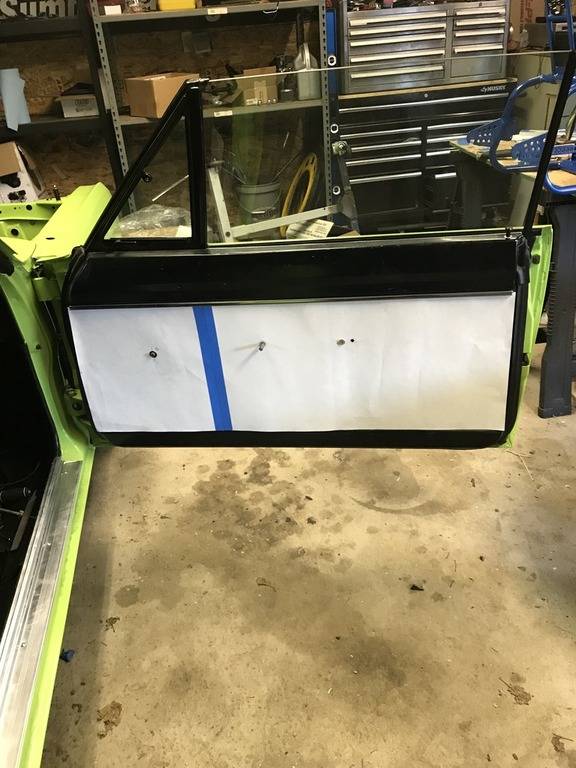

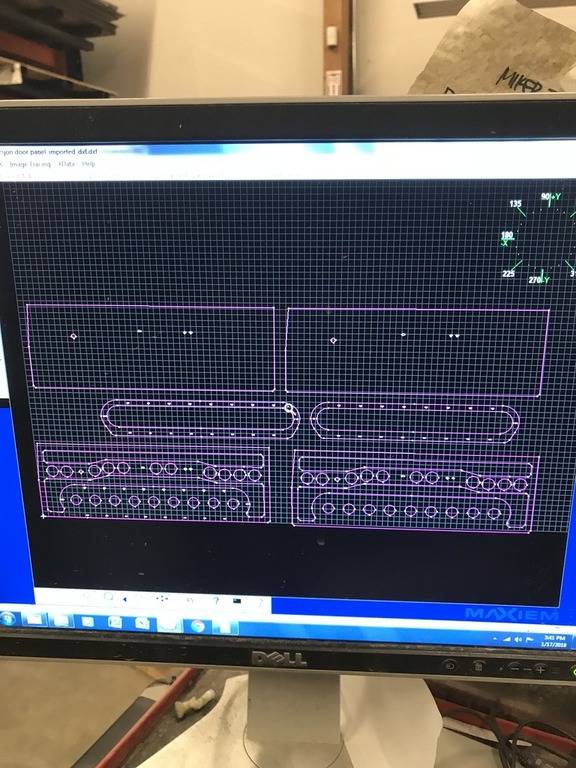

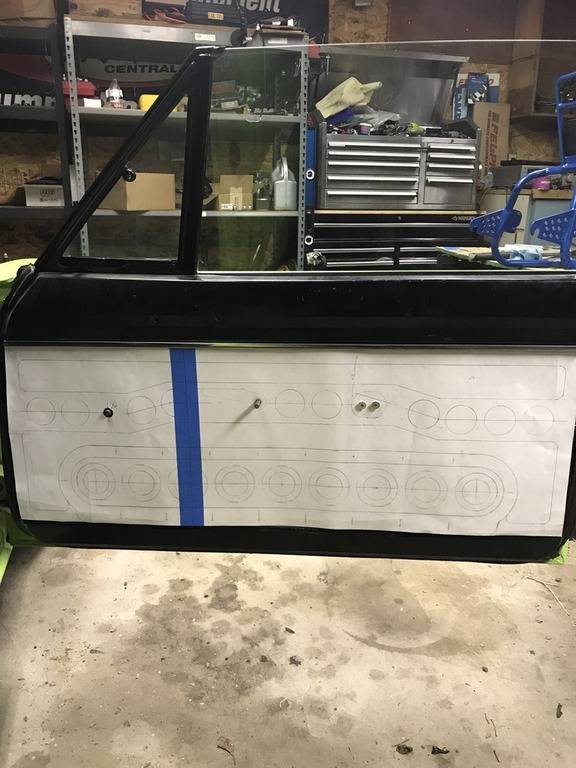

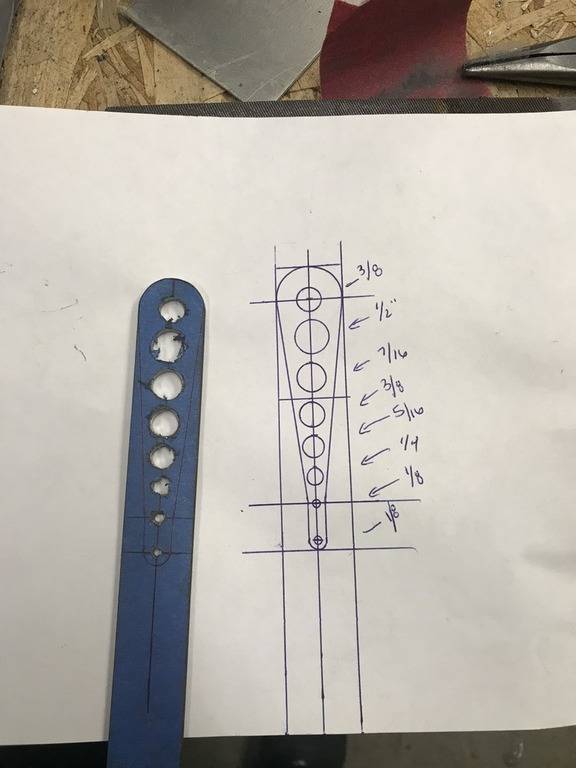

              Then I got started making my design template



              Then my carbon fiber showed up!



              • Like Like x 2
              • fishmens67

                fishmens67 Well-Known Member

                Messages:
                6,136
                Likes Received:
                2035
                Joined:
                Nov 10, 2012
                Location:
                idaho
                Local Time:
                3:36 AM
                NICE!, thanx for stop'n in, I see you over at the bullet. we miss all the fab work you do.
                stop in more often

                • Agree Agree x 1
                • younggun2.0

                  younggun2.0 Well-Known Member

                  Messages:
                  4,694
                  Likes Received:
                  867
                  Joined:
                  Jan 27, 2012
                  Location:
                  federal way, wa
                  Local Time:
                  1:36 AM

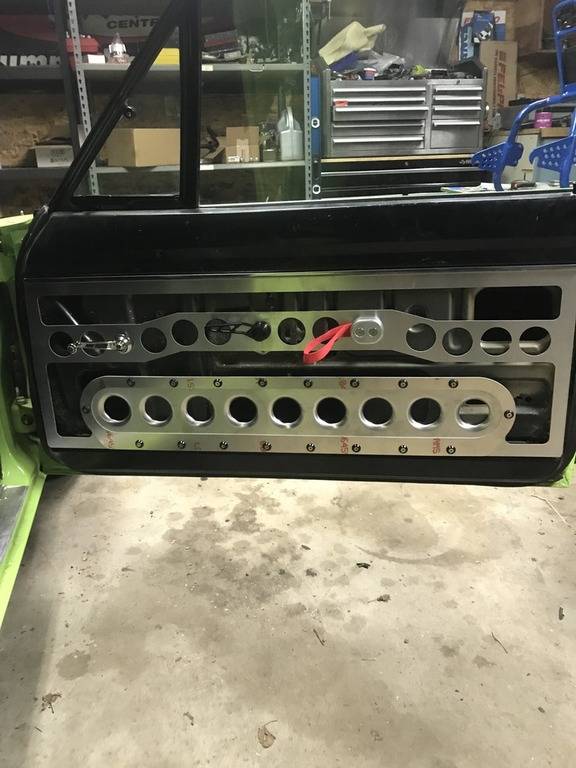

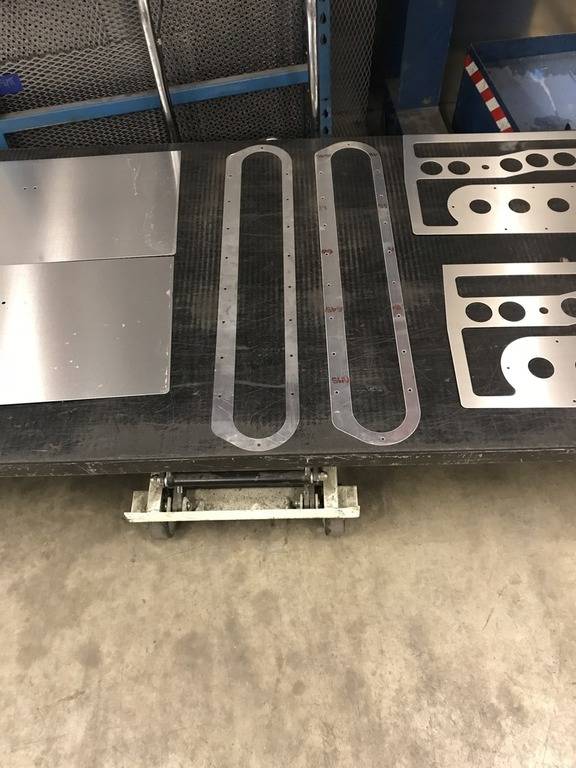

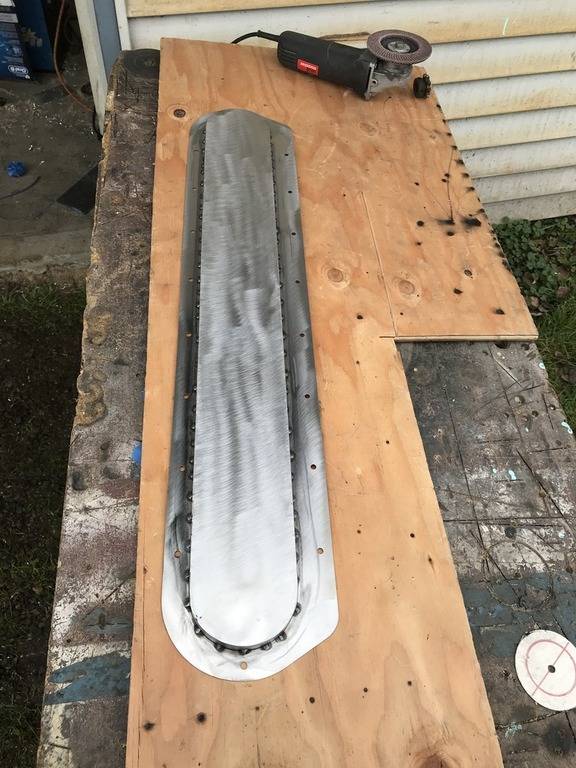

                  After waterjet



                  Then dimple died my holes

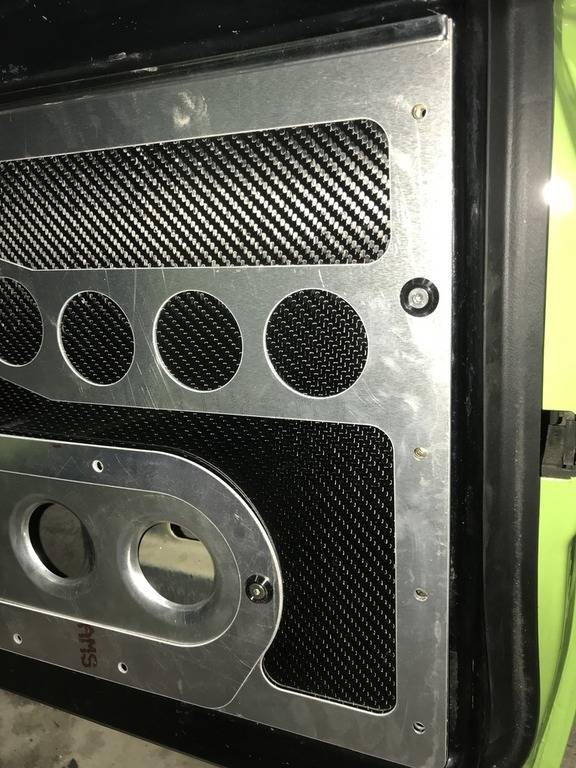

                  Here it is mocked up

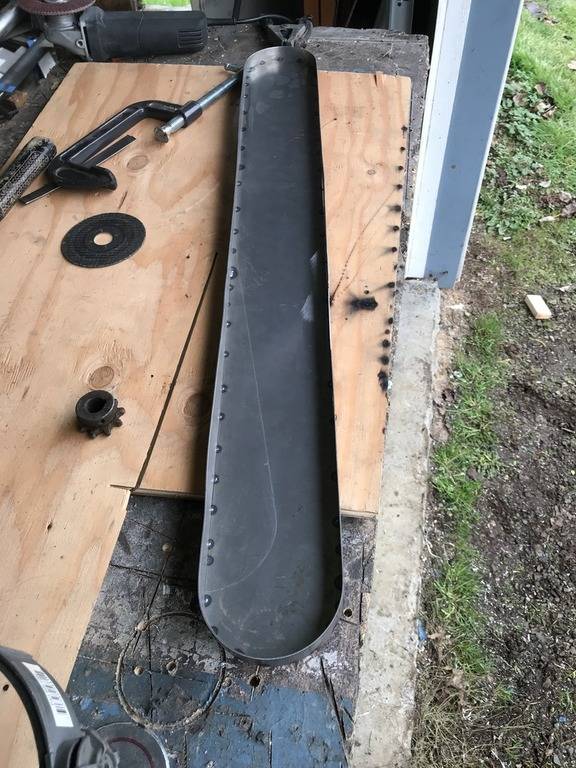

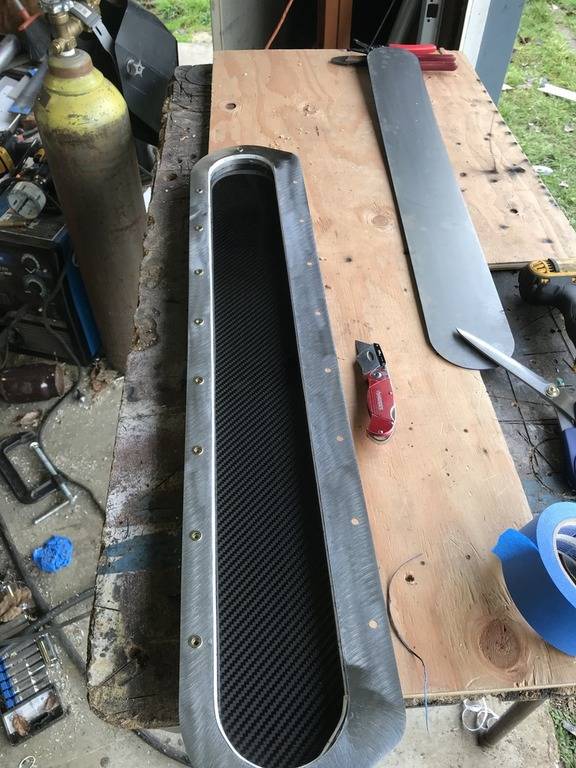

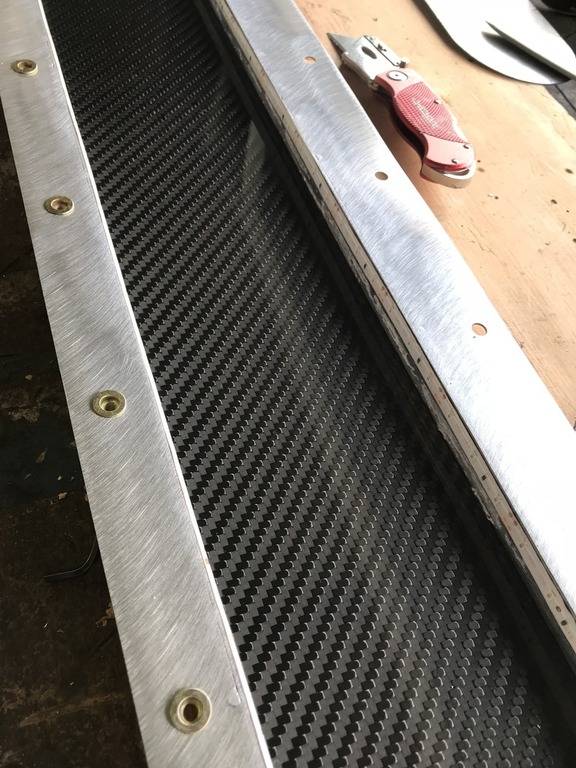

                  Then the carbon backer




                  • Like Like x 7
                  • younggun2.0

                    younggun2.0 Well-Known Member

                    Messages:
                    4,694
                    Likes Received:
                    867
                    Joined:
                    Jan 27, 2012
                    Location:
                    federal way, wa
                    Local Time:
                    1:36 AM
                    Then I built the backer for the lower holes









                    • Like Like x 2
                    • younggun2.0

                      younggun2.0 Well-Known Member

                      Messages:
                      4,694
                      Likes Received:
                      867
                      Joined:
                      Jan 27, 2012
                      Location:
                      federal way, wa
                      Local Time:
                      1:36 AM

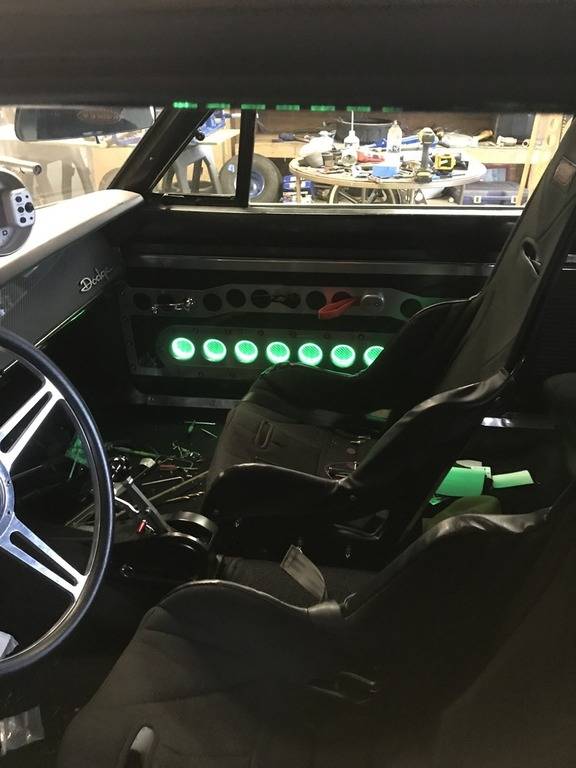

                      Then I installed the LED light strip




                      • Like Like x 4
                      • dukeboy_318

                        dukeboy_318 Our Lives, Our Fortunes and Our Sacred Honor. FABO Gold Member

                        Messages:
                        30,386
                        Likes Received:
                        9941
                        Joined:
                        Jan 19, 2007
                        Location:
                        la la land
                        Local Time:
                        4:36 AM
                        Dude!! I like!!

                        • Agree Agree x 1
                        • mopar head

                          mopar head Well-Known Member

                          Messages:
                          2,641
                          Likes Received:
                          350
                          Joined:
                          Oct 21, 2008
                          Location:
                          Right here, can`t you see me?
                          Local Time:
                          4:36 AM
                          No fair, you got milling machines n waterjets n stuff. :D
                          Fine job, I just came in from the shop, starting some custom panels myself.

                          • Like Like x 1
                          • younggun2.0

                            younggun2.0 Well-Known Member

                            Messages:
                            4,694
                            Likes Received:
                            867
                            Joined:
                            Jan 27, 2012
                            Location:
                            federal way, wa
                            Local Time:
                            1:36 AM
                            No milling machine. I used a palm router with wood bits. Trust me I’m as simple as it gets. I made paper template and took it to waterjet place I have a hookup at

                          • younggun2.0

                            younggun2.0 Well-Known Member

                            Messages:
                            4,694
                            Likes Received:
                            867
                            Joined:
                            Jan 27, 2012
                            Location:
                            federal way, wa
                            Local Time:
                            1:36 AM
                            Feel free to post ur pics man. I’m all for sharing and inspiration

                          • Cope

                            Cope Fusing with fire

                            Messages:
                            2,446
                            Likes Received:
                            1838
                            Joined:
                            Oct 20, 2009
                            Location:
                            San Jose, Ca.
                            Local Time:
                            3:36 AM
                            Ok you win.

                            My door handles just touch the door bar.

                            Dam man, your good.


                            • Like Like x 1
                            • Cope

                              Cope Fusing with fire

                              Messages:
                              2,446
                              Likes Received:
                              1838
                              Joined:
                              Oct 20, 2009
                              Location:
                              San Jose, Ca.
                              Local Time:
                              3:36 AM

                              I enjoy making panels, but I think you got more skills than I.

                              • Like Like x 2
                              • younggun2.0

                                younggun2.0 Well-Known Member

                                Messages:
                                4,694
                                Likes Received:
                                867
                                Joined:
                                Jan 27, 2012
                                Location:
                                federal way, wa
                                Local Time:
                                1:36 AM
                                Looks bad ass man! Same quality different design! I recognize quality work when I see it. I’d love to learn bead rolling

                              • Cope

                                Cope Fusing with fire

                                Messages:
                                2,446
                                Likes Received:
                                1838
                                Joined:
                                Oct 20, 2009
                                Location:
                                San Jose, Ca.
                                Local Time:
                                3:36 AM
                                Thanks, I wish I could do what you did.

                                If you're ever near San Jose let me know.
                                We got lots of scrap You can play with.

                                We may have to talk, I been trying to figure out how to fix the door handle issue and your idea is perfect.


                                :)

                              • younggun2.0

                                younggun2.0 Well-Known Member

                                Messages:
                                4,694
                                Likes Received:
                                867
                                Joined:
                                Jan 27, 2012
                                Location:
                                federal way, wa
                                Local Time:
                                1:36 AM
                                Message me and we can chat

                              • harrisonm

                                harrisonm Well-Known Member

                                Messages:
                                1,890
                                Likes Received:
                                1169
                                Joined:
                                Jan 16, 2005
                                Location:
                                Topeka, KS
                                Local Time:
                                9:36 AM
                                I'm highly impressed!

                                • Agree Agree x 1
                                • Matts440

                                  Matts440 FABO Gold Member FABO Gold Member

                                  Messages:
                                  1,795
                                  Likes Received:
                                  692
                                  Joined:
                                  Apr 11, 2014
                                  Location:
                                  Riverside, CA
                                  Local Time:
                                  3:36 AM
                                  Awesome work as always, looks great like the led touch.

                                  Last edited: Jan 23, 2018
                                  • Agree Agree x 1
                                  • Riddler

                                    Riddler Project EH-Body

                                    Messages:
                                    2,713
                                    Likes Received:
                                    356
                                    Joined:
                                    Sep 13, 2009
                                    Location:
                                    Windsor, ON, Canada
                                    Local Time:
                                    3:36 AM
                                    WOW!!!! You make it look so easy! I really like the design you've done. One day I'm hoping to make custom touches like that. But for now I really want to drive the car.

                                    Riddler

                                    • Like Like x 1
                                    • Dfr360cuda

                                      Dfr360cuda Well-Known Member

                                      Messages:
                                      815
                                      Likes Received:
                                      194
                                      Joined:
                                      Aug 30, 2012
                                      Location:
                                      Finleyville, pa
                                      Local Time:
                                      4:36 AM
                                      Nice work.
                                      I'd been considering universal aluminum panels that Jegs sells.

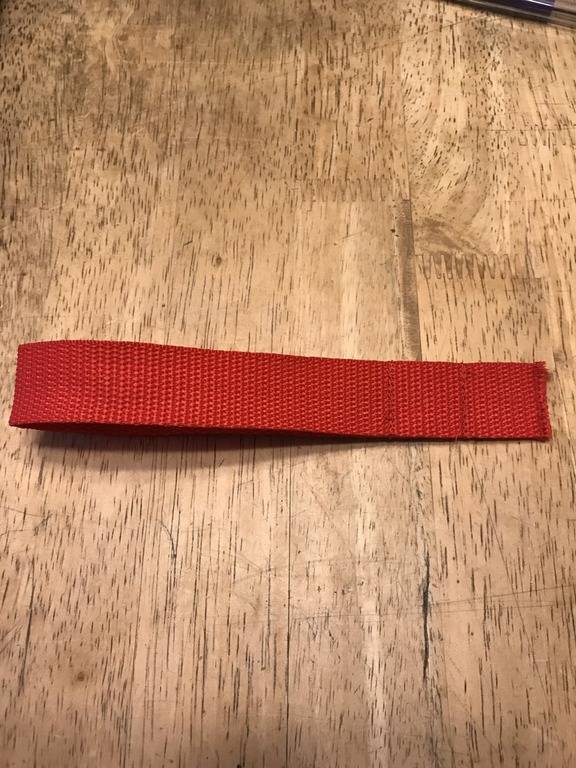

                                      The strap is a great idea... My armrest hits the rollcage.

                                    1. This site uses cookies to help personalize content, tailor your experience and to keep you logged in if you register.
                                      By continuing to use this site, you are consenting to our use of cookies.
