Chassis dimensions of 73 duster

Suspension, Steering and Chassis

  1. Cythomas

    Cythomas Member

    Messages:
    21
    Likes Received:
    4
    Joined:
    Nov 26, 2020
    Location:
    nova scotia canada
    Local Time:
    12:46 PM

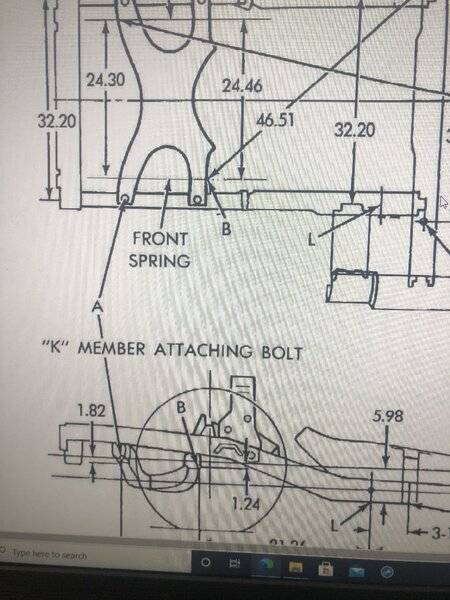

    5A23D83D-36CD-4237-96DB-DA01BEFA60BC.jpeg Can someone help me tell what point B is on my 73 duster I’m installing new front frame rail and measurements should be taking at point B

  2. lenky1

    lenky1 Well-Known Member

    Messages:
    582
    Likes Received:
    232
    Joined:
    Jul 30, 2014
    Location:
    illinois
    Local Time:
    10:46 AM
    Hard to tell. Maybe its one of the bolt hole locations on the k member where the steering gearbox mounts or the k member drivers side rear bolt location

  3. lenky1

    lenky1 Well-Known Member

    Messages:
    582
    Likes Received:
    232
    Joined:
    Jul 30, 2014
    Location:
    illinois
    Local Time:
    10:46 AM
    2nd picture shows point b. Thats definitely the drivers rear k member bolt hole location on the rail

  4. Bodyperson

    Bodyperson Pedal to the metal

    Messages:
    5,995
    Likes Received:
    8423
    Joined:
    Nov 26, 2015
    Location:
    NW MONTANA
    Local Time:
    9:46 AM
    My best guess is the center of the spring adjustment bolt. Hard to tell without the legend. Technically it should have a circle with a line through it to signify the center of a bolt.

  5. lenky1

    lenky1 Well-Known Member

    Messages:
    582
    Likes Received:
    232
    Joined:
    Jul 30, 2014
    Location:
    illinois
    Local Time:
    10:46 AM
    Both a and b are k member bolt locations. Im pretty sure tho. A is clearly marked and it lines over to b

  6. Cythomas

    Cythomas Member

    Messages:
    21
    Likes Received:
    4
    Joined:
    Nov 26, 2020
    Location:
    nova scotia canada
    Local Time:
    12:46 PM
    No legend I wish I got the picture from the service manual
