Crosswind air gap clone and ram truck serpentine setup

Magnum Engine Swaps

  1. JoePole1

    JoePole1 A dude in a B body

    Messages:
    74
    Likes Received:
    32
    Joined:
    Mar 3, 2018
    Location:
    Hyde Park,NY
    Local Time:
    11:15 AM

    Great pic Sport. Still thinking the shorter van compressor may work with some re-engineering. Cut here....new bracket there. Perhaps even shimming the AC mounting bracket or compressor up and a longer belt. Intake still hasn't arrived (3 weeks) so I can't do any mock up. On a positive note I scored an '01 5.9 with 72K on it for $300. Haven't pulled the heads yet but the lifter galley and rockers look like new. Thanks for the info.

    • Agree Agree x 2
    • sport74

      sport74 Well-Known Member

      Messages:
      390
      Likes Received:
      83
      Joined:
      Mar 26, 2014
      Location:
      Anderson sc
      Local Time:
      10:15 AM
      So after thinking about the spacers, I did a little measuring to see and, sure enough the bolt hole would be right at the edge of the Tstat housing. Plus some more of the compressor behind that. The bolt holes are 5" by 5" center to center. That being said, there are some more holes on my compressor that measure 3.5" deep center to center. ( Not sure if they started making a dual fitment compressor or not) if the van compressor measures out to the 3.5 depth, maybe it will be around 4.5" deep total from the front bolt hole center. If so this could be a viable option for us to run without shelling out for another intake


      • Like Like x 2
      • JoePole1

        JoePole1 A dude in a B body

        Messages:
        74
        Likes Received:
        32
        Joined:
        Mar 3, 2018
        Location:
        Hyde Park,NY
        Local Time:
        11:15 AM
        Hey Sport74,
        Are you using the Van or Pick-up AC/Alt mount on your engine? Looks like there is a difference. I referenced your earlier pics and some from RockAuto and the compressors are a lot different in length but I could not get a good enough view to reference some measurements. On the van compressor, the back of the unit is just past the mounting holes. If I had to guess I would say 3/8". I have a Pick-up style compressor but does anyone have the Van style for comparison? The front of pulley to back side of rear mounting holes would be really helpful.

      • 1994redram

        1994redram FABO Gold Member FABO Gold Member

        Messages:
        1,060
        Likes Received:
        524
        Joined:
        May 9, 2012
        Location:
        Oklahoma
        Local Time:
        10:15 AM
        I don't have one. But a parts store probably does and if not, they might order one in for you to measure.

        • Like Like x 1
        • sport74

          sport74 Well-Known Member

          Messages:
          390
          Likes Received:
          83
          Joined:
          Mar 26, 2014
          Location:
          Anderson sc
          Local Time:
          10:15 AM
          I am using the truck bracket. I'm pretty sure the van bracket would be different to accommodate the smaller compressor. My bracket has been Van Gogh'd to accommodate the intake also.

          • Like Like x 1
          • mopower76

            mopower76 Well-Known Member

            Messages:
            184
            Likes Received:
            43
            Joined:
            Jan 18, 2010
            Location:
            Champaign Il.
            Local Time:
            10:15 AM
            any update on the intake? I’m planning on running the same Chinese intake for the cost savings and I’ve used them with non AC set-ups in the past. They work great on stock/mild builds and again, the cost is great!

          • sport74

            sport74 Well-Known Member

            Messages:
            390
            Likes Received:
            83
            Joined:
            Mar 26, 2014
            Location:
            Anderson sc
            Local Time:
            10:15 AM
            The intake performs nice. Still unable to fit a compressor on it though. I have tried EBay and the local scrap yards to find a van bracket and have come up empty. EBay says the have the van bracket, but when you look it's the same casting number. I even tried the parts houses to see if I could get measurements off of a van compressor to confirm that it is shorter. Nobody has one in stock and want me to pay for one to order it. So I have gave up on the A/C for now since it is cooler weather.

          • Bobzilla

            Bobzilla Well-Known Member

            Messages:
            454
            Likes Received:
            296
            Joined:
            Aug 10, 2017
            Location:
            Livonia, Michigan
            Local Time:
            11:15 AM
            I heard mention at some point of 91 Dodge Dakota being a weird setup but don't remember ever seeing one, until last week. I was ata local junk yard and happened upon a 91 Dakota, 318 LA engine, with factory serpentire belt and AC. It appears to use an early Magnum style water pump.
            The thermostat is in standard LA location, but the housing has a built-in offset toward right side. The AC bracket sits up higher than a Magnum. I have not had time yet to mock it up with the dual pattern intake, but I bought the parts because it looks like it may work.
            I'll attach photos from of the Dakota I took before removing the bracket, but note the AC compressor was already missing.
            IMG_20181220_155546.jpg IMG_20181220_155541.jpg

          • Bobzilla

            Bobzilla Well-Known Member

            Messages:
            454
            Likes Received:
            296
            Joined:
            Aug 10, 2017
            Location:
            Livonia, Michigan
            Local Time:
            11:15 AM
            More photos. I'll try to do a mockup with a dual pattern intake this week some time. IMG_20181220_155530.jpg IMG_20181220_161901.jpg

            Last edited: Dec 28, 2018
            • Like Like x 2
            • sport74

              sport74 Well-Known Member

              Messages:
              390
              Likes Received:
              83
              Joined:
              Mar 26, 2014
              Location:
              Anderson sc
              Local Time:
              10:15 AM
              It looks like that is what is needed! Thanks for the contribution!

            • JoePole1

              JoePole1 A dude in a B body

              Messages:
              74
              Likes Received:
              32
              Joined:
              Mar 3, 2018
              Location:
              Hyde Park,NY
              Local Time:
              11:15 AM
              That is great information Bobzilla. Thanks. Please keep us posted when you mock up on the dual plane intake. I bought an LA cam cover but really want that serpentine with my AC and Crosswinds.

            • Bobzilla

              Bobzilla Well-Known Member

              Messages:
              454
              Likes Received:
              296
              Joined:
              Aug 10, 2017
              Location:
              Livonia, Michigan
              Local Time:
              11:15 AM
              I mocked up Magnum heads, block, and timing cover, along with a dual pattern intake manifold. The 91 Dakota AC bracket does fit the Magnum timing cover, would clear the Magnum serpentine driven water pump and Magnum valve covers. It allows lots of room around the thermostat housing.
              The negatives make it expensive, I would think. The Dakota thermostat housing will NOT work on the dual pattern intakes. The Dakota housing has mounting bolts that are roatated away from the standard LA position.
              You would have to use an LA style thermostat housing and figure out an upper radiator hose that would come over the alternator, like a factory Magnum hose does.
              The Magnum AC compressor that is readily available does not match the mounting area of the Dakota bracket, so it would require buying the compressor that fits the 91 Dakota. A quick search showed the serpentine version available as a remanufactured part only. I did not verify the rib count of the belts yet, and did not look further for Dakota AC compressor availability.
              It looks like this bracket would work, but there would be no cost savings. Best bet is still to sell the dual pattern intake to someone running without AC, then invest in a real Edelbrock Magnum intake when using factory Magnum serpentine belt drive with factory Magnum AC setup and bracket.
              You could fab some new brackets to mount the AC compressor or modify the factory Magnum bracket to move the compressor up, but now it gets pretty time consuming.
              I'll put pictures of the mock-up in another post, since I already rambled on too much.

              • Thanks! Thanks! x 2
              • Like Like x 1
              • Bobzilla

                Bobzilla Well-Known Member

                Messages:
                454
                Likes Received:
                296
                Joined:
                Aug 10, 2017
                Location:
                Livonia, Michigan
                Local Time:
                11:15 AM
                IMG_20181230_182840.jpg IMG_20181230_182829.jpg IMG_20181230_182457.jpg

                • Thanks! Thanks! x 2
                • sport74

                  sport74 Well-Known Member

                  Messages:
                  390
                  Likes Received:
                  83
                  Joined:
                  Mar 26, 2014
                  Location:
                  Anderson sc
                  Local Time:
                  10:15 AM
                  Bobzilla, what is the height of the compressor mounted on the bracket? Another thing to consider is the clearance if it gets too tall.

                  Approximately how much is the compressor raised up versus the stock magnum bracket? This has got me thinking about making a bracket that would essentially make the stock magnum bracket work like this

                • Bobzilla

                  Bobzilla Well-Known Member

                  Messages:
                  454
                  Likes Received:
                  296
                  Joined:
                  Aug 10, 2017
                  Location:
                  Livonia, Michigan
                  Local Time:
                  11:15 AM
                  Rough measurement looks to be about ten inches from the top of the AC compressor down to the large flat area on top of the Magnum timing cover. It would probably be another inch higher with AC hose assembly bolted on to the top of that compressor.
                  Keep in mind, I am assuming the Dakota compressor is about the same diameter, but not sure.
                  Modifying the common Magnum bracket is probably the cheapest and easiest way to go, other than trying to run with that right rear compressor mounting bolt cut off the bracket as others have mentioned in early posts.

                  • Thanks! Thanks! x 1
                  • sport74

                    sport74 Well-Known Member

                    Messages:
                    390
                    Likes Received:
                    83
                    Joined:
                    Mar 26, 2014
                    Location:
                    Anderson sc
                    Local Time:
                    10:15 AM
                    I tried to run the compressor after removing the ear on the bracket. The compressor still interfered with the water neck. My thoughts are to make a bracket that will bolt to the bracket like the AC delete bracket, but will angle the compressor like the Dakota bracket and possibly move it down wind towards the valve cover

                    • Thanks! Thanks! x 1
                    • 75slant6

                      75slant6 Well-Known Member

                      Messages:
                      4,863
                      Likes Received:
                      1312
                      Joined:
                      May 15, 2011
                      Location:
                      Russellville, ky
                      Local Time:
                      10:15 AM
                      Ok so I finally found a ram van in a junkyard about 30-40 minutes from me. Plan is to go get the ac compressor bracket sometime this week. I’ll keep y’all posted.

                      • Like Like x 1
                      • Thanks! Thanks! x 1
                      • JoePole1

                        JoePole1 A dude in a B body

                        Messages:
                        74
                        Likes Received:
                        32
                        Joined:
                        Mar 3, 2018
                        Location:
                        Hyde Park,NY
                        Local Time:
                        11:15 AM
                        Hey Bobzilla.....looking at your pics. The t-stat/radiator hose connection is aimed away from the radiator (dakota). I have a housing from a 2001 2500 Ram that points straight up. In your estimation, is there clearance to go straight up from the t-stat? Difficult to tell from the camera angle. Would the late model housing even seat properly on the dual plane? Thanks.

                      • sport74

                        sport74 Well-Known Member

                        Messages:
                        390
                        Likes Received:
                        83
                        Joined:
                        Mar 26, 2014
                        Location:
                        Anderson sc
                        Local Time:
                        10:15 AM
                        The crosswind uses the LA style housing. The late model magnum that's a straight up is about 3/4" narrower bolt to bolt than the LA style and won't work on that intake.

                        • Thanks! Thanks! x 1
                        • Bobzilla

                          Bobzilla Well-Known Member

                          Messages:
                          454
                          Likes Received:
                          296
                          Joined:
                          Aug 10, 2017
                          Location:
                          Livonia, Michigan
                          Local Time:
                          11:15 AM
                          The Magnum thermostat and housing are smaller diameter than the dual pattern intakes and most LA intakes.
                          I failed to take a picture looking straight down, but that cheap chrome housing is mostly under the AC compressor, so I don't think anything coming straight up would work.

                          • Thanks! Thanks! x 1
                          • 75slant6

                            75slant6 Well-Known Member

                            Messages:
                            4,863
                            Likes Received:
                            1312
                            Joined:
                            May 15, 2011
                            Location:
                            Russellville, ky
                            Local Time:
                            10:15 AM
                            Well, I got the van ac bracket pulled but I left it at the junkyard for now as I ran out of time and I wanna grab the power steering bracket as well. That said, I’m afraid the van bracket/compressor really won’t make much difference. Sure, the van compressor body is shorter than the truck compressor but if you look at the photos in my comment that I quoted ^^ you can see that the front plate/snout of the van compressor is longer than the pickup compressor. So I think the total length of the compressors are gonna end up being about the same length. When I go back for the power steering bracket, I’ll take the van compressor over to a pickup and compare them side by side and let y’all know what I find out.

                            • Like Like x 1
                            • Thanks! Thanks! x 1
                            • 75slant6

                              75slant6 Well-Known Member

                              Messages:
                              4,863
                              Likes Received:
                              1312
                              Joined:
                              May 15, 2011
                              Location:
                              Russellville, ky
                              Local Time:
                              10:15 AM
                              Here are better photos for comparison



                              • Thanks! Thanks! x 1
                              • 75slant6

                                75slant6 Well-Known Member

                                Messages:
                                4,863
                                Likes Received:
                                1312
                                Joined:
                                May 15, 2011
                                Location:
                                Russellville, ky
                                Local Time:
                                10:15 AM

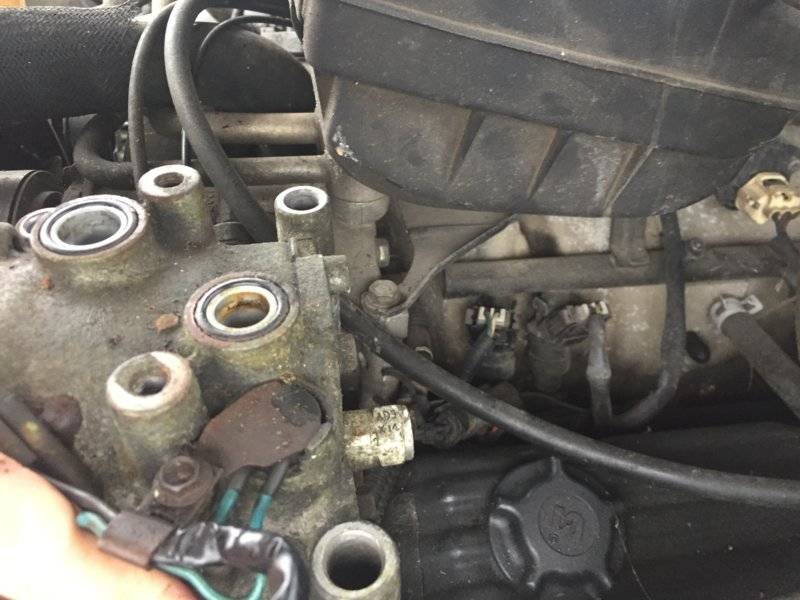

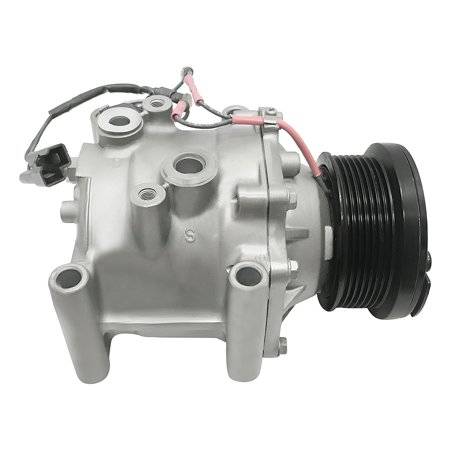

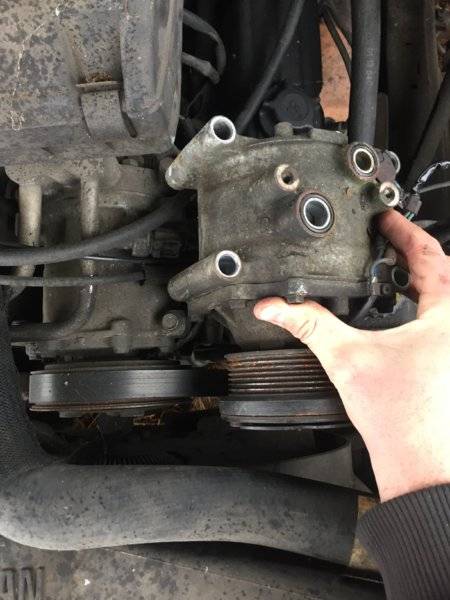

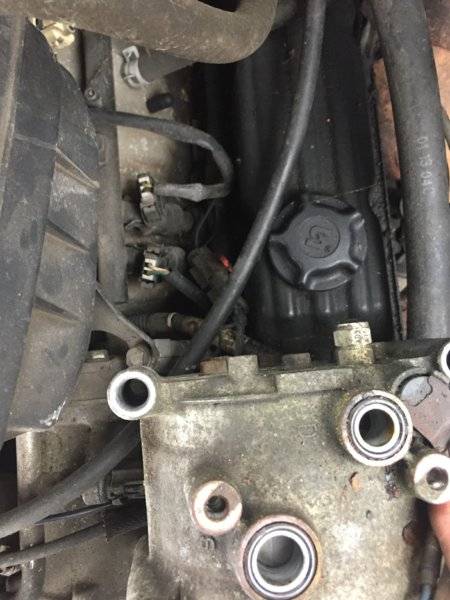

                                Unfortunately, I believe the van compressor is a no go. I made it back to the junkyard today and I held the van compressor next to truck compressor and overall it’s nearly the same length.
                                878BB1EE-CF1A-477C-9346-58510501F886.jpeg A8555C1A-C41A-4112-AEB1-9107075789DC.jpeg D6444D64-A838-4905-B6A2-AB92B34EDE53.jpeg

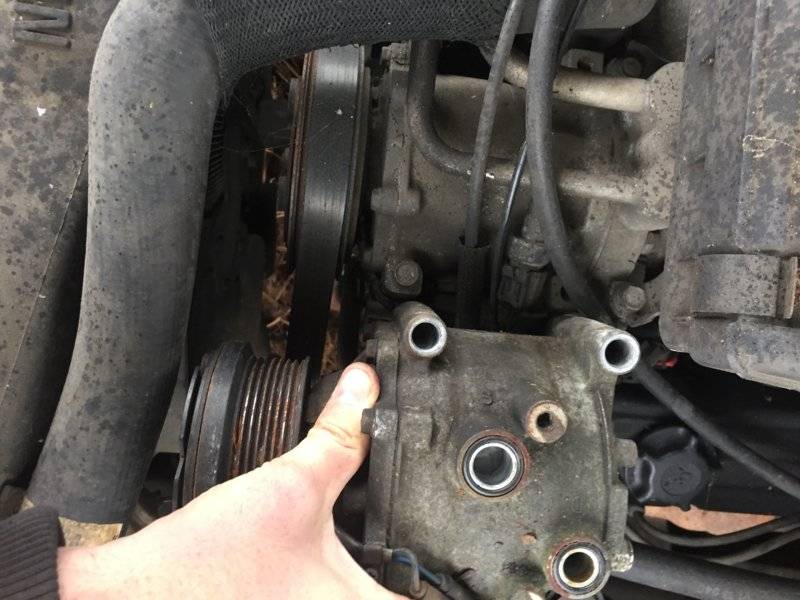

                                Now, if it’s possible to put the front plate, clutch/pulley, etc. from the truck compressor on the van compressor, you could gain some clearance but I don’t know if it’s possible to swap those parts or not.
                                0DCBB284-A500-41A1-A88C-B53797CCADE2.jpeg 901A8636-E9C4-4BF6-AB43-9C5B636F9CD3.jpeg
                                I’m going to use the kegger on my engine so I’ll just run the truck compressor. If I were to use the crosswind intake, I’d cut off that 4th ear and build an adapter plate that shifts the compressor toward the drivers side a bit.

                                • Thanks! Thanks! x 1
                                • JoePole1

                                  JoePole1 A dude in a B body

                                  Messages:
                                  74
                                  Likes Received:
                                  32
                                  Joined:
                                  Mar 3, 2018
                                  Location:
                                  Hyde Park,NY
                                  Local Time:
                                  11:15 AM
                                  Nice work Slant. You efforts are greatly appreciated!!!

                                • 75slant6

                                  75slant6 Well-Known Member

                                  Messages:
                                  4,863
                                  Likes Received:
                                  1312
                                  Joined:
                                  May 15, 2011
                                  Location:
                                  Russellville, ky
                                  Local Time:
                                  10:15 AM
                                  When the time comes for me to swap my 5.9 back to efi, I’ll swap the magnum front cover back on and leave the crosswind on there and see if I can’t get it worked out where a truck compressor can be used with the crosswind, before I switch back to the kegger. It’ll probably be a few months yet but I’ll see what I can come up with

                                  • Like Like x 1
