Drive motor on Mastercraft MIG welder stopped working.

4spdragtop

CONGRATS NORTH AMERICA!
FABO Gold Member
Joined
Aug 28, 2009
Messages
35,639
Reaction score
17,548
Location
Wasting time here
So with some time off I stocked up on beer for me and vodka for the females and figured I would get back to trying my hand at mig welding. A while back I got a bottle of Argon mix gas with new regulator. Got all set up, switched leads inside as per instructions. Literally got 5-10 seconds of welding and motor stops driving the .023" wire. I had also swapped the drive wheel to fit the wire. Everything hooked up properly as best I could tell. I even followed the instructions.
Now the drive motor doesnt work?? Pull the trigger and all I get is a click. No movement. Pull the die for the wire off the motor shaft, still nothing. I think the drive motor is kaput.
I can ( and will) call Canadian Tire tomorrow as that's where Dad bought it for me. Sucks as it would weld with fluxcore wire, but I'm a newbie welder for the most part. Not even 1lb of fluxcore thru it and now motor just clicks.
Just get all setup and I got to amend **** for 10 seconds lol.
Thanks









67Dart273

Well-Known Member
Joined
Oct 14, 2010
Messages
56,530
Reaction score
28,325
Location
Idaho
So you can visually see the wheels don't turn? I would access into the machine enough to look for a breaker or fuse internally. See if you can get to the motor terminals and see if they have power. Obviously, crank up the wire speed and make sure it's not just a "dead" spot in the control


Mike 340

Well-Known Member
Joined
Jun 21, 2016
Messages
156
Reaction score
76
Location
Canada
Are the rollers turning when you hit the trigger?
Maybe you have to adjust the tension?


4spdragtop

CONGRATS NORTH AMERICA!
FABO Gold Member
Joined
Aug 28, 2009
Messages
35,639
Reaction score
17,548
Location
Wasting time here
Nope no roller movement. I removed roller and shaft doesnt turn at all.
Heres pic of roller removed. I thought wire was jammed, but removed roller, still nothing but a click. Click sound is normal, the motor bit moving isnt.
Thanks guys.



Dave 74 Dart

Well-Known Member
Joined
Jan 24, 2019
Messages
562
Reaction score
662
Location
Southwestern Ontario
:popcorn: I have the exact same welder and we are on the 3rd spool of fluxcore wire. Works great but haven't used the gas yet. As mike340 says, Have you tried removing the spool of wire and seeing if the drive turns? Definitely watching this thread.oops, dis- regard the above...i posted as you were replying.


scott657

Well-Known Member
Joined
Dec 26, 2016
Messages
1,002
Reaction score
585
Location
Lancaster, Ca
that clicking noise is probably a relay controlled by the trigger. if you can bypass the common/normally open contacts on the relay without pulling the trigger and the motor turns you have a bad relay, if it does not you have a bad connection to the motor or a bad motor


Tooljunkie

King of cobble/master of the broken bolt
FABO Gold Member
Joined
Jul 22, 2017
Messages
22,597
Reaction score
26,833
Location
Manitoba
At this point i would open it up, voltmeter on motor terminals to determine if its motor or source voltage.
My 30 year old clarke gave me trouble, i had welder on bench and piece i was welding touched the welder housing. Blew out the circuit board. Replaced it and never made that same mistake.

all im saying is figure out what is broken and see if you can get parts.


Tooljunkie

King of cobble/master of the broken bolt
FABO Gold Member
Joined
Jul 22, 2017
Messages
22,597
Reaction score
26,833
Location
Manitoba
In the manual, should be a parts list. With any luck you can get parts.


Hyper_pak

Old School Chrysler Fan
Joined
Feb 14, 2010
Messages
4,095
Reaction score
4,485
Location
Desoto Texas
I have a Lincoln machine and it did the same thing. Inside the drive mechanism there are small gears packed with grease. The housing is die cast aluminum and one shaft cracked at the base of the aluminum case and BINGO, no worky. I can buy a much new bigger Lincoln machine for less than the gear drive costs as a replacement part!


Dfr360cuda

Diagnosis... Plum Crazy.
Joined
Aug 30, 2012
Messages
2,247
Reaction score
1,702
Location
Finleyville, PA
So you can visually see the wheels don't turn? I would access into the machine enough to look for a breaker or fuse internally. See if you can get to the motor terminals and see if they have power. Obviously, crank up the wire speed and make sure it's not just a "dead" spot in the control

Or a thermal overload


4spdragtop

CONGRATS NORTH AMERICA!
FABO Gold Member
Joined
Aug 28, 2009
Messages
35,639
Reaction score
17,548
Location
Wasting time here

Demonic

Well-Known Member
Joined
Mar 21, 2015
Messages
1,946
Reaction score
1,659
Location
Maryland
The other trick is to find the two small wires from the switch in the gun at the machine end. On my cheap Hobart 135 they are visible on the top right. A quick jumper with a pair of needle nose revealed a broken conductor in the cable.


Dave 74 Dart

Well-Known Member
Joined
Jan 24, 2019
Messages
562
Reaction score
662
Location
Southwestern Ontario
Thanks Frank, sucks there is no parts list in the manual. Ill have to check for more paperwork.


Thanks, Ill try and remove that part tomorrow. Hope its that cheap and easy to fix.
Full bottle of gas waiting lol.
Thanks all!

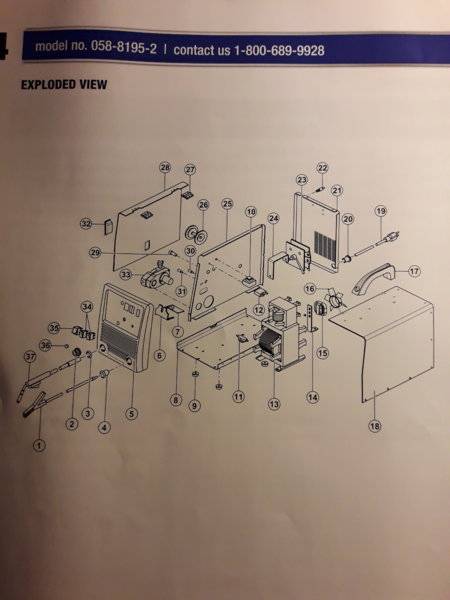

Hey Steve, here's a couple picts from my manual, maybe it will help when you make that call?


4spdragtop

CONGRATS NORTH AMERICA!
FABO Gold Member
Joined
Aug 28, 2009
Messages
35,639
Reaction score
17,548
Location
Wasting time here

toolmanmike

Moderator
Staff member
FABO Gold Member
Joined
Jan 18, 2006
Messages
71,189
Reaction score
67,311
Location
Office
Often times it's the trigger switch in the gun. Follow the wires back to the welder and jump between the contactor terminals to diagnose.


SLOPAR72

Well-Known Member
Joined
Jan 5, 2016
Messages
3,430
Reaction score
3,365
Location
Richmond, VA.
A few minutes with the Voltmeter will hopefully figure this out. What I have learned in Manufacturing is electrical goes bad more so than not where things move (Trigger for example.) You will figure it out and hopefully on the cheap and get back to it......

JW


4spdragtop

CONGRATS NORTH AMERICA!
FABO Gold Member
Joined
Aug 28, 2009
Messages
35,639
Reaction score
17,548
Location
Wasting time here
Digging a little deeper. Everything appears ok. Quite a few gears! All good thankfully. Peeled apart to get motor out. Best I can tell no voltage to motor? Still clicks as it should and did.
Fuse was good dammit. Took cover off the trigger. All looks good, I havent taken volt meter to it.
Thanks all

















View attachment 1715491546

View attachment 1715491557
