Full exhaust with relocated springs

Mopar Exhaust Systems

  1. Lil Demon

    Lil Demon Well-Known Member

    Messages:
    248
    Likes Received:
    101
    Joined:
    Mar 23, 2011
    Location:
    Laredo, Texas
    Local Time:
    11:07 AM

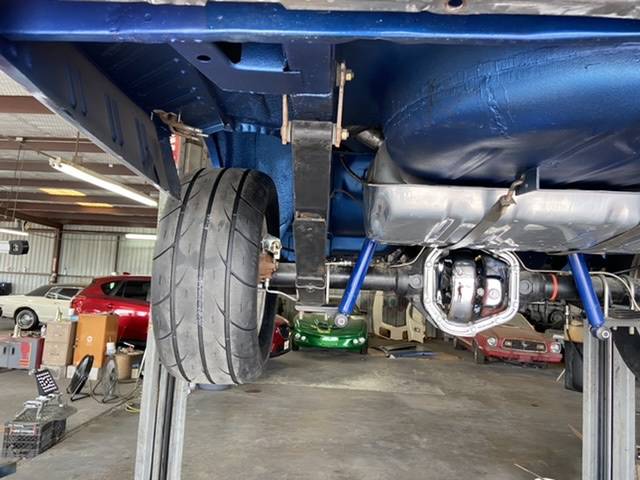

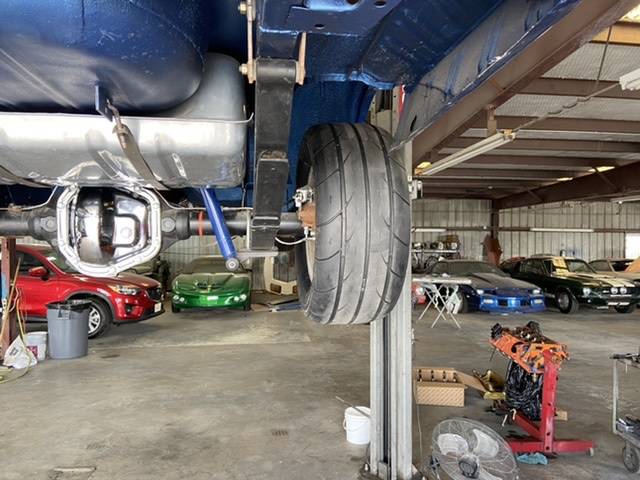

    As I’m nearing the final phases of my build it’s time to face the exhaust routing which I was hoping they would exit at near stock location with factory tips but since I relocated my rear leaf springs inboard not sure if they will clear has anybody successfully ran the tail pipes all the way out with Springs relocated? If so pictures would be appreciated thank you

  2. Ccas

    Ccas FABO Vendor FABO Vendor

    Messages:
    206
    Likes Received:
    153
    Joined:
    Dec 7, 2016
    Location:
    Hatfield, PA
    Local Time:
    12:07 PM
    It's a tight fit for A-bodies and a good set 2.5" exhaust pipes to fit through there. If you've modified anything back there, you will most likely need to make custom tailpipes. You can likely still use the 'kit' tails but they will undoubtedly have to be modified.

  3. Murray

    Murray FABO Gold Member FABO Gold Member

    Messages:
    1,773
    Likes Received:
    1172
    Joined:
    Apr 19, 2010
    Location:
    San Jose, California
    Local Time:
    9:07 AM
    One trick to consider is to reduce tailpipe diameter along the gas tank.

  4. supertruck

    supertruck Retired Old Fart stock car racer FABO Gold Member

    Messages:
    621
    Likes Received:
    307
    Joined:
    Feb 14, 2016
    Location:
    Gloucester, Va
    Local Time:
    12:07 PM
    Relocated by how much? Makes a difference.

  5. Treblig

    Treblig Well-Known Member

    Messages:
    5,995
    Likes Received:
    3228
    Joined:
    Oct 5, 2013
    Location:
    South Texas
    Local Time:
    11:07 AM
    Or get a short section of oval/oblong pipe so you don't lose any diameter. One section can do both sides:


    • Like Like x 1
    • Demonracer

      Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

      Messages:
      3,539
      Likes Received:
      1486
      Joined:
      Jan 31, 2010
      Location:
      Cleveland, Texas
      Local Time:
      11:07 AM
      Use what Treblig showed & a quality exhaust shop can make the oval round in order to attach the exhaust tips.

      • Like Like x 1
      • Demonracer

        Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

        Messages:
        3,539
        Likes Received:
        1486
        Joined:
        Jan 31, 2010
        Location:
        Cleveland, Texas
        Local Time:
        11:07 AM
        Damn, do I have to stand on my head to make sense of the pictures. LMAO It looks like your tank needs to be centered up & run the oval pipe on each side.

        • Agree Agree x 1
        • Lil Demon

          Lil Demon Well-Known Member

          Messages:
          248
          Likes Received:
          101
          Joined:
          Mar 23, 2011
          Location:
          Laredo, Texas
          Local Time:
          11:07 AM
          LOL, yup I deleted and trying to turn them over and repost

        • dodgedifferent2

          dodgedifferent2 Well-Known Member

          Messages:
          2,526
          Likes Received:
          349
          Joined:
          Aug 8, 2008
          Location:
          southwestern, Ontario
          Local Time:
          11:07 AM
          I used tti x exhaust and came out the rear
          But I also made a 20 gallon fuel cell because my tank was holy.

        • Lil Demon

          Lil Demon Well-Known Member

          Messages:
          248
          Likes Received:
          101
          Joined:
          Mar 23, 2011
          Location:
          Laredo, Texas
          Local Time:
          11:07 AM
          Left side looks good, right side looks impossible



        • Demonracer

          Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

          Messages:
          3,539
          Likes Received:
          1486
          Joined:
          Jan 31, 2010
          Location:
          Cleveland, Texas
          Local Time:
          11:07 AM
          Your tank needs to move over towards the drivers side, the straps are not in the inset of the tank.

          • Agree Agree x 1
          • Disagree Disagree x 1
          • Lil Demon

            Lil Demon Well-Known Member

            Messages:
            248
            Likes Received:
            101
            Joined:
            Mar 23, 2011
            Location:
            Laredo, Texas
            Local Time:
            11:07 AM
            I agree but that's how the tank sits against the spare tire well. notice it really can't shift leftward there's zero gap between the well and the tank. It's a tank I bought from Aeromotive fuel systems with an in-tank electric pump. Are other tanks centered on the spare tire well?

          • Demonracer

            Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

            Messages:
            3,539
            Likes Received:
            1486
            Joined:
            Jan 31, 2010
            Location:
            Cleveland, Texas
            Local Time:
            11:07 AM
            IIRC, most of the 68 & later tanks were centered to afford running dual exhaust. I haven't had a car with a stock tank in it in years, most of my recent cars have had fuel cells mounted in the spare tire well, or I did away with the well & pit a flat floor in them.

          • Lil Demon

            Lil Demon Well-Known Member

            Messages:
            248
            Likes Received:
            101
            Joined:
            Mar 23, 2011
            Location:
            Laredo, Texas
            Local Time:
            11:07 AM
            Yup I regret not doing away with the tire well.

          • Demonracer

            Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

            Messages:
            3,539
            Likes Received:
            1486
            Joined:
            Jan 31, 2010
            Location:
            Cleveland, Texas
            Local Time:
            11:07 AM
            My current car 71 Demon bracket racer has a flat aluminum floor in it with a rubber mat that the fuel cell sits on with the sump below the pan. I took my time & slowly cut the original floor pan out since the car was already painted. I only had one spot about the size of a pencil eraser that I had to touch up. You have to look really hard to find it now.

          • 72Dart6pack

            72Dart6pack Harder Better Faster Stronger.

            Messages:
            3,624
            Likes Received:
            3284
            Joined:
            Feb 1, 2016
            Location:
            Roseville Michigan
            Local Time:
            12:07 PM
            The correct location for straps for a 1972 Dart. Yes it's my Car.


            • Thanks! Thanks! x 1
            • Lil Demon

              Lil Demon Well-Known Member

              Messages:
              248
              Likes Received:
              101
              Joined:
              Mar 23, 2011
              Location:
              Laredo, Texas
              Local Time:
              11:07 AM
              So did you relocate leaf springs also? Have you installed exhaust?

            • 72Dart6pack

              72Dart6pack Harder Better Faster Stronger.

              Messages:
              3,624
              Likes Received:
              3284
              Joined:
              Feb 1, 2016
              Location:
              Roseville Michigan
              Local Time:
              12:07 PM
              2.5 exhaust. No I did not relocate the springs. My first post was for the correct location of the gas tank. That's all I can offer to help you.


              • Thanks! Thanks! x 1
              • 1994redram

                1994redram FABO Gold Member FABO Gold Member

                Messages:
                1,255
                Likes Received:
                671
                Joined:
                May 9, 2012
                Location:
                Oklahoma
                Local Time:
                11:07 AM
                Your exhaust will need to pass over the top of the leaf spring. The tips will come out outside of the leafs. I have a summit racing exhaust on my dart and it fit with minor trimming of the tailpipes. My leafsprings are moved 3" inboard.

                I would take pics but I removed my exhaust a few days ago to change mufflers.

                • Thanks! Thanks! x 1
                • 1994redram

                  1994redram FABO Gold Member FABO Gold Member

                  Messages:
                  1,255
                  Likes Received:
                  671
                  Joined:
                  May 9, 2012
                  Location:
                  Oklahoma
                  Local Time:
                  11:07 AM

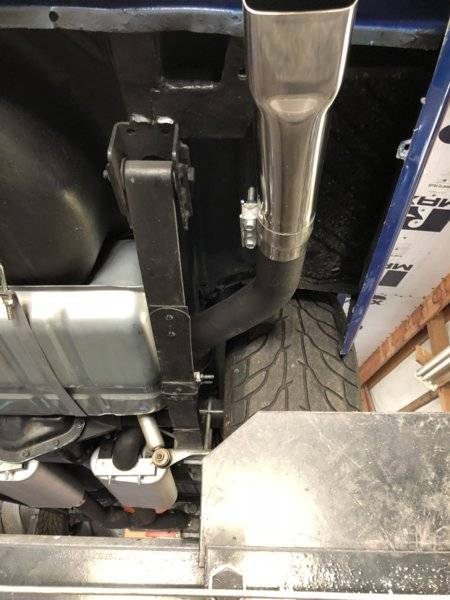

                  I have these two pictures saved to my phone. Its not my car, the pictures came from a post on this site.

                  • Thanks! Thanks! x 1
                  • Ccas

                    Ccas FABO Vendor FABO Vendor

                    Messages:
                    206
                    Likes Received:
                    153
                    Joined:
                    Dec 7, 2016
                    Location:
                    Hatfield, PA
                    Local Time:
                    12:07 PM

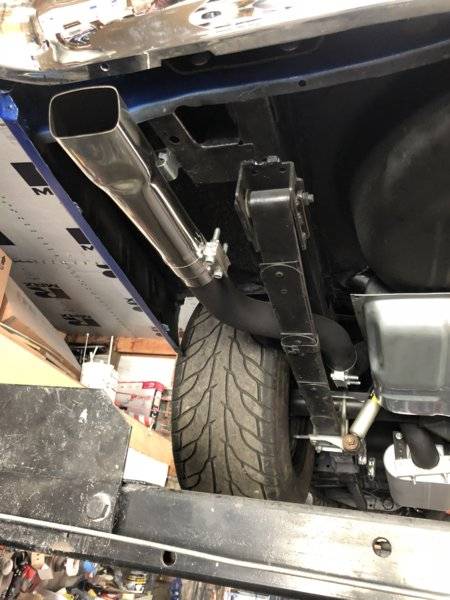

                    You can see that it's already really tight with the leaf springs in the stock position and a stock tank!


                    This one you can't see the leaf springs but it sure sounds nice! :)

                  • kursplat

                    kursplat FABO Gold Member FABO Gold Member

                    Messages:
                    2,984
                    Likes Received:
                    1959
                    Joined:
                    Aug 24, 2010
                    Location:
                    so cal
                    Local Time:
                    9:07 AM
                    • Thanks! Thanks! x 1
                    • Lil Demon

                      Lil Demon Well-Known Member

                      Messages:
                      248
                      Likes Received:
                      101
                      Joined:
                      Mar 23, 2011
                      Location:
                      Laredo, Texas
                      Local Time:
                      11:07 AM
                      Excellent information thanks for the link.
