    So everyone I need some help tuning the front suspension optimal on a slow bracket car to I'll give you a run down what has I will post some pictures also.
    - 67 barracuda w/ stock 440 out of 69 charger nothing fancy done to engine
    - low gear for drag racing
    - Stock but rebuilt front suspension
    - Superstock springs on rear
    My question is mostly in the front end in reguards to travel / torsion bar adjuster that kinda stuff as it sits right now from alignment shop wheels do some wild turning in stuff by it may not be optimal for racing as it doesn't see the street. I just want a optimal setup that I dont have to throw a ton of money into




  2. Sean1105

    Sean1105 Active Member

    Messages:
    28
    Likes Received:
    1
    Joined:
    May 4, 2020
    Location:
    Knoxville
    Local Time:
    11:36 AM
    I posted this in the racers forum but looking I probaly should post it here I'm kinda new to all this forum stuff

    I need some help tuning the front suspension optimal on a slow bracket car to I'll give you a run down what has I will post some pictures also.
    - 67 barracuda w/ stock 440 out of 69 charger nothing fancy done to engine
    - low gear for drag racing
    - Stock but rebuilt front suspension
    - Superstock springs on rear
    My question is mostly in the front end in reguards to travel / torsion bar adjuster that kinda stuff as it sits right now from alignment shop wheels do some wild turning in stuff by it may not be optimal for racing as it doesn't see the street




  3. abdywgn

    abdywgn dismantler

    Messages:
    1,313
    Likes Received:
    628
    Joined:
    Jul 30, 2006
    Location:
    Darien, Illinois
    Local Time:
    10:36 AM
    six cylinder torsion bars, an inch gap between lca snubber and frame, a nice pair of semi-worn std. shocks.(never got to try my Koni adjustable drag shocks)

  4. justinp61

    justinp61 Well-Known Member

    Messages:
    1,481
    Likes Received:
    793
    Joined:
    May 15, 2009
    Local Time:
    10:36 AM
    The MP Chassis manual recommends starting with a 1/2" gap.

    • Agree Agree x 2
    • abdywgn

      abdywgn dismantler

      Messages:
      1,313
      Likes Received:
      628
      Joined:
      Jul 30, 2006
      Location:
      Darien, Illinois
      Local Time:
      10:36 AM
      He did specify racing, I drove mine on the street so that is where the inch came from.

    • Sean1105

      Sean1105 Active Member

      Messages:
      28
      Likes Received:
      1
      Joined:
      May 4, 2020
      Location:
      Knoxville
      Local Time:
      11:36 AM
      That would be lowering the tosion bar adjuster right? When lowering do you have to loosen the pivot shaft nut or is that only when raising

    • Sean1105

      Sean1105 Active Member

      Messages:
      28
      Likes Received:
      1
      Joined:
      May 4, 2020
      Location:
      Knoxville
      Local Time:
      11:36 AM
      Wouldn't that create alot of travel in suspension?

    • Mattax

      Mattax Just the facts, ma'am FABO Gold Member

      Messages:
      10,553
      Likes Received:
      6580
      Joined:
      Feb 7, 2013
      Location:
      Phila. Pa
      Local Time:
      11:36 AM
      On the launch, travel is good.
      The shop manual front suspension chapter is pretty good. Start with that so you see what the foundation is.
      T-bars in the FSM are set by the hieght difference between the bottom of the lower ball joint and the bottom of the control arm t-bar socket.

      Moparts on the Web - Main Index
      In Bulletin 15, p. 13 starts the drag race front suspension info.
      There is some ambiguity in what the 1" mentioned on that page is in reference to - I would say the chassis, not the Chrysler 'ride height'. The point is to set the alignment at the hieght the chassis will rise to on the track.

    • mderoy340

      mderoy340 Well-Known Member

      Messages:
      2,331
      Likes Received:
      1100
      Joined:
      Aug 2, 2012
      Location:
      Melbourne FL
      Local Time:
      11:36 AM
      My car 1.65 60', high 11 low 12.0 car, street/strip. I run the Competition Engineering 90/10 up front with lower bump stop 1/2-3/4 inch clearance. Upper control arm bump stops cut to 1/2" to allow front end to move down more to barely keep front tire on the track. Alignment was done with me sitting in the seat and fuel level I race with, 3/4 full. Get someone to photo car launching and accelerating down the track with an old paint stir stick taped to the fender you can see index marks you made. Front end alignment is done with car front end raised in acceleration height. I have my toe set to minimum for street driving. I'm lucky that a good front end guy is local to me. Ask around at your track where people have gone for a good alignment shop. dart launch.jpg 000_0306.JPG

      • Like Like x 3
      • justinp61

        justinp61 Well-Known Member

        Messages:
        1,481
        Likes Received:
        793
        Joined:
        May 15, 2009
        Local Time:
        10:36 AM
        Yes, loosening (counter clockwise) will lower the front. With the front lowered it will have more travel than with it cranked up. The slower the car the more it needs the travel in the front to help transfer weight to the rear tires.

        I've never loosened the nut on the pivot shaft. Normally I just bounce the front after making an adjustment and check the measurement after a drive.

        If your goal is to drag race the car you'll need a loose front shock too, something like a 90/10 or a set that is worn out. With worn out shocks it will have some bounce on the street.

        • Like Like x 1
        • Demonracer

          Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

          Messages:
          3,303
          Likes Received:
          1288
          Joined:
          Jan 31, 2010
          Location:
          Cleveland, Texas
          Local Time:
          10:36 AM
          Drag racing alignment specs; Camber 0* Caster +1.5*-2.0* Toe in 0-1/16". Three way or more adjustable shocks will help with the weight transfer & rebound.

        • mbaird

          mbaird mbaird

          Messages:
          5,995
          Likes Received:
          2905
          Joined:
          Dec 10, 2005
          Location:
          boise, Id
          Local Time:
          9:36 AM
          Dont adjust the T bars with weight on them !
          Lift the front of the car . Might want to oil them first.

          • Agree Agree x 2
          • crackedback

            crackedback FABO Gold Member FABO Gold Member

            Messages:
            18,556
            Likes Received:
            2860
            Joined:
            Aug 7, 2005
            Location:
            92201
            Local Time:
            8:36 AM
            THIS!!!

            Cutting the upper bump stop and make sure the shock has sufficient extension travel to accommodate that longer swing.

            You want a weaker spring/torsion bar that is wound up tighter/more preload. Slant bars tend to work well in race applications. I like my stuff low with a ton of travel. Easier to limit travel than it is to find it when you need it.

            There is usually a lot of time locked up in the front end of these cars. Most spend hours on the back, that's the easy end!

            • Like Like x 1
            • Demonracer

              Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

              Messages:
              3,303
              Likes Received:
              1288
              Joined:
              Jan 31, 2010
              Location:
              Cleveland, Texas
              Local Time:
              10:36 AM
              crackedback is correct, a lot of time goes into getting the front suspension set just right. Just remember not to make more than one change at a time & keep good records of the changes so if you have to back up, you know how much.

              • Like Like x 1
              • furrystump

                furrystump Well-Known Member

                Messages:
                1,024
                Likes Received:
                645
                Joined:
                Nov 13, 2004
                Local Time:
                4:36 PM

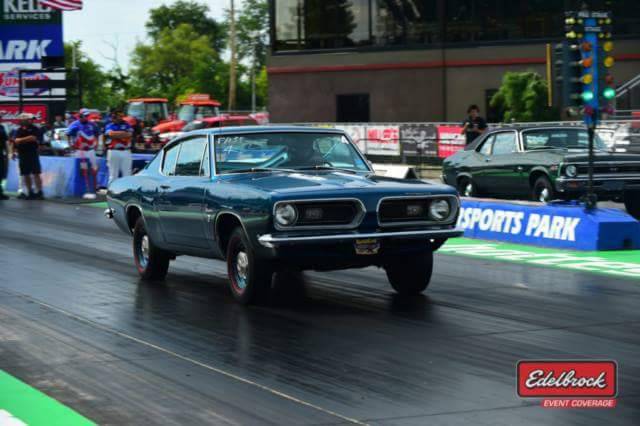

                C8976C9D-9653-4B00-B0C8-1A90C5722E4C.jpeg I run original 340 from bars. I have no bump stops at all with QA1 R’s on the front. Set on the softest extension. The only thing is with the aftermarket shock I had to clearance the bottom bump stop mount or it would hit the body of the shock. Buddy of mine had the same issue on his b body

                Last edited: May 25, 2020
              • Sean1105

                Sean1105 Active Member

                Messages:
                28
                Likes Received:
                1
                Joined:
                May 4, 2020
                Location:
                Knoxville
                Local Time:
                11:36 AM
                That's a hell of a lot of travel from UCA to bump stop does car react good lights? stop

              • fishmens67

                fishmens67 Well-Known Member

                Messages:
                7,662
                Likes Received:
                5103
                Joined:
                Nov 10, 2012
                Location:
                idaho
                Local Time:
                10:36 AM
                about 5 inches travel is optimum.

                • Agree Agree x 1
                • mderoy340

                  mderoy340 Well-Known Member

                  Messages:
                  2,331
                  Likes Received:
                  1100
                  Joined:
                  Aug 2, 2012
                  Location:
                  Melbourne FL
                  Local Time:
                  11:36 AM
                  I foot brake and if I'm paying attention .020, brakes are good 73 disks front/10" drums rear.

                • flyfish

                  flyfish C8H18+N2O = :-D

                  Messages:
                  1,984
                  Likes Received:
                  555
                  Joined:
                  Apr 16, 2007
                  Location:
                  Indy
                  Local Time:
                  11:36 AM
                  I would start with a 90/10 shock and go from there. At your power level it may be all you need. I'm not a fan of using old worn out shocks because they bounce (disrupting the chassis)...a 90/10 will extend quickly and come down slowly, keeping your rear tires planted.

                  • Agree Agree x 1
                  • Sean1105

                    Sean1105 Active Member

                    Messages:
                    28
                    Likes Received:
                    1
                    Joined:
                    May 4, 2020
                    Location:
                    Knoxville
                    Local Time:
                    11:36 AM
                    Nice

                  • mderoy340

                    mderoy340 Well-Known Member

                    Messages:
                    2,331
                    Likes Received:
                    1100
                    Joined:
                    Aug 2, 2012
                    Location:
                    Melbourne FL
                    Local Time:
                    11:36 AM
                    I have 14" tires up front for now and plan to swap to aluminum 15" up front when they are worn out.

                  • flyfish

                    flyfish C8H18+N2O = :-D

                    Messages:
                    1,984
                    Likes Received:
                    555
                    Joined:
                    Apr 16, 2007
                    Location:
                    Indy
                    Local Time:
                    11:36 AM
                    I forgot to mention, I'm also running a 67 Barracuda (notch-back, small block). How slow are you talking?...and is this 1/4 mile or 1/8 (just curious). Just asking, because I have been dialing in my car for many years, and used to do so on a stock suspension setup.

                  • Cudafever

                    Cudafever Well-Known Member

                    Messages:
                    4,104
                    Likes Received:
                    1426
                    Joined:
                    Sep 27, 2009
                    Local Time:
                    9:36 AM
                    When i started out it was SS spring and worn out front shocks
                    Then lowered front end
                    then lowered front end some more to get 5" of UP Traval
                    The 90/10 shock.................Front end so stiff 90/10 shock didn't work so well.

                    The ordered these
                    QA1 52311 Dynamic Adjustable Strut Bar, Mopar A-Body
                    alone with upper control arms with heims joints and lower control arm bushing with urethane bushing and greased well.

                    If you can get it to hook with the Previous set up, i would bother with this last step. especially if it still street driven.

                  • Sean1105

                    Sean1105 Active Member

                    Messages:
                    28
                    Likes Received:
                    1
                    Joined:
                    May 4, 2020
                    Location:
                    Knoxville
                    Local Time:
                    11:36 AM
                    7.80's 1/8 mile nothing to fast


                  • PRH

                    PRH Well-Known Member

                    Messages:
                    2,029
                    Likes Received:
                    3077
                    Joined:
                    Dec 14, 2018
                    Location:
                    So. Burlington, Vt
                    Local Time:
                    11:36 AM
                    If it has good rear tires, it should basically be dead hooking with everything nearly stock at that ET.

                    If it’s not spinning on the line, messing with the front suspension won’t yield much of any ET gain.

                    • Agree Agree x 1
