Help identifying this rear end?

Transmission and Drivetrain Tech

  1. 125Gretsch

    125Gretsch Member

    Messages:
    20
    Likes Received:
    15
    Joined:
    Jul 28, 2014
    Location:
    Santa Rosa
    Local Time:
    11:40 AM
    Hello!
    Looking at buying a 73’ dart swinger as a donor car for my 69’ GT.

    We’re doing a /6 to V8 swap and this seems to be a great candidate.

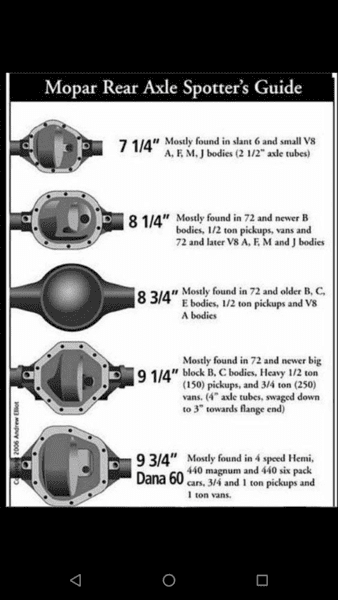

    Can anyone help verify this is an 8.25 rear end? It looks like it to me but I’m doubting my self.

    The car is a couple hours away so I’d really appreciate the help!

    Thanks!!!



  2. Six Barrel Bill

    Six Barrel Bill Member

    Messages:
    16
    Likes Received:
    2
    Joined:
    Jul 24, 2019
    Location:
    Syracuse, UT
    Local Time:
    12:40 PM
    Yes, a little hard to see but it does look like an 8 1/4


    • Like Like x 2
    • RustyRatRod

      RustyRatRod 30 Degrees Outta Whack FABO Gold Member

      Messages:
      53,873
      Likes Received:
      21903
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      2:40 PM
      Yup it sho nuff is!

      • Like Like x 1
      • 125Gretsch

        125Gretsch Member

        Messages:
        20
        Likes Received:
        15
        Joined:
        Jul 28, 2014
        Location:
        Santa Rosa
        Local Time:
        11:40 AM
        Great! Thank you both very much!

      • cawcislo

        cawcislo Well-Known Member

        Messages:
        82
        Likes Received:
        59
        Joined:
        Aug 7, 2018
        Location:
        Ontario, Canada
        Local Time:
        2:40 PM
        10 bolt holes I believe and if you look at the 8.25 cover gasket it's pretty much a circle (slightly flat at the top and bottom). Your pic does look like an 8.25 rear end.

      • oldkimmer

        oldkimmer FABO Gold Member FABO Gold Member

        Messages:
        11,708
        Likes Received:
        2026
        Joined:
        Nov 11, 2006
        Location:
        Kindersley, Saskatchewan,
        Local Time:
        1:40 PM
        The 7 1/4 will have 9 bolts and an 8 1/4 has 10 bolt cover. Kim
