Help solve Exhaust/Suspension Interference

Mopar Exhaust Systems

  1. Joeycurl

    Joeycurl Well-Known Member

    Messages:
    147
    Likes Received:
    68
    Joined:
    Oct 28, 2019
    Location:
    Bay Area,CA
    Local Time:
    11:37 PM
    Hi Everyone,

    Just wondering if anyone had issues with clearance between the suspension arm and exhaust in a Demon with a 440. I do notice some issues while driving when the suspension is articulating a lot (e.g. bumpy roads or long bounce). Car has TTI shorties and custom exhaust. Any solutions or suggestions? also posted in suspension forum.

  2. Demonracer

    Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

    Messages:
    5,201
    Likes Received:
    3234
    Joined:
    Jan 31, 2010
    Location:
    Cleveland, Texas
    Local Time:
    1:37 AM
    You may have to put a shim in for it to clear unless someone else has any ideas.

    • Agree Agree x 1
    • 33IMP

      33IMP Well-Known Member

      Messages:
      1,643
      Likes Received:
      1728
      Joined:
      Jul 3, 2020
      Location:
      Taxifornia, soon 2b arizona
      Local Time:
      11:37 PM
      Dent the pipe. (Beware... you might lose as much as a tenth of one horsepower.)

      • Like Like x 5
      • Agree Agree x 4
      • Thanks! Thanks! x 1
      • Joeycurl

        Joeycurl Well-Known Member

        Messages:
        147
        Likes Received:
        68
        Joined:
        Oct 28, 2019
        Location:
        Bay Area,CA
        Local Time:
        11:37 PM
        Currently the pipe is dented right where the arm is.

        • Agree Agree x 1
        • 33IMP

          33IMP Well-Known Member

          Messages:
          1,643
          Likes Received:
          1728
          Joined:
          Jul 3, 2020
          Location:
          Taxifornia, soon 2b arizona
          Local Time:
          11:37 PM
          Then dent it more. There is a famous engine masters episode where they took a sledge hammer to a set of headers, looking for a horsepower loss. After three sessions of bashing dents in them , they had to almost mash the tubing flat, to notice any significant power loss.

          • Like Like x 4
          • Agree Agree x 1
          • dadsbee

            dadsbee FABO Gold Member FABO Gold Member

            Messages:
            1,087
            Likes Received:
            2412
            Joined:
            Nov 25, 2020
            Location:
            Penetang, Ontario
            Local Time:
            2:37 AM
            A bigger dent, remake the pipe correct, or go over to a muffler shop and get a pipe flange plate, two gaskets and two longer bolts.

            • Like Like x 2
            • Agree Agree x 1
            • TF360

              TF360 Well-Known Member

              Messages:
              2,020
              Likes Received:
              754
              Joined:
              Apr 25, 2014
              Location:
              Florida
              Local Time:
              2:37 AM
              Is it possible to put some type of pry bar in there and bend it some, or would that cause damage somewhere else?

              • Like Like x 1
              • dadsbee

                dadsbee FABO Gold Member FABO Gold Member

                Messages:
                1,087
                Likes Received:
                2412
                Joined:
                Nov 25, 2020
                Location:
                Penetang, Ontario
                Local Time:
                2:37 AM
                Probably get away with it, pending the wall thickness on that pipe. Just don't put a nick in that torsion bar!

                • Like Like x 1
                • Joeycurl

                  Joeycurl Well-Known Member

                  Messages:
                  147
                  Likes Received:
                  68
                  Joined:
                  Oct 28, 2019
                  Location:
                  Bay Area,CA
                  Local Time:
                  11:37 PM
                  Thanks guys!

                • 72Dart6pack

                  72Dart6pack Harder Better Faster Stronger.

                  Messages:
                  4,644
                  Likes Received:
                  5092
                  Joined:
                  Feb 1, 2016
                  Location:
                  Roseville Michigan
                  Local Time:
                  2:37 AM
                  The actual power loss will be .00000005 % are you willing to take that kinda loss? Same power loss as driving with a 8 oz bottle of water in the cup holder. It will increase your 1/4 mile time.

                  Last edited: Dec 18, 2020
                  • Like Like x 1
                  • Thanks! Thanks! x 1
                  • 69_340_GTS

                    69_340_GTS Well-Known Member

                    Messages:
                    4,561
                    Likes Received:
                    2898
                    Joined:
                    Jul 11, 2014
                    Location:
                    Torrington, CT
                    Local Time:
                    2:37 AM
                    Sagging motor mounts, or maybe the existing ones need shimming? (to level, or un-level the motor, whatever is needed).

                    • Like Like x 2
                    • Agree Agree x 1
                    • Joeycurl

                      Joeycurl Well-Known Member

                      Messages:
                      147
                      Likes Received:
                      68
                      Joined:
                      Oct 28, 2019
                      Location:
                      Bay Area,CA
                      Local Time:
                      11:37 PM
                      The motor is shimmed .25" to get clearance for the steering box. Think the route to go is having the flange and/or section of the pipe remade

                    • dadsbee

                      dadsbee FABO Gold Member FABO Gold Member

                      Messages:
                      1,087
                      Likes Received:
                      2412
                      Joined:
                      Nov 25, 2020
                      Location:
                      Penetang, Ontario
                      Local Time:
                      2:37 AM
                      Why I suggested just getting a bare flange, two gaskets and two longer bolts. Easy way to space it down 1/4"

                    • CRUZE 418

                      CRUZE 418 FABO Gold Member FABO Gold Member

                      Messages:
                      918
                      Likes Received:
                      386
                      Joined:
                      Mar 11, 2019
                      Location:
                      Illinois
                      Local Time:
                      1:37 AM
                      Get rid of your stock suspension.

                      • Disagree Disagree x 2
                      • replicaracer43

                        replicaracer43 Grumpy Old Man

                        Messages:
                        5,080
                        Likes Received:
                        4598
                        Joined:
                        Oct 10, 2008
                        Local Time:
                        1:37 AM
                        The biggest issue is your drag link looks like its installed backwards.

                      • replicaracer43

                        replicaracer43 Grumpy Old Man

                        Messages:
                        5,080
                        Likes Received:
                        4598
                        Joined:
                        Oct 10, 2008
                        Local Time:
                        1:37 AM
                        The body of the inner tie rods ends should be to the front of the car, with the nuts to the rear. Yours is assembled backwards

                      • dadsbee

                        dadsbee FABO Gold Member FABO Gold Member

                        Messages:
                        1,087
                        Likes Received:
                        2412
                        Joined:
                        Nov 25, 2020
                        Location:
                        Penetang, Ontario
                        Local Time:
                        2:37 AM
                        I had looked at the picture and thought he had an issue with his torsion bar hitting the exhaust, why I suggested the extra flange to space the pipe down. YES... his center link is installed backwards as are his tie rod end.

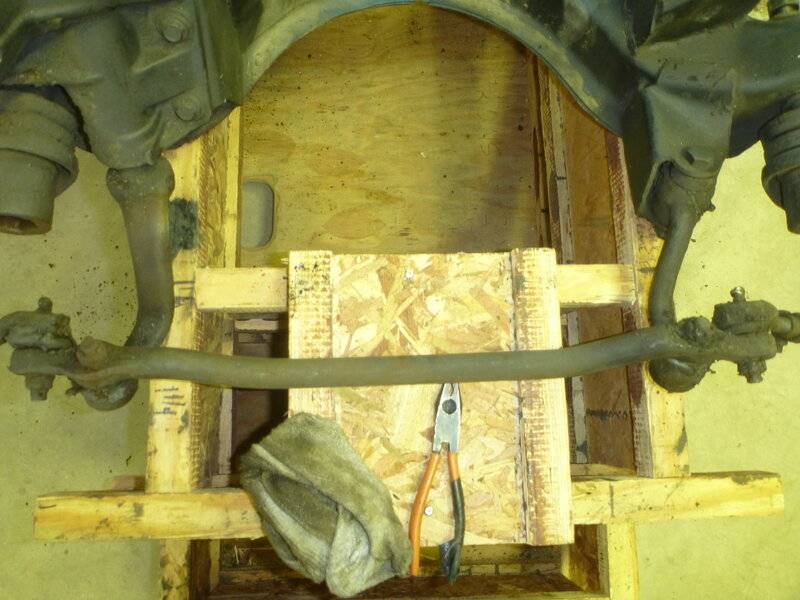

                        1969dartswingercleanupweek2 092.JPG

                      • Demonracer

                        Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

                        Messages:
                        5,201
                        Likes Received:
                        3234
                        Joined:
                        Jan 31, 2010
                        Location:
                        Cleveland, Texas
                        Local Time:
                        1:37 AM
                        Dang, I'm surprised all of us missed that. We must be getting old & our attention span is waning. LOL.

                        • Like Like x 1
                        • Agree Agree x 1
                        • clementine

                          clementine Flight risk FABO Gold Member

                          Messages:
                          1,602
                          Likes Received:
                          1055
                          Joined:
                          Jan 3, 2016
                          Location:
                          Emerald city
                          Local Time:
                          11:37 PM
                          Thats a great catch grumpy ol man!

                        • MOPAROFFICIAL

                          MOPAROFFICIAL FABO Gold Member FABO Gold Member

                          Messages:
                          8,876
                          Likes Received:
                          8179
                          Joined:
                          Jun 1, 2016
                          Location:
                          Oceanside ca.
                          Local Time:
                          11:37 PM
                          How about the nut on the idler.

                        • Joeycurl

                          Joeycurl Well-Known Member

                          Messages:
                          147
                          Likes Received:
                          68
                          Joined:
                          Oct 28, 2019
                          Location:
                          Bay Area,CA
                          Local Time:
                          11:37 PM
                          wait! what!? The inner tie rod is suppose to be on the front? why would the previous owner mount it the way he did? would moving it to the frontside change the angles enough to need a alignment after?

                        • dadsbee

                          dadsbee FABO Gold Member FABO Gold Member

                          Messages:
                          1,087
                          Likes Received:
                          2412
                          Joined:
                          Nov 25, 2020
                          Location:
                          Penetang, Ontario
                          Local Time:
                          2:37 AM
                          YEP.. replicaracer caught that while we were all asleep ! Your center link is backwards, as are your inner tie rod ends. Why I posted the picture above. Center link, the "long" flat section should be on the pitman arm / drivers side and the short side on the idler arm. Then the tapered sockets will point the correct way for your tie rods to be on the front side where they belong. Definitely will need the toe in checked..

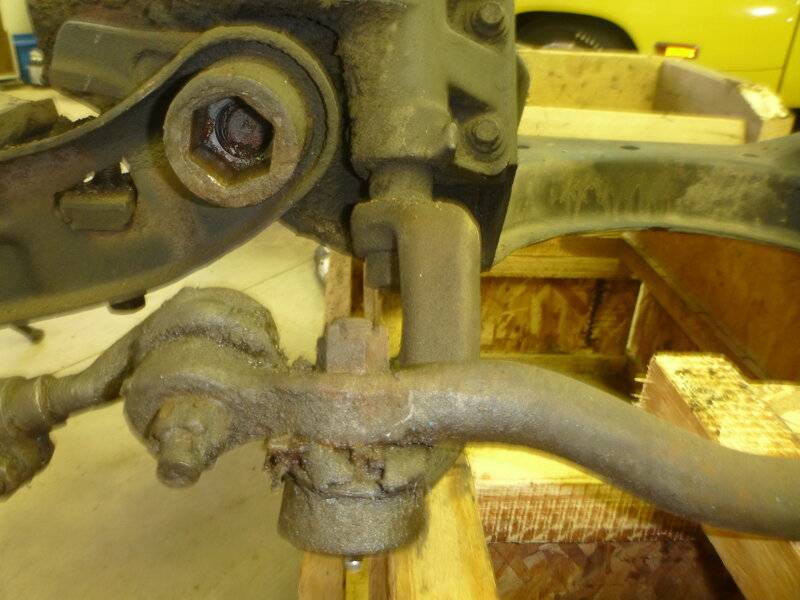

                          1969dartswingercleanupweek2 093.JPG 1969dartswingercleanupweek2 094.JPG

                          • Thanks! Thanks! x 1
                          • Joeycurl

                            Joeycurl Well-Known Member

                            Messages:
                            147
                            Likes Received:
                            68
                            Joined:
                            Oct 28, 2019
                            Location:
                            Bay Area,CA
                            Local Time:
                            11:37 PM
                            you got an clearer pictures to post or send to me?

                            Also, the torsion bar is what's banging against the exhaust not the steering linkages. (primary concern) but now correcting all the links before or while addressing the torsion bar interference is bugging me.

                          • dadsbee

                            dadsbee FABO Gold Member FABO Gold Member

                            Messages:
                            1,087
                            Likes Received:
                            2412
                            Joined:
                            Nov 25, 2020
                            Location:
                            Penetang, Ontario
                            Local Time:
                            2:37 AM
                            Not sure what you need that is clearer. Just showing you that the "flat" area of the center link is longer on the drivers side. Look at the pictures and see that the drivers side stays fairly level for about twice the distance as the passenger side from the nuts inwards. That is the correct orientation of the center link/drag link as some call it. As for the exhaust, if it is hitting the torsion bar then I offered how to fix that in my first reply. Buy a bare exhaust flange, 2 gaskets and two longer bolts.

                          • RustyRatRod

                            RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

                            Messages:
                            77,918
                            Likes Received:
                            55395
                            Joined:
                            Jun 7, 2010
                            Location:
                            Georgia
                            Local Time:
                            2:37 AM
                            Who ran the exhaust? Take it back and make them do that head pipe over.

                            • Agree Agree x 2
