How To Install an Ignition Switch in 1970 Dodge Dart

By abodyjoe, Sep 1, 2006 | Updated: Oct 2, 2016 | |
  1. abodyjoe

    abodyjoe Well-Known Member

    Messages:
    20,898
    Likes Received:
    6179
    Joined:
    May 22, 2004
    Location:
    Berlin,N.J. 08009
    Local Time:
    7:09 AM
    abodyjoe submitted a new Article:

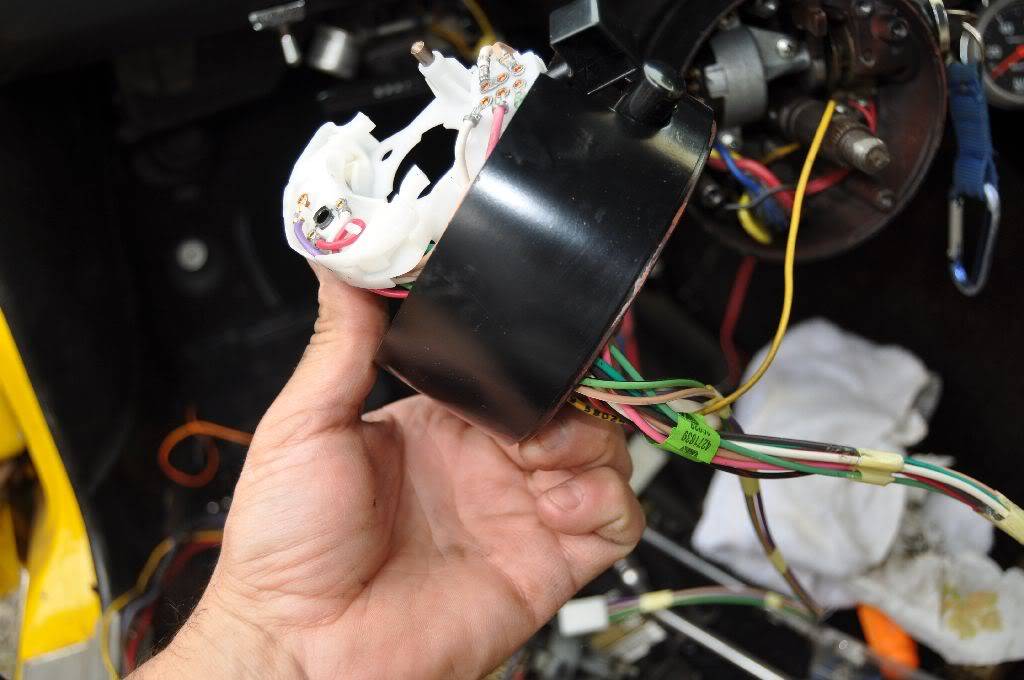

    How To Install an Ignition Switch in 1970 Dodge Dart

    Read more about this article here...

    Last edited by a moderator: Oct 2, 2016
    • Thanks! Thanks! x 1
    • Rubber ducky

      Rubber ducky New Member

      Messages:
      4
      Likes Received:
      0
      Joined:
      Aug 14, 2017
      Location:
      California
      Local Time:
      4:09 AM
    • abodyjoe

      abodyjoe Well-Known Member

      Messages:
      20,898
      Likes Received:
      6179
      Joined:
      May 22, 2004
      Location:
      Berlin,N.J. 08009
      Local Time:
      7:09 AM
      a wiring diagram would be your best friend..:)

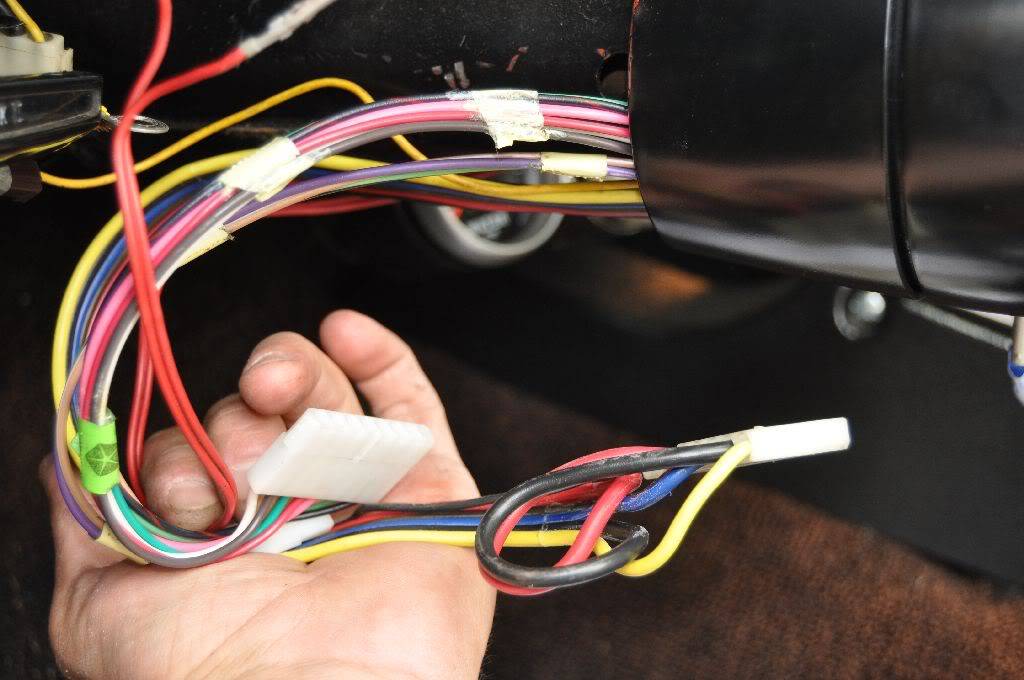

      here are what the wires were on that switch...


      • Like Like x 2
      • Thanks! Thanks! x 1
      • RedFish

        RedFish Well-Known Member

        Messages:
        24,515
        Likes Received:
        3044
        Joined:
        Sep 5, 2007
        Local Time:
        6:09 AM
        Many reproduction switches have a extra smaller gauge black wire poked in a connector port where the factory poked the orange wire that goes to shift bezel illumination ( column shift, varies with model and/or build ). This extra wire isn't shown in above drawing, nor is what the factory did at the connector port shown as open.
        To put it together as received will only blow a fuse. If you don't have the special tools required to remove terminals from connectors, go ahead and snip the orange wire. Make it up to the wire coming from that bulb socket beside the OEM connector. Male and female spade terminals or simple butt crimp. The extra black wire,,, just forget its there.

        Last edited: Aug 15, 2017
      • Rubber ducky

        Rubber ducky New Member

        Messages:
        4
        Likes Received:
        0
        Joined:
        Aug 14, 2017
        Location:
        California
        Local Time:
        4:09 AM
        I have the Napa switch but it never came with the diagram I'm trying to hook it up to a Ron Francis wiring harness but thank you guys that diagram is lifesaver very hard to find

      • abodyjoe

        abodyjoe Well-Known Member

        Messages:
        20,898
        Likes Received:
        6179
        Joined:
        May 22, 2004
        Location:
        Berlin,N.J. 08009
        Local Time:
        7:09 AM
        i used a standard brand switch from napa when i did the american auto wire harness in my dart. that diagram is what we made after wiring my car to remember what exactly we did..lol

        • Like Like x 1
        • 70DusterBob

          70DusterBob Well-Known Member

          Messages:
          649
          Likes Received:
          153
          Joined:
          Feb 20, 2016
          Location:
          Texas
          Local Time:
          6:09 AM
          Nice photos!!! Clear, large and focused in all the right places!

          • Like Like x 1
          • Tigergod10

            Tigergod10 New Member

            Messages:
            1
            Likes Received:
            0
            Joined:
            Dec 15, 2017
            Location:
            Orlando fl
            Local Time:
            7:09 AM
            I have a 1974 dodge dart and I don't know if the new ignition switch I bought will fit in the car because the old wires has 8 wires in the connection and the new one has only 6 wires. I need help can someone explain to me

          • 70DusterBob

            70DusterBob Well-Known Member

            Messages:
            649
            Likes Received:
            153
            Joined:
            Feb 20, 2016
            Location:
            Texas
            Local Time:
            6:09 AM
            I am not an ignition pro. But I can't tell you how many times I have gone to get a part for my car and they give me the wrong year, or the right part, but to a different car. Double check with another parts store if you can, but you are in the right place to find the answers. Not everyone here knows everything but everyone here knows something about everything. Give it time, you will get a better answer soon, prob this week end.

            • Like Like x 1
            • RedFish

              RedFish Well-Known Member

              Messages:
              24,515
              Likes Received:
              3044
              Joined:
              Sep 5, 2007
              Local Time:
              6:09 AM
              Many plastic harness connectors do have 8 or more ports. And the OEM engineers would use the extra ports for connection of other items/circuits, like the column shift indicator lamp, key buzzer, etc... where they were building a separate assembly like a steering column. Here's another example... Your alternator has 3 wires but that engine harness connector has temp sender and many other wires routed through it. Anyway...
              All the ignition switches have 6 terminals where wires could be attached. All aftermarket replacement switches have a wire attached to each terminal. Majority of OEM switches had only 5 wires attached. A large red, a large black, a blue, a brown, and a yellow.
              It's my understanding that some vehicles did use that 6th switch terminal/small black wire.

              • Thanks! Thanks! x 1
              • meathead66

                meathead66 Hang 10

                Messages:
                757
                Likes Received:
                397
                Joined:
                Jan 19, 2008
                Location:
                Tinley Park Illinois
                Local Time:
                6:09 AM
                That has got to be the best help aid I've seen on FABO yet. Even though I need something like that for a dash mounted (69 Dart) ignition switch that was impressive. Nice job Joe. Now go and do a 69 Dart.

              • Paladin06

                Paladin06 Well-Known Member

                Messages:
                1,064
                Likes Received:
                290
                Joined:
                Jan 19, 2010
                Location:
                East Valley, AZ USA
                Local Time:
                4:09 AM
                Just what I need. Can I get a part number if this is the correct piece for a 1972 Duster?

              • abodyjoe

                abodyjoe Well-Known Member

                Messages:
                20,898
                Likes Received:
                6179
                Joined:
                May 22, 2004
                Location:
                Berlin,N.J. 08009
                Local Time:
                7:09 AM
                • Thanks! Thanks! x 1
                • Paladin06

                  Paladin06 Well-Known Member

                  Messages:
                  1,064
                  Likes Received:
                  290
                  Joined:
                  Jan 19, 2010
                  Location:
                  East Valley, AZ USA
                  Local Time:
                  4:09 AM

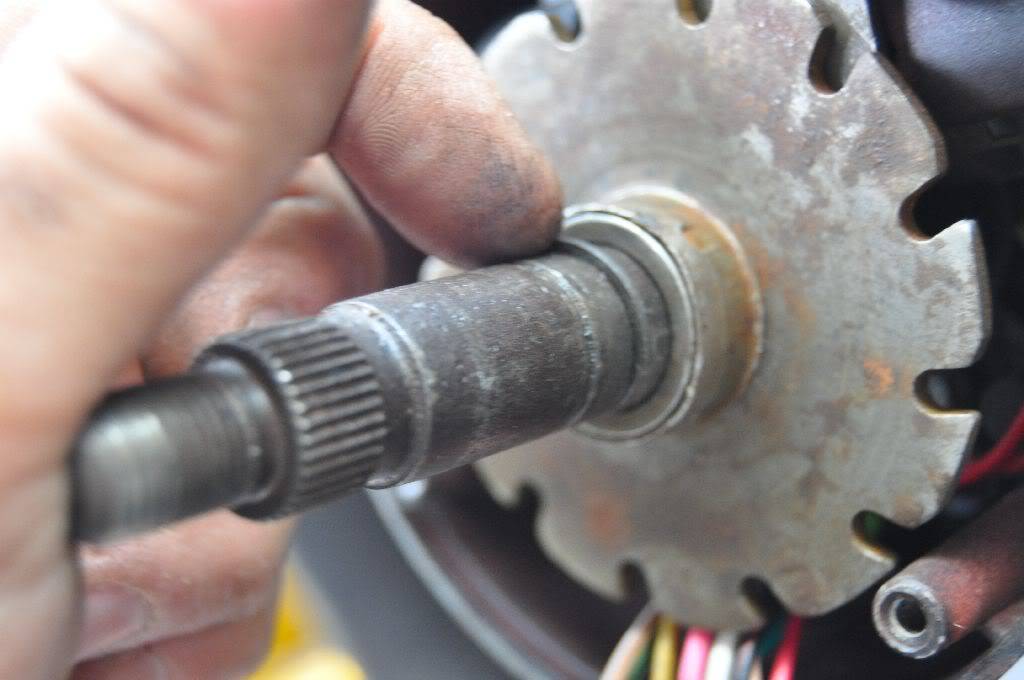

                  Thanks. Your DIY has been very helpful. I found during my disassembly the sleeve over steering wheel lock pin was not installed. Should try to find and install one?

                  • Like Like x 2
                  • abodyjoe

                    abodyjoe Well-Known Member

                    Messages:
                    20,898
                    Likes Received:
                    6179
                    Joined:
                    May 22, 2004
                    Location:
                    Berlin,N.J. 08009
                    Local Time:
                    7:09 AM
                    yes i would. don't want that roll pin backing out.

                    • Like Like x 1
                    • Paladin06

                      Paladin06 Well-Known Member

                      Messages:
                      1,064
                      Likes Received:
                      290
                      Joined:
                      Jan 19, 2010
                      Location:
                      East Valley, AZ USA
                      Local Time:
                      4:09 AM
                      I agree but this will not be easy.

                    • abodyjoe

                      abodyjoe Well-Known Member

                      Messages:
                      20,898
                      Likes Received:
                      6179
                      Joined:
                      May 22, 2004
                      Location:
                      Berlin,N.J. 08009
                      Local Time:
                      7:09 AM
                      someone should have one laying around in an old column.

                      • Like Like x 1
                      • Paladin06

                        Paladin06 Well-Known Member

                        Messages:
                        1,064
                        Likes Received:
                        290
                        Joined:
                        Jan 19, 2010
                        Location:
                        East Valley, AZ USA
                        Local Time:
                        4:09 AM
                        Found a kit. $_57.jpg

                        • Agree Agree x 1
                        • Paladin06

                          Paladin06 Well-Known Member

                          Messages:
                          1,064
                          Likes Received:
                          290
                          Joined:
                          Jan 19, 2010
                          Location:
                          East Valley, AZ USA
                          Local Time:
                          4:09 AM

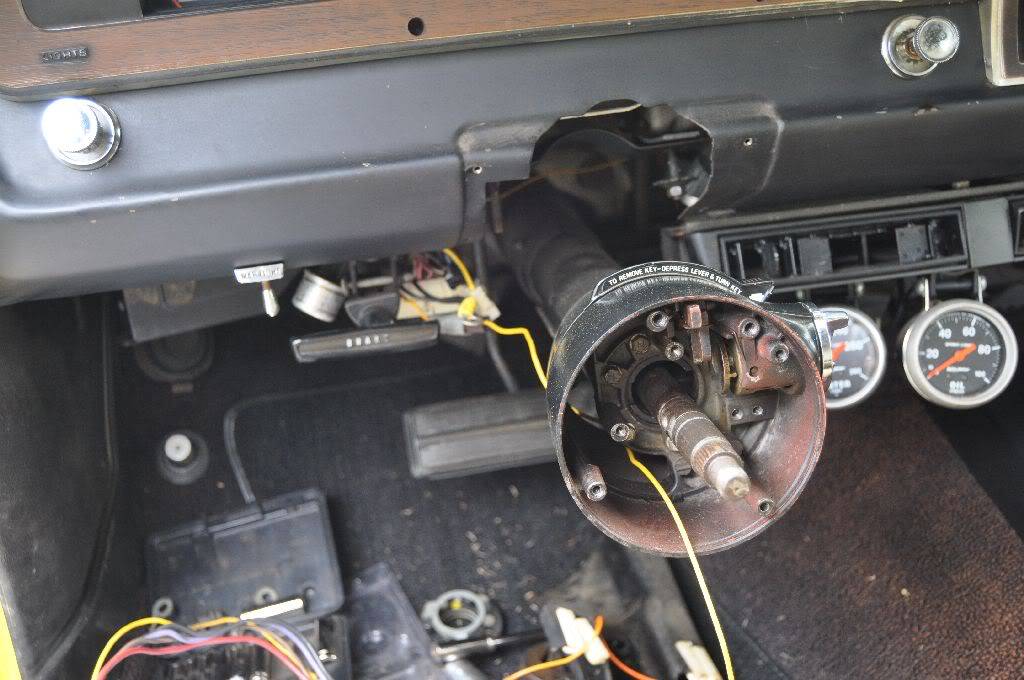

                          In a related question. I noted in your pictures when you dropped your steering wheel it is down several inches. When I drop mine it only comes down about 1 maybe 1 1/2 inches. Am I missing something?

                        • abodyjoe

                          abodyjoe Well-Known Member

                          Messages:
                          20,898
                          Likes Received:
                          6179
                          Joined:
                          May 22, 2004
                          Location:
                          Berlin,N.J. 08009
                          Local Time:
                          7:09 AM
                          I just pulle the bracket off the column and it dropped like that.

                          • Like Like x 1
                          • Paladin06

                            Paladin06 Well-Known Member

                            Messages:
                            1,064
                            Likes Received:
                            290
                            Joined:
                            Jan 19, 2010
                            Location:
                            East Valley, AZ USA
                            Local Time:
                            4:09 AM
                            Strange. Mine acts like it's hitting something but I don't see anything.

                          • MoparMark91

                            MoparMark91 Well-Known Member

                            Messages:
                            511
                            Likes Received:
                            155
                            Joined:
                            Jun 22, 2018
                            Location:
                            CA
                            Local Time:
                            4:09 AM
                            I dont know if I'm in the right place but in need of help fellow a body owners! I am currently rewiring my 1971 dart and I'm caught up at the ignition switch, I do see the above diagram for new harness installation picture but I am not running a ballast resistor because i have pertonix in it so I am one wire too much on the ignition switch side. My question is in my setup with no resistor how do I wire the ignition switch as the new kwikwire harness only has 4 wires for ignition and ignition column side has 5.

                          • MoparMark91

                            MoparMark91 Well-Known Member

                            Messages:
                            511
                            Likes Received:
                            155
                            Joined:
                            Jun 22, 2018
                            Location:
                            CA
                            Local Time:
                            4:09 AM
                            What if I have my ballast resistor bypassed? How do I wire it then? I am wiring up a kwikwire harness

                          • abodyjoe

                            abodyjoe Well-Known Member

                            Messages:
                            20,898
                            Likes Received:
                            6179
                            Joined:
                            May 22, 2004
                            Location:
                            Berlin,N.J. 08009
                            Local Time:
                            7:09 AM
                            no different you just have the ballast wires tied together.

                          • MoparMark91

                            MoparMark91 Well-Known Member

                            Messages:
                            511
                            Likes Received:
                            155
                            Joined:
                            Jun 22, 2018
                            Location:
                            CA
                            Local Time:
                            4:09 AM
                            Yes that's what I did with original harness but with the aftermarket harness it does not give you that option, I have 4 wires from kwikwire side going to ignition switch connector but 5 on column ignition switch connector so fo I just splice my blue a brown together? I will post pictures here when I get home in a bit
