Intake manifold gasket installation help

Small Block Mopar Engine

  1. Bob Jasinski

    Bob Jasinski FABO Gold Member FABO Gold Member

    Messages:
    282
    Likes Received:
    122
    Joined:
    Mar 7, 2019
    Location:
    Danville CA
    Local Time:
    8:56 AM

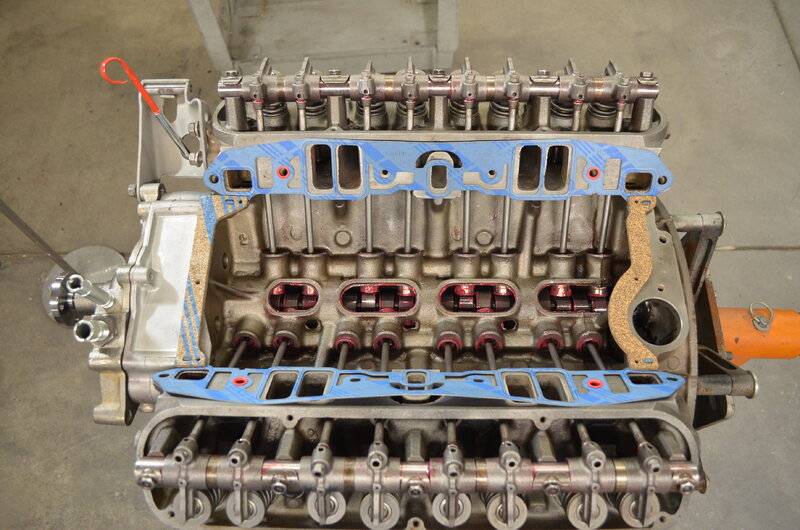

    I'm about to install the Fel-Pro intake manifold gasket in my '65 273. The instructions say to install plastic retainers in the second bolt hole from each end, do not apply sealant across the gaskets or seals but to apply a dab of the supplied RTV where the gaskets and seals meet.
    Attached are pictures of the installation, does this look correct? Have not yet put on the dab of sealant in the corners.

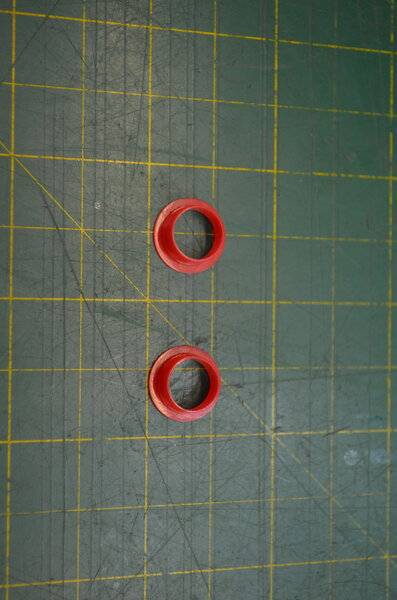

    DSC_4665[1].JPG DSC_4666[1].JPG DSC_4667[1].JPG

    • Like Like x 1
    • Professor Fate

      Professor Fate Push the button, Max...

      Messages:
      2,275
      Likes Received:
      3030
      Joined:
      Jan 13, 2020
      Location:
      Wisconsin
      Local Time:
      10:56 AM
      I normally put a light smear of sealer around the water crossovers (the 4 square ports on each end) to head off any weeping of coolant in addition to the sealer on the joints of the gaskets and seals. I also put a dab on the bolt threads- some are wet holes.
      You'll have people tell you to ditch the cork end seals and just lay down a fat bead of RTV instead; which is okay, but as long as you're careful with the cork ones they'll work fine too. I've rarely had issues with them.

      • Agree Agree x 2
      • toolmanmike

        toolmanmike Moderator Staff Member FABO Gold Member

        Messages:
        61,525
        Likes Received:
        50143
        Joined:
        Jan 18, 2006
        Location:
        Iowa
        Local Time:
        10:56 AM
        It looks like the blue plastic "holders keep the gasket in place. Not a bad idea. I guess the spray Hi-tac I use does the same thing. I like to dry fit the intake with the side gaskets to check the china wall gaskets. If there is a big gap you will need the cork end seals. If the gap is small just use black silicone. A nice even bead, install the intake, tighten the bolts making sure the sealer is touching all the surfaces and walk away until tomorrow. Leave you valve cover breather caps off. Silicone needs air to cure and leaving the crankcase exposed will help that along. I used silicone on my 273 end gaskets because the heads were milled as well as the intake surfaces so the intake sat a little lower than usual.


        • Like Like x 1
        • MOPAROFFICIAL

          MOPAROFFICIAL FABO Gold Member FABO Gold Member

          Messages:
          8,955
          Likes Received:
          8270
          Joined:
          Jun 1, 2016
          Location:
          Oceanside ca.
          Local Time:
          8:56 AM
          It's not necessary but if you got yourself a can of gasket cinch made by Edelbrock you can paint the head side of that gasket and the intake face of the head ,wait for it to tack up... and then stick it onto the head using the locators... then just use a little rvt on the face of each water crossover 'intake side' only unless you have pitted heads, then put some on before the gasket is set ...and of course a dollop in each corner and under the cork.

        • cudamark

          cudamark FABO Gold Member FABO Gold Member

          Messages:
          8,988
          Likes Received:
          1457
          Joined:
          Mar 14, 2009
          Location:
          San Diego
          Local Time:
          8:56 AM
          I don't recommend any sealer on Teflon gaskets, but, where they meet the cork gaskets for sure needs a bead of RTV black. I also coat the cork end gaskets with CopperCoat....on both sides.

        • dano

          dano Evil Handy Man

          Messages:
          4,047
          Likes Received:
          1872
          Joined:
          Aug 22, 2005
          Location:
          Gresham, Oregon
          Local Time:
          8:56 AM
          This plus if your using an aftermarket intake and/or aftermarket valve covers fit those too, as they will interfere and need clearance.

          • Agree Agree x 2
          • 413

            413 Well-Known Member

            Messages:
            367
            Likes Received:
            428
            Joined:
            Nov 13, 2019
            Location:
            NW USA
            Local Time:
            8:56 AM
            You are not to use sealer on those blue Fel-Pro gaskets. Only where the cork meets them.

            The instructions say dry, some guy online says smear some sealer on them. I’ll go with the instructions from the folks that made them

            Last edited: Sep 18, 2021
            • Agree Agree x 5
            • teringer

              teringer Well-Known Member

              Messages:
              915
              Likes Received:
              242
              Joined:
              Feb 22, 2011
              Location:
              kenly nc
              Local Time:
              10:56 AM
              looks like 360 intake gasket on 273 head /I have seen these suck oil on the bottom of runner after a while

              • Agree Agree x 1
              • cudamark

                cudamark FABO Gold Member FABO Gold Member

                Messages:
                8,988
                Likes Received:
                1457
                Joined:
                Mar 14, 2009
                Location:
                San Diego
                Local Time:
                8:56 AM
                Yup, those gaskets aren't matching the ports very well. What does your gasket set say on application? Which head castings are you using?

              • doug 371

                doug 371 Well-Known Member

                Messages:
                2,247
                Likes Received:
                448
                Joined:
                May 29, 2004
                Location:
                Regina, SK CANADA
                Local Time:
                4:56 PM
                make sure your intake shows evidence of clearance for those plastic locators...most aftermarket intakes do not

                • Agree Agree x 1
                • Bob Jasinski

                  Bob Jasinski FABO Gold Member FABO Gold Member

                  Messages:
                  282
                  Likes Received:
                  122
                  Joined:
                  Mar 7, 2019
                  Location:
                  Danville CA
                  Local Time:
                  8:56 AM
                  These are stock 273 heads, this is the gasket set the rebuilder used, and I am completing the build using it. Everything is stock including the intake manifold, don't know of any other set to use and am open to suggestions. I'm starting get concerned about the plastic locators, are they really necessary? Wouldn't the manifold bolts locate to gasket?

                • doug 371

                  doug 371 Well-Known Member

                  Messages:
                  2,247
                  Likes Received:
                  448
                  Joined:
                  May 29, 2004
                  Location:
                  Regina, SK CANADA
                  Local Time:
                  4:56 PM
                  just look at your intake...you will see if there is room for them...if the face of the intake is totally flat then do not use them...show a pic of the intake surface...

                • cudamark

                  cudamark FABO Gold Member FABO Gold Member

                  Messages:
                  8,988
                  Likes Received:
                  1457
                  Joined:
                  Mar 14, 2009
                  Location:
                  San Diego
                  Local Time:
                  8:56 AM
                  Those plastic inserts don't hurt a thing even on aftermarket intakes without any relief in them. So, you have the 315 casting heads?

                  • Disagree Disagree x 2
                  • niceolddart

                    niceolddart FABO Gold Member FABO Gold Member

                    Messages:
                    417
                    Likes Received:
                    282
                    Joined:
                    Dec 19, 2014
                    Location:
                    S.E. Pa.
                    Local Time:
                    11:56 AM
                    I used a little Hi-Tack on my 5.2 magnum (I used Fel-Pro gaskets) on the head side of the gaskets to help hold them in place until they were dry, before installing the intake. The plastic retainers can be removed after this. I also used the end gaskets supplied, with a bead of RTV where the intake & end gaskets. Never had an issue. Clean everything real good & USE GOOD GASKETS! It's worth the extra you spend on them.

                  • missing linc

                    missing linc Loose nut behind the wheel

                    Messages:
                    4,318
                    Likes Received:
                    8119
                    Joined:
                    Feb 17, 2019
                    Location:
                    Southern Alberta Canada
                    Local Time:
                    9:56 AM
                    The plastic insert is there to ensure that the gasket stays in place when you set the intake down. I don't use a gasket on the China walls as they have a tendency to squish out and leak. Instead I put down about 1/2 inch beads of permatex black oil resistant silicone, so far no leaks.

                  • Bob Jasinski

                    Bob Jasinski FABO Gold Member FABO Gold Member

                    Messages:
                    282
                    Likes Received:
                    122
                    Joined:
                    Mar 7, 2019
                    Location:
                    Danville CA
                    Local Time:
                    8:56 AM
                    The intake does have the relief around the bolt holes. Starting to believe these are not the right gaskets to use. The engine gasket set is Fel-Pro FS 8553 PT-10. I looked it up and shows Plymouth Barracuda '68 to '73. Don't know why the rebuilder used this set. I'm going to order the Fel-Pro MS9935 intake set as shown on Rock Auto's site, and not use these. Evidently the lower end gaskets are the same but not the intake gaskets. I had a bad feeling about these, thanks for pointing out the fit issue, these are for a 340 or 360 it seems. I have stock 273 heads ending in 315.


                    • Like Like x 1
                    • Bob Jasinski

                      Bob Jasinski FABO Gold Member FABO Gold Member

                      Messages:
                      282
                      Likes Received:
                      122
                      Joined:
                      Mar 7, 2019
                      Location:
                      Danville CA
                      Local Time:
                      8:56 AM
                      Please explain what China walls are, not familiar with the term. Thanks.

                    • dibbons

                      dibbons Well-Known Member

                      Messages:
                      5,096
                      Likes Received:
                      3085
                      Joined:
                      Nov 6, 2009
                      Location:
                      La Paz, B.C.S., Mexico
                      Local Time:
                      8:56 AM
                      The end cork gaskets look like the wall of China (from outer space) if one uses his/her imagination a little.

                      • Agree Agree x 1
                      • CFD244

                        CFD244 FABO Gold Member FABO Gold Member

                        Messages:
                        1,056
                        Likes Received:
                        1014
                        Joined:
                        Sep 7, 2017
                        Location:
                        Northern Ontario, Canada
                        Local Time:
                        11:56 AM
                        Where the cork gaskets are sitting in the OP's first picture.

                      • oldkimmer

                        oldkimmer FABO Gold Member FABO Gold Member

                        Messages:
                        20,389
                        Likes Received:
                        7256
                        Joined:
                        Nov 11, 2006
                        Location:
                        Kindersley, Saskatchewan,
                        Local Time:
                        10:56 AM
                        Did ur gasket set come with the tin intake gaskets? If so they are the ones to use on the 273 small port heads and intake. The locators are made on the tin gaskets. Kim

                      • RustyRatRod

                        RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

                        Messages:
                        77,883
                        Likes Received:
                        55742
                        Joined:
                        Jun 7, 2010
                        Location:
                        Georgia
                        Local Time:
                        11:56 AM
                        I don't care what the instructions say, I always put a light coat of sealer (I use RTV) around the water ports on each side of the gaskets. I mean really, you want it to not leak the first time, right? A lot of times I agree with no sealer, because in some instances, the sealer will act as a lubricant and make the gasket "squirm" out from under what it's sealing, when you torque the part down. It's not possible for the intake gaskets to do that both by how they are made, and the fact they have bolts running through them to hold them in place. Which brings me to another point. You also need to coat the intake bolt threads with "some sort" of sealer (again, I use RTV), because the intake bolt holes go through to the under valve cover area of the head. With no sealer, oil will migrate up the bolt threads from crankcase pressure and puddle on the intake manifold next to the bolt heads and have you wondering where it's coming from. So seal the bolt threads, too. Just because the factory "didn't do it" doesn't mean it's a bad idea.

                        • Agree Agree x 4
                        • Bob Jasinski

                          Bob Jasinski FABO Gold Member FABO Gold Member

                          Messages:
                          282
                          Likes Received:
                          122
                          Joined:
                          Mar 7, 2019
                          Location:
                          Danville CA
                          Local Time:
                          8:56 AM
                          Thanks Rusty, good advice, I'll follow through.

                          • Agree Agree x 1
                          • MOPAROFFICIAL

                            MOPAROFFICIAL FABO Gold Member FABO Gold Member

                            Messages:
                            8,955
                            Likes Received:
                            8270
                            Joined:
                            Jun 1, 2016
                            Location:
                            Oceanside ca.
                            Local Time:
                            8:56 AM
                            Use the locators and forget what bs instructions say.
                            I've always used sealer around the water crossovers n corners..and with those gaskets. The gasket cinch is just incase you don't have locators..so they dont move around...it's just like automotive contact cement. Its specifically for intake and water pump gaskets. Use it or don't. Who cares, it doesnt...It doesn't care what the gasket is made of either..
                            I've used that gasket predominately for decades for it's reusability when only glued to the heads, unlike paper that oil soaks and will delaminate.

                            Last edited: Sep 19, 2021
                            • Thanks! Thanks! x 1
                            • Agree Agree x 1
                            • Richard Sweet

                              Richard Sweet Well-Known Member

                              Messages:
                              163
                              Likes Received:
                              33
                              Joined:
                              Oct 15, 2013
                              Location:
                              Ventura, CA
                              Local Time:
                              8:56 AM
                              -315 heads are for 64-65, 273s with small, 59-64.5 cc closed chambers. (Measure the volume to help you determine what compression ratio you will end up with). Those give a higher compression ratio than open chamber heads. The small, stock valves, 1.78 and 1.50, are light weight, which is good for higher RPM. Of course they had adjustable rocker arms to go with solid lifters too. Those are desirable heads. Small port 273 intake manifold gaskets can be more difficult to find but I think the 318 have the same size ports.
                              Dry fitting is important so make sure any gaskets used are held in place while doing that. This will enable you to see how big the gaps are and even to stick a feeler gauge in to measure them. Then you can decide which gaskets you need or even if some surfaces need to be milled.

                              Last edited: Sep 20, 2021
                              • Thanks! Thanks! x 1
                              • MOPAROFFICIAL

                                MOPAROFFICIAL FABO Gold Member FABO Gold Member

                                Messages:
                                8,955
                                Likes Received:
                                8270
                                Joined:
                                Jun 1, 2016
                                Location:
                                Oceanside ca.
                                Local Time:
                                8:56 AM
                                They're all 3/8 stem.

                                • Thanks! Thanks! x 1
                                • Agree Agree x 1
