Just Purchased Virgin 340 Short - What to do with Pistons

Small Block Mopar Engine

  1. Mattax

    Mattax Just the facts, ma'am FABO Gold Member

    Messages:
    11,290
    Likes Received:
    7142
    Joined:
    Feb 7, 2013
    Location:
    Phila. Pa
    Local Time:
    11:51 PM
    Got a picture of the top of the pistons?
    I'm kindof ignorant here, but shouldn't stock '71 pistons be above the deck about .045?
    And 65 cc is close to the min, would that suggest the heads have been milled?

    • Agree Agree x 3
    • nm9stheham

      nm9stheham Well-Known Member

      Messages:
      12,090
      Likes Received:
      3948
      Joined:
      Dec 20, 2013
      Location:
      Waynesboro, VA
      Local Time:
      11:51 PM
      Mmmmm... you deck height is nowhere near to typical for the early high compression pistons; those stick .018" nominal out of the bores. If they are truly .070" down in the bore at TDC, then IDK what they are; they may be the later low compression 340 factory pistons, but I did not think they were down in the hole that much. The Silvolite 1267 mid-compression replacements don't sit low like that.

      So is this 'in the bore by .07" ' for real or did you mean .007" or ???? Do the pistons have 2 or 4 eyebrows? What actual heads do you have?

      If you were to put in newer Icon or KB or other newer pistons, you would save considerable weight. The Icon's have a light ring pack. But not sure any of that is of value to you for your use. And the crank would need re-balanced as noted.

      Of course we know nothing about the condition of the present pistons, bores, rings, ring grooves. So it is a guess as to what it will do.

    • pittsburghracer

      pittsburghracer FABO Gold Member FABO Gold Member

      Messages:
      4,446
      Likes Received:
      8119
      Joined:
      Apr 20, 2016
      Location:
      Freeport, PA.
      Local Time:
      11:51 PM
      Edelbrock even has a special part number for those pistons with an open chamber

    • 512Stroker

      512Stroker We are all here because we are not all there.

      Messages:
      1,979
      Likes Received:
      1426
      Joined:
      May 30, 2016
      Location:
      Freedom, MO
      Local Time:
      10:51 PM
      OP if you run into piston issues I have a complete set of stock pistons from a 69 340 that are in good shape. You could have them for the freight.

      • Like Like x 3
      • davescuda

        davescuda FABO Gold Member FABO Gold Member

        Messages:
        10,251
        Likes Received:
        1660
        Joined:
        Apr 30, 2007
        Location:
        Cheshire, CT
        Local Time:
        11:51 PM
        what is the vin on the block? My car came from your area.

      • cudaracer

        cudaracer Well-Known Member

        Messages:
        358
        Likes Received:
        23
        Joined:
        Oct 6, 2013
        Location:
        Detroit/Michigan
        Local Time:
        10:51 PM
        No offense taken, it's just that many people have info at their fingertips, and just tweak a value or two. I would have to research what the cc's in the piston are for stock, as well as typical deck height, which is never accurate. And so on. Yes, the calculations are easy peasy

        • Like Like x 1
        • cudaracer

          cudaracer Well-Known Member

          Messages:
          358
          Likes Received:
          23
          Joined:
          Oct 6, 2013
          Location:
          Detroit/Michigan
          Local Time:
          10:51 PM
          The measurement was 0.07" and you could visually see it into the bore, clearly, where 0.007" would look almost flush.
          So yeah, I will have to tear this down to see exactly what I am working with. Virgin bore does not equate to original pistons, as I believe I have found out.

          I am using 906 heads, slightly decked and cc'd at 65. They were on my 318 that I will swap shorts with, and yes, my CR went way down with these heads. The pistons do have 4 eyebrows and the top does look identical to original factory piston tops for 340 that I have seen.

          I plan on using the pistons, assuming in good shape, but will probably replace rings. Can't see putting old rings back in, but I will leave that up to my machinist to determine if they are good, as I have no way of knowing.

        • Marcohotrod

          Marcohotrod Well-Known Member

          Messages:
          2,423
          Likes Received:
          626
          Joined:
          Mar 21, 2015
          Location:
          Massachusetts
          Local Time:
          11:51 PM
          1968-71 340 pistons = comp distance - 1.840" - 2 valve notches - 725 grams plus pin = heavy , above deck around .020". 1972-3 340 = comp d - 1.740" - 4 notches - 725 grams plus pin = below deck .080". if rebalancing is in the budget, you want to keep it and rev high for years, go lighter pistons and pins. a longer stroke = shorter/lighter pistons, and more friction. a J E piston for 4.060" X 3.480" weighs 513 grams and revs quick. 906 big block heads?

          • Like Like x 1
          • Agree Agree x 1
          • nm9stheham

            nm9stheham Well-Known Member

            Messages:
            12,090
            Likes Received:
            3948
            Joined:
            Dec 20, 2013
            Location:
            Waynesboro, VA
            Local Time:
            11:51 PM
            New rings are not expensive. But as mentioned above, wear in the ring grooves is just as critical. If you have worn ring grooves, the rings will flex and twist constantly, and will wear out quickly. Back-in-the-day, you could reuse a set of pistons with worn ring grooves, by having the grooves machined wider and then inserting a ring spacer to take up the slack and get back to original groove width. A ring spacer looks like an oil control scraper ring. Dunno if many machine shops will do that anymore, or if they can do it economically.

            Good deal on the heads; tnx for rthe info.

            If the piston tops truly are .070" down in the hole, then even with these milled heads at 65 cc, and with a .039" head gasket, you are looking at around 8.0 static CR. Yep... typical smog era stuff! It'll only go up to around 8.25 with the .028" head gasket, but the heads and deck need to be good and flat to use those, per reports here of them tending to not hold at times.

            So if the measurements we are discussing are right, then you sure as heck don't want to cam this thing up an use it as a cruiser.....your dynamic CR is gonna be in the toilet. Think: more sluggish than a stock smog era 318 ......ooooo-ow, that hurts to even think about LOL

            Maybe it is time to PM to 512stroker on his hi-comp 340 pistons.... that is a generous-sounding offer IMHO.

            • Agree Agree x 3
            • Like Like x 1
            • Nat

              Nat Well-Known Member

              Messages:
              510
              Likes Received:
              273
              Joined:
              Jun 11, 2019
              Location:
              Netherland
              Local Time:
              4:51 AM
              you sure it is a 1971 ? sounds like the pistons were changed 4 brow sound like replacement pistons . . with that low compression throw a supercharger on it

            • Wyrmrider

              Wyrmrider FABO Gold Member FABO Gold Member

              Messages:
              3,611
              Likes Received:
              1739
              Joined:
              Sep 5, 2016
              Location:
              los angeles
              Local Time:
              8:51 PM
              cast rebuilder pistons and boost do not mix well
              actually not evea NA if it detonates

              • Agree Agree x 1
              • toolmanmike

                toolmanmike FABO MODERATOR Staff Member FABO Gold Member

                Messages:
                56,069
                Likes Received:
                42399
                Joined:
                Jan 18, 2006
                Location:
                Iowa
                Local Time:
                10:51 PM
                Let's not talk about turbos. Man are they fun but they can wreck shit. (cars,engines,and even lives) A good running 340 doesn't need a turbo. There's a reason why the manufacturers put them on 2 liter 4 bangers.

                • Like Like x 2
                • cudaracer

                  cudaracer Well-Known Member

                  Messages:
                  358
                  Likes Received:
                  23
                  Joined:
                  Oct 6, 2013
                  Location:
                  Detroit/Michigan
                  Local Time:
                  10:51 PM
                  OK, just measured comp height, and it's only 1.75". Yikes, that proves that it's 0.07" in bore as well. I calculate 8.23:1 with 0.047 gasket. Did they offer a low CR 340 in 71? So I need new pistons, any reason why I should shop someone other than KB?

                  Block number is 2780930-340-7

                  Last edited: May 13, 2020
                  • Like Like x 1
                  • yellow rose

                    yellow rose Overnight Sensation FABO Gold Member

                    Messages:
                    27,277
                    Likes Received:
                    23510
                    Joined:
                    Jun 19, 2015
                    Location:
                    Central Washington
                    Local Time:
                    8:51 PM

                    72-73 340’s were all low compression like that. Nothing wrong with a KB piston.

                  • gm1236

                    gm1236 Well-Known Member

                    Messages:
                    157
                    Likes Received:
                    64
                    Joined:
                    Aug 3, 2013
                    Location:
                    Massachusetts
                    Local Time:
                    11:51 PM
                    Could be an early ‘72 motor.

                  • Mattax

                    Mattax Just the facts, ma'am FABO Gold Member

                    Messages:
                    11,290
                    Likes Received:
                    7142
                    Joined:
                    Feb 7, 2013
                    Location:
                    Phila. Pa
                    Local Time:
                    11:51 PM
                    That's the casting number.

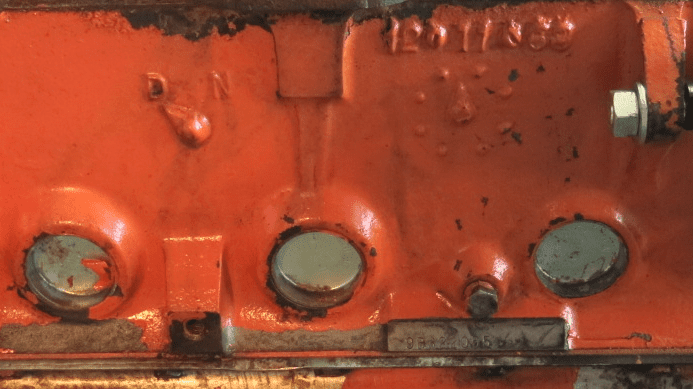

                    On the other side of the Block, will be the casting date and time.

                    Engine number, including VIN or partial VIN was stamped onto a pads.
                    Look on the front, below the heads.
                    and above the pan rail on the right.


                    Some examples with decoding comments here:
                    Mopar Lost and Found

                    • Like Like x 1
                    • 512Stroker

                      512Stroker We are all here because we are not all there.

                      Messages:
                      1,979
                      Likes Received:
                      1426
                      Joined:
                      May 30, 2016
                      Location:
                      Freedom, MO
                      Local Time:
                      10:51 PM
                      Well that's a 69 block
                      But I do not believe that is factory paint and it appears that those freeze plugs have been replaced.
                      My guess is that that engine has been apart before. Hence the different pistons.

                      • Like Like x 1
                      • Mattax

                        Mattax Just the facts, ma'am FABO Gold Member

                        Messages:
                        11,290
                        Likes Received:
                        7142
                        Joined:
                        Feb 7, 2013
                        Location:
                        Phila. Pa
                        Local Time:
                        11:51 PM
                        Yes! That's my latest engine. Bought it a couple years ago from another member here. I wanted another backup, one that could meet SCCA Street Prepared rules without a major a hassle. It's sitting on the stand now. I need to clear a few projects that became higher priorities before returning it.
                        My decode on it is here: 1969 built 340, unknown car.

                        IIRC I used a couple books (Taylor and the FSMs) and this
                        How to ID a Small Block Engine Block:

                      • crackedback

                        crackedback FABO Gold Member FABO Gold Member

                        Messages:
                        18,837
                        Likes Received:
                        3241
                        Joined:
                        Aug 7, 2005
                        Location:
                        92201
                        Local Time:
                        8:51 PM
                        71 casting date could easily be model year 72 with the lower compression in the hole pistons. Never seen a 68-71 340 with factory pistons not at least at deck height or above.

                        • Like Like x 1
                        • Mattax

                          Mattax Just the facts, ma'am FABO Gold Member

                          Messages:
                          11,290
                          Likes Received:
                          7142
                          Joined:
                          Feb 7, 2013
                          Location:
                          Phila. Pa
                          Local Time:
                          11:51 PM
                          Just showing him where to look. Yea. The engine I pictured is not virgin! LOL. .030 over.
                          I think we can safely assume that the engine gm1236 has in front of him has been apart even if its not been bored over.

                          • Agree Agree x 1
                          • Mattax

                            Mattax Just the facts, ma'am FABO Gold Member

                            Messages:
                            11,290
                            Likes Received:
                            7142
                            Joined:
                            Feb 7, 2013
                            Location:
                            Phila. Pa
                            Local Time:
                            11:51 PM
                            Factory ever use a piston with 4 valve clearence 'eyebrows'?

                            That's strictly aftermarket, isn't it?

                            • Agree Agree x 1
                            • Disagree Disagree x 1
                            • davescuda

                              davescuda FABO Gold Member FABO Gold Member

                              Messages:
                              10,251
                              Likes Received:
                              1660
                              Joined:
                              Apr 30, 2007
                              Location:
                              Cheshire, CT
                              Local Time:
                              11:51 PM
                              So what is the vin on the block?

                            • pt70

                              pt70 Well-Known Member

                              Messages:
                              403
                              Likes Received:
                              314
                              Joined:
                              Aug 23, 2019
                              Location:
                              CT
                              Local Time:
                              11:51 PM
                              1972 and 1973 340's came with 4 valve reliefs in the pistons. Around 8.5 compression ratio.
                              1968 thru 1971 340's came with 2 valve reliefs in the pistons. Around 10.5 compression ratio.

                              • Thanks! Thanks! x 1
                              • Agree Agree x 1
                              • cudaracer

                                cudaracer Well-Known Member

                                Messages:
                                358
                                Likes Received:
                                23
                                Joined:
                                Oct 6, 2013
                                Location:
                                Detroit/Michigan
                                Local Time:
                                10:51 PM
                                Casting date is 6 - 18 -71.
                                I truly thank everyone for the contribututions, as I feel we all learn something. Certainly myself.

                                Last edited: May 14, 2020
                                • Like Like x 2
                                • Wyrmrider

                                  Wyrmrider FABO Gold Member FABO Gold Member

                                  Messages:
                                  3,611
                                  Likes Received:
                                  1739
                                  Joined:
                                  Sep 5, 2016
                                  Location:
                                  los angeles
                                  Local Time:
                                  8:51 PM
                                  get some quench with those new pistons
                                  easier with closed chamber heads
                                  reproducing 70 gas is pricey
