Kelsey Hayes Disc Brake Upgrade Question

Brakes for your Classic Mopar

  1. John Martin

    John Martin Well-Known Member

    Messages:
    209
    Likes Received:
    96
    Joined:
    Aug 7, 2019
    Location:
    Gurnee IL
    Local Time:
    7:21 AM
    I am upgrading the brakes on my 1970 Dart that came with 9” manual drums. I have acquired and restored a set of original K-H brakes from a 1969 Swinger 340. I am about to button everything up but I have been reading about brake proportioning.

    An aside: My neighbor’s father-in-law had a Duster with a power K-H system. That car was a 318. He says that you breathed on the brakes and it would try to launch you through the windshield.

    I just want to make sure that the 9” rear drums are appropriate. I have not heard of 10” drums for a 7 1/4” axle. I just don’t want the rear end to swing out in a panic stop.

    Thanks.

  2. J Glenn

    J Glenn FABO Gold Member FABO Gold Member

    Messages:
    222
    Likes Received:
    79
    Joined:
    Sep 6, 2017
    Location:
    Minneapolis
    Local Time:
    7:21 AM
    A 9" drum should work fine... I think. Just not as fine as a bigger drum;-). I bet you'll be happy, but you will not get launched through the windshield with K&H. You should also be able to aquire the correct MC for that set up. These are manual or power?

  3. John Martin

    John Martin Well-Known Member

    Messages:
    209
    Likes Received:
    96
    Joined:
    Aug 7, 2019
    Location:
    Gurnee IL
    Local Time:
    7:21 AM
    It’s my understanding that the stock 10” rear drums should at the very least have the smaller 9” drum wheel cylinders installed to reduce the sensitivity.

    It will be a manual system, I have the correct master cylinder for it. I am waiting on a few more parts to finish everything up.

  4. flingdingo

    flingdingo Well-Known Member

    Messages:
    314
    Likes Received:
    252
    Joined:
    Apr 26, 2017
    Location:
    El Lay
    Local Time:
    5:21 AM
    I used the prop valve from my '73 Scamp in my wagon when I did the KH swap. The wagon has the stock 9" rear brakes. I've never had an issue with the rear locking up before the front. It stops straight and true every time. Even in a couple of panic situations where I was REALLY glad I put the discs on.

  5. halfafish

    halfafish Damn those rabbits, and their holes! FABO Gold Member

    Messages:
    1,896
    Likes Received:
    1675
    Joined:
    Aug 14, 2016
    Location:
    SW Washington
    Local Time:
    5:21 AM
    There are 10" 7.25 rear brakes, I parted out a Volare that had them. They were also on my 69 Dart. Adding a prop valve will solve the problem if the rears are too much for the fronts.

  6. John Martin

    John Martin Well-Known Member

    Messages:
    209
    Likes Received:
    96
    Joined:
    Aug 7, 2019
    Location:
    Gurnee IL
    Local Time:
    7:21 AM

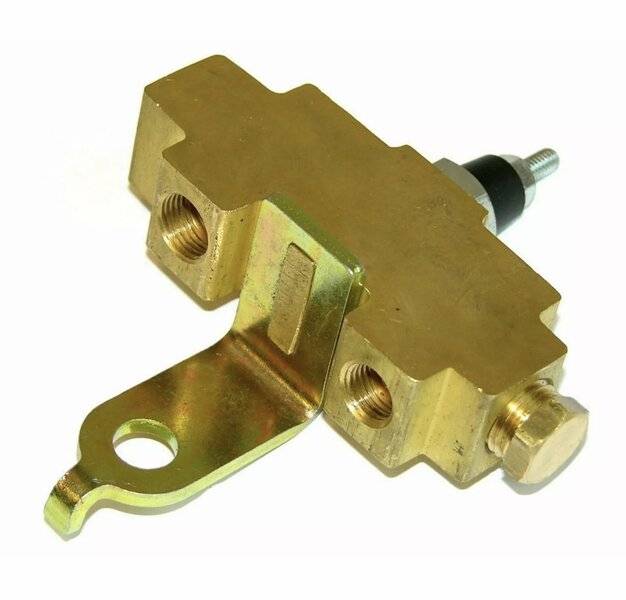

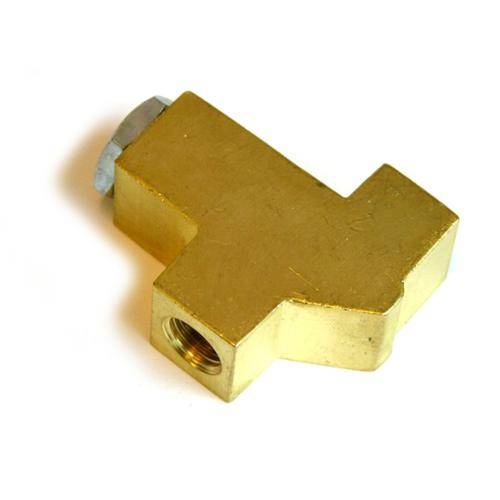

    It is my understanding that all disc brake cars built December 31, 1969 and before use the two piece valve system.

    1st and 2nd pics

    All disc brake cars built January 1, 1970 or later use a one piece valve system where both parts of the old system are basically Siamesed into a larger part.

    3rd pic




  7. Dana67Dart

    Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

    Messages:
    5,291
    Likes Received:
    3304
    Joined:
    Jul 16, 2017
    Location:
    Northern Colorado
    Local Time:
    6:21 AM
    can't vouch for the change over date but the earlier years did have the 2 separate parts.

    stock in 67 on front disc cars is 10x1.75 rear drum. 9" rear drum just won't have the rear stopping power of the 10", but my guess is you will not notice it.

    with manual brakes you will never launch yourself through the windshield. You might brake the front seat back off but that's about it!

    As long as you use all the correct parts for the same year (with regard to the 1 or 2 piece distribution valve and proportioning valve) you will have a bolt on. Since you have a 70 I would use those parts as it would be the most bolt on AND future parts purchases will be easier. The calipers are the same for the KH years so it matters not that they came from a 69

  8. John Martin

    John Martin Well-Known Member

    Messages:
    209
    Likes Received:
    96
    Joined:
    Aug 7, 2019
    Location:
    Gurnee IL
    Local Time:
    7:21 AM

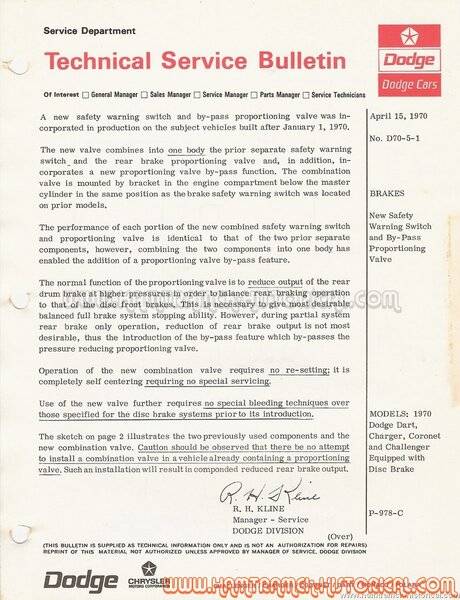

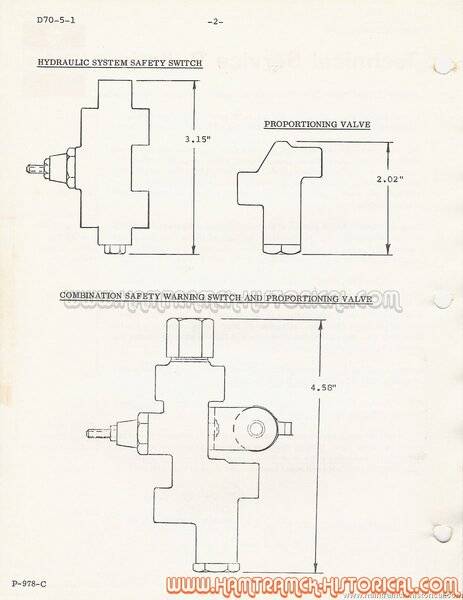

    Chrysler TSB dated 4-15-1970



    • Like Like x 1
    • pishta

      pishta I know I'm right....

      Messages:
      18,606
      Likes Received:
      8086
      Joined:
      Oct 13, 2004
      Location:
      Tustin, CA
      Local Time:
      5:21 AM
      Mr. Kline, "componded" is not a word......:lol:

    • Dana67Dart

      Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

      Messages:
      5,291
      Likes Received:
      3304
      Joined:
      Jul 16, 2017
      Location:
      Northern Colorado
      Local Time:
      6:21 AM
      There you have it from the chryslers mouth.

    • str12-340

      str12-340 FABO Gold Member FABO Gold Member

      Messages:
      1,280
      Likes Received:
      691
      Joined:
      Dec 26, 2012
      Location:
      Vashon, WA
      Local Time:
      5:21 AM
      you could always install an adjustable proportioning valve - they are available as a stand alone unit to go in the rear brake line or they make one piece proportioning valves with the adjustment knob built in.

    • John Martin

      John Martin Well-Known Member

      Messages:
      209
      Likes Received:
      96
      Joined:
      Aug 7, 2019
      Location:
      Gurnee IL
      Local Time:
      7:21 AM
      Ok. That’s not what I was asking... I have a factory part to do the job.

    • str12-340

      str12-340 FABO Gold Member FABO Gold Member

      Messages:
      1,280
      Likes Received:
      691
      Joined:
      Dec 26, 2012
      Location:
      Vashon, WA
      Local Time:
      5:21 AM
      I believe that the combination that you are using is not a combination that Chrysler ever produced. Therefore I presume that there is no "factory part" to correctly proportion between K-h discs and 9" drums. If you have problems at initial testing that shows that the factory parts don't do the job, this is a way to adjust the rear brake pressure so that the phenomenon that you fear will not happen in an emergency.

      As stated in post #5 there were lots of cars with 7 1/4 rears with 10 inch brakes - almost all the 68-71 cars with 318 2bbl and an automatic. I believe all the V-8 cars had 10 inch rear drums regardless of rear axle. Since a lot of 7 1/4 cars with V-8s get switched to 8 3/4 or 8 1/4 and the rear brake don't swap (different bolt pattern for backing plate), I would bet a want ad would get you a bunch of offers for 7 1/4 10 inch rear brakes at low prices. Then it would be a factory available combination and you would probably have no issues with the stock proportioning valve(s).

    • John Martin

      John Martin Well-Known Member

      Messages:
      209
      Likes Received:
      96
      Joined:
      Aug 7, 2019
      Location:
      Gurnee IL
      Local Time:
      7:21 AM
      So the valve clearly silhouetted in a Chrysler TSB is not a factory part?

      I got stood up by some guy in Rockford, IL who claimed to have just what I need. He told me his 69 Barracuda he was parting out had the parts. It’s not for lack of trying, I will see what the car does once I get the rest of the parts in.

    • str12-340

      str12-340 FABO Gold Member FABO Gold Member

      Messages:
      1,280
      Likes Received:
      691
      Joined:
      Dec 26, 2012
      Location:
      Vashon, WA
      Local Time:
      5:21 AM
      I'll try once more, then drop it. The proportioning valve sends different line pressures to the front and rear brakes. They are made differently for different combinations of front and rear brakes based on type (disc vs. drums) and the size and details of those brakes (eg.1 pot vs. 4 pot calipers & 9, 10, 11 inch drums.) Since, I don't believe that chrysler ever made a car with 9 inch drums in back and KH discs in front there is no actual valve made for what you are doing. Yes the part is a factory part FOR A CAR WITH KH DISCS AND 10 INCH REAR DRUMS, which I don't think is what you are telling us you have.

      I'm just suggesting that with an adjustable valve in place, you could adjust the pressure to the rear brakes and make it work correctly if it doesn't.

      Last edited: Oct 19, 2020
      • Like Like x 1
      • 65 Cuda 340

        65 Cuda 340 FABO Gold Member FABO Gold Member

        Messages:
        228
        Likes Received:
        242
        Joined:
        Dec 27, 2019
        Location:
        Tallahassee Florida
        Local Time:
        8:21 AM
        For whatever it's worth, my 63 Valiant slant six has KH front discs and the original 7.25 rear with 9 inch brakes. Brakes work great. My 67 360 Barracuda, on the other hand, has the same front brakes and an 8.75 rear with ten inch brakes. It used to prematurely lock the rear brakes on a hard stop until I replaced the rear wheel cylinders with this set I got from Ehrenberg: for MOPAR Disc/ Drum Brakes Lockup Proportioning Fix Plymouth Dodge A, B, E-Body | eBay. (I'm thinking these might just be the standard nine-inch brake wheel cylinders, but I don't know that.) Both cars have disc brake dual master cylinders and the later style OEM combination valve (post 8, above).

        • Like Like x 1
        • Dana67Dart

          Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

          Messages:
          5,291
          Likes Received:
          3304
          Joined:
          Jul 16, 2017
          Location:
          Northern Colorado
          Local Time:
          6:21 AM
          Their ad says they reduced the id by 13%

          9 inch has of 0.594 (per RA)
          10 inch has 0.906 (per RA)

          13% of 0.906 is a little over 3/4" so bigger than 9" and smaller than 10 inch

          Last edited: Oct 21, 2020
        • V8 Sam

          V8 Sam Well-Known Member

          Messages:
          107
          Likes Received:
          9
          Joined:
          Sep 16, 2012
          Location:
          United Kingdom
          Local Time:
          1:21 PM
          Stock kH 4 pots up front on my dart

          10inch on 71/4 on the rear too

          Well for now untill the axel is swapped.

        • John Martin

          John Martin Well-Known Member

          Messages:
          209
          Likes Received:
          96
          Joined:
          Aug 7, 2019
          Location:
          Gurnee IL
          Local Time:
          7:21 AM
          I may just take that old axle off your hands then.

          • Like Like x 1
          • V8 Sam

            V8 Sam Well-Known Member

            Messages:
            107
            Likes Received:
            9
            Joined:
            Sep 16, 2012
            Location:
            United Kingdom
            Local Time:
            1:21 PM
            If you wanna come get it from London you're more then welcome buddy

            Last edited: Oct 28, 2020
          • John Martin

            John Martin Well-Known Member

            Messages:
            209
            Likes Received:
            96
            Joined:
            Aug 7, 2019
            Location:
            Gurnee IL
            Local Time:
            7:21 AM
            London England, haha, too bad it wasn’t London Kentucky

            Last edited: Oct 28, 2020
            • Like Like x 1
            • BillGrissom

              BillGrissom Well-Known Member

              Messages:
              7,394
              Likes Received:
              411
              Joined:
              May 10, 2009
              Location:
              Sacramento
              Local Time:
              5:21 AM
              You must have a proportioning valve for a disk/drum setup. Best is an adjustable valve since the factory ones are for a specific setup. Even changing tires or wheel sizes could change the ideal ratio, or shifting weight between front and rear (different engine, AC, different seats, ..). The proof is that many pickups and vans came with a level-sensing proportioning valve (arm senses deflection of rear springs). Ideally, you will run skid-test in a wet parking lot and set the proportioning so the fronts skid just before the rears. If the rears lock up first in an emergency, the rear end can swing around. A basic adjustable valve is $30. You can also buy with an imbalance warning switch for ~$70 (also adjustable). Those might also have the front metering valve, as in the factory "combination valve".

            • John Martin

              John Martin Well-Known Member

              Messages:
              209
              Likes Received:
              96
              Joined:
              Aug 7, 2019
              Location:
              Gurnee IL
              Local Time:
              7:21 AM
              I do have one installed. It is a factory unit. I’m not done with working on the car by a long shot.
