Lower control arm outer bushing shell removal frustration...

Suspension, Steering and Chassis

  1. jtolbert

    jtolbert Well-Known Member

    Messages:
    418
    Likes Received:
    1
    Joined:
    Apr 20, 2010
    Location:
    Urbana, IL
    Local Time:
    3:47 PM
    So I tried welding a washer to the outer bushing shell and pressing it out...Twice. Both times the welds pulled chunks of the bushing shell off with the welds, so now there's not much of a rim left to weld to. :wack: Any other suggestions? How thick is the metal in the walls of the bushing shell?

  2. RedFish

    RedFish Well-Known Member

    Messages:
    23,563
    Likes Received:
    2325
    Joined:
    Sep 5, 2007
    Local Time:
    4:47 PM
    You could drive a keen chisel underneath them or split them with an air chisel.

  3. rrvolare

    rrvolare 19Swinger69

    Messages:
    1,795
    Likes Received:
    108
    Joined:
    Jan 25, 2010
    Location:
    Michigan
    Local Time:
    4:47 PM
    Can you attach a photo of what you are trying to do ...

  4. 73SwingerBuild

    73SwingerBuild Well-Known Member

    Messages:
    1,006
    Likes Received:
    23
    Joined:
    Feb 22, 2010
    Location:
    Rhode Island
    Local Time:
    4:47 PM
    I used a reciprocating saw to cut a seam in the outer bushing shell. I know it's dangerous and can leave a groove in the outer bushing surface on the LCA if you are not careful, but I took my time and it worked for me. Once you have a deep enough groove, it is easy to use pliers/chisels to collapse the bushing shell in on itself.

    Pictures would probably help us devise a better strategy though. Good luck!

  5. mopardude318

    mopardude318 Well-Known Member

    Messages:
    9,600
    Likes Received:
    737
    Joined:
    Jan 7, 2005
    Location:
    Gilroy, Ca
    Local Time:
    1:47 PM
    • Like Like x 4
    • blown71duster

      blown71duster Well-Known Member

      Messages:
      525
      Likes Received:
      24
      Joined:
      May 22, 2005
      Location:
      Troy,Ohio
      Local Time:
      3:47 PM
      If you can find a washer to fit down inside, just weld to the wall of the shell, its probably about 18 gauge thickness. You could tack a piece of coathanger to the edge of the washer and lower it in just below the rim .

    • jtolbert

      jtolbert Well-Known Member

      Messages:
      418
      Likes Received:
      1
      Joined:
      Apr 20, 2010
      Location:
      Urbana, IL
      Local Time:
      3:47 PM
      mopardude318: how does the outer bushing shell removal tool work? Also, the second link you posted is for the upper bushing removal tool...You need both of them to get the lower outer bushing shell out? Thanks!

    • airgrabber

      airgrabber Well-Known Member

      Messages:
      812
      Likes Received:
      42
      Joined:
      Feb 17, 2009
      Location:
      Florida
      Local Time:
      4:47 PM
      Put the washer inside the shell of the LCA bushing outer housing. Then take an air chisel and fold over the outer edges of the lca bushing shell (the lip that keeps the bushing from pressing all the way thru the lca) in towards the center of the shell, thereby capturing the the washer. Then you can press it out, and you don't ruin the washer by welding on it. Splitting the shell with a sawzall works, too.

    • blown71duster

      blown71duster Well-Known Member

      Messages:
      525
      Likes Received:
      24
      Joined:
      May 22, 2005
      Location:
      Troy,Ohio
      Local Time:
      3:47 PM
      Did one a while back and had the same problem ,I found the shell , I had welded in a large nut . Used a bolt screwed in it while I tacked it in and then tacked it in several spots down inside , worked well. You can see in the pic that it ripped off the rim like yours did on the first attempt, the other bushing came out fine that way.


      Attached Files:

    • hemi71x

      hemi71x FABO Gold Member FABO Gold Member

      Messages:
      4,939
      Likes Received:
      1541
      Joined:
      Dec 22, 2009
      Location:
      Rancho Cordova, CA
      Local Time:
      1:47 PM
      Back in the early 1960's when Chrysler invented these suspensions on their line of cars, the factory maintenance manuals had you use a 1 3/8 inch tap screwed into the bushing shell, to then press it out.
      I use one of these big taps all the time in my suspension rebuilding business, and also that American Muscle Tool Co, remover tool another poster wrote about.
      Both of these methods work well, along with the welded washer method.
      I don't own a welder, so i can't use that method.
      Whatever works for you, go for it.
      If you had to go and buy a 1 3/8 tap now-a-days its gonna cost you some big $$$$$$$ to get one.


      View attachment taps #2.jpg

      Last edited by a moderator: Jul 21, 2016
      • Like Like x 1
      • hemi71x

        hemi71x FABO Gold Member FABO Gold Member

        Messages:
        4,939
        Likes Received:
        1541
        Joined:
        Dec 22, 2009
        Location:
        Rancho Cordova, CA
        Local Time:
        1:47 PM
        Last edited by a moderator: Jul 21, 2016
      • moparpollack

        moparpollack Active Member

        Messages:
        29
        Likes Received:
        0
        Joined:
        Sep 25, 2009
        Local Time:
        3:47 PM
        My friend torched it out by cutting a slit in bushing shell. Came out quickly but he's been doing this for over 30 years.

      • bremereric

        bremereric Well-Known Member

        Messages:
        1,441
        Likes Received:
        19
        Joined:
        Dec 18, 2009
        Location:
        Houston, Texas
        Local Time:
        3:47 PM
        I always use an air chisel on the uppers and lowers.

      • Jim Lusk

        Jim Lusk Well-Known Member

        Messages:
        4,095
        Likes Received:
        488
        Joined:
        Mar 8, 2006
        Location:
        Fresno, CA
        Local Time:
        1:47 PM
        I have a steel dowel that fits snug in the shell. The weld has to be good. Then I use a cutoff tool to cut the weld so that I can reuse the dowel. I like the idea of the tap because it would be faster.

      • CUUDAK

        CUUDAK Well-Known Member

        Messages:
        2,019
        Likes Received:
        33
        Joined:
        Apr 13, 2008
        Location:
        Hempstead, Tx
        Local Time:
        3:47 PM
        I just used a air hammer. Did mine in a few minutes.

      • nqkjw

        nqkjw Well-Known Member

        Messages:
        506
        Likes Received:
        13
        Joined:
        Jul 8, 2006
        Location:
        Nth Queensland,Australia
        Local Time:
        8:47 AM
        Same here and same here.

      • jtolbert

        jtolbert Well-Known Member

        Messages:
        418
        Likes Received:
        1
        Joined:
        Apr 20, 2010
        Location:
        Urbana, IL
        Local Time:
        3:47 PM
        Ha, I like the idea of the 1-3/8" tap. Do you press the tap out directly? Finding a 1-3/8" bolt probably wouldn't be exactly trivial or cheap, either...

        I may just try chiseling/air-hammering it out. I'm nervous about welding the bushing shell itself to the LCA by welding inside.

      • jtolbert

        jtolbert Well-Known Member

        Messages:
        418
        Likes Received:
        1
        Joined:
        Apr 20, 2010
        Location:
        Urbana, IL
        Local Time:
        3:47 PM
        Found a new Champion 1-3/8-6 plug tap for $30.95 shipped on eBay. Worth a shot. :)

      • VDART

        VDART Well-Known Member

        Messages:
        5,669
        Likes Received:
        44
        Joined:
        Jul 23, 2006
        Location:
        heizer ks
        Local Time:
        3:47 PM
        do any of you have an recycle tool store from big industry? In Wichita we have a place called the yard, it sells obsolete aircraft tools & all kinds of other stuff .

        I bought my 1 3/8 nf12 tap for less than $10--
        place a thick washer in before tapping-- or you might chip the tap!!

        I've also found it is easier to place the tap in a vise & thread the lca on it. Lawrence

        ps- this info came from my 1962 service manual.

        • Disagree Disagree x 1
        • RedFish

          RedFish Well-Known Member

          Messages:
          23,563
          Likes Received:
          2325
          Joined:
          Sep 5, 2007
          Local Time:
          4:47 PM
          If you use a tap you need to use a press also. Never hit a tap with a hammer.

          I think a lot of do it yourselfers are worried they will mark the bore with their chisel or other cutter. A little scar in that bore wont hurt anything.

        • jtolbert

          jtolbert Well-Known Member

          Messages:
          418
          Likes Received:
          1
          Joined:
          Apr 20, 2010
          Location:
          Urbana, IL
          Local Time:
          3:47 PM
          [​IMG]

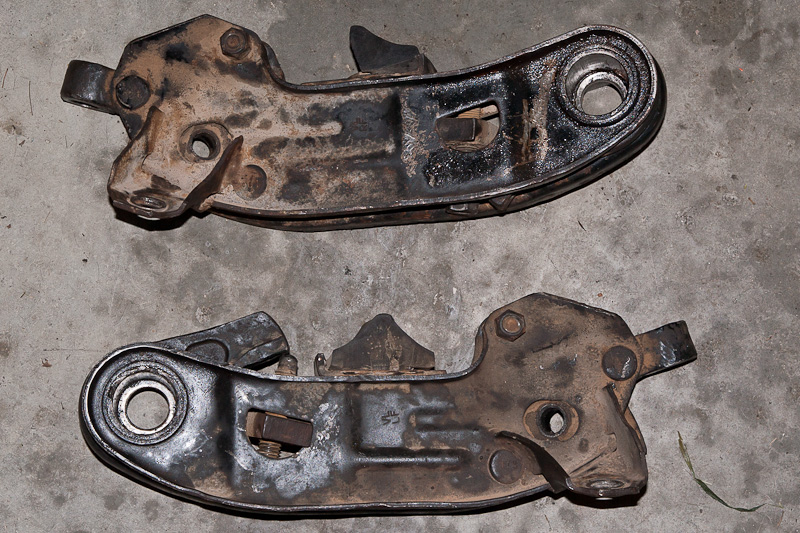

          Look, ma, no outer bushing shells! :) The tap method worked perfectly. The arms are still covered in Kroil, but I'm going to blast them anyway.

          Thanks for the advice, especially hemi71x's tip on the tap.

        • Jim Lusk

          Jim Lusk Well-Known Member

          Messages:
          4,095
          Likes Received:
          488
          Joined:
          Mar 8, 2006
          Location:
          Fresno, CA
          Local Time:
          1:47 PM
          Where did you find that tap for $10?

        • hemi71x

          hemi71x FABO Gold Member FABO Gold Member

          Messages:
          4,939
          Likes Received:
          1541
          Joined:
          Dec 22, 2009
          Location:
          Rancho Cordova, CA
          Local Time:
          1:47 PM
        • FISHBREATH

          FISHBREATH Well-Known Member

          Messages:
          21,741
          Likes Received:
          61
          Joined:
          May 21, 2008
          Local Time:
          3:47 PM
          Success!

        • hemi71x

          hemi71x FABO Gold Member FABO Gold Member

          Messages:
          4,939
          Likes Received:
          1541
          Joined:
          Dec 22, 2009
          Location:
          Rancho Cordova, CA
          Local Time:
          1:47 PM
          Look, ma, no outer bushing shells! :) The tap method worked perfectly. The arms are still covered in Kroil, but I'm going to blast them anyway.

          Thanks for the advice, especially hemi71x's tip on the tap.[/QUOTE]

          Josh.
          Glad to pass along the advice on the 1 3/8 tap method, in the removal of the bushing shell in the LCA.
          Happy to hear that it worked well for you.

          I know i sold you some spindles in the past, and at one time or another you were interested in a pair of rebuilt LCA's that i was advertising for sale.

          Your project seems to be moving along, so good luck to you, with the rest of it.
          Jim V.

          • Like Like x 1
