Missing thread ? Power steering box

Suspension, Steering and Chassis

  1. Mopar Momzee

    Mopar Momzee Well-Known Member

    Messages:
    158
    Likes Received:
    87
    Joined:
    Jul 20, 2019
    Location:
    Vacaville
    Local Time:
    3:41 PM

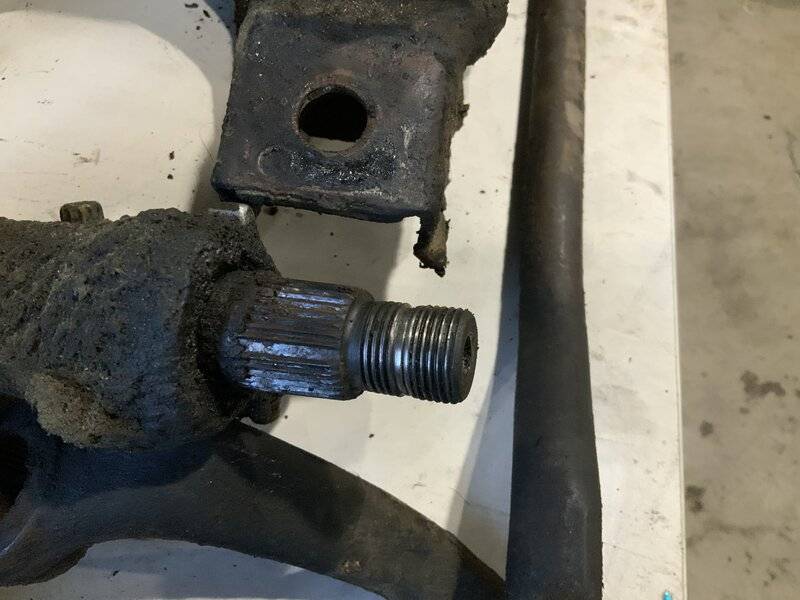

    Manual steering box removed nut and noticed 1 thread also removed. What u guys think is there a way to repair it, just leave it and nothing should happen. F2E8120F-0BD2-4BCD-B0A0-CF248167D922.jpeg

  2. toolmanmike

    toolmanmike FABO MODERATOR Staff Member FABO Gold Member

    Messages:
    60,725
    Likes Received:
    48816
    Joined:
    Jan 18, 2006
    Location:
    Iowa
    Local Time:
    5:41 PM
    No fixing that one. Material is gone. You could get a thread chaser to clean things up.

    • Agree Agree x 1
    • Mopar Momzee

      Mopar Momzee Well-Known Member

      Messages:
      158
      Likes Received:
      87
      Joined:
      Jul 20, 2019
      Location:
      Vacaville
      Local Time:
      3:41 PM
      Yes got it, should still be ok to clean up and install again?

    • SGBARRACUDA

      SGBARRACUDA ROY FABO Gold Member

      Messages:
      20,963
      Likes Received:
      9141
      Joined:
      Dec 7, 2006
      Location:
      PLANT CITY FL. and PERRY GA.
      Local Time:
      6:41 PM
      If your able to torque it to specs I believe your good.

      • Agree Agree x 1
      • halifaxhops

        halifaxhops It's going to get stupid around here! FABO Gold Member

        Messages:
        67,986
        Likes Received:
        38060
        Joined:
        Jan 20, 2014
        Location:
        Hoppyworld
        Local Time:
        6:41 PM
        Or possibly a thicker nut it might be ok if it torques to spec.

      • Mopar Momzee

        Mopar Momzee Well-Known Member

        Messages:
        158
        Likes Received:
        87
        Joined:
        Jul 20, 2019
        Location:
        Vacaville
        Local Time:
        3:41 PM
        Got it thanks guys

      • Treblig

        Treblig Well-Known Member

        Messages:
        7,268
        Likes Received:
        4724
        Joined:
        Oct 5, 2013
        Location:
        South Texas
        Local Time:
        5:41 PM
        Some lock tight wouldn't hurt! I would clean up the threads and find the longest nut (correct grade) you can find to try and grab as many good threads as possible?? In your pic the threads at the base of the threaded portion look a little flattened, but should clean up.

      • CFD244

        CFD244 FABO Gold Member FABO Gold Member

        Messages:
        990
        Likes Received:
        925
        Joined:
        Sep 7, 2017
        Location:
        Northern Ontario, Canada
        Local Time:
        6:41 PM
        Don't worry about it, it's only steering. What could possibly go wrong?:eek:

        • Thanks! Thanks! x 1
        • Mopar Momzee

          Mopar Momzee Well-Known Member

          Messages:
          158
          Likes Received:
          87
          Joined:
          Jul 20, 2019
          Location:
          Vacaville
          Local Time:
          3:41 PM
          It’s my sons car he should be fine, quick reflexes.
          Yes just took it apart this morning still needs cleaned up.

        • retroron

          retroron FABO Gold Member FABO Gold Member

          Messages:
          901
          Likes Received:
          759
          Joined:
          Apr 9, 2014
          Location:
          Livermore Calif
          Local Time:
          3:41 PM
          let us know when he's on the road and where

        • Yellow Duster

          Yellow Duster FABO Gold Member FABO Gold Member

          Messages:
          35
          Likes Received:
          16
          Joined:
          Apr 1, 2013
          Location:
          Crowley, TX
          Local Time:
          5:41 PM
          Reflexes don't help when a steering arm falls off! That said, if it was mine, I would clean it up and install the pitman arm just to check how far those threads engage into the nut.

        • Treblig

          Treblig Well-Known Member

          Messages:
          7,268
          Likes Received:
          4724
          Joined:
          Oct 5, 2013
          Location:
          South Texas
          Local Time:
          5:41 PM
          You could also drill it for a cotter pin!!! That would really beef up the safety factor !!

          • Like Like x 2
          • Mopar Momzee

            Mopar Momzee Well-Known Member

            Messages:
            158
            Likes Received:
            87
            Joined:
            Jul 20, 2019
            Location:
            Vacaville
            Local Time:
            3:41 PM
            I ordered a tap well see

          • Mopar Momzee

            Mopar Momzee Well-Known Member

            Messages:
            158
            Likes Received:
            87
            Joined:
            Jul 20, 2019
            Location:
            Vacaville
            Local Time:
            3:41 PM
            A die

          • Treblig

            Treblig Well-Known Member

            Messages:
            7,268
            Likes Received:
            4724
            Joined:
            Oct 5, 2013
            Location:
            South Texas
            Local Time:
            5:41 PM
            Die I hope, but beware, a good "die" will cut more material off of the threads, you really need a "tread chaser". A thread chaser will clean up the threads without removing any material. Those threads are already missing some material. A tread chaser, some lock tight and a cotter pin will make pretty reliable.

            • Like Like x 2
            • Mopar Momzee

              Mopar Momzee Well-Known Member

              Messages:
              158
              Likes Received:
              87
              Joined:
              Jul 20, 2019
              Location:
              Vacaville
              Local Time:
              3:41 PM
              I’ll look at that didn’t realize there different, thanks

            • clementine

              clementine Flight risk FABO Gold Member

              Messages:
              1,449
              Likes Received:
              887
              Joined:
              Jan 3, 2016
              Location:
              Emerald city
              Local Time:
              3:41 PM
              Whats that technique called when you cut a little groove in the pinion/nut and use a punch to bend the edge of the nut into the groove? effectively making it one of the last times it will move?

            • Treblig

              Treblig Well-Known Member

              Messages:
              7,268
              Likes Received:
              4724
              Joined:
              Oct 5, 2013
              Location:
              South Texas
              Local Time:
              5:41 PM
              "staking"??/

              • Thanks! Thanks! x 1
              • clementine

                clementine Flight risk FABO Gold Member

                Messages:
                1,449
                Likes Received:
                887
                Joined:
                Jan 3, 2016
                Location:
                Emerald city
                Local Time:
                3:41 PM
                That's it!!!
