Mopar Dizzy w/Mallory Guts – Setting Advance

Discussion in 'Electrical and Ignition' started by pntastar69, Jun 8, 2018.

  1. pntastar69

    pntastar69 Well-Known Member

    Messages:
    1,377
    Likes Received:
    62
    Joined:
    Dec 28, 2006
    Location:
    Gilbertsville, PA
    View My Photos
    Local Time:
    2:34 AM
    Circa 2002 – restored the Dart and bought the mopar dizzy kit w/orange ECU and Harness. Mild 360 at the time, didn’t pay too much attention to the timing, ran well, no issues w/performance at that time.
    Moving ahead 15 years and several mods, latest one comp XE268 hyd flat tappet, comp pro roller rockers, KB 107’s bring comp up to 9.4:1. Broke in the cam and found that It’ll run ok w/10* init, 40* mech and total 50*. The plan was to set it at 16* init, 18* mech all in at 34* around 2400 rpm. Its is a street car, 355 gears, 4 speed, MSD 6AL, stock crank n rods, stock heads mildly ported, Eddy perf RPM intake, holley 670.

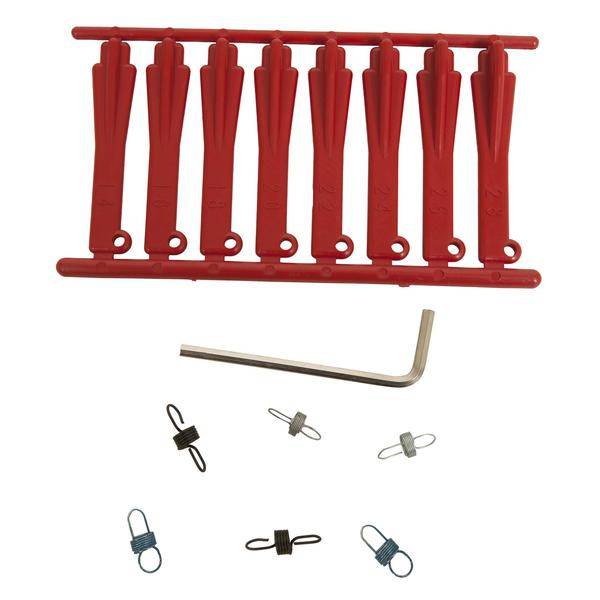

    So I saw that Don at FBO has the advance limiter disk so I ordered it to bring in the timing where it should be. Tore the dizzy apart only to find out it has Mallory guts and the disk won’t work. Seems I can adjust the slot openings but I have no reference point with out the Mallory Advance Curve kit with the plastic sticks to set the mech advance. Without the plastic inserts, does anyone have a ballpark slot opening I can dial in my timing with little effort?

    I do have the old dizzy that I can install Don’s disk making it a little easier instead of trial and error dialing in the Mallory unit.

    Should I go w/the old dizzy w/Don’s disk or try sorting out the right slot opening in the Mallory unit.

    Thanks,

  2. MOPARMITCH

    MOPARMITCH Minister of Offence FABO Gold Member

    Messages:
    17,089
    Likes Received:
    5783
    Joined:
    May 15, 2013
    Location:
    Maryland
    Local Time:
    1:34 AM
    Check with Ray......Hailfaxhops.... @halifaxhops

  3. jbc426

    jbc426 Well-Known Member

    Messages:
    1,525
    Likes Received:
    397
    Joined:
    May 30, 2007
    Location:
    West Coast
    Local Time:
    10:34 PM
    If the Mallory gut use anything but a magnetic trigger, toss them. Nothing wrong with a well-adjusted stock Mopar electronic dizzy.

  4. skep419

    skep419 It's only money, you can always make more

    Messages:
    3,208
    Likes Received:
    818
    Joined:
    Sep 18, 2008
    Location:
    Minesoooota
    View My Photos
    Local Time:
    12:34 AM
    • Like Like x 1
    • Agree Agree x 1
    • skep419

      skep419 It's only money, you can always make more

      Messages:
      3,208
      Likes Received:
      818
      Joined:
      Sep 18, 2008
      Location:
      Minesoooota
      View My Photos
      Local Time:
      12:34 AM
    • yellow rose

      yellow rose Doctor of Thinkology.

      Messages:
      15,415
      Likes Received:
      11996
      Joined:
      Jun 19, 2015
      Location:
      Living on the razors edge
      Local Time:
      10:34 PM
      If you can get what's in post 4 get it.
      Setting the curve on the Mallory is easy. Once you get it close if you don't like it you don't have to pull the distributor out of the car to change it.

    • pntastar69

      pntastar69 Well-Known Member

      Messages:
      1,377
      Likes Received:
      62
      Joined:
      Dec 28, 2006
      Location:
      Gilbertsville, PA
      View My Photos
      Local Time:
      2:34 AM
      Thanks all. Can anyone that has the kit measure the 18* stick length?

    • 67Dart273

      67Dart273 Well-Known Member

      Messages:
      37,521
      Likes Received:
      5226
      Joined:
      Oct 14, 2010
      Location:
      Idaho
      View My Photos
      Local Time:
      10:34 PM
      Get ahold of "Crackedback" I believe. He had some measurements (drill sizes) to take the place of that expensive gauge kit

    • 70Duster440

      70Duster440 Well-Known Member

      Messages:
      2,600
      Likes Received:
      190
      Joined:
      Jan 8, 2006
      Location:
      Washington
      View My Photos
      Local Time:
      10:34 PM
      According to my calipers...

      14 = .130"
      16 = .147"
      18 = .165"
      20 = .183"
      22 = .202"
      24 = .220"
      26 = .238"
      28 = .257"

      You're welcome.

      • Like Like x 2
      • Thanks! Thanks! x 1
      • skep419

        skep419 It's only money, you can always make more

        Messages:
        3,208
        Likes Received:
        818
        Joined:
        Sep 18, 2008
        Location:
        Minesoooota
        View My Photos
        Local Time:
        12:34 AM

        • Like Like x 1
        • pntastar69

          pntastar69 Well-Known Member

          Messages:
          1,377
          Likes Received:
          62
          Joined:
          Dec 28, 2006
          Location:
          Gilbertsville, PA
          View My Photos
          Local Time:
          2:34 AM
          U guys are awesome!!! Thanks 70Duster440

        • yellow rose

          yellow rose Doctor of Thinkology.

          Messages:
          15,415
          Likes Received:
          11996
          Joined:
          Jun 19, 2015
          Location:
          Living on the razors edge
          Local Time:
          10:34 PM
          The nice thing about that advance unit is once you get it close you can make small changes that are finer that what the keys are by using key stock and filing (or milling it down) to inbetween sizes. Or is drill bits that are the in between sizes.

        • halifaxhops

          halifaxhops It's going to get stupid around here! FABO Gold Member

          Messages:
          44,408
          Likes Received:
          13042
          Joined:
          Jan 20, 2014
          Location:
          CENTRURAL, PA
          View My Photos
          Local Time:
          11:19 AM
          cant get it Going call me Very familiar with them

        • halifaxhops

          halifaxhops It's going to get stupid around here! FABO Gold Member

          Messages:
          44,408
          Likes Received:
          13042
          Joined:
          Jan 20, 2014
          Location:
          CENTRURAL, PA
          View My Photos
          Local Time:
          11:19 AM
        • pntastar69

          pntastar69 Well-Known Member

          Messages:
          1,377
          Likes Received:
          62
          Joined:
          Dec 28, 2006
          Location:
          Gilbertsville, PA
          View My Photos
          Local Time:
          2:34 AM
          Got it to come in at 34* with trial and error, had to pull the dizzy a few times. Had to close up the slots more than .165". Still need to tweak the initial.
          Those sticks in the photo all look the same. Must be the angle.

        • halifaxhops

          halifaxhops It's going to get stupid around here! FABO Gold Member

          Messages:
          44,408
          Likes Received:
          13042
          Joined:
          Jan 20, 2014
          Location:
          CENTRURAL, PA
          View My Photos
          Local Time:
          11:19 AM
          Yes they do. I don't even have a set I just do them on the machine, prob will buy one at that price. Pretty sure that is distrib advance not engine advance, have to measure the next time when I set one up. I do like the mallories have one on my car.

        • halifaxhops

          halifaxhops It's going to get stupid around here! FABO Gold Member

          Messages:
          44,408
          Likes Received:
          13042
          Joined:
          Jan 20, 2014
          Location:
          CENTRURAL, PA
          View My Photos
          Local Time:
          11:19 AM
          Do you know the number on the distributor curious if it is a MP unit.

        • pntastar69

          pntastar69 Well-Known Member

          Messages:
          1,377
          Likes Received:
          62
          Joined:
          Dec 28, 2006
          Location:
          Gilbertsville, PA
          View My Photos
          Local Time:
          2:34 AM
          I'll check later. As mentioned above, I bought the mopar kit back in early 2000, dizzy, orange ECU and wiring harness.

        • halifaxhops

          halifaxhops It's going to get stupid around here! FABO Gold Member

          Messages:
          44,408
          Likes Received:
          13042
          Joined:
          Jan 20, 2014
          Location:
          CENTRURAL, PA
          View My Photos
          Local Time:
          11:19 AM
          Trying to figure out when MP went to that style the earlier ones are pretty much normal distribs with a different curve and springs

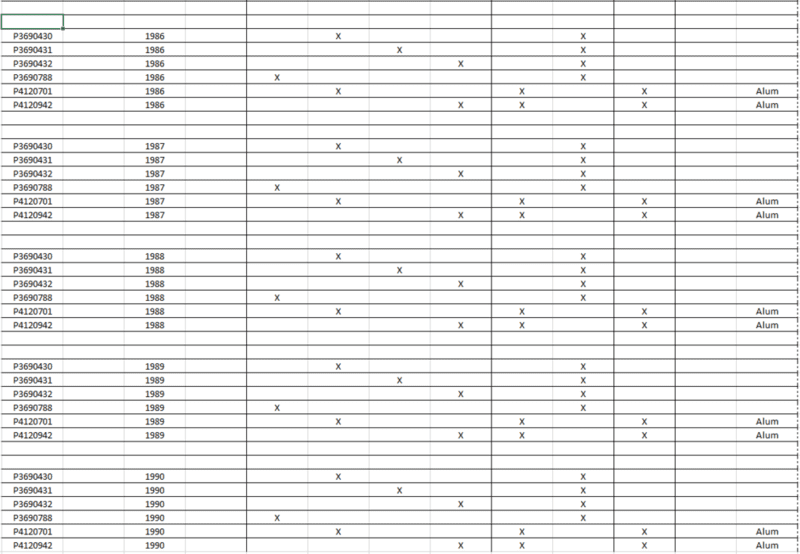

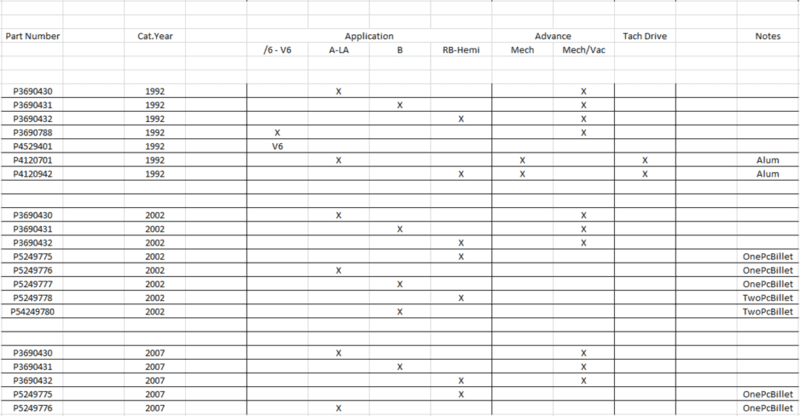

          dizzy sheet 1.PNG dizzy sheet 2.PNG dizzy sheet 3.PNG
