    I am looking for the cam card info for a Mopar Performance Purple Mechanical Camshaft - P4120653AE
    Thanks

  2. Rmoore

    Rmoore Well-Known Member

    Messages:
    608
    Likes Received:
    454
    Joined:
    Nov 14, 2018
    Location:
    Gun Barrel City, Texas
    Local Time:
    12:31 PM

    • Thanks! Thanks! x 1
    • 512Stroker

      512Stroker We are all here because we are not all there.

      Messages:
      2,955
      Likes Received:
      2299
      Joined:
      May 30, 2016
      Location:
      Freedom, MO
      Local Time:
      12:31 PM
      More specifically I am looking for the valve timing events found on the cam card.
      When the intake and exhaust valves open and close.

    • rumblefish360

      rumblefish360 So close, yet so far away FABO Gold Member

      Messages:
      41,608
      Likes Received:
      13167
      Joined:
      Jun 21, 2005
      Location:
      New York, on a Island
      Local Time:
      1:31 PM
      They were never given by mopar

      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • 512Stroker

        512Stroker We are all here because we are not all there.

        Messages:
        2,955
        Likes Received:
        2299
        Joined:
        May 30, 2016
        Location:
        Freedom, MO
        Local Time:
        12:31 PM
        Dam the luck

      • 512Stroker

        512Stroker We are all here because we are not all there.

        Messages:
        2,955
        Likes Received:
        2299
        Joined:
        May 30, 2016
        Location:
        Freedom, MO
        Local Time:
        12:31 PM
        Be pretty tough to do a thorough job to degree in the cam

      • RustyRatRod

        RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

        Messages:
        77,048
        Likes Received:
        53960
        Joined:
        Jun 7, 2010
        Location:
        Georgia
        Local Time:
        1:31 PM
        Here you go. Just scroll down to the part number. It's all right there.

        Chrysler High Performance Cam Data

        • Like Like x 2
        • Thanks! Thanks! x 1
        • rumblefish360

          rumblefish360 So close, yet so far away FABO Gold Member

          Messages:
          41,608
          Likes Received:
          13167
          Joined:
          Jun 21, 2005
          Location:
          New York, on a Island
          Local Time:
          1:31 PM
          MoPar have instructions on how to set it up the simple way. As long as the camshaft was ground properly as per MoPars specs, there should be no problem at all.

          • Like Like x 1
          • CFD244

            CFD244 FABO Gold Member FABO Gold Member

            Messages:
            990
            Likes Received:
            929
            Joined:
            Sep 7, 2017
            Location:
            Northern Ontario, Canada
            Local Time:
            1:31 PM
            So, aftermarket cam manufacturers include the timing events on a cam card so you can make sure that they ground it properly?

          • RustyRatRod

            RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

            Messages:
            77,048
            Likes Received:
            53960
            Joined:
            Jun 7, 2010
            Location:
            Georgia
            Local Time:
            1:31 PM
            That and so you can degree it properly, yeah.

            • Thanks! Thanks! x 1
            • Agree Agree x 1
            • PRH

              PRH Well-Known Member

              Messages:
              3,371
              Likes Received:
              4937
              Joined:
              Dec 14, 2018
              Location:
              So. Burlington, Vt
              Local Time:
              1:31 PM
              With the cam in the motor, and a few minutes with a degree wheel and a pointer....... you could have the events for any lift point you choose.

              • Agree Agree x 2
              • Like Like x 1
              • OLDSTYLE

                OLDSTYLE Well-Known Member

                Messages:
                127
                Likes Received:
                23
                Joined:
                Apr 29, 2011
                Location:
                WI.
                Local Time:
                12:31 PM
                On the last couple I did one degreed in at 110.5 the .050 numbers were IVO 12 IVC 53
                EVO 55 EVC 9
                The other one in at 109 the .050 numbers were IVO 13 IVC 50.5
                EVO 58 EVC 7

                • Thanks! Thanks! x 1
                • 512Stroker

                  512Stroker We are all here because we are not all there.

                  Messages:
                  2,955
                  Likes Received:
                  2299
                  Joined:
                  May 30, 2016
                  Location:
                  Freedom, MO
                  Local Time:
                  12:31 PM
                  I do not have this cam yet.
                  It is one that I am looking at for possible future use.
                  May be tough to find one a few of the sites I looked at stated "not available"

                • rustycowll69

                  rustycowll69 Well-Known Member

                  Messages:
                  2,558
                  Likes Received:
                  1267
                  Joined:
                  Feb 19, 2016
                  Location:
                  Pacific northwest
                  Local Time:
                  10:31 AM
                  Is that a misprint for cam with 102 installed centerline?
                  If given recommended installed centerline number, can't you simply Calc the events?

                • 512Stroker

                  512Stroker We are all here because we are not all there.

                  Messages:
                  2,955
                  Likes Received:
                  2299
                  Joined:
                  May 30, 2016
                  Location:
                  Freedom, MO
                  Local Time:
                  12:31 PM
                  102 ? which cam ? I did not see that.
                  No you cant calculate it on paper
                  You can measure the valve timing events with a degree wheel after it is installed.

                • rustycowll69

                  rustycowll69 Well-Known Member

                  Messages:
                  2,558
                  Likes Received:
                  1267
                  Joined:
                  Feb 19, 2016
                  Location:
                  Pacific northwest
                  Local Time:
                  10:31 AM

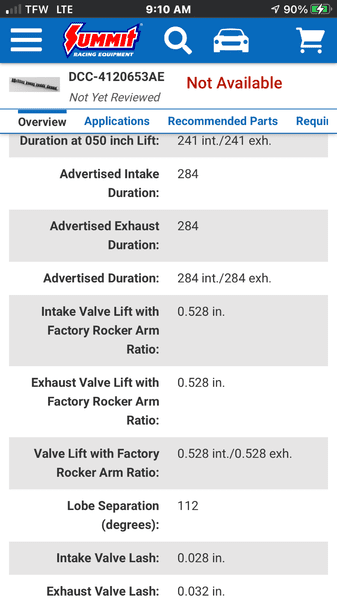

                  4529343. Sl/6 mech.
                  Oh, I think you can Calc the events. Maybe not at 0.050", but the theoretical events, which is the way Mopar used to advertise them.

                • rustycowll69

                  rustycowll69 Well-Known Member

                  Messages:
                  2,558
                  Likes Received:
                  1267
                  Joined:
                  Feb 19, 2016
                  Location:
                  Pacific northwest
                  Local Time:
                  10:31 AM
                  As an example:
                  284 adv duration, meaning 284/2=142 ea side of int lobe centerline.
                  Intake @ 110 atdc.
                  For int opening event:
                  142-110= 32 btdc. Int opens
                  For int closing event:
                  110+143=252; 252-180= 72 abdc.
                  Compare to the chart.
                  QED

                • 512Stroker

                  512Stroker We are all here because we are not all there.

                  Messages:
                  2,955
                  Likes Received:
                  2299
                  Joined:
                  May 30, 2016
                  Location:
                  Freedom, MO
                  Local Time:
                  12:31 PM
                  102 is most likely correct the intake lobe centerline is 102*

                • rustycowll69

                  rustycowll69 Well-Known Member

                  Messages:
                  2,558
                  Likes Received:
                  1267
                  Joined:
                  Feb 19, 2016
                  Location:
                  Pacific northwest
                  Local Time:
                  10:31 AM
                  Wrong, see #18

                • 512Stroker

                  512Stroker We are all here because we are not all there.

                  Messages:
                  2,955
                  Likes Received:
                  2299
                  Joined:
                  May 30, 2016
                  Location:
                  Freedom, MO
                  Local Time:
                  12:31 PM
                  Im sorry I should have clarified you cant calculate all the data points given on a cam card. And I trust a degree wheel to be absolute.

                  • Agree Agree x 1
                  • rustycowll69

                    rustycowll69 Well-Known Member

                    Messages:
                    2,558
                    Likes Received:
                    1267
                    Joined:
                    Feb 19, 2016
                    Location:
                    Pacific northwest
                    Local Time:
                    10:31 AM
                    My point wasn't to prove you wrong. It was to show you don't have to have the cam events printed FOR you. With just the cam centerline, & advertised duration, you can derive the theoretical cam events.
                    I've never tried to derive the events from the @ 0.050" , but it can probably be done as well.

                  • rumblefish360

                    rumblefish360 So close, yet so far away FABO Gold Member

                    Messages:
                    41,608
                    Likes Received:
                    13167
                    Joined:
                    Jun 21, 2005
                    Location:
                    New York, on a Island
                    Local Time:
                    1:31 PM
                    This ^^^^

                    Not exactly true but …..
                    Most calculations are done with a know advertised lift point of let’s just say @ .006. If you start running through a Comp Cam catalog, only certain cams are advertised in this way while others are at different points.
                    Now travel onto Crane Cams, Howard’s, etc….
                    You’ll find the same thing.

                    • Like Like x 1
                    • rustycowll69

                      rustycowll69 Well-Known Member

                      Messages:
                      2,558
                      Likes Received:
                      1267
                      Joined:
                      Feb 19, 2016
                      Location:
                      Pacific northwest
                      Local Time:
                      10:31 AM
                      I disagree. I think it doesn't matter where manufacturer, "X", wants to start measuring duration. If they give you a recommended installed lobe centerline spec and a duration spec you can derive the events for whatever their particular method for measuring is, as long as the opening lobe profile and closing lobe profile are mirror images of each other(symmetrical about the lobe centerline).

                    • RustyRatRod

                      RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

                      Messages:
                      77,048
                      Likes Received:
                      53960
                      Joined:
                      Jun 7, 2010
                      Location:
                      Georgia
                      Local Time:
                      1:31 PM
                      Yup. An engine and degree wheel is the best cam doctor. I've found discrepancies on a lot of cam cards through the years. Some I let slide and some I sent back.

                    • RustyRatRod

                      RustyRatRod I was born on a Monday. Not last Monday. FABO Gold Member

                      Messages:
                      77,048
                      Likes Received:
                      53960
                      Joined:
                      Jun 7, 2010
                      Location:
                      Georgia
                      Local Time:
                      1:31 PM
                      I don't care. It's not my cam or my dilemma. I just posted the link to the specs.

                    • 70aarcuda

                      70aarcuda Master Hoader of SBM FABO Gold Member

                      Messages:
                      16,473
                      Likes Received:
                      5186
                      Joined:
                      Jan 16, 2005
                      Location:
                      las vegas
                      Local Time:
                      10:31 AM
                      I can tell you from my experience with MP cams...all the durations @.050 are incorrect. They are calculated number
                      I have used many MP590 cams for small blocks....MP shows 265 @ .050 my degree wheel shows 271 duration @.050

                      Same with the MP557 cam....MP 252 duration....my degree wheel keeps showing 258 @ .050
                      As said put in an engine and run a degree wheel on it......only way...
