My '75 Scamp 383 Build

Big Block A body Tech

  1. roadrunnerh

    roadrunnerh Well-Known Member

    Messages:
    3,013
    Likes Received:
    235
    Joined:
    Jul 11, 2011
    Location:
    Pittsburgh, PA
    Local Time:
    9:13 PM
    I made it a goal when I purchased this 383 complete engine. I want to rebuild a Mopar big block on my own. $100 bought this engine 17 years ago from a friend. The numbers on the block reveal it was originally assembled for a 1969 Dodge Charger as a 9.2 to 1 compression 2Bbl engine. I'll show some shots of the engine after disassembly.
    383 Mains.jpg Not the best detail, but all I got.
    383 Front.jpg
    #3 main bearing a.jpg #3 main bearing b.jpg
    The two above are of the #3 Main Bearing. Looks good?

    • Like Like x 1
    • RustyRatRod

      RustyRatRod Weenie idiot loser. FABO Gold Member

      Messages:
      58,543
      Likes Received:
      28967
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      10:13 PM
      Yup those look fine.

    • roadrunnerh

      roadrunnerh Well-Known Member

      Messages:
      3,013
      Likes Received:
      235
      Joined:
      Jul 11, 2011
      Location:
      Pittsburgh, PA
      Local Time:
      9:13 PM
      I hope to get support, criticism, and most importantly some tech help and know how from so many of you - especially RustyRatRod! From what I have read, he can appreciate what I'm doing. So thank you all in advance. I'll do my best to post updates - and pics - of my progress and setbacks. I will definitely have tons of questions. So thanks for reading and I'll get started.

      Some of my objectives:
      Clean up, Hone cylinders and block,
      New piston rings Mopar# 2808453 off ebay,
      Reuse push rods, pistons, rods, and crank,
      Install new oil pump, fuel pump, cam, lifters, valve springs, timing chain, rod and main bearings.
      I would like to do this without having to get the block bored or the block needing any trips to the machine shop. This is a low-buck engine build. My first ever! So bare with me....... I'm learning. Stay tuned....

      • Like Like x 1
      • roadrunnerh

        roadrunnerh Well-Known Member

        Messages:
        3,013
        Likes Received:
        235
        Joined:
        Jul 11, 2011
        Location:
        Pittsburgh, PA
        Local Time:
        9:13 PM
        Funny, you were responding as I was typing more info, including a shout out to you.

      • roadrunnerh

        roadrunnerh Well-Known Member

        Messages:
        3,013
        Likes Received:
        235
        Joined:
        Jul 11, 2011
        Location:
        Pittsburgh, PA
        Local Time:
        9:13 PM
        I plan on either going with the Edelbrock 2186 (performer 383) OR the cast iron 2806301.
        My cam choices are Mopar p4452783 RR Cam, OR Comp Cam XE 21-222-4 (Duration 262/270, Lift .462/.470)

        • Like Like x 1
        • roadrunnerh

          roadrunnerh Well-Known Member

          Messages:
          3,013
          Likes Received:
          235
          Joined:
          Jul 11, 2011
          Location:
          Pittsburgh, PA
          Local Time:
          9:13 PM
          But first, I need to make this...
          dirty piston 1.JPG
          To look like this...
          clean piston 1.JPG

          • Like Like x 2
          • mopowers

            mopowers Well-Known Member

            Messages:
            4,482
            Likes Received:
            1570
            Joined:
            Feb 15, 2006
            Location:
            West Sacramento, CA
            Local Time:
            7:13 PM
            What did you use to clean the pistons?

          • Murray

            Murray FABO Gold Member FABO Gold Member

            Messages:
            1,467
            Likes Received:
            933
            Joined:
            Apr 19, 2010
            Location:
            San Jose, California
            Local Time:
            7:13 PM
            I think you are getting ahead of yourself. First you need to mic the bores and the pistons to see if you can reuse them. You need to mic the crank to determine its condition. The #1 engine killer is old connecting rod bolts- replace with ARP. You should replace the cam and lifters, maybe upgrade. Good luck.

            • Like Like x 1
            • Agree Agree x 1
            • roadrunnerh

              roadrunnerh Well-Known Member

              Messages:
              3,013
              Likes Received:
              235
              Joined:
              Jul 11, 2011
              Location:
              Pittsburgh, PA
              Local Time:
              9:13 PM
              Soaked in WD40 for a couple days, green scotch-bright pads, plastic scraper, half a piston ring, and LOTS of elbow grease! Cleaning the ring landings is tedious!

            • RustyRatRod

              RustyRatRod Weenie idiot loser. FABO Gold Member

              Messages:
              58,543
              Likes Received:
              28967
              Joined:
              Jun 7, 2010
              Location:
              Georgia
              Local Time:
              10:13 PM
              Sounds like my kinda build. lol Some of these can really surprise you AS LONG AS you don't cut the "wrong" corners. Just an example of some "I won't cut".....

              Mic the crank. If it needs turning, DO IT. That doesn't just go for journal size, it goes for shape too. Journals can get out of round.
              New oil pump. HV if you prefer, make sure to get a hardened intermediate shaft. @stroked340 LOL
              GOOD timing set. Billet, probably a tick over $100. (I know, but it's important)
              Whatever camshaft you choose, DEGREE IT. We can help you "decide where" if you choose one "out of the box".

              That's about all I can think off right off the bat. I'm sure there's more.

              • Like Like x 1
              • Thanks! Thanks! x 1
              • RustyRatRod

                RustyRatRod Weenie idiot loser. FABO Gold Member

                Messages:
                58,543
                Likes Received:
                28967
                Joined:
                Jun 7, 2010
                Location:
                Georgia
                Local Time:
                10:13 PM
                Yes, that was one more "don't cut corner on". Replacing the rod bolts and having the rods resized. I just don't build one anymore without doing that. Just sit there and think for a second.......how many times have the factory rod bolts been slung around the crank center line? Did you know that rod bolts stretch a tiny amount like rubber bands when the engine is revved? It's true. They can only stand that "so much". I'd hate to see a 60 dollar set of rod bolts cost an engine. Even a budget build.

                • Thanks! Thanks! x 1
                • roadrunnerh

                  roadrunnerh Well-Known Member

                  Messages:
                  3,013
                  Likes Received:
                  235
                  Joined:
                  Jul 11, 2011
                  Location:
                  Pittsburgh, PA
                  Local Time:
                  9:13 PM
                  1968 Factory Service manual (4.2495" - 4.2515")
                  Number Top Bottom
                  #1 4.252 4.246
                  #2 4.252 4.247
                  #3 4.255 4.250
                  #4 4.252 4.247
                  #5 4.252 4.250
                  #6 4.251 4.247
                  #7 4.252 4.2515
                  #8 4.252 4.248
                  * Pistons 1,5,7,and 6 have a number (casting?) 2863116 inside piston.

                  *Pistons 2,3,4, and 8 have number 2863115

                  I read in my 1968 parts book that there were .005" over pistons and standard size. (in addition to .020 and .040 over pistons available.
                  Do I have some cylinders which were .005" over from the assembly line? The part numbers in my book are 3004524 and 3004525 (.005 O/S).
                  Can anyone help out with a 1969 Parts book?
                  This is a 9-17-68 casting block for a 1969 Charger 383 2Bbl.

                  Last edited: Jul 6, 2019
                • roadrunnerh

                  roadrunnerh Well-Known Member

                  Messages:
                  3,013
                  Likes Received:
                  235
                  Joined:
                  Jul 11, 2011
                  Location:
                  Pittsburgh, PA
                  Local Time:
                  9:13 PM
                  More Pics!
                  383 bare block.JPG
                  383 stamp pad.JPG
                  383 cylinder wall.JPG

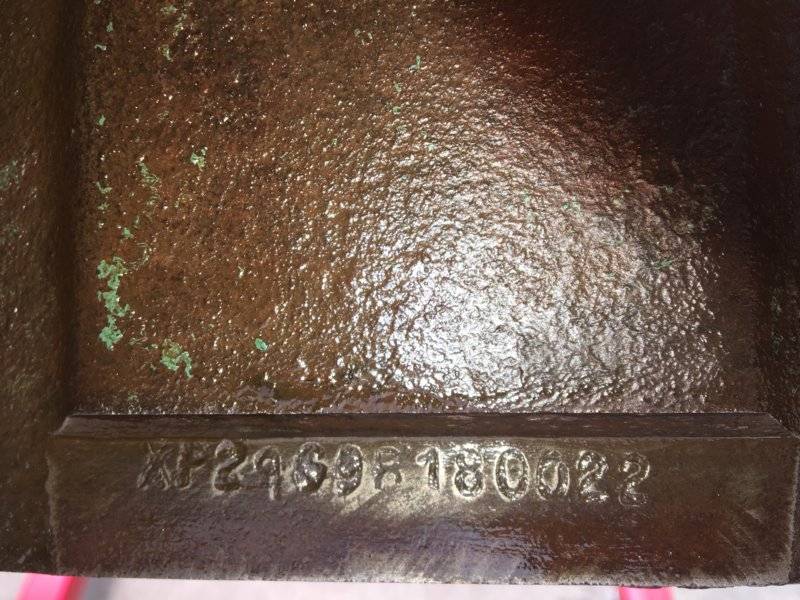

                  VIN of 69 Charger
                  383 VIN.JPG

                  • Like Like x 1
                  • RustyRatRod

                    RustyRatRod Weenie idiot loser. FABO Gold Member

                    Messages:
                    58,543
                    Likes Received:
                    28967
                    Joined:
                    Jun 7, 2010
                    Location:
                    Georgia
                    Local Time:
                    10:13 PM
                    I'd dingle ball hone that one and let it rip. Now......here's food for thought. I know this is a budget build, BUT, I would consider having the block decked. Normally, it runs between 150-200 bucks. These old blocks were almost always crooked and tall. Getting it straight and the decks parallel to the crank center line makes for a good foundation. How far up in the bore did the pistons come up at TDC? If it's close enough to zero deck height the block, I would do it. The cost for decking is the same regardless. That could actually add a little power and possibly give some resistance to detonation. Lastly, I would "look" at having the heads milled, just enough to assure good gasket sealing. Have you inspected the valve guides and seats yet? There's "not much room" for error there. That's another corner "I'd not cut" if it needs guides and seats. Expensive, I know, but you don't want crappy heads.

                    • Thanks! Thanks! x 1
                    • Agree Agree x 1
                    • roadrunnerh

                      roadrunnerh Well-Known Member

                      Messages:
                      3,013
                      Likes Received:
                      235
                      Joined:
                      Jul 11, 2011
                      Location:
                      Pittsburgh, PA
                      Local Time:
                      9:13 PM
                      More cylinder walls....

                      All measurements taken after cylinder cleanup.

                      • Like Like x 1
                      • RustyRatRod

                        RustyRatRod Weenie idiot loser. FABO Gold Member

                        Messages:
                        58,543
                        Likes Received:
                        28967
                        Joined:
                        Jun 7, 2010
                        Location:
                        Georgia
                        Local Time:
                        10:13 PM
                        • Thanks! Thanks! x 1
                        • Agree Agree x 1
                        • RustyRatRod

                          RustyRatRod Weenie idiot loser. FABO Gold Member

                          Messages:
                          58,543
                          Likes Received:
                          28967
                          Joined:
                          Jun 7, 2010
                          Location:
                          Georgia
                          Local Time:
                          10:13 PM
                          • Thanks! Thanks! x 1
                          • roadrunnerh

                            roadrunnerh Well-Known Member

                            Messages:
                            3,013
                            Likes Received:
                            235
                            Joined:
                            Jul 11, 2011
                            Location:
                            Pittsburgh, PA
                            Local Time:
                            9:13 PM
                            Rusty, thanks man! I have not gotten to the heads. They are the 906 stock heads. I do plan on doing them myself, but will definitely take these to the machine shop. Still focusing on the block - lots more cleaning!

                          • roadrunnerh

                            roadrunnerh Well-Known Member

                            Messages:
                            3,013
                            Likes Received:
                            235
                            Joined:
                            Jul 11, 2011
                            Location:
                            Pittsburgh, PA
                            Local Time:
                            9:13 PM
                          • RustyRatRod

                            RustyRatRod Weenie idiot loser. FABO Gold Member

                            Messages:
                            58,543
                            Likes Received:
                            28967
                            Joined:
                            Jun 7, 2010
                            Location:
                            Georgia
                            Local Time:
                            10:13 PM
                            Those are good heads.......but man those dished pistolas. lol That was an 8.5:1 motor at best, I don't care what "the book" says. Still though, if your funds won't allow for those flat tops I posted, all is not lost. Low compression motors can be made to run.

                            Last edited: Jul 6, 2019
                          • roadrunnerh

                            roadrunnerh Well-Known Member

                            Messages:
                            3,013
                            Likes Received:
                            235
                            Joined:
                            Jul 11, 2011
                            Location:
                            Pittsburgh, PA
                            Local Time:
                            9:13 PM

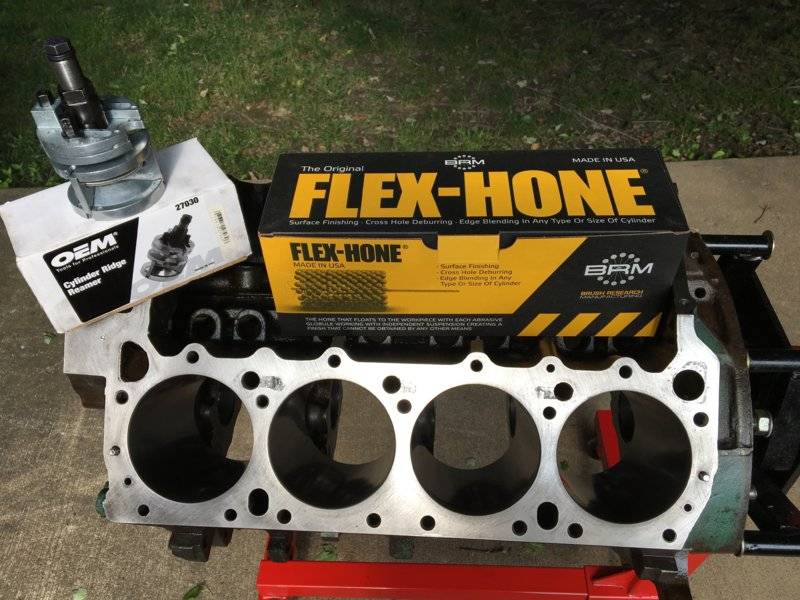

                            I used these tools MADE IN USA!
                            Bare block tools.JPG

                            • Like Like x 1
                            • Murray

                              Murray FABO Gold Member FABO Gold Member

                              Messages:
                              1,467
                              Likes Received:
                              933
                              Joined:
                              Apr 19, 2010
                              Location:
                              San Jose, California
                              Local Time:
                              7:13 PM
                              You are coming along nicely. I don't hear people talk about it anymore, but in the old days on a budget build we would "knurle" the pistons to tighten them in the bores. I agree with the advice to spend a little money on the heads/guides, as as this can lead to oil consumption problems.

                              • Thanks! Thanks! x 1
                              • rumblefish360

                                rumblefish360 So close, yet so far away FABO Gold Member

                                Messages:
                                37,432
                                Likes Received:
                                9133
                                Joined:
                                Jun 21, 2005
                                Location:
                                New York, on a Island
                                Local Time:
                                10:13 PM
                                Go with the aluminum intake if you can. Any place you can save weight during this rebuild will pay dividends later.

                                • Like Like x 1
                                • Thanks! Thanks! x 1
                                • Agree Agree x 1
                                • j par

                                  j par Well-hung Member

                                  Messages:
                                  21,106
                                  Likes Received:
                                  10338
                                  Joined:
                                  Jul 2, 2014
                                  Location:
                                  Portland Oregon
                                  Local Time:
                                  7:13 PM
                                  Hold to your goal and you will hold to your budget...
                                  Without question all the things that people are suggesting beyond that are going to improve things across the board in the long run and some even in the short run. But you're opening is wanting to just rebuild an engine kind of left it open? you simply stated that you wanted to rebuild an engine on your own. Do you intend to race it? Put it in a car and cruise it? You know those kinds of things or just get it running have it nice and clean and doing okay and sell it on...

                                  • Thanks! Thanks! x 1
                                  • roadrunnerh

                                    roadrunnerh Well-Known Member

                                    Messages:
                                    3,013
                                    Likes Received:
                                    235
                                    Joined:
                                    Jul 11, 2011
                                    Location:
                                    Pittsburgh, PA
                                    Local Time:
                                    9:13 PM
                                    Thanks for all the feedback fellas!
                                    The goal is to install this engine in my 75 Scamp. I want a cruiser, not a drag racer. Currently, she has a /6 and I want much more power. More power = 250 HP and up. A trip to the drag strip once in a blue moon should yield 14.40's - I would be very happy.

                                    I'm using Schumaker mounts, 68/69 factory hp exhaust manifolds (NO HEADERS), Column shift,
                                    The car already has a factory A Body 8.75 with 3.23 gears I installed a couple years ago with this build in mind. I also have a 727 out of a '68 Imperial sitting on the shelf. I have a B-body length drive shaft which I will have shortened and balanced.

                                    • Like Like x 1
