Need pictures of 15 x 8" Cragars on 67-69 Dart
- Thread starter duster360
- Start date
-
dano
Evil Handy Man
Are you looking for small bolt pattern or large bolt pattern fitment? 245-255 is about as wide as you can get with the right offset and a minor roll of the inner fender and that's iffy given the wall height, suspension sag, rear sway bar, and ride height in the rear.
Large bolt pattern. The 15" x 8" Cragars have 4 1/4" backspace. I am going to shorten the axle housing a little and use some dr diff 1/2" offset leaf spring hangers. I have 245/60 coopers at the moment mounted on 7" cragars with 4 1/8" backspace. Don't want to buy the 8" wheels and they not fit. I will stick with the 7" if I have too. I would like the 8" so the 245/60 tire will flatten out the tread a little. I am hoping for some pictures and insight.
dano
Evil Handy Man
This site it a huge help for situations like this:
Will They Fit - Online Wheel and Tyre Fitment Calculator

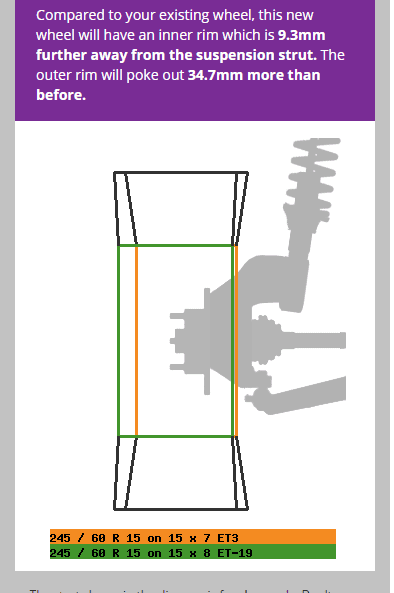

Below is an estimate based on what you said for size and backspace(I calulated the offset).
Will They Fit - Online Wheel and Tyre Fitment Calculator
Below is an estimate based on what you said for size and backspace(I calulated the offset).
Last edited:
I think we're looking at a yes/no question here. Will a 15x8" wheel fit? Absolutely. A stock Demon will be able to fit 15x8 wheels in the rear.
Not Cragars...but these are 15x8,+10mm offset with the (at the time) 7.25" axle which is just a bit narrower than a stock Abody 8.75". Tires are 255/60s
dano
Evil Handy Man

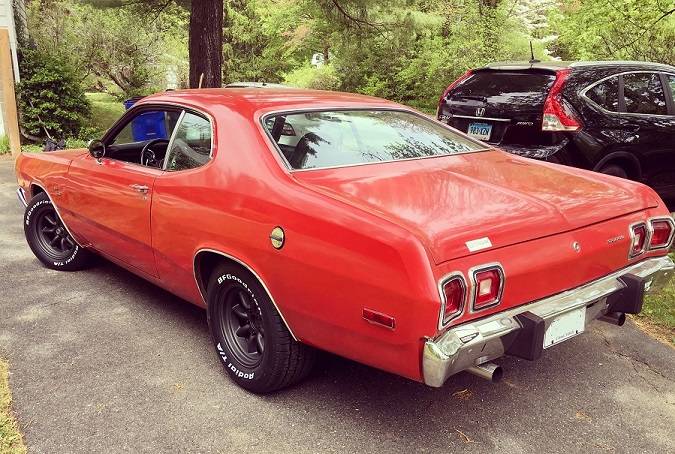

67-69 Dart rear quarter panels are quite different that the other A-bodys. They hand low and are not fully open like your Demon. See my car below. FYI it has 17x8 with 245/45/17's. I had to get a custom offset, as I have an A-body 8-3/4 with BBP axles. Even with that combo its tight.
Last edited:
-
