[WANTED] Needing stock 8 3/4 10x1.75 sbp drums

Cars and Mopar Parts Wanted

Thread Status:
Not open for further replies.
  1. canuckgts

    canuckgts Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Oct 15, 2011
    Location:
    ontario
    Local Time:
    10:44 AM
    Contact Seller
    Hi all. I have my 8 3/4 ready to bolt in. New everything including brake shoes and hardware.
    Just found out, no drums available for my setup.
    Shoes are the 10x1.75. Axles are sbp.
    Anyone have a good set of original drums to fit my application?
    Thank you in advance.

  2. SGBARRACUDA

    SGBARRACUDA ROY FABO Gold Member

    Messages:
    17,422
    Likes Received:
    6131
    Joined:
    Dec 7, 2006
    Location:
    PLANT CITY FL. and PERRY GA.
    Local Time:
    11:44 AM
    Centric makes new ones that are inexpensive. Check with Rock Auto.

  3. canuckgts

    canuckgts Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Oct 15, 2011
    Location:
    ontario
    Local Time:
    10:44 AM
    Thanks for the reply. The centric drums info link gives no dimensions. Someone else on this sight has told me they are bbp, which I could buy and have drilled but,
    I am not sure about the quality of the material. Would like to find original if at all possible.

  4. 694spd

    694spd Well-Known Member

    Messages:
    996
    Likes Received:
    322
    Joined:
    May 2, 2014
    Location:
    Upstate NY
    Local Time:
    11:44 AM
    I don't think that Rockauto has any rear 10" x 1.75" SBP rear drums listed.
    The listed CENTRIC 12363004 I believe is a 9" drum...
    Correct me, if I'm wrong.

    Last edited: Jun 27, 2020
  5. grampscamp

    grampscamp Active Member

    Messages:
    29
    Likes Received:
    9
    Joined:
    May 1, 2020
    Location:
    Aldergrove B.C.
    Local Time:
    8:44 AM
    I have a set. I can get pics this weekend.

  6. canuckgts

    canuckgts Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Oct 15, 2011
    Location:
    ontario
    Local Time:
    10:44 AM
    694spd Yes I believe you are correct. 12363004 is 9". They list 12363044 as 10" but not sure on bolt pattern.
    Going to wait and see what grampscamp has. In Canada even.

  7. canuckgts

    canuckgts Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Oct 15, 2011
    Location:
    ontario
    Local Time:
    10:44 AM
    Gramscamp: That is awesome. Send pics when you can. Thank you

  8. MoparMike1974

    MoparMike1974 FABO Gold Member FABO Gold Member

    Messages:
    2,625
    Likes Received:
    1854
    Joined:
    Jun 16, 2017
    Location:
    Maryland
    Local Time:
    11:44 AM
    I just got some from rock auto, they looked right to me. Guess I better double check them. Not the bell shape like original.
    Here is the ones I bought. Comes up as rear 10" brakes. Searched 71 dart 340.
    CENTRIC 12363044 Drum | RockAuto

    I will go and check against some originals and report back.

    Last edited: Jun 27, 2020
  9. Rocket

    Rocket FABO Gold Member FABO Gold Member

    Messages:
    1,980
    Likes Received:
    268
    Joined:
    Apr 22, 2005
    Location:
    Manchester, CT
    Local Time:
    4:44 PM
    I bought a Centric set years ago in 10". They were SBP. Only thing I modified was where the hole for the axle register is on the outside of the drum, it has a slight rise in the casting. I ground it flat so there was no issue mounting the wheels. Not sure if this has since been corrected in the design.

    Some big auto parts stores may be able to get them to you as well like AugoZone, ...

  10. MoparMike1974

    MoparMike1974 FABO Gold Member FABO Gold Member

    Messages:
    2,625
    Likes Received:
    1854
    Joined:
    Jun 16, 2017
    Location:
    Maryland
    Local Time:
    11:44 AM
    Last edited: Jun 27, 2020
  11. Avispa

    Avispa FABO Gold Member FABO Gold Member

    Messages:
    1,405
    Likes Received:
    852
    Joined:
    Feb 26, 2007
    Location:
    Georgia
    Local Time:
    11:44 AM
    Pretty sure O'rielly's has them also, bout 50 bucks each.

  12. MoparMike1974

    MoparMike1974 FABO Gold Member FABO Gold Member

    Messages:
    2,625
    Likes Received:
    1854
    Joined:
    Jun 16, 2017
    Location:
    Maryland
    Local Time:
    11:44 AM
    Nothing to correct, they are supposed to have that raised lip on the register. The original drum has it too.

  13. Rocket

    Rocket FABO Gold Member FABO Gold Member

    Messages:
    1,980
    Likes Received:
    268
    Joined:
    Apr 22, 2005
    Location:
    Manchester, CT
    Local Time:
    4:44 PM
    Thanks for the clarification. Guess I never noticed.

  14. MoparMike1974

    MoparMike1974 FABO Gold Member FABO Gold Member

    Messages:
    2,625
    Likes Received:
    1854
    Joined:
    Jun 16, 2017
    Location:
    Maryland
    Local Time:
    11:44 AM
    I verified it on some originals before posting to be sure. As far as I can remember, most drums have that raised lip.

  15. SGBARRACUDA

    SGBARRACUDA ROY FABO Gold Member

    Messages:
    17,422
    Likes Received:
    6131
    Joined:
    Dec 7, 2006
    Location:
    PLANT CITY FL. and PERRY GA.
    Local Time:
    11:44 AM
    I just bought a set off Rock Auto less than a month ago. They are not the bell or darth Vader style. If I were home I could look on the invoice for the part number.

  16. canuckgts

    canuckgts Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Oct 15, 2011
    Location:
    ontario
    Local Time:
    10:44 AM
    Thanks all. Going to see what grampscamp has, if that doesn't work out I will order from rock-auto.
    I checked the 12363044 at the Summit sight and they are sbp.
    Thanks again

  17. MoparMike1974

    MoparMike1974 FABO Gold Member FABO Gold Member

    Messages:
    2,625
    Likes Received:
    1854
    Joined:
    Jun 16, 2017
    Location:
    Maryland
    Local Time:
    11:44 AM
    Yes, the 12363044 are the correct drums. Only difference is they are not the bell style, which is no longer available.

  18. canuckgts

    canuckgts Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Oct 15, 2011
    Location:
    ontario
    Local Time:
    10:44 AM
    Hey Grampscamp any luck with the drums?

  19. 65Val

    65Val Average Length Member

    Messages:
    5,151
    Likes Received:
    1088
    Joined:
    Oct 14, 2005
    Location:
    Victoria, BC, Canada, EH!
    Local Time:
    8:44 AM
  20. 68383GTS

    68383GTS Well-Known Member

    Messages:
    7,398
    Likes Received:
    883
    Joined:
    Nov 15, 2007
    Location:
    East Peoria,IL
    Local Time:
    10:44 AM
    I have a set off a 68 383 GTS. They are small bolt but have also been drilled for big bolt.

  21. Daves69

    Daves69 Well-Known Member

    Messages:
    5,095
    Likes Received:
    3244
    Joined:
    Feb 20, 2011
    Location:
    WestOfChi
    Local Time:
    10:44 AM

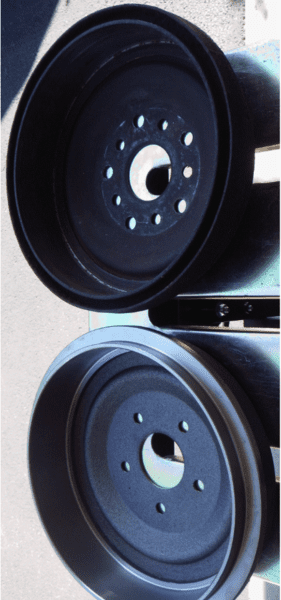

    What the Centric look like.......

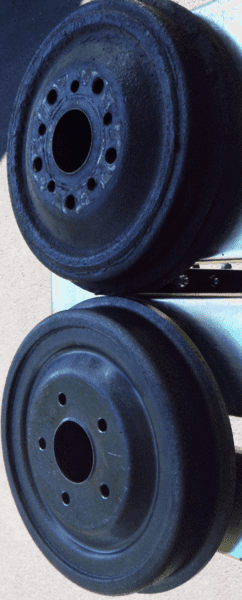

    FWIW, My old drums were not "bell" style. Maybe replaced in the mid 70's, don't know for sure. Comparison pictures before re-drilling Centric......
    upload_2020-7-7_11-58-19.png upload_2020-7-7_11-59-46.png

  22. Slantsix64

    Slantsix64 Well-Known Member

    Messages:
    2,734
    Likes Received:
    1078
    Joined:
    May 11, 2014
    Location:
    SGV
    Local Time:
    10:44 AM
    got two sets off rockauto workgreat
