Pics needed. Speedmaster intake.

Magnum Engine Swaps

  1. Orionsax7

    Orionsax7 Well-Known Member

    Messages:
    204
    Likes Received:
    11
    Joined:
    Jul 1, 2005
    Location:
    Riverside, CA
    Local Time:
    4:52 PM
    Anyone have pics of their magnums with serpentine belt system AND Speedmaster intake? Curious to see how the coolant/radiator hoses are routed with the brackets. Thanks!

    • Like Like x 1
    • rumblefish360

      rumblefish360 So close, yet so far away FABO Gold Member

      Messages:
      39,478
      Likes Received:
      10990
      Joined:
      Jun 21, 2005
      Location:
      New York, on a Island
      Local Time:
      5:52 PM
      And pictures of what you have!
      This topic comes up once and a while. The thread gets buried. A gathering of various intake manifolds for the Magnum flavor would be good with a title to what the set up is.

      • Agree Agree x 1
      • Orionsax7

        Orionsax7 Well-Known Member

        Messages:
        204
        Likes Received:
        11
        Joined:
        Jul 1, 2005
        Location:
        Riverside, CA
        Local Time:
        4:52 PM
        My engine is currently in the machine shop and I have a Speedmaster intake I plan on dropping off this weekend along with a bunch of other odds and ends for the build. I will definitely post a bunch of pics along the way but wanted to make sure this intake will work or if I should get an Eddy instead.

        I searched a few posts but I'm sure there are those out there that have better pics than what I found through searches.

      • Bobzilla

        Bobzilla Well-Known Member

        Messages:
        834
        Likes Received:
        631
        Joined:
        Aug 10, 2017
        Location:
        Livonia, Michigan
        Local Time:
        5:52 PM
        Please provide more of your plan details. Are you running the entire Magnum accessory drive with alternator, power, steering and air conditioning? Are you running no air conditioning? Are you running manual steering?
        The Speedmaster intake is basically the same as the other Chinese made air gap clones, in that it has dual intake bolt pattern for Magnum heads, but they use an LA thermostat position and bypass hose. The only real problem with those are the Magnum air conditioning bracket interfering with the thermostat location. If not running air conditioning, there should be no real problem.
        Read through this thread for some other Magnum serpentine setups:
        Confused what to do with a 5.9L serpentine setup

      • Orionsax7

        Orionsax7 Well-Known Member

        Messages:
        204
        Likes Received:
        11
        Joined:
        Jul 1, 2005
        Location:
        Riverside, CA
        Local Time:
        4:52 PM
        Going to run the magnum serpentine system with alternator only. This car is manual steering. May add A/C in the waaaay distant future so I'm not worried about that for now. I was going to run the AC delete pulley on the full magnum bracket but it looks like it will interfere on the thermostat housing so I may just run a belt from crank-tensioner-alternator-idler-water pump-crank. I've seen a pic of this setup somewhere on here before.

        Although this thread has a different bracket than I will be running, it had some good info as well. Crosswind air gap clone and ram truck serpentine setup

      • Bobzilla

        Bobzilla Well-Known Member

        Messages:
        834
        Likes Received:
        631
        Joined:
        Aug 10, 2017
        Location:
        Livonia, Michigan
        Local Time:
        5:52 PM
        • Thanks! Thanks! x 1
        • 75slant6

          75slant6 Well-Known Member

          Messages:
          5,424
          Likes Received:
          1924
          Joined:
          May 15, 2011
          Location:
          Russellville, ky
          Local Time:
          4:52 PM

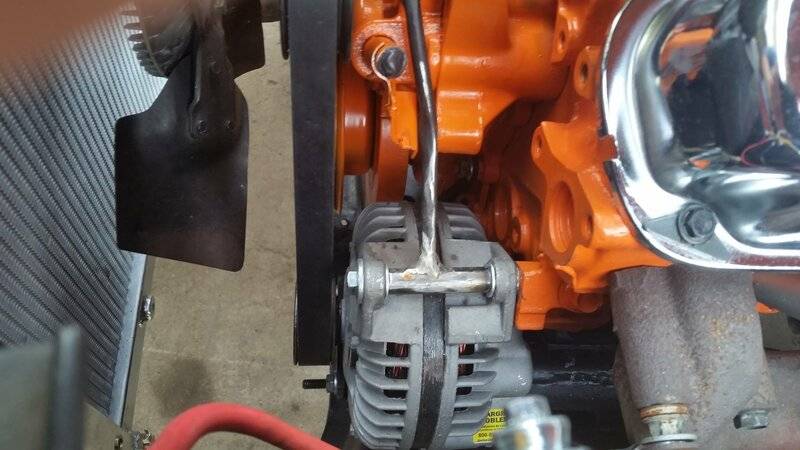

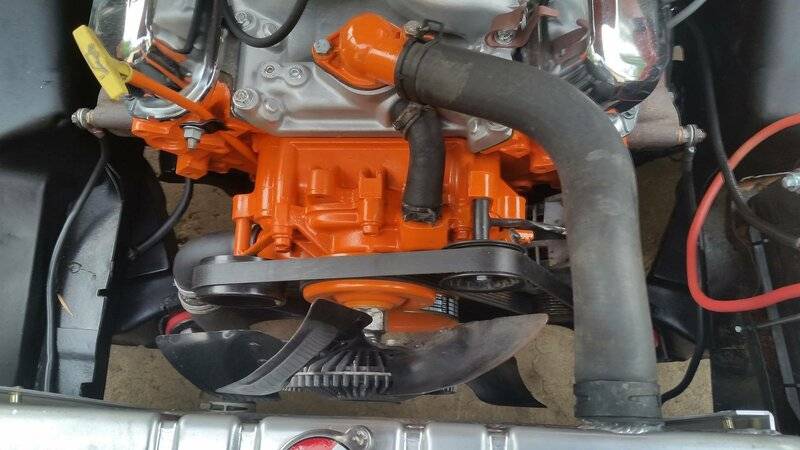

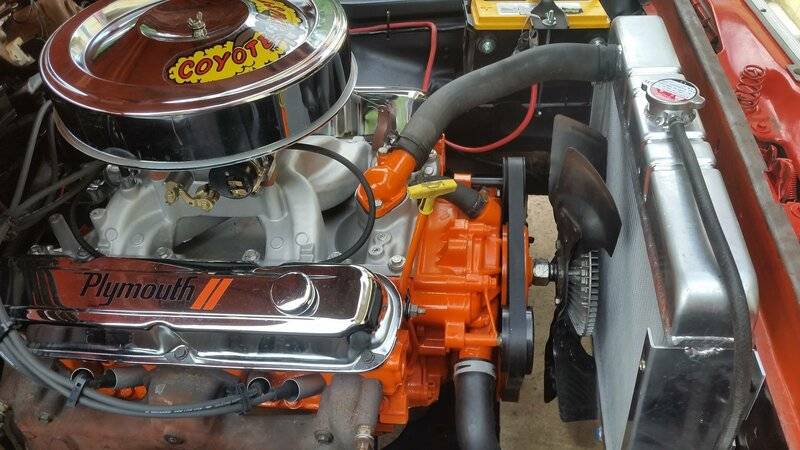

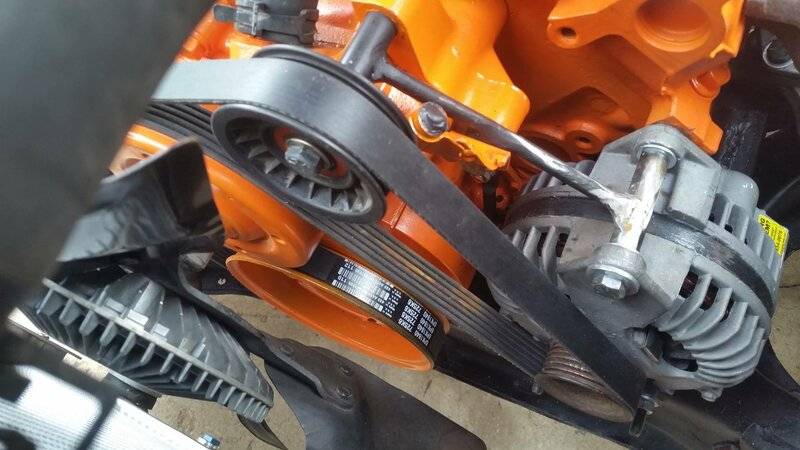

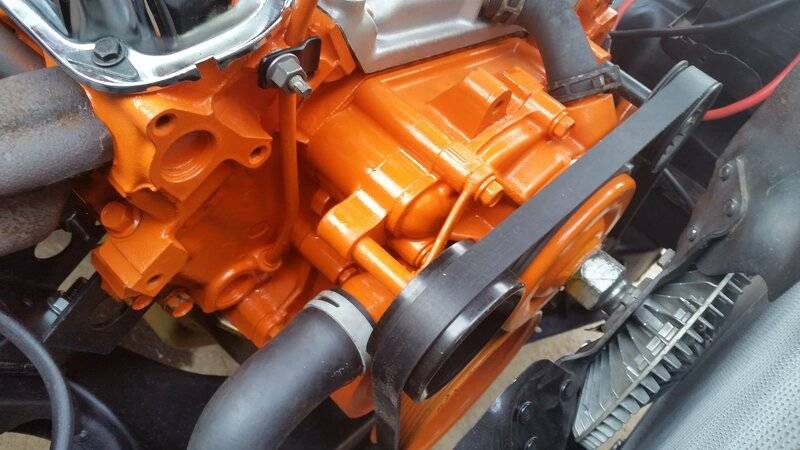

          Here’s another option if you enjoy doing a little fab work. A Facebook friend of mine did this in his Duster.







          • Like Like x 3
