Reading the temperature gauge

Mopar General Discussions

  1. jboyd2

    jboyd2 68 cuda

    Messages:
    240
    Likes Received:
    18
    Joined:
    Apr 21, 2015
    Location:
    Arkansas
    Local Time:
    5:31 AM
    Can someone tell me what temperatures the tick marks on this temperature gauge represents?


    Attached Files:

  2. 67Dart273

    67Dart273 FABO Gold Member FABO Gold Member

    Messages:
    45,658
    Likes Received:
    13395
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    3:31 AM
    Anything above the middle is a "little warm" and left of the middle is a "little cool."

  3. jboyd2

    jboyd2 68 cuda

    Messages:
    240
    Likes Received:
    18
    Joined:
    Apr 21, 2015
    Location:
    Arkansas
    Local Time:
    5:31 AM
    Maybe approximately 160 - 210? I'm trying to calibrate a fan controller using these tick marks.

  4. 67Dart273

    67Dart273 FABO Gold Member FABO Gold Member

    Messages:
    45,658
    Likes Received:
    13395
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    3:31 AM
    .........Not........going......to........happen.

    Invest in a thermometer. Those guages were never "really" calibrated, nor accurate

  5. TrailBeast

    TrailBeast AKA Mopars4us on Youtube

    Messages:
    21,449
    Likes Received:
    9090
    Joined:
    Mar 11, 2011
    Location:
    Arizona
    Local Time:
    4:31 AM

    I run a mechanical temp gauge (like a thermometer basically) and a thermostatic controller for the fan.
    Not a big deal at all really but since they agree with each other on the temps it makes it kind of a verification that is nice.

    The thermostat for the fan comes on at 210 according to the settings on it, and when the fan comes on the gauge says 210 on the nose.

    There is no way you will do anything but guess until you can verify temps in degrees.

    Now I get to mess with you a little. :D


    Attached Files:

  6. RedFish

    RedFish Well-Known Member

    Messages:
    24,594
    Likes Received:
    3081
    Joined:
    Sep 5, 2007
    Local Time:
    6:31 AM

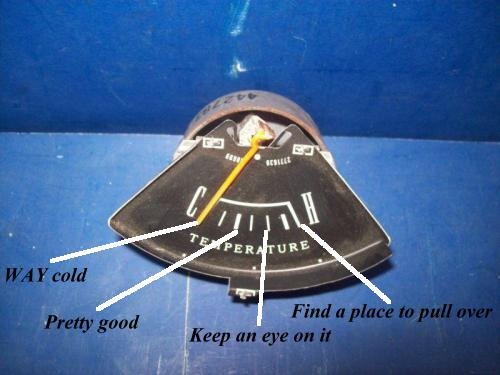

    The 3 little dots at bottom of screen are the factory calibration targets. I could go to the book and report what temp that middle dot ( 23 ohms ) represents. Those targets cant be seen once the gauge is installed though.
    If it helps, when the gauge was new, the first heavy hash mark ( shown as "pretty good" above ) is 34 ohms, approx' 180 degrees, and where OEM thermostats begin to function.

    • Like Like x 1
    • krazykuda

      krazykuda Well-Known Member FABO Gold Member How-To Section Editor

      Messages:
      55,998
      Likes Received:
      21445
      Joined:
      Aug 20, 2007
      Location:
      Orland Park, IL
      Local Time:
      5:31 AM
      Get an aftermarket temp gauge... and mount it permanently...

    • j par

      j par Well-hung Member

      Messages:
      25,493
      Likes Received:
      13521
      Joined:
      Jul 2, 2014
      Location:
      Portland Oregon
      Local Time:
      3:31 AM
      that's exactly what you have - cold (or not working)/ all good / going up hill pulling a trailer on a hot day/ OH CRAP!! PULL OVER! my wife got me one of those Lazer heat guns, verified my gage.

    • RPMagoo

      RPMagoo Just An Old Motorhead

      Messages:
      3,167
      Likes Received:
      1687
      Joined:
      Nov 4, 2015
      Location:
      N.E. Pa.
      Local Time:
      5:31 AM
      Get one of these. They are slick.


      Attached Files:

    • 67Dart273

      67Dart273 FABO Gold Member FABO Gold Member

      Messages:
      45,658
      Likes Received:
      13395
      Joined:
      Oct 14, 2010
      Location:
      Idaho
      Local Time:
      3:31 AM
      Actually your assessment of "calibration" is quite good!!

    • Woods74

      Woods74 Broke Senior

      Messages:
      6,016
      Likes Received:
      239
      Joined:
      Aug 21, 2010
      Location:
      Seattle, WA
      Local Time:
      3:31 AM
      :laughing:

      What are ya? New?

      Hell to the no!

    • 2 Darts

      2 Darts A-body Addicted

      Messages:
      3,495
      Likes Received:
      245
      Joined:
      Mar 28, 2008
      Location:
      In a house
      Local Time:
      5:31 AM
      Thanks for the info. It prompts a few more questions. If the center dot equals 23 ohms and the first heavy mark is 34 ohms ~180ยบ, then what are the temp and ohm values of the other two dots for a new gauge , per the book? In your experience, as the systems age, do they tend to read cooler or hotter than they did when they were new? How do I test the temperature sensor and what sort of resistance value should be expected? (i.e. How do I know if the temp sensor is good?) Is there a difference between a senor for an idiot light and a gauge? How can I tell which one is which?

    • jboyd2

      jboyd2 68 cuda

      Messages:
      240
      Likes Received:
      18
      Joined:
      Apr 21, 2015
      Location:
      Arkansas
      Local Time:
      5:31 AM
      Thanks for the replies so far. I was afraid that would be the answers I would get. I'm installing electric fans and using the Pac 2750 as the fan controller. I'm trying to map the controller to my temperature sender by programming temperatures in based on the tick marks on the standard gauge. Assuming the standard gauge is operating correctly, I assume the marks represent some predetermined temperature. I may have to use the temperature selection on my Fluke to verify and calibrate the controller.

      Trailbeast that's how it usually goes.

    • jboyd2

      jboyd2 68 cuda

      Messages:
      240
      Likes Received:
      18
      Joined:
      Apr 21, 2015
      Location:
      Arkansas
      Local Time:
      5:31 AM
      Redfish, good info. If you have more information on what the middle dot and the others represent, I'd love to know.

    • TrailBeast

      TrailBeast AKA Mopars4us on Youtube

      Messages:
      21,449
      Likes Received:
      9090
      Joined:
      Mar 11, 2011
      Location:
      Arizona
      Local Time:
      4:31 AM
      Yea, you'll be ahead if you shoot it with a temp gun or something like that and set your controller with that if you are determined to do it without an actual temp gauge.
      These old parts vary quite a bit after all these years (especially electrical)

      BTW, and idiot light uses an on/off switch type system that turns the dash light on at a single given temp, and a gauge like you posted the pic of uses a varied resistance voltage.
      You can determine the difference between the senders with a simple resistance type meter.
      Or, you can usually tell because senders for gauges are usually somewhat bigger in size.

    • AJ/FormS

      AJ/FormS 68 B'cuda fb, Form S clone ... 367/A833/3.55s

      Messages:
      19,429
      Likes Received:
      7263
      Joined:
      Jan 19, 2014
      Location:
      South-Central Manitoba,Canada, 900ftelevation
      Local Time:
      5:31 AM
      I calibrated my gauge to the water temperature (205). I had to bend the thingy to make it line up where I wanted it to be. So now I know exactly where "normal" is.... And nothing else.But really, that's all I need to know.

      I did the same to my gas gauge.When it hits "E", I have about 2 liters left.So E really means EMPTY! Cuz 2 liters is like 2 US quarts. I can barely drive around the block on that!

    • RedFish

      RedFish Well-Known Member

      Messages:
      24,594
      Likes Received:
      3081
      Joined:
      Sep 5, 2007
      Local Time:
      6:31 AM
      I can't give away all the info I have on these S-W for Chrysler instruments. Paid too much for it.

    • 2 Darts

      2 Darts A-body Addicted

      Messages:
      3,495
      Likes Received:
      245
      Joined:
      Mar 28, 2008
      Location:
      In a house
      Local Time:
      5:31 AM
      • Like Like x 1
      • mguner

        mguner How many is too many?

        Messages:
        5,129
        Likes Received:
        361
        Joined:
        Nov 26, 2006
        Location:
        Amarillo,TX
        Local Time:
        5:31 AM
        I always considered the two heavier bars indicate normal operating range depending on ambient temps. As to what those translate to in degrees I yield to redfish....
