Removing the rear window trim on a 65 Barracuda

Early A-Body Discussions

  1. pobrien

    pobrien Active Member

    Messages:
    37
    Likes Received:
    5
    Joined:
    Aug 25, 2021
    Location:
    Bay Area
    Local Time:
    11:04 AM
    Hello,

    How do you get the side trim pieces (below the rear glass) off of a Barracuda?


    I have removed the center, but I can't reach the nuts through the little holes in the trunk. Is there a special tool or trick to this?

    I have plastic pieces inside the cargo area held in by plastic rivets, I've been told these plastic pieces are incredibly fragile and not to break them.

    Any techniques or advice would be appreciated.

    Thank you!
    Patrick

    Last edited: Sep 26, 2021
  2. pishta

    pishta I know I'm right....

    Messages:
    21,383
    Likes Received:
    10773
    Joined:
    Oct 13, 2004
    Location:
    Tustin, CA
    Local Time:
    11:04 AM
    remove the 3/8 nuts through the 3 holes. I dont think you need to take the plastic panels off. Your attachment didnt work.
    << Sorry, they are behind those fragile panels>>> There is a screw under the weatherstrip that everyone misses I think.....

  3. pobrien

    pobrien Active Member

    Messages:
    37
    Likes Received:
    5
    Joined:
    Aug 25, 2021
    Location:
    Bay Area
    Local Time:
    11:04 AM
    Do you need a specially-shaped wrench to do that? I have a few different sets and none of them come anywhere near reaching the nuts

  4. pishta

    pishta I know I'm right....

    Messages:
    21,383
    Likes Received:
    10773
    Joined:
    Oct 13, 2004
    Location:
    Tustin, CA
    Local Time:
    11:04 AM
    No, just a 3/8 and a socket on a 3-6" extension? They are those flimsy trip nuts. That panels needs to come off.

  5. pobrien

    pobrien Active Member

    Messages:
    37
    Likes Received:
    5
    Joined:
    Aug 25, 2021
    Location:
    Bay Area
    Local Time:
    11:04 AM
    Rats, I was hoping I could get them off another way. Thanks for the confirmation

  6. pishta

    pishta I know I'm right....

    Messages:
    21,383
    Likes Received:
    10773
    Joined:
    Oct 13, 2004
    Location:
    Tustin, CA
    Local Time:
    11:04 AM
    It can be done...the screw tab under the window seal is what people forget about and they end up ripping them out and breaking that part. pull it back and look for it. IIRC it can be removed with seal in place but its a delicate process. Sort of a channel shape.

  7. pobrien

    pobrien Active Member

    Messages:
    37
    Likes Received:
    5
    Joined:
    Aug 25, 2021
    Location:
    Bay Area
    Local Time:
    11:04 AM
    Based on your screenshot, are you saying I have to pop these off?


  8. pishta

    pishta I know I'm right....

    Messages:
    21,383
    Likes Received:
    10773
    Joined:
    Oct 13, 2004
    Location:
    Tustin, CA
    Local Time:
    11:04 AM
    yes...look under the full length of the rear gasket on top for a screw or 2 for those plastic trims, there may be one behind that metal trim above the filler too, thats easy to remove, they are all screwed in place.

  9. 69FBCuda

    69FBCuda I'm so confused! FABO Gold Member

    Messages:
    3,258
    Likes Received:
    1795
    Joined:
    Aug 28, 2014
    Location:
    Florida
    Local Time:
    2:04 PM

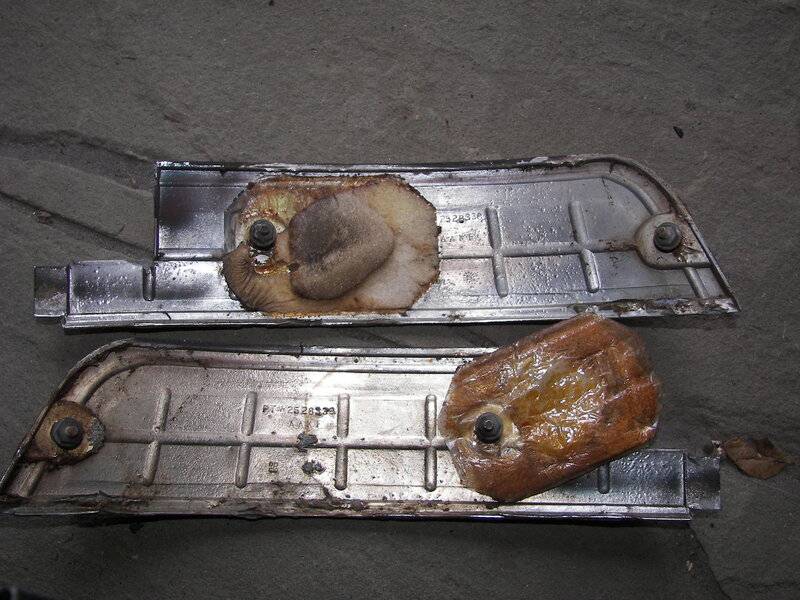

    For your reference:

  10. pobrien

    pobrien Active Member

    Messages:
    37
    Likes Received:
    5
    Joined:
    Aug 25, 2021
    Location:
    Bay Area
    Local Time:
    11:04 AM
    Thanks yes, I have a really nice set to swap on, I just need to reach the nuts on those studs. I was scared to remove that plastic trim due to everyone telling me how brittle it is.

    I will look for extra screws and see what I can do

    • Thanks! Thanks! x 1
