    This is a great thread and would loce to see more home made tools added...

  2. camd64

    camd64 Remember Landy

    Messages:
    1,609
    Likes Received:
    13
    Joined:
    Jun 22, 2008
    Location:
    cedar park, tx
    Local Time:
    10:18 AM
    End of the week and I had to get the Dart put back together. only problem is no spring compressor and no more money!? solution, make one using an old rocker arm. aint pretty but it works well. other one is my vise that I ground one end to use as a connecting rod splitter. make due with what you got.




    • Like Like x 1
    • avarageerod

      avarageerod Well-Known Member

      Messages:
      1,402
      Likes Received:
      4
      Joined:
      May 13, 2009
      Location:
      North Carolina
      Local Time:
      1:18 PM
      some of mine

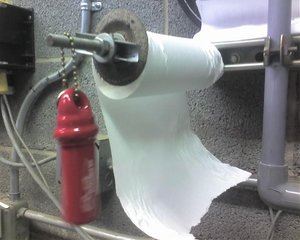

      home made paper towel dispenser.

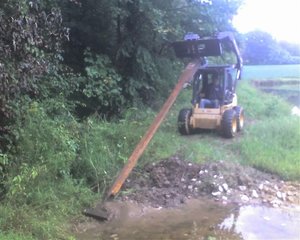

      home made beaver dam buster



      • Like Like x 1
      • Thanks! Thanks! x 1
      • dodgedifferent2

        dodgedifferent2 Well-Known Member

        Messages:
        2,698
        Likes Received:
        490
        Joined:
        Aug 8, 2008
        Location:
        southwestern, Ontario
        Local Time:
        12:18 PM
        picture is of the bead roller i made.

        I cant find the pics for the sheet metal brake, slip rolls, english wheel, ring roller, tracer for the oxy/propane torch,

        Also in the works of building a cutter to cut splines for an 8 3/4 axle shafts on the bridgeport.

        other 042.jpg

        • Like Like x 1
        • Small Block

          Small Block Well-Known Member

          Messages:
          5,724
          Likes Received:
          12
          Joined:
          Jan 29, 2005
          Location:
          West Plains, Mo.
          Local Time:
          6:18 PM
          Great post. Looks like there are several smart folks here. The most usefull tool i have made that worked out very well was the long sockets for adjusting the side play on the 8.75. Now part of the arsenal.
          Small Block. #2997

        • Mrmopartech

          Mrmopartech Well-Known Member

          Messages:
          2,204
          Likes Received:
          50
          Joined:
          Jun 5, 2005
          Location:
          St.Lazare Quebec Canada
          Local Time:
          12:18 PM
          C:\Documents and Settings\Scott\My Documents\My Pictures\porting tool



          This is a tool for the small block porters out there that DARTJACK made,so copy and paste and check it out,mrmopartech

        • fishy68

          fishy68 Tyr Fryr's Inc.

          Messages:
          16,939
          Likes Received:
          967
          Joined:
          Jan 11, 2005
          Location:
          Central, IL (Hooterville)
          Local Time:
          12:18 PM
          Doesn't seem to work Scott. I think cause that's not a website, just where it's stored on your hard drive.

        • jomoper

          jomoper Mope or Nope

          Messages:
          2,990
          Likes Received:
          195
          Joined:
          Aug 18, 2006
          Location:
          NorCal.S.F.bay area
          Local Time:
          10:18 AM

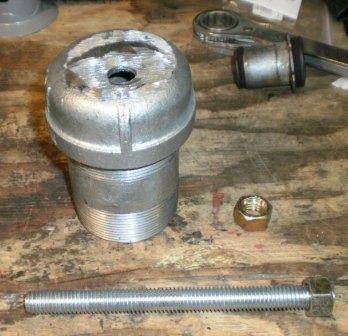

          Just had to add this tool I made today -a homemade control arm bushing puller .Total cost in materials $10.59 . I used a 2"W X 3"L threaded pipe with cap.Drilled hole off center ran allthread down the middle . Tighten the nuts and the bushing slides right out! Didn't take too much effort either. I did soak the a-arms in evaporust overnight.Should work just as well to install the new bushings .

          homemade bushing puller 027.JPG

          homemade bushing puller 028.jpg

          homemade bushing puller 029.jpg

          • Like Like x 3
          • daredevil

            daredevil Well-Known Member

            Messages:
            11,346
            Likes Received:
            148
            Joined:
            May 19, 2007
            Location:
            S/w Houston
            Local Time:
            12:18 PM
            that control arm tool is the cats meow

          • jomoper

            jomoper Mope or Nope

            Messages:
            2,990
            Likes Received:
            195
            Joined:
            Aug 18, 2006
            Location:
            NorCal.S.F.bay area
            Local Time:
            10:18 AM
            Thanks daredevil I'm quite happy with it . :-D

          • fishy68

            fishy68 Tyr Fryr's Inc.

            Messages:
            16,939
            Likes Received:
            967
            Joined:
            Jan 11, 2005
            Location:
            Central, IL (Hooterville)
            Local Time:
            12:18 PM
            Great idea!! Thanks for posting.

          • 4spdcuda66

            4spdcuda66 Well-Known Member

            Messages:
            1,327
            Likes Received:
            78
            Joined:
            Jul 31, 2009
            Location:
            Bettendorf,Iowa
            Local Time:
            12:18 PM
            Here is my home built press, Torqueflite clutch spring compressor and A-833 bearing installer. The bearing tool is a piece of pipe with an old bearing race welded to one end and a piece of solid steel on the other. They all look a little crude, but each one has saved me money.

            home made press.jpg

            clutch spring compressor.jpg

            bearing press.jpg

            • Like Like x 1
            • 4spdcuda66

              4spdcuda66 Well-Known Member

              Messages:
              1,327
              Likes Received:
              78
              Joined:
              Jul 31, 2009
              Location:
              Bettendorf,Iowa
              Local Time:
              12:18 PM
              A while back, I changed the 7-1/4 rear out for an 8-1/4 and installed a Powertrax locker, new bearings and seals and new pinion seal. To keep the pinion from turning while replacing the seal, I put a piece of thick wall pipe in one of the drive shaft u-joints and rested it on the leaf spring while loosening the pinion nut. Of course I marked the locations of the nut,housing and yoke so I could get it all lined back up properly. When I had the new seal in place, I simply moved the pipe to the other side to tighten to the required 225 ft. lbs. All my marks lined right up and I didn't have to fight with the pinion moving around.

              pinion tool 1.jpg

              pinion tool 2.jpg

              • Like Like x 1
              • fishy68

                fishy68 Tyr Fryr's Inc.

                Messages:
                16,939
                Likes Received:
                967
                Joined:
                Jan 11, 2005
                Location:
                Central, IL (Hooterville)
                Local Time:
                12:18 PM
                Great idea's 4spdcuda66. That press looks like it's plenty tough. Better than my 20 ton store bought one for sure.

              • 4spdcuda66

                4spdcuda66 Well-Known Member

                Messages:
                1,327
                Likes Received:
                78
                Joined:
                Jul 31, 2009
                Location:
                Bettendorf,Iowa
                Local Time:
                12:18 PM
                It does pretty good. I have it set up so I can change out the hydraulic rams, the one in the photo is a ten ton. It works great for the lower control arm bushings,removal and installation.

              • 340 swing

                340 swing 340swing

                Messages:
                263
                Likes Received:
                4
                Joined:
                Nov 6, 2008
                Location:
                Oxford Ct.
                Local Time:
                12:18 PM
                This worked great while the k frame was out it gives lots of movement in any direction just put a floor jack under the rear end and push anywhere. Don't try to use it with the engine in. If you made it out of metal and welded it maybe. The casters are off an old walk behind mower.


                • Like Like x 1
                • fishy68

                  fishy68 Tyr Fryr's Inc.

                  Messages:
                  16,939
                  Likes Received:
                  967
                  Joined:
                  Jan 11, 2005
                  Location:
                  Central, IL (Hooterville)
                  Local Time:
                  12:18 PM
                  I did basically the same with mine when I redid it but I didn't have pics. Thanks for adding.

                • Sparky

                  Sparky Well-Known Member

                  Messages:
                  1,155
                  Likes Received:
                  37
                  Joined:
                  May 27, 2004
                  Location:
                  British Columbia, Canada
                  Local Time:
                  10:18 AM
                  Here are a few. The first is a Allen head bolt welded on another. The allen head is the perfect size for most trident gear clamps. Makes it very simple to tighten or change clamp.
                  A water filter for my grit blaster,works great.

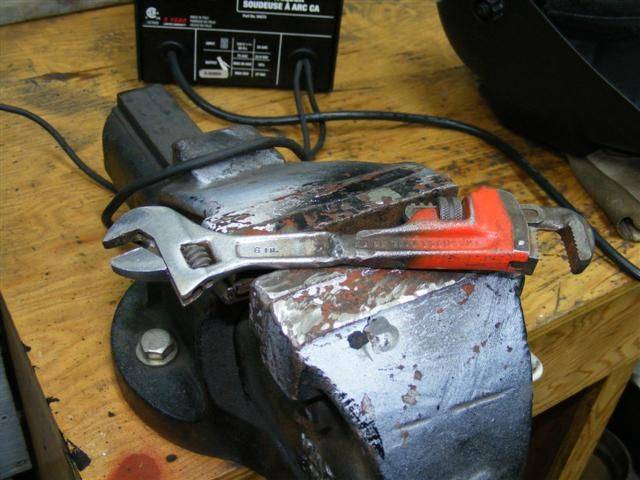

                  Two 6 inch wrenches,cut and welded together. Stick it in your back pocket on Saturday morning when you are out doing little chores in the yard, comes in handy.
                  When I take the sand out of the blaster I screen it to take the crap out and reuse the sand,simple but it works.

                  2010_01210001 (Small).JPG

                  2008_02230012 (Small).JPG

                  2010_01210004 (Small).JPG

                  2010_01210006 (Small).JPG

                  2010_01210007 (Small).JPG

                  • Like Like x 1
                  • clhyer

                    clhyer Well-Known Member

                    Messages:
                    3,786
                    Likes Received:
                    270
                    Joined:
                    Feb 24, 2007
                    Local Time:
                    1:18 PM
                    This is about as simple as it gets. A 2 foot piece of 2X4 with a large dado down the center. Back side has a short piece of electrical conduit glued in with epoxy.
                    How to use? Install on the floor jack, lay an old towel over it and set the door into the slot. It allows me to lift and hold the door in place while I fiddle around with hinge bolts.



                    • Like Like x 1
                    • fishy68

                      fishy68 Tyr Fryr's Inc.

                      Messages:
                      16,939
                      Likes Received:
                      967
                      Joined:
                      Jan 11, 2005
                      Location:
                      Central, IL (Hooterville)
                      Local Time:
                      12:18 PM
                      Great idea!! I haven't done a door change in yrs. but I remember fighting with them and that sure looks like it'd make it alot easier.

                      Thanks for adding to the list.

                      • Agree Agree x 1
                      • evil 340

                        evil 340 Well-Known Member

                        Messages:
                        881
                        Likes Received:
                        63
                        Joined:
                        Nov 28, 2009
                        Location:
                        ohio
                        Local Time:
                        12:18 PM
                        i got the blueprint for free for this rotisserie. i love it. it cost about half the price to build one as apposed to buying one. took 2 days to build. was well worth it. if i did another one, though, i would build it about 6 inches taller. unless i change all the mounting brackets around, i can only turn the demon on a 90 degree angle. if it were taller, i could flip the car completely over.




                        • Like Like x 1
                        • fishy68

                          fishy68 Tyr Fryr's Inc.

                          Messages:
                          16,939
                          Likes Received:
                          967
                          Joined:
                          Jan 11, 2005
                          Location:
                          Central, IL (Hooterville)
                          Local Time:
                          12:18 PM
                          Man that looks great! Can you just whack the uprights in half and extend them to make it taller? I know it wouldn't look as pretty but it'd be more useful cause you could turn the car completely over.

                        • evil 340

                          evil 340 Well-Known Member

                          Messages:
                          881
                          Likes Received:
                          63
                          Joined:
                          Nov 28, 2009
                          Location:
                          ohio
                          Local Time:
                          12:18 PM
                          yeah, i already have another design in the works. i know a guy that wants this one, so, i figured, when i m done with it, i ll sell it to him.

                        • lilredex

                          lilredex New Member

                          Messages:
                          2
                          Likes Received:
                          2
                          Joined:
                          Mar 22, 2010
                          Location:
                          Toronto, Ontario
                          Local Time:
                          1:18 PM
                          Hi all, have spent the last couple of days reading over things here and then I found this one. Knew it must be a good hangout if Mrmopartech is here too........remember him from the very early days of Allpar, before you even had to register there to post. Anyways, here are a few things that have been accumulated and I'd enjoy sharing, if it makes life easier for some.

                          Top: Rough and ready Pitman arm puller, 7/8" threaded rod and captured nut.

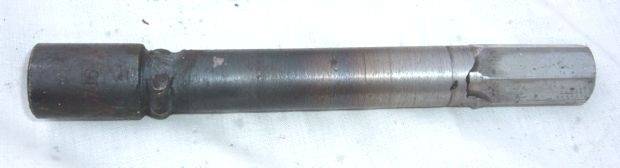

                          Middle: Extended 9/16" socket (with pipe + 1/2" coupling nut) for reaching those pesky "J" bolt gas tank nuts.

                          Bottom: Thread chasers for cleaning out threads like on those "J" bolts (so they don't twist off) Sometimes it is the only thing that will get in there. Made up as the situation arose.

                          Pitman Arm Puller.JPG

                          Extra Deep Socket.JPG

                          Thread Chasers.JPG

                          • Like Like x 1
                          • lilredex

                            lilredex New Member

                            Messages:
                            2
                            Likes Received:
                            2
                            Joined:
                            Mar 22, 2010
                            Location:
                            Toronto, Ontario
                            Local Time:
                            1:18 PM
                            A few more.........

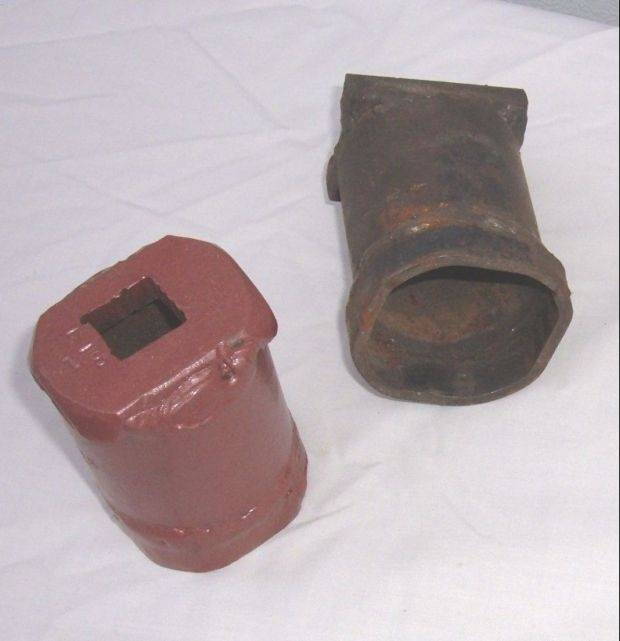

                            Top: Sockets are a thin strip wrapped around a new ball joint, tacked and then welded to a length of 2" pipe. Blocked off with a 3/4" square hole banged in the end for a 3/4" drive handle.

                            Middle: Same B.J's with a special 15MM wrench to grab the spring tensioner (belt) on a 3.0L Caravan. Steering wheel puller.

                            Bottom: Removes/installs oval leaf spring bushings.

                            B.J Sockets.jpg

                            B.J. Socket + Spec. Wrench.jpg

                            Spring Bushing Puller + Installer.JPG

                            • Like Like x 1
