I just love this thread! Every time I'm looking at buying another tool,I come here first to see if anyone has made it and how it turned out. Creativity here is boundless and I see many tools homemade that I NEVER would have thought to tackle.
I should take some pics of my home made tools and share em!
I should take some pics of my home made tools and share em!
fishy68
Tyr Fryr's Inc.
fanofpetty
senior member

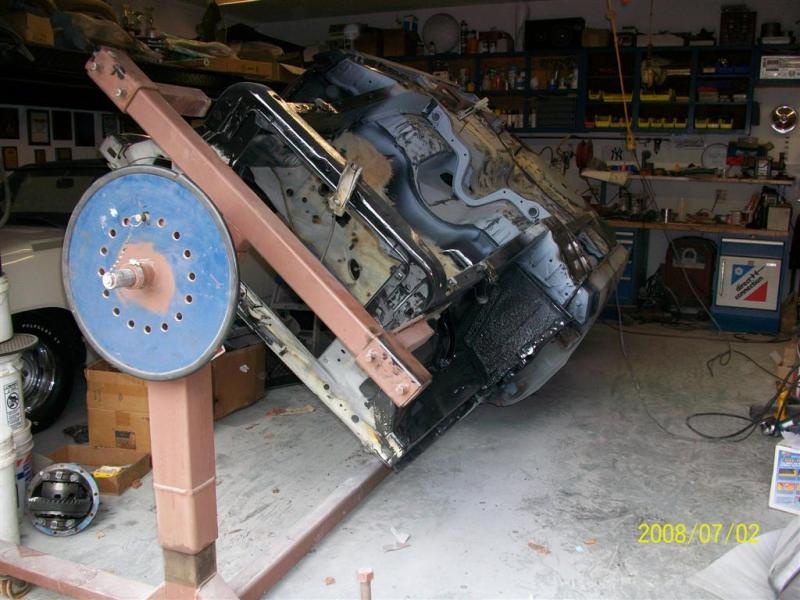

my homemade rotesseri, the upright sections are crank down tractor-trailer legs ( landing gear) that a friend gave me. the rest is just 3' square heavy wall tubeing, and chanel iron.
needsaresto
Well-Known Member
- Joined
- Nov 13, 2004
- Messages
- 7,603
- Reaction score
- 265
Very cool! My kind of project;it recycles something,modifies it and builds it to something new and usefull!
pishta
I know I'm right....
a 4X4 across your inner fenders with long carb studs and wing nuts, lets you take your K out without pulling the motor. It was in an Old Mopar FSM !
Galvanized pipe make a great breaker bar extension too, cheap!
A socket in a balance hole in a crank counterbalance rotated to hit the pan rail makes a good "stop" when you are loosening/tightening the damper bolt
Galvanized pipe make a great breaker bar extension too, cheap!
A socket in a balance hole in a crank counterbalance rotated to hit the pan rail makes a good "stop" when you are loosening/tightening the damper bolt
pishta
I know I'm right....
fishy68
Tyr Fryr's Inc.
Sweet! I like the stop mechanism.
Badart
Senior Member
Here is my homemade valve spring compressor. Cut up rocker shaft and stamped rocker, a piece of rod stock and small scrap of tubing. Works great.
needsaresto
Well-Known Member
- Joined
- Nov 13, 2004
- Messages
- 7,603
- Reaction score
- 265
I bought some stainless allthread with this project in mind today!
mattmatthew
^_^
i'll second that. mine is just a pipe, threaded rod, some nuts, and some washers. no finesse at all, but it works. i don't have a bench vise so i use the floor (carpet) for leverage.
pushing out.
pushing in.
skep419
No show, all go!
carb bowl drain (brake cleaner can)
double post didn't see this thread earlier.
double post didn't see this thread earlier.
Some people might not know this, but powder coating work requires that the part not be touched at all while it's in the 'raw' uncured state. I personally strive to not have wire marks or any evidence of how I suspended the part. As a result, all of my jigs are homemade ...
Right in the front on my work bench you'll see a Slant 6 valve cover jig. On the top shelf behind it from the left, hardware jigs and various length roundbar hooks for heavy parts and wheels ...
View attachment 025 - Copy.jpg
Top shelf on the left are old (no longer used) valve cover jigs, my fully adjustable hood hinge / spring jig (allthread, nuts and 2 pieces of L-angle), taller air cleaner base jig near the back, and the vastly-improved valve cover jigs I use now on the right. I have several more sets of these not pictured here. The really long beige tubing also uses 2 of the roundbar hooks and goes through the center hub on antique spoke wheels.
View attachment 026 - Copy.jpg
The bottom shelf shown above has an intake manifold jig on the left (yep those are old cast iron shelf brackets LOL), the weird round thing in the middle uses one of my big roundbar hooks up there ^ ^ ^ and fits inside the roof trolley of my oven; it suspends / rotates motorcycle frames by going through the head stock with more allthread. On the far right are air cleaner jigs (the tall one is laying down behind everything else). You'll also notice some more old shelf brackets stashed in case I need them for something else. :-D
And bonus points goes to whomever can guess what I use this for. It was literally years in the making since all prior jig efforts to coat those parts always resulted in a mark somewhere. Not anymore!!!
View attachment 027 - Copy.jpg
Billy tells me this thing was used by the military. "A hook went through there and a bomb screwed onto this end ..." Yeah, okay honey. :-D All I know is it's the best body work dolly I've ever found that fits my hand, and despite the crappy pictures I can tell you it's magnificent for getting into the corners ...
View attachment 022 - Copy.jpg
View attachment 023 - Copy.jpg
No clue what this thing used to be either but I use it a lot for dings, dents and gasket rail corners on valve covers. It's about a half inch thick and the slight bend comes in handy sometimes.
View attachment 024 - Copy.jpg
Right in the front on my work bench you'll see a Slant 6 valve cover jig. On the top shelf behind it from the left, hardware jigs and various length roundbar hooks for heavy parts and wheels ...
View attachment 025 - Copy.jpg
Top shelf on the left are old (no longer used) valve cover jigs, my fully adjustable hood hinge / spring jig (allthread, nuts and 2 pieces of L-angle), taller air cleaner base jig near the back, and the vastly-improved valve cover jigs I use now on the right. I have several more sets of these not pictured here. The really long beige tubing also uses 2 of the roundbar hooks and goes through the center hub on antique spoke wheels.
View attachment 026 - Copy.jpg
The bottom shelf shown above has an intake manifold jig on the left (yep those are old cast iron shelf brackets LOL), the weird round thing in the middle uses one of my big roundbar hooks up there ^ ^ ^ and fits inside the roof trolley of my oven; it suspends / rotates motorcycle frames by going through the head stock with more allthread. On the far right are air cleaner jigs (the tall one is laying down behind everything else). You'll also notice some more old shelf brackets stashed in case I need them for something else. :-D
And bonus points goes to whomever can guess what I use this for. It was literally years in the making since all prior jig efforts to coat those parts always resulted in a mark somewhere. Not anymore!!!
View attachment 027 - Copy.jpg
Billy tells me this thing was used by the military. "A hook went through there and a bomb screwed onto this end ..." Yeah, okay honey. :-D All I know is it's the best body work dolly I've ever found that fits my hand, and despite the crappy pictures I can tell you it's magnificent for getting into the corners ...
View attachment 022 - Copy.jpg
View attachment 023 - Copy.jpg
No clue what this thing used to be either but I use it a lot for dings, dents and gasket rail corners on valve covers. It's about a half inch thick and the slight bend comes in handy sometimes.
View attachment 024 - Copy.jpg
Nice job on the brake bleeder.
nicamarvin
Active Member
I built a bracket
I chrome plated it with real chrome :evil4:
I chrome plated it with real chrome :evil4:
Nice Marvin! And here I hang my hvlp gun on a tacky pegboard hook ........ :-D
nicamarvin
Active Member
:supz: its my attempt to make a dual headed spray gun to spray on chrome...
needsaresto
Well-Known Member
- Joined
- Nov 13, 2004
- Messages
- 7,603
- Reaction score
- 265
You chromed the bracket yourself? How is this accomplished?
nicamarvin
Active Member
no the bracket was made by me, but the chrome was outsourced..
chuckwagon2004
71 dartswinger
What you gonna shoot with that double barrell???
dusterdan
Sublime Member
my most clever creation was giving a friend a piston for an ashtray (very original to those who don't know cars too well). This thread is awesome the ingenuity is FANTASTIC! :mrgreen:
I've got two old dome pistons on my work bench. One even got attacked by the Dremel to have half-circle cutouts to hold the cigarette. You can see one of them behind 65Dartman's Slant 6 valve cover on the left.
View attachment 020 - Copy.jpg
I don't usually put my butt in the work sample pictures :-D but this one is a "during" pic ... had to make sure he liked the colors before I move forward with the PlastiDip.
-
