Small block gas mileage DD magnum/LA ?

Mopar General Discussions

  1. rustytoolss

    rustytoolss Well-Known Member

    Messages:
    1,927
    Likes Received:
    60
    Joined:
    Sep 26, 2013
    Location:
    Clinton, Ohio
    Local Time:
    4:15 AM
    Looking to builds a stockish 5.2/318 for a DD. If I use a 5.2 magnum, it will use the stock roller cam. aftermarket intake and a small Edelbrock Thunder carb, and elecrtonic DIST. cast iron exhaust manifolds.
    Or should I use a LA 318 (which I have 1986 truck engine) possibly small summit cam, 4 barrel intake, small AVS carb, electronic DIST, and cat iron exhaust manifolds.
    Will have dual exhaust , and have a 42RH /A500 with stock converter. Rear gearing possibly 3.23.
    So which combo should provide the better gas mileage ? I got the 318 for free...so I can walk away from it..if I choose to.

  2. toolmanmike

    toolmanmike FABO MODERATOR Staff Member FABO Gold Member

    Messages:
    52,829
    Likes Received:
    38325
    Joined:
    Jan 18, 2006
    Location:
    Iowa
    Local Time:
    4:15 AM
    Probably not as high as 25 but close to 20 I would estimate .

  3. Hellrats

    Hellrats Just another dumbass FABO Gold Member

    Messages:
    1,297
    Likes Received:
    1030
    Joined:
    Jan 24, 2012
    Location:
    N.E. Ohio
    Local Time:
    5:15 AM
    What are you putting it in?

  4. rumblefish360

    rumblefish360 So close, yet so far away FABO Gold Member

    Messages:
    39,020
    Likes Received:
    10598
    Joined:
    Jun 21, 2005
    Location:
    New York, on a Island
    Local Time:
    5:15 AM
    Between my 360 vs the 5.9, both stock long blocks, the LA had better mileage. Why? I don’ t know for sure. I think on paper, the Magnum has all the marbles. But it didn’t pan out that way. Your results may vary.

    My LA was a ‘79 mill. Added on to it was;

    A ‘72 trap door air cleaner w/a K&N filter
    OE ‘79 cast iron intake
    625 Federal Mougal AFB
    JY distributor triggered by a MSD 6 and backed by a MP Chrome box. Because MSD stands for “May Suddenly Fail” in which they did for me, constantly.
    2-1/4 H piped dual exhaust with twin catalytic converter’s (that was the law) and thrush mufflers.

    A 904 w/the MP shift improver kit, 2.76 gears riding on 235/60/15’s. The car was a ‘79 Magnum. Best gas mileage was 20 mpg’s Hwy.

    Run as much initial as you can, limit timing to approximately 34/36*’s, open up your plug gaps to .050 unless it misfires, then close them down .005 until it runs right, tune tune that carb!

    I find the Magnum a little more thirsty. But power is much better! IMO, I think it is the cam specs.

    IMO, your use of a 318 cid engine and the overdrive, in a lighter car, I don’t have a reason as to why 22 & better mpg’s can not be seen. I’m sure elevation has a role in this. As I live on an island, it wedge shaped maxes out at approximately 400 or so feet. At best. So I looked it up for ha-ha’s. 400 feet! Highest elevation on long island - Google Search

    • Like Like x 1
    • Thanks! Thanks! x 1
    • toolmanmike

      toolmanmike FABO MODERATOR Staff Member FABO Gold Member

      Messages:
      52,829
      Likes Received:
      38325
      Joined:
      Jan 18, 2006
      Location:
      Iowa
      Local Time:
      4:15 AM
      Good info there. I would imagine with a 3:23 gear and a lock up/Overdrive even a Magnum could pull 20's.

    • rumblefish360

      rumblefish360 So close, yet so far away FABO Gold Member

      Messages:
      39,020
      Likes Received:
      10598
      Joined:
      Jun 21, 2005
      Location:
      New York, on a Island
      Local Time:
      5:15 AM
      I don’t see why not. I didn’t have headers on my ride, just the stock exhaust manifolds. No overdrive. LU? Yes.
      The best mileage getter was the 4bbl. running and tuned very well, followed by the MSD. (When Working.)

      3.23’s X .69 OD ratio is 2.22. Hummm. That should work well @ 80.

      • Like Like x 2
      • toolmanmike

        toolmanmike FABO MODERATOR Staff Member FABO Gold Member

        Messages:
        52,829
        Likes Received:
        38325
        Joined:
        Jan 18, 2006
        Location:
        Iowa
        Local Time:
        4:15 AM
        (When working) That's funny! (but true) LOL

      • rustytoolss

        rustytoolss Well-Known Member

        Messages:
        1,927
        Likes Received:
        60
        Joined:
        Sep 26, 2013
        Location:
        Clinton, Ohio
        Local Time:
        4:15 AM
        hopefully a 62-64 B body.

        • Like Like x 1
        • rustytoolss

          rustytoolss Well-Known Member

          Messages:
          1,927
          Likes Received:
          60
          Joined:
          Sep 26, 2013
          Location:
          Clinton, Ohio
          Local Time:
          4:15 AM
          Well my plan is to find a 62-64 Bbody car. I know most people snicker when people are looking for fuel mileage...but gas cost money. I'm retired so the days of gas guzzling cars is over for me. I plan to use this car from May till October every weekend (about 80 miles round trip)
          Just was not sure if the 5.2 magnum would be a better choice....or 318 ? I do have a 1986 truck 318 (roller block engine) This will be a budget rebuild, rings, bearings maybe a small Summit cam, no expense parts or machine work. I also have a 1995 42RH/A500 for the driveline.

        • rumblefish360

          rumblefish360 So close, yet so far away FABO Gold Member

          Messages:
          39,020
          Likes Received:
          10598
          Joined:
          Jun 21, 2005
          Location:
          New York, on a Island
          Local Time:
          5:15 AM
          Maybe it’s the gasoline around here but I find that my 5.9 just simply likes the 89 octane and hates the 87. The curve on the distributor is hot rod like. Not to quick. For me, it is what it is. But when I go out of state, it is fine on 87.

          I do favor the LA for intake choices and the verity of available parts. Ether way you go, 20+ mpg’s should be obtained. My roadways are generally flat. Not like the desert states, but pretty good. Long Island is wedge shaped high in the north to beach sands in the south, wavy east to west.

          If I was doing this, (318-LA) it would be a simple cast iron OE intake, or the right aluminum one w/OE heads with the use of a small primary (electric choke if possible) TQ and dual exhaust H piped. A mileage cam and a maximum compression of 9.0-1 with a high energy ignition.

          Last edited: Oct 18, 2020 at 4:32 PM
          • Like Like x 1
          • rustytoolss

            rustytoolss Well-Known Member

            Messages:
            1,927
            Likes Received:
            60
            Joined:
            Sep 26, 2013
            Location:
            Clinton, Ohio
            Local Time:
            4:15 AM
            If I can get 20's and use the engine that I already have...thats a win win..Would leave me more money to spend in better places.

          • rumblefish360

            rumblefish360 So close, yet so far away FABO Gold Member

            Messages:
            39,020
            Likes Received:
            10598
            Joined:
            Jun 21, 2005
            Location:
            New York, on a Island
            Local Time:
            5:15 AM
            The LA 318? Yea, it’s possible. (At least in my driving environment it is. It’s all in the tune of the carb and distributor. The OD will take care of the rest.

            • Thanks! Thanks! x 1
            • Canucklehead

              Canucklehead Well-Known Member

              Messages:
              141
              Likes Received:
              132
              Joined:
              Mar 2, 2006
              Location:
              Smithers, BC
              Local Time:
              3:15 AM
              I’m a big fan of the 5.2 Magnum. I put one in my 72 Valiant because it was cheap (175 canadian bucks), put the Edelbrock intake on, hughes fuel pump eccentric, put a 3-speed manual out of a Volare into it, an 8.25 rear with 2.71s, with a lean Edelbrock carb I averaged 25 MPG on a 13 hour highway trip. I’ve heard the 5.9 is tough on fuel though.

              • Like Like x 1
              • Thanks! Thanks! x 1
              • MileHighDart

                MileHighDart Well-Known Member

                Messages:
                4,277
                Likes Received:
                3781
                Joined:
                Jun 3, 2004
                Location:
                Lyons, CO
                Local Time:
                10:15 AM
                I just did my first gas mileage test a few weeks ago.
                '68 Dart, 5.9 Magnum, stock bottom end, edelbrock airgap, edelbrock 1406, Doug's headers, dual 2-1/2" exhaust. Stock mopar electronic ignition, A500/42RH trans, 3:23 gears, 225/60/15 tires.

                Also, I'm at about 5300ft elevation.
                Filled it up and drove to work all week (40 mile round trip), I'd say 3/4 highway driving using the overdrive as much as possible, 1/4 in town.
                I got barely 15mpg out of it. Was hoping it would be a little better, but the 42RH is still the best thing I ever did to the car. Cruising rpm's on the highway is just way more comfortable than with the old 904. If I remember right 65mph is like 2200rpm with the overdrive and lockup on.

                • Thanks! Thanks! x 2
                • rbkt65

                  rbkt65 FABO Gold Member FABO Gold Member

                  Messages:
                  605
                  Likes Received:
                  297
                  Joined:
                  Dec 25, 2017
                  Location:
                  illinois
                  Local Time:
                  4:15 AM
                  i am thinking of doing same thing for my son in a short bed truck but i will use a q-jet on la on later cast iron intake or q-jet on assault carb intake if using magnum. following this to see which cam to use. probably use a518 w/lu and dana 60 w/3.55's.

                • TrailBeast

                  TrailBeast AKA Mopars4us on Youtube

                  Messages:
                  21,430
                  Likes Received:
                  9039
                  Joined:
                  Mar 11, 2011
                  Location:
                  Arizona
                  Local Time:
                  2:15 AM
                  5.9 Magnum, EQ heads with LA intake bolt pattern, Edelbrock dual plane, Edelbrock 1406, HEI with a .050 gap, NGK plugs, 1-5/8 long tubes, 214/224 Oregon cam, 42RH, 3.55 rear gears, synthetic lubes in engine and diff.
                  24-25 mpg on the hiway in OD and lockup at 75 mph.

                  18 initial, 34 total and 50 or so with vac advance.
                  Averaging 14.5 AFR.
                  Then I put a Holley 770 on and never checked the mpg after the change.

                  • Like Like x 2
                  • Thanks! Thanks! x 1
                  • rumblefish360

                    rumblefish360 So close, yet so far away FABO Gold Member

                    Messages:
                    39,020
                    Likes Received:
                    10598
                    Joined:
                    Jun 21, 2005
                    Location:
                    New York, on a Island
                    Local Time:
                    5:15 AM
                    That’s the way to do it! Nice job.
                    What dual plane from Edelbrock?
                    Can I assume a Hyd. roller cam was used?
                    How big was the exhaust pipes and how was it run and with what mufflers?

                  • toolmanmike

                    toolmanmike FABO MODERATOR Staff Member FABO Gold Member

                    Messages:
                    52,829
                    Likes Received:
                    38325
                    Joined:
                    Jan 18, 2006
                    Location:
                    Iowa
                    Local Time:
                    4:15 AM
                    There you have it. A recipe we can all follow. Thanks

                    • Thanks! Thanks! x 1
                    • Agree Agree x 1
                    • TrailBeast

                      TrailBeast AKA Mopars4us on Youtube

                      Messages:
                      21,430
                      Likes Received:
                      9039
                      Joined:
                      Mar 11, 2011
                      Location:
                      Arizona
                      Local Time:
                      2:15 AM

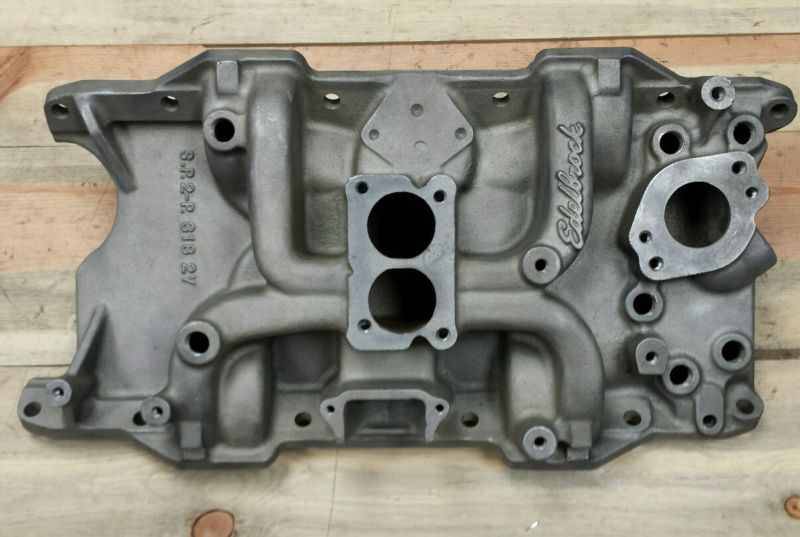

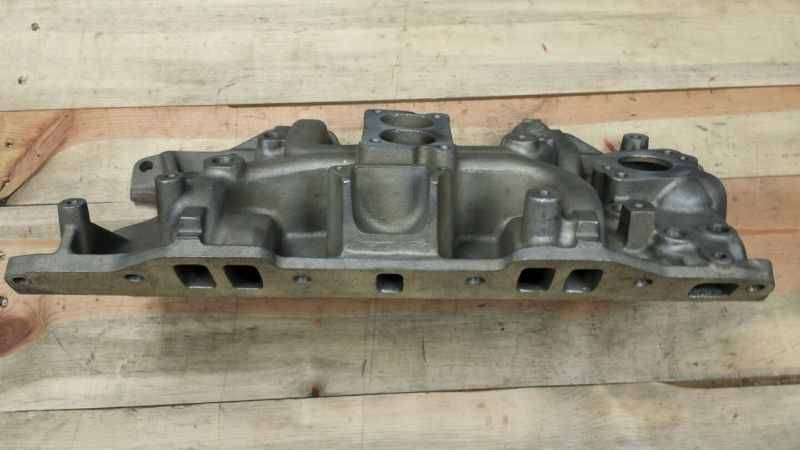

                      The intake is a 318/360 performer.
                      Obviously it could do better with a larger runner intake since the ports in the heads are about 1/4 bigger all the way around.
                      (At least the air/fuel charge isn’t hitting 1/4 inch walls if it were the intake that was larger)
                      Yes, a hydro roller with OE lifters and 1.6 rockers with Hughes Engines springs, retainers and locks.
                      1.92 intake valves and 64cc closed chamber heads.
                      Dual 2.5 inch out of 3 inch collectors and flowmaster 40’s.
                      The 2.5 inch pipes literally cross through each other and then out in front of the rear tires.
                      How it was run?
                      For checking fuel mileages I ran it on I40 at 80-90mph for 700 miles.
                      Averaged 2,500-2,600rpm.

                      • Like Like x 1
                      • rumblefish360

                        rumblefish360 So close, yet so far away FABO Gold Member

                        Messages:
                        39,020
                        Likes Received:
                        10598
                        Joined:
                        Jun 21, 2005
                        Location:
                        New York, on a Island
                        Local Time:
                        5:15 AM
                        Posting a “Like” & a “Thanks” because I can’t select both!
                        But I can post it.

                        The minor intake to head difference is nothing. That is a good intake for the job at hand.


                        • Agree Agree x 1
                        • MopaR&D

                          MopaR&D Nerd Member

                          Messages:
                          4,204
                          Likes Received:
                          1039
                          Joined:
                          Jan 4, 2008
                          Location:
                          Fort Collins, CO
                          Local Time:
                          3:15 AM
                          I get around 13.5-14 MPG with my stock bottom end 5.9 with ported Edelbrock heads and custom-grind hyd roller, 904 trans with 2.94 gears in a 70 Duster. I'm in Fort Collins so similar elevation around 5000'. Have you leaned out the cruise circuit on the carb very much? I've picked up 3 MPG on a 360 across the board just from leaning out the cruise AFR from ~14.3:1 to 16:1. First thing I did after installing my wideband O2 sensor lol.

                          When I installed a Edelbrock 1406 on my truck's 360 (stock 1972 converted from 2-bbl) it had factory jets, I went down one size on the jets all around and tried different metering rods to lean it out until it had noticeable hesitation when opening the throttle, then went one step richer (while also keeping an eye on running temps). Runs great and gets.... wait for it.... 10 MPG :rofl:

                          Even tried one step richer than that to be safe and nothing changed except the gas mileage dropped to 9-ish. Ran a bit better when cold but that's not how they're supposed to be anyway.

                          Last edited: Oct 21, 2020 at 10:00 PM
                        • MopaR&D

                          MopaR&D Nerd Member

                          Messages:
                          4,204
                          Likes Received:
                          1039
                          Joined:
                          Jan 4, 2008
                          Location:
                          Fort Collins, CO
                          Local Time:
                          3:15 AM
                          For the topic at hand, I noticed you said the LA 318 you can get is a 1986 which means it most likely has a roller cam. In that case you could just swap in a small aftermarket roller cam (or stock replacement 5.2 Magnum cam if you don't need mech fuel pump) and reuse the stock lifters if they're in good shape and bolt on a set of Magnum heads. Probably have to get custom-length pushrods but that's something to check anyway for any build that isn't bone-stock IMO. Heck if the stock heads on that 318 are in good shape they should be 302 castings which are already closed-chamber they just don't flow as well as Magnum heads. Probably not very noticeable in a DD with mild cam. And I believe they don't have as much of a tendency to crack between the valve seats like stock Magnum heads do.

                          In an A-body with an O/D trans (42RH/A-500) and 3.23 gears I'm willing to bet you could break 25 MPG on the highway, possibly more.
