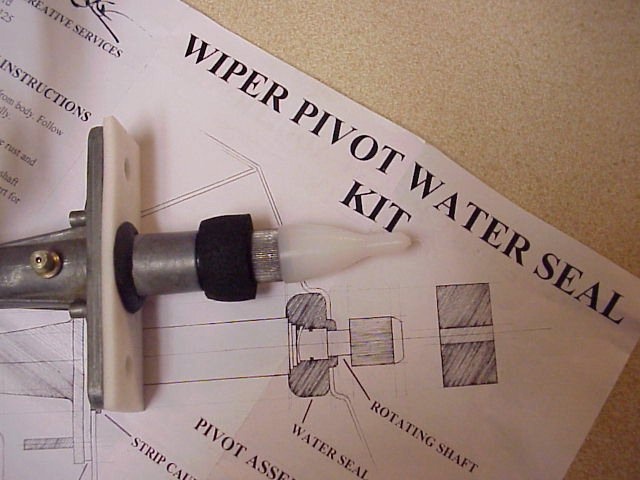

    I bought a Schumacher wiper pivot seal kit for my 71 Demon, and struggled for quite a while to get the water seals on. Then I came up with a solution which worked so well, it now seems obvious.

    The instructions included in the Schumacher kit say not to use a mechanical spreading device, but I figured that if I could find a tapered shaft, I could use it to stretch the seal gradually and evenly, and then transfer the seal to the pivot assembly.

    I tried to find a caulking gun tip or a plastic funnel, but couldn't dig those items up. Turns out a small Home Depot screwdriver was just right.



    P.S. - My hat is off to anyone who has ever installed these seals using only their hands!


    Attached Files:

    • Like Like x 2
    • RustyRatRod

      RustyRatRod 30 Degrees Outta Whack FABO Gold Member

      Messages:
      47,999
      Likes Received:
      13377
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      4:37 AM
      Smart!

    • hemitheus

      hemitheus 19? Plymouth Scampenstein

      Messages:
      3,225
      Likes Received:
      73
      Joined:
      Oct 7, 2010
      Location:
      Taylor, MI
      Local Time:
      3:37 AM
      Genius... i am about to do this myself so THANK YOU. Also, did you add the grease fittings?

    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
      Glad to help!

      Yes, I did add the grease fittings. One thing that did concern me though was the possibility that drilling can cause metal chips can get into the assembly. I did my best to blow the chips away as I drilled. Hopefully it won't be a problem.

    • HemiMark

      HemiMark Well-Known Member

      Messages:
      8,094
      Likes Received:
      438
      Joined:
      Jun 2, 2006
      Location:
      Pittsburgh PA
      Local Time:
      4:37 AM
      That is super........... and yes, my arthritic hands thank you also!

    • 360Scamp

      360Scamp Mopar or No Car

      Messages:
      540
      Likes Received:
      41
      Joined:
      Nov 12, 2013
      Location:
      Herrin, IL
      Local Time:
      3:37 AM
      Where do the grease zerks actually go?

    • Dartnut

      Dartnut I'm H.R. Shovin'stuff

      Messages:
      9,776
      Likes Received:
      1716
      Joined:
      Apr 19, 2007
      Location:
      Southern Alberta
      Local Time:
      2:37 AM
      Yeah, show some pics of that too please, now that the pics are rollin'. :cheers:
      Good idea, i used dish soap on mine and they went on easier than non lubed.
      Your idea seems better, no chance of them getting ripped.

    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
      I used dish soap as well...I don't think I could have done it without, even with the tapered shaft. Can't imagine how anybody installs the seals just by hand (with soap or not)

    • sippinthebundy

      sippinthebundy Member

      Messages:
      17
      Likes Received:
      1
      Joined:
      Dec 3, 2012
      Location:
      Federal Way, Wa
      Local Time:
      1:37 AM
      Good solution, wish I would have thought of that. Here is a video link for how I did it. There was another guy on you tube that talked about doing it this way but it didn't actually show, so... here ya go.

      [ame="https://www.youtube.com/watch?v=KiqiviusA0w"]Dodge Dart, a- body wiper pivot seal install - YouTube[/ame]

      As far as the fittings went, I installed, but didn't think they fit all that well. I didn't think the press fit grabbed all that well. But they are in and greased!

    • 66340SEDAN

      66340SEDAN FABO Member #3649 FABO Gold Member

      Messages:
      25,702
      Likes Received:
      10492
      Joined:
      Nov 20, 2006
      Location:
      Minnesota
      Local Time:
      3:37 AM
      Awesome stuff :glasses7:

      Thanks for sharing kewl Mopar tips

    • WRB426

      WRB426 Insane 4 Mopars FABO Gold Member

      Messages:
      2,237
      Likes Received:
      173
      Joined:
      Apr 20, 2011
      Location:
      MA
      Local Time:
      4:37 AM
      Would soaking the seals in hot water help in putting them on? I've done that to nylon gaskets and it helps.

    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
      I was going to give the hot water a try, but then I thought about using the tapered shaft and that did the trick. I imagine that the hot water would help, but I'd probably burn my hands in the process. ;)

      Plus, you'd probably have to work quickly before the seal cooled down.

    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
      I like your solution, too. I never thought to put the seal on the table, I was trying to push it down over the shaft. Yours is another idea so good that it seems obvious - after the fact!

      Did you put any gasket sealer on top of the base gaskets?

    • Dartnut

      Dartnut I'm H.R. Shovin'stuff

      Messages:
      9,776
      Likes Received:
      1716
      Joined:
      Apr 19, 2007
      Location:
      Southern Alberta
      Local Time:
      2:37 AM
      That's how i did it too, great vid!
      Oh, and welcome to FABO!

    • sippinthebundy

      sippinthebundy Member

      Messages:
      17
      Likes Received:
      1
      Joined:
      Dec 3, 2012
      Location:
      Federal Way, Wa
      Local Time:
      1:37 AM
      Yea, I just used the black seal putty per the instruction sheet. A good picture of it is shown in clifcuda65's post (he also had a cool similar way to yours with the tapered idea):

      http://www.forabodiesonly.com/mopar/showpost.php?p=1970232391&postcount=3

      [​IMG]

      Thanks Dartnut!

    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
      Okay, so no additional gasket sealer then? The Schumacher instructions say to use gasket cement on the base gasket "to hold in place", but that's on the underside - they don't mention anything on the top of the base gasket other than the strip caulk.

    • sippinthebundy

      sippinthebundy Member

      Messages:
      17
      Likes Received:
      1
      Joined:
      Dec 3, 2012
      Location:
      Federal Way, Wa
      Local Time:
      1:37 AM
      I gotcha, no, i didn't use any. Probably overlooked it, but haven't had any issues either. I think that's just to help hold it in place more than for a sealer.

    • FJRdoc

      FJRdoc FABO Gold Member FABO Gold Member

      Messages:
      882
      Likes Received:
      291
      Joined:
      Dec 29, 2009
      Location:
      Brownstown, PA
      Local Time:
      4:37 AM
      This was a timely post. I just finished my wiper pivots. Your technique worked great! Thanks for the tip.

    • 360Scamp

      360Scamp Mopar or No Car

      Messages:
      540
      Likes Received:
      41
      Joined:
      Nov 12, 2013
      Location:
      Herrin, IL
      Local Time:
      3:37 AM
      Thanks for the pics of the grease zerk location. One more question, where is everyone getting the wiper seal kits from? Im wanting to order one

    • mja1962

      mja1962 Active Member

      Messages:
      41
      Likes Received:
      11
      Joined:
      Jul 22, 2014
      Location:
      Long Island, NY
      Local Time:
      4:37 AM
    • 360Scamp

      360Scamp Mopar or No Car

      Messages:
      540
      Likes Received:
      41
      Joined:
      Nov 12, 2013
      Location:
      Herrin, IL
      Local Time:
      3:37 AM
    • RustyRatRod

      RustyRatRod 30 Degrees Outta Whack FABO Gold Member

      Messages:
      47,999
      Likes Received:
      13377
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      4:37 AM
      Very simple solution to keep metal chips out of where they don't belong. Fill the flutes of the drill bit with wheel bearing grease. It will catch every chip that comes out, even if you are drilling straight down. Works like a charm.

    • WRB426

      WRB426 Insane 4 Mopars FABO Gold Member

      Messages:
      2,237
      Likes Received:
      173
      Joined:
      Apr 20, 2011
      Location:
      MA
      Local Time:
      4:37 AM
      This is a good tip. Much better than my tongue.

    • sippinthebundy

      sippinthebundy Member

      Messages:
      17
      Likes Received:
      1
      Joined:
      Dec 3, 2012
      Location:
      Federal Way, Wa
      Local Time:
      1:37 AM
      http://rocketresto.com/catalog/wiperpivotsealkits.html

      They have a ebay store that I actually got mine from.
