Tips on stretching the side panels in the back. I have fold/wrinkles.

Convertible A-Body Mopar

  1. Mike69barracuda

    Mike69barracuda Well-Known Member

    Messages:
    681
    Likes Received:
    206
    Joined:
    May 11, 2016
    Location:
    Harrisburg, PA
    Local Time:
    3:43 AM
    I have the side inside metal strips removed to do a stretch. It's a vinyl top which looks good when it's cleaned up. my car is almost done........New AMd Qtr panels and trunk dropoffs and new RM Diamont paint.





    • Like Like x 4
    • mvh

      mvh FABO Gold Member FABO Gold Member

      Messages:
      1,477
      Likes Received:
      245
      Joined:
      Dec 17, 2007
      Location:
      Menlo Park, CA
      Local Time:
      12:43 AM
      Looks to me that you need to pull the front edge of the sail panels forward (toward the door) to get the wrinkles out. Just pulling it down tight will make them worse, and the wrinkles in the corners of the back panel show that you can’t adjust it that way.

    • mvh

      mvh FABO Gold Member FABO Gold Member

      Messages:
      1,477
      Likes Received:
      245
      Joined:
      Dec 17, 2007
      Location:
      Menlo Park, CA
      Local Time:
      12:43 AM

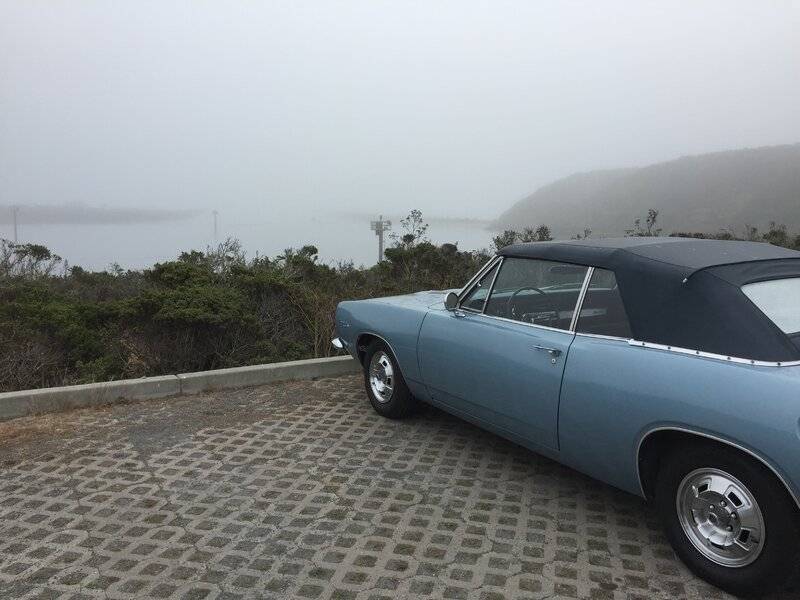

      This is what it can look like. This top was professionally installed over 20 years ago. 3420C30A-E07C-4F88-8793-4A5AEFB0E9B3.jpeg

    • RustyRatRod

      RustyRatRod Weenie idiot loser. FABO Gold Member

      Messages:
      59,634
      Likes Received:
      30663
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      3:43 AM
      Before you touch anything at all, pull it out in the bright hot sun and let it sit a while first. It may come out on its own. If not, it will be much easier to work with and you'll have much less chance of a tear.

      • Agree Agree x 1
      • mvh

        mvh FABO Gold Member FABO Gold Member

        Messages:
        1,477
        Likes Received:
        245
        Joined:
        Dec 17, 2007
        Location:
        Menlo Park, CA
        Local Time:
        12:43 AM
        That's good advice, in general. But I think from the arrangement of these wrinkles that slackening up in the heat will just make them more prominent. It's not that the sides are too tight, it's that they have slack horizontally and are in tension vertically.

        Ah, here is the photo I was looking for...

        • Like Like x 2
        • Jim Lusk

          Jim Lusk Well-Known Member

          Messages:
          4,313
          Likes Received:
          686
          Joined:
          Mar 8, 2006
          Location:
          Fresno, CA
          Local Time:
          12:43 AM
          It might shrink up, but I have my doubts. It looks to me like the installer didn't staple it to the side retainers correctly.

          • Like Like x 1
          • Mike69barracuda

            Mike69barracuda Well-Known Member

            Messages:
            681
            Likes Received:
            206
            Joined:
            May 11, 2016
            Location:
            Harrisburg, PA
            Local Time:
            3:43 AM
            Hopefully this week we can get at it. THX everyone.

          • 66Dvert

            66Dvert Working on my custom car parts again! FABO Gold Member

            Messages:
            2,406
            Likes Received:
            638
            Joined:
            Nov 2, 2008
            Location:
            Webster , florida
            Local Time:
            3:43 AM
            is the rear window and the bottom white piece separate? from the side sail panels that velcro onto the rear window? (all of mine were) if so make sure the front of the sail panel is in the correct position fore and aft. it looks like it's a bit short to the quarter window. then you can pull diagonally against the wrinkles in the sail panel (I'd fix that left side wrinkle in the window portion first though it is folded in pretty bad), spray some contact cement to stick it straight and put tack strip back on


          • Mike69barracuda

            Mike69barracuda Well-Known Member

            Messages:
            681
            Likes Received:
            206
            Joined:
            May 11, 2016
            Location:
            Harrisburg, PA
            Local Time:
            3:43 AM
            Outstanding. THx for your help and efforts.

          • 66Dvert

            66Dvert Working on my custom car parts again! FABO Gold Member

            Messages:
            2,406
            Likes Received:
            638
            Joined:
            Nov 2, 2008
            Location:
            Webster , florida
            Local Time:
            3:43 AM
            not a problem, I got schooled pretty hard about that same issue 2 weeks ago while helping to install a Lincoln 4 door convertible top. He (my boss)wasn't real nice about telling me either. That way it sticks I guess, I still have to do 2 more Lincoln and then I just might be able to bring my convertible in to get it put on after a years wait (free was/is worth it and I am learning what NOT to do:):))
