Van power steering bracket issues

Discussion in 'Magnum Engine Swaps' started by nates68, Jan 31, 2018.

  1. nates68

    nates68 Well-Known Member

    Messages:
    170
    Likes Received:
    83
    Joined:
    Sep 12, 2010
    Location:
    Puyallup, WA
    Local Time:
    9:13 PM

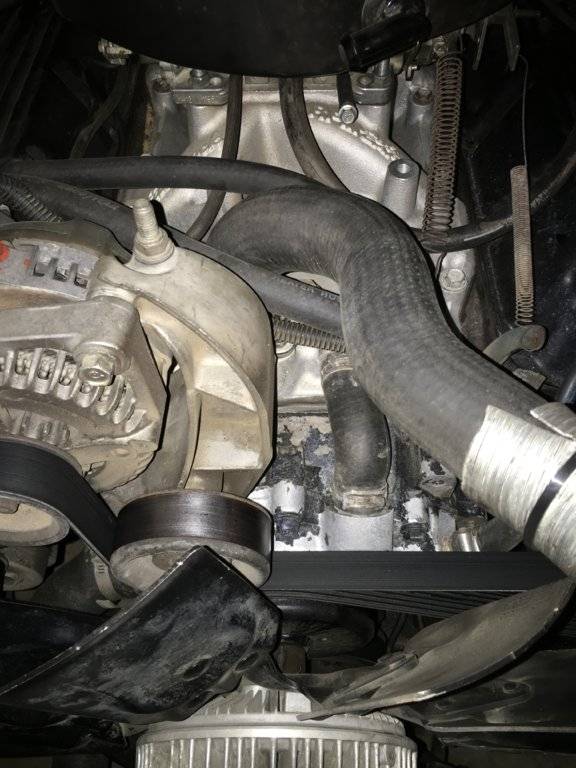

    Installed the power steering bracket on my magnum swap so I would gain battery tray clearance like others have done. However, when I route the belt like the factory van/truck diagram shows (for no a/c) it hits the water pump pulley. It's like the water pump pulley is too large. It is a factory water pump off a 96 ram truck. Anyone else have this issue?
    Thanks!
    Nates68


  2. Tooljunkie

    Tooljunkie King of cobble/master of the broken bolt FABO Gold Member

    Messages:
    6,088
    Likes Received:
    4548
    Joined:
    Jul 22, 2017
    Location:
    Manitoba
    Local Time:
    11:13 PM
    Top left of picture,thats a flat idler? Best it you can find a grooved idler and run belt on top.

    My parts guy will let me try different belts as long as i dont run them.

  3. nates68

    nates68 Well-Known Member

    Messages:
    170
    Likes Received:
    83
    Joined:
    Sep 12, 2010
    Location:
    Puyallup, WA
    Local Time:
    9:13 PM
    Thanks, I tried routing the belt that way, but was concerned about the alternator slipping.


  4. Darticon

    Darticon FABO Gold Member FABO Gold Member

    Messages:
    115
    Likes Received:
    35
    Joined:
    Aug 29, 2014
    Location:
    Missoula, MT
    Local Time:
    10:13 PM
    Come to think of it... while at the junkyard to pick up my own van bracket, I don't think I ever saw a single van that didn't have an AC compressor. Maybe the van bracket was never meant to function without AC?

    Anyways, it looks like most of us that are running the serpentine front end are either using, or planning on using, the compressor delete pulley that Dorman makes. I know that one of the guys on here was having a difficult time finding a long enough belt and had to put a smaller pulley on it though. Otherwise it looks like you have to use the standard power steering bracket to get the height and make other arrangements for your battery! :(

    Dorman 34178
    Dorman 419608

  5. Tooljunkie

    Tooljunkie King of cobble/master of the broken bolt FABO Gold Member

    Messages:
    6,088
    Likes Received:
    4548
    Joined:
    Jul 22, 2017
    Location:
    Manitoba
    Local Time:
    11:13 PM
    Smaller idler?

    • Agree Agree x 1
    • 1994redram

      1994redram FABO Gold Member FABO Gold Member

      Messages:
      857
      Likes Received:
      357
      Joined:
      May 9, 2012
      Location:
      Oklahoma
      Local Time:
      11:13 PM
      You HAVE to run an A/C compressor or a delete pulley. The delete pulley amd bracket can be bought at the local parts store.

    • 1994redram

      1994redram FABO Gold Member FABO Gold Member

      Messages:
      857
      Likes Received:
      357
      Joined:
      May 9, 2012
      Location:
      Oklahoma
      Local Time:
      11:13 PM
      This belt fit my set up pretty much perfectly. I'm using the Dorman bypass pulley, van bracket, and the rest is stock truck stuff. 20171027_200753.jpg

    • aaadave

      aaadave Well-Known Member

      Messages:
      369
      Likes Received:
      44
      Joined:
      Jun 4, 2010
      Location:
      moss point ms.
      Local Time:
      11:13 PM
      ya,the delete pulley fits in the same location as the a/c compressor, which routes the belt up off your water pump.

    • Bobzilla

      Bobzilla Well-Known Member

      Messages:
      384
      Likes Received:
      239
      Joined:
      Aug 10, 2017
      Location:
      Livonia, Michigan
      Local Time:
      12:13 AM
      The whole point of the van bracket is to move the pump down to clear the battery. Once you do that, you are stuck with the Dorman AC delete pulley or actually running the AC compressor to clear the water pump. The routing you are trying does work when using a full size pickup power steering pump bracket, but then you need to relocate the battery or modify the battery tray and run a narrow battery in the small space of an A body engine compartment. Lots of guys are using the Dorman pulley.

    • nates68

      nates68 Well-Known Member

      Messages:
      170
      Likes Received:
      83
      Joined:
      Sep 12, 2010
      Location:
      Puyallup, WA
      Local Time:
      9:13 PM
      IMG_2039.JPG Ok thanks all for the info! Fabo always comes through.
      What was confusing was this diagram that said it was for a van with no a/c.
      I may be running a/c at a later date so I will just have to use the dorman part for now. Was hoping for a cleaner look, maybe even the bracket that is alternator only, but those are hard to find.
      Nates68

    • Bobzilla

      Bobzilla Well-Known Member

      Messages:
      384
      Likes Received:
      239
      Joined:
      Aug 10, 2017
      Location:
      Livonia, Michigan
      Local Time:
      12:13 AM
      I have one of the alternator only brackets from a 2000 model year pickup that was not equipped with AC. That bracket is nearly identical to the AC bracket, just does not have the AC compressor mount. Side by side, the alternator mounting is positioned exactly the same. I thought the idler was too, but the picture I have looks a little different, so I need to double check the idler. I never saw a van without AC yet, but I personally used that non AC routing on my 99 ram and works without rubbing because the steering pump is higher.

      Last edited: Feb 1, 2018
    • RedFish

      RedFish Well-Known Member

      Messages:
      22,163
      Likes Received:
      1330
      Joined:
      Sep 5, 2007
      Local Time:
      12:13 AM
    • MileHighDart

      MileHighDart FABO Gold Member FABO Gold Member

      Messages:
      2,828
      Likes Received:
      1344
      Joined:
      Jun 3, 2004
      Location:
      Lyons, CO
      Local Time:
      5:13 AM
      My setup is:
      1999 5.9 from a ram 2500 pickup
      Bought a used van power steering bracket of ebag.
      Dorman 34178 a/c delete bracket.
      Dayco 5071013 belt, longest 7 rib I could find
      And I did replace the 5.25" idler on the a/c delete bracket with a 3.5" 7-rib idler
      Couldn't get the belt to go on with the larger pully.

      Advance auto parts had the a/c delete, and the smaller idler in stock. Sorry cant find the p/n for the smaller pulley right now, but just got online and did a search for 7 rib idler pulleys, I think I ended up at the Dayco website, found a p/n and called Advance.

      Update: Actually I found the p/n for the smaller pulley I used on the a/c bracket.
      It's a Dayco 89054



      Last edited: Feb 1, 2018
      • Like Like x 1
      • Tooljunkie

        Tooljunkie King of cobble/master of the broken bolt FABO Gold Member

        Messages:
        6,088
        Likes Received:
        4548
        Joined:
        Jul 22, 2017
        Location:
        Manitoba
        Local Time:
        11:13 PM
        The more i see these setups, the more i want to put my 5.9 in the barracuda.

        • Like Like x 2
        • Agree Agree x 1
        • jos51700

          jos51700 Well-Known Member

          Messages:
          4,308
          Likes Received:
          1063
          Joined:
          May 24, 2009
          Location:
          Bel-Ray
          Local Time:
          11:13 PM
          The reason you're having trouble is that the belt routing AND alternator bracket are, as mentioned, different on AC- delete vehicles.

          I used the Dorman piece briefly but hated the dead space and it was in the way for other stuff. The factory ac- delete bracket solves all your ills. Downside, it's expensive (mine was $80 and I HUNTED for it). I even called salvage yards in Alaska figuring they'd have them and I really do doubt that Mopar EVER built a magnum truck with ac delete. I've NEVER seen one.

          Running the belt as shown above with about twenty five degrees of belt wrap will result in belt slippage; mine squealed like a bitch on acceleration and the lights would dim. It's a piss poor workaround.

          The dealer can get you the number on the delete bracket if you don't want to run Dorman. Yes, the idler pulley moves. Why Mopar did it that way I'll never know.

          • Agree Agree x 1
          • nates68

            nates68 Well-Known Member

            Messages:
            170
            Likes Received:
            83
            Joined:
            Sep 12, 2010
            Location:
            Puyallup, WA
            Local Time:
            9:13 PM
            Like Redfish said, the smaller idler is an interesting idea. I had thought about moving it up a bit, not sure where to mount it in the casting though. All in all, looks like I have a plan!

          • nates68

            nates68 Well-Known Member

            Messages:
            170
            Likes Received:
            83
            Joined:
            Sep 12, 2010
            Location:
            Puyallup, WA
            Local Time:
            9:13 PM
            Jos., you have a picture of your setup?

          • Bobzilla

            Bobzilla Well-Known Member

            Messages:
            384
            Likes Received:
            239
            Joined:
            Aug 10, 2017
            Location:
            Livonia, Michigan
            Local Time:
            12:13 AM
            The factory did build trucks without AC. Here is a photo of the non-AC bracket along with the common AC bracket. This was a 2000 Ram 1500, 5.2 Magnum and had heater controls without AC as well. This truck used the belt routing from diagram posted earlier. This bracket is a discontinued part and this is the only one I have ever seen in person. I removed this from the truck in junk yard myself, so I got to see the truck it came off of. I will remove the idler and compare the idler positions some time this weekend. It looks higher in my photo.

            Non-AC bracket.jpg

          • nates68

            nates68 Well-Known Member

            Messages:
            170
            Likes Received:
            83
            Joined:
            Sep 12, 2010
            Location:
            Puyallup, WA
            Local Time:
            9:13 PM
            Yup, that pulley looks higher to me. Jos said his worked for him, hopefully it was with the van ps bracket and not the truck. I just bought a non a/c bracket on eBay! Will post results.
            Thanks!

          • Bobzilla

            Bobzilla Well-Known Member

            Messages:
            384
            Likes Received:
            239
            Joined:
            Aug 10, 2017
            Location:
            Livonia, Michigan
            Local Time:
            12:13 AM
            Just measured it. Non-AC bracket mounts idler pulley about one inch higher and one inch toward left side of engine. Included a picture without the idler pulley.


            • Like Like x 1
            • Bobzilla

              Bobzilla Well-Known Member

              Messages:
              384
              Likes Received:
              239
              Joined:
              Aug 10, 2017
              Location:
              Livonia, Michigan
              Local Time:
              12:13 AM
              Two AC brackets next to the non-AC bracket.


            • nates68

              nates68 Well-Known Member

              Messages:
              170
              Likes Received:
              83
              Joined:
              Sep 12, 2010
              Location:
              Puyallup, WA
              Local Time:
              9:13 PM
              That second picture really shows the difference, thanks!

            • Burlapen

              Burlapen Well-Known Member

              Messages:
              57
              Likes Received:
              30
              Joined:
              Jul 5, 2010
              Location:
              Clovis, CA
              Local Time:
              9:13 PM
              Well biscuits. I have a leaky truck pump that I had modified the battery tray for. I went to the wrecking yard today and stumbled across a van pump and bracket which I thought would work much better. I can’t run the ac delete because I already cleaned the bulky ac part off of the bracket with a sawzall. ;).
              Back to the drawing board I guess.

            • Burlapen

              Burlapen Well-Known Member

              Messages:
              57
              Likes Received:
              30
              Joined:
              Jul 5, 2010
              Location:
              Clovis, CA
              Local Time:
              9:13 PM
              Here’s how it looks


            • JoesEdge

              JoesEdge Well-Known Member

              Messages:
              944
              Likes Received:
              169
              Joined:
              Jun 6, 2013
              Location:
              Downey, CA
              View My Photos
              Local Time:
              9:13 PM
              Any of you guys need a non-AC Alternator Bracket with mounting bolts?

              I have two extra right now, and been scouring the wrecking yards for more.

              Another thing to note when using these brackets is that, there's a mounting spacer for the tube that goes into the water pump. That spacer goes between the tube mounting "fork" to the timing cover in order to bolt it down.

              I'll attach a picture of what I have.


              Last edited: Jun 18, 2018
