What caused damage to reactor shaft

Transmission and Drivetrain Tech

  1. fklskv

    fklskv Well-Known Member

    Messages:
    1,135
    Likes Received:
    591
    Joined:
    Aug 14, 2011
    Location:
    Lackawanna, NY
    Local Time:
    10:31 PM

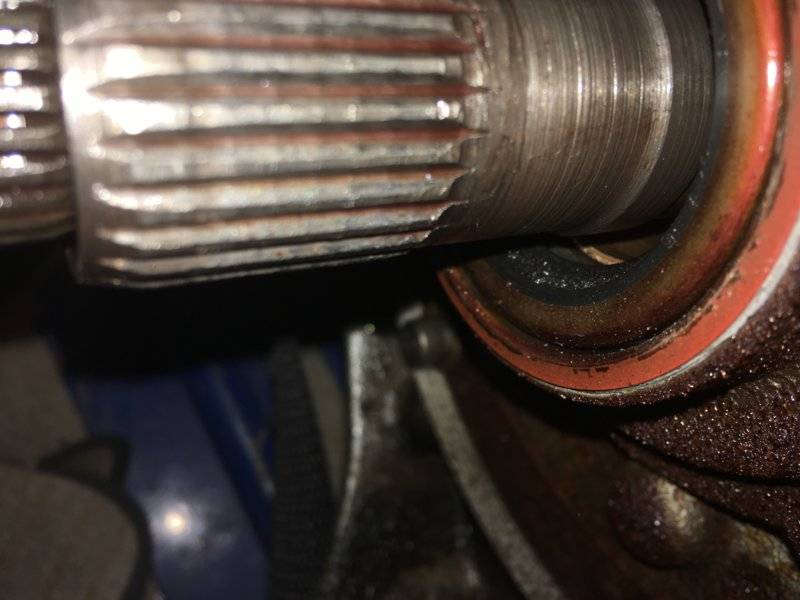

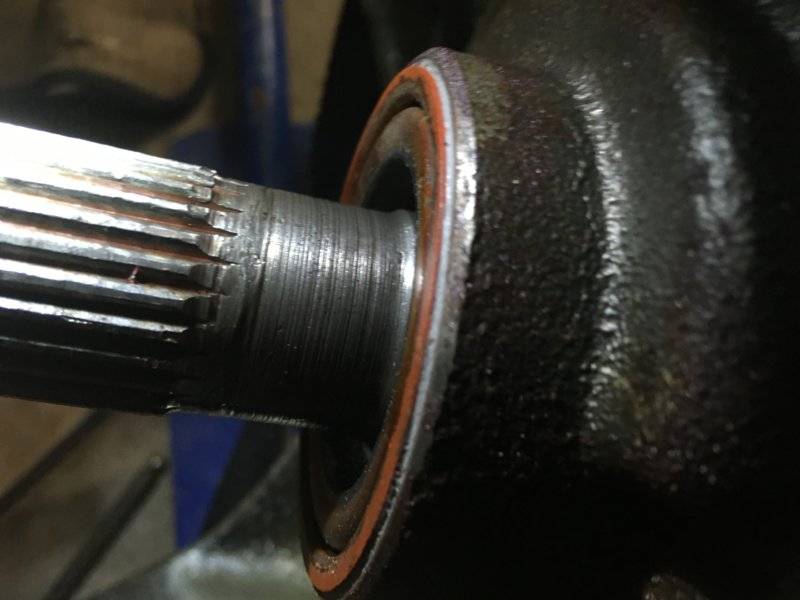

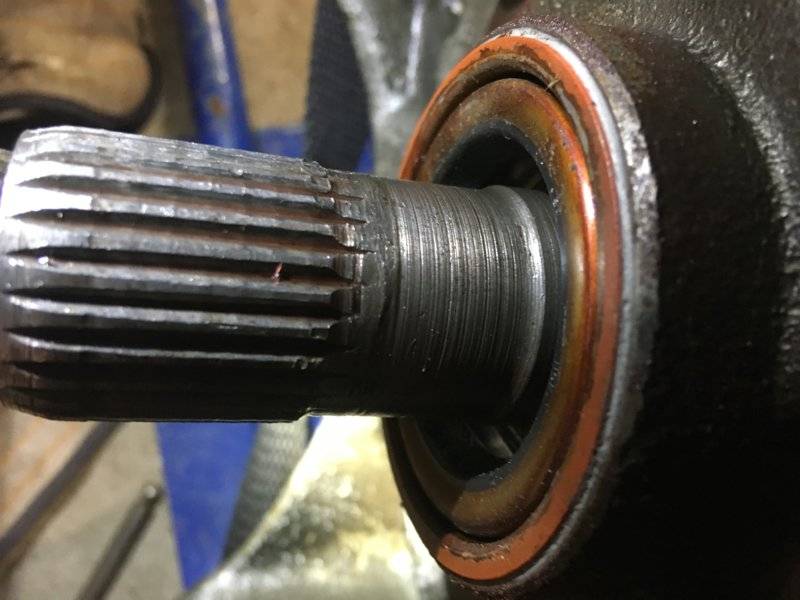

    94AACF1C-8ED7-4D32-8C90-5F52FAC3ED68.jpeg 60172344-2E45-4357-9FA8-5BC706C5E804.jpeg CA3A586B-FA8B-4496-9E06-2A6A910B11B9.jpeg Any ideas on what would cause the damage to the reactor shaft?
    On one pic you can see filings on the seal

    The stall speed was getting higher so something is wrong

    This is a turn key race car purchased a couple of years ago. 340 with a trans brake, front and rear motor plate.

    Thanks ahead of time

    • Like Like x 1
    • Demonracer

      Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

      Messages:
      3,303
      Likes Received:
      1288
      Joined:
      Jan 31, 2010
      Location:
      Cleveland, Texas
      Local Time:
      9:31 PM
      Was there any metal shavings in the converter? It looks to me like some destroyed a converter once upon a time.

      • Agree Agree x 1
      • jimjimjimmy

        jimjimjimmy lobsterman FABO Gold Member

        Messages:
        4,405
        Likes Received:
        1190
        Joined:
        Nov 2, 2010
        Location:
        p. e. i.
        Local Time:
        11:31 PM
        :popcorn: :popcorn: .

      • Garrett Ellison

        Garrett Ellison Amateur driver on public roadway, do not imitate.. FABO Gold Member

        Messages:
        2,689
        Likes Received:
        2110
        Joined:
        Jan 1, 2018
        Location:
        Southwest VA
        Local Time:
        10:31 PM
        Did the car start slowing down with the increase in stall speed? What brand of converter do you have? Once you get everything apart, check the case alignment as noted by the MP chassis manual.

        • Agree Agree x 1
        • greg ducato

          greg ducato FABO Gold Member FABO Gold Member

          Messages:
          30
          Likes Received:
          37
          Joined:
          Sep 17, 2015
          Location:
          Weatherford
          Local Time:
          9:31 PM
          Looks like the bearing on the stator was coming apart and chewing up the support shaft. I would imagine the remainder of that bearing went through the converter and laid some fins over causing your stall speed to change. Have the converter cut open by a converter shop and you will have your proof.

          • Like Like x 1
          • Agree Agree x 1
          • fklskv

            fklskv Well-Known Member

            Messages:
            1,135
            Likes Received:
            591
            Joined:
            Aug 14, 2011
            Location:
            Lackawanna, NY
            Local Time:
            10:31 PM

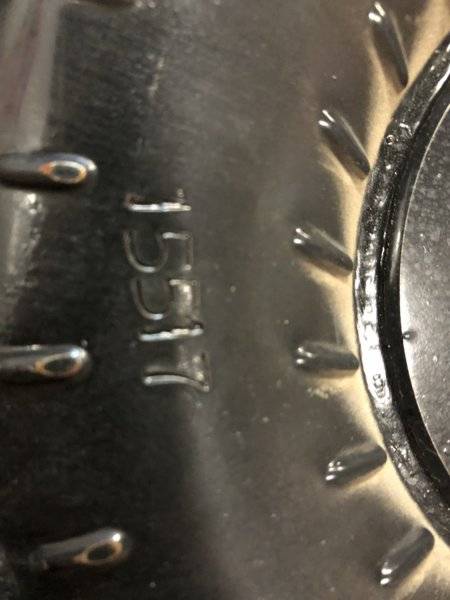

            4412C0E8-E2E5-4B56-838E-08FF8C6A0E2E.jpeg 4E83FF9E-70CA-4758-ADE0-F2954B2BA1A5.jpeg 41DF9362-2F12-46F9-A51F-37FEAE39523F.jpeg
            I agree with your analogy. The converter is on the way to Tsi to be looked at. As far as what kind it is, turn key car so who knows. Google of the numbers comes up empty

            • Like Like x 1
            • Lefty71

              Lefty71 Well-Known Member

              Messages:
              244
              Likes Received:
              178
              Joined:
              Nov 7, 2013
              Location:
              Ohio
              Local Time:
              10:31 PM
              If GER, then that would be bad news, and could be all the answers maybe.....

              • Agree Agree x 1
              • fishy68

                fishy68 Tyr Fryr's Inc. FABO Gold Member

                Messages:
                16,948
                Likes Received:
                929
                Joined:
                Jan 11, 2005
                Location:
                Central, IL (Hooterville)
                Local Time:
                9:31 PM
                I see the reaction shaft look like that a lot. There isn't any contact there so the factory didn't machine it down nice and pretty. Look down inside of the pump at the converter bushing and I bet it'll be what's chewed up and causing the shavings. Pay particular attention to the bushing and see if it looks like it's worn on one side more than the other. If it is wore on one side more it sounds like the trans to engine alignment isn't correct. That can happen if the block was align bored a bunch which raises the crank in the main bearing bores. How does the converter snout look? If it's worn too that's another sign it's the converter support bushing that's leaving the shavings. I had that issue with a block I bought. It had never been opened up from the factory yet the crank to cam centerline was .013" closer than it should have been. Apparently it was screwed up in machining and they fixed it by re-boring the mains. I had to buy some adjustable alignment dowel pins and do the setup. It was a bit of work but I've since put about 10,000 hard miles on it with no sign of trouble

                • Like Like x 1
                • Agree Agree x 1
                • fklskv

                  fklskv Well-Known Member

                  Messages:
                  1,135
                  Likes Received:
                  591
                  Joined:
                  Aug 14, 2011
                  Location:
                  Lackawanna, NY
                  Local Time:
                  10:31 PM
                  So following up, The converter was cut apart and there was no problem at all inside. Apparently it was like that at one time or was machined like that as stated.

                  The filings are from the starter ring gear which will be replaced.

                  thanks again for all the replies!

                  • Like Like x 1
                  • AJ/FormS

                    AJ/FormS 68 B'cuda fb, Form S clone ... 367/A833/3.55s

                    Messages:
                    18,239
                    Likes Received:
                    6480
                    Joined:
                    Jan 19, 2014
                    Location:
                    South-Central Manitoba,Canada, 900ftelevation
                    Local Time:
                    9:31 PM
                    So what about the increasing stall?

                  • fklskv

                    fklskv Well-Known Member

                    Messages:
                    1,135
                    Likes Received:
                    591
                    Joined:
                    Aug 14, 2011
                    Location:
                    Lackawanna, NY
                    Local Time:
                    10:31 PM
                    The trans is at a shop being looked at. The was a lot of residue in the pan.

                    I think the problem is the nut that holds the wheel. My brother.
                    :lol:

                    • Like Like x 2
                    • mcodecuda

                      mcodecuda Senior Member

                      Messages:
                      559
                      Likes Received:
                      162
                      Joined:
                      Sep 17, 2007
                      Location:
                      Catawba NC Just a little north of Charlotte
                      Local Time:
                      10:31 PM
                      Or it could have been an unbalanced nut behind the wheel or a loose nut behind the wheel.

                    • fklskv

                      fklskv Well-Known Member

                      Messages:
                      1,135
                      Likes Received:
                      591
                      Joined:
                      Aug 14, 2011
                      Location:
                      Lackawanna, NY
                      Local Time:
                      10:31 PM
                      All of the above!

                      • Like Like x 1
                      • Demonracer

                        Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

                        Messages:
                        3,303
                        Likes Received:
                        1288
                        Joined:
                        Jan 31, 2010
                        Location:
                        Cleveland, Texas
                        Local Time:
                        9:31 PM
                        If someone machined that to look as it does, I wouldn't want them doing any machine work for me. IMO, a 3 year old with no skills could do better work than what is pictured.

                        • Agree Agree x 1
                        • TrailBeast

                          TrailBeast AKA Mopars4us on Youtube

                          Messages:
                          21,329
                          Likes Received:
                          8846
                          Joined:
                          Mar 11, 2011
                          Location:
                          Arizona
                          Local Time:
                          7:31 PM
                          The fact that the shavings are on the outside of the seal and pump tells us that it wasn't an internal problem.
                          Not that it couldn't also be internal, seeing those shavings like that wouldn't freak me out about the internal condition.
                          I'd be looking at different source, like the starter gears for one. (as mentioned)
                          (anyone notice the flat spots on the dimples around the converter?)
                          Looks like it might have been touching the pump or case a little from possibly being into the pump a little far and then maybe ballooning a little.
                          JMO


                          As Tracey mentioned, that is common because it is a no contact area and they simply don't take more time doing the machining where it doesn't matter.
                          Most do look a lot better than that though.:D

                          • Like Like x 1
