Window regulators and inner door mechs, Help needed.

Mopar Body and Trim

  1. RAT ROD AL

    RAT ROD AL I know just enough to be dangerous FABO Gold Member

    Messages:
    1,975
    Likes Received:
    1865
    Joined:
    Jan 18, 2013
    Location:
    St. James City. FL.
    Local Time:
    9:53 AM
    Putting 67 cuda back together, all the guts were all ready out. If anyone can post an exploded view or where to find a good one , Would be awesome ! Thanks AL.

  2. 4spdragtop

    4spdragtop FABO Gold Member FABO Gold Member

    Messages:
    26,744
    Likes Received:
    6305
    Joined:
    Aug 28, 2009
    Location:
    Ontario
    Local Time:
    8:53 AM
    Hey Al, I have a complete loaded 67 door. I also posted pics of it a while back as reference. I'll see if I can find it.

  3. 4spdragtop

    4spdragtop FABO Gold Member FABO Gold Member

    Messages:
    26,744
    Likes Received:
    6305
    Joined:
    Aug 28, 2009
    Location:
    Ontario
    Local Time:
    8:53 AM
    • Like Like x 1
    • 4spdragtop

      4spdragtop FABO Gold Member FABO Gold Member

      Messages:
      26,744
      Likes Received:
      6305
      Joined:
      Aug 28, 2009
      Location:
      Ontario
      Local Time:
      8:53 AM
      Pics of my 69 doors may be a bit better cuz the inner structure has been hacked away (not by me stupid pricks) but makes easier for pics.

    • 4spdragtop

      4spdragtop FABO Gold Member FABO Gold Member

      Messages:
      26,744
      Likes Received:
      6305
      Joined:
      Aug 28, 2009
      Location:
      Ontario
      Local Time:
      8:53 AM
      I hope to explain properly. This is my 69 pass door. You can see 2 rods running horizontally. One is in a cloth and one is bare steel.
      The bare steel running on a 45 goes from door latch to where my finger is pointing. There is a bracket in behind panel, where it connects to. (Finger point)From that bracket there is another rod that runs up to lock knob. I'll leave it at that for now. Hope that makes sense?
      Lay out yer door pieces and take a pic.
      ***EDIT***
      **Forgot to add that the horizontal rod in cloth runs from door latch to interior door handle**




      Last edited: Sep 20, 2019
      • Like Like x 1
      • Thanks! Thanks! x 1
      • ch1ll

        ch1ll FABO Gold Member FABO Gold Member

        Messages:
        587
        Likes Received:
        164
        Joined:
        Jun 12, 2009
        Location:
        Belgium,wi
        Local Time:
        8:53 AM
        I’ll post a link to mopar parts manuals Saturday night when I get home for you.

        • Thanks! Thanks! x 1
        • 4spdragtop

          4spdragtop FABO Gold Member FABO Gold Member

          Messages:
          26,744
          Likes Received:
          6305
          Joined:
          Aug 28, 2009
          Location:
          Ontario
          Local Time:
          8:53 AM
          One more pic for now. Showing S hook. This runs from ext door handle down to door latch and has identical clips at each end.
          Keep in mind this is 69. If you want 67 we can start over with different pics?


        • RAT ROD AL

          RAT ROD AL I know just enough to be dangerous FABO Gold Member

          Messages:
          1,975
          Likes Received:
          1865
          Joined:
          Jan 18, 2013
          Location:
          St. James City. FL.
          Local Time:
          9:53 AM
          Got the R/S 1/4 in. . PITA. L/S should go better now that I have it figured out.

        • famous bob

          famous bob mopar misfit FABO Gold Member

          Messages:
          13,857
          Likes Received:
          4303
          Joined:
          Aug 14, 2011
          Location:
          okla
          Local Time:
          8:53 AM
          Hang in there , mine was taken apart by the previous owner , I had never done it before , it was a bitch for me , and still not totally happy with the fitments .

          • Agree Agree x 1
          • mbaird

            mbaird mbaird FABO Gold Member

            Messages:
            4,993
            Likes Received:
            2042
            Joined:
            Dec 10, 2005
            Location:
            boise, Id
            Local Time:
            7:53 AM

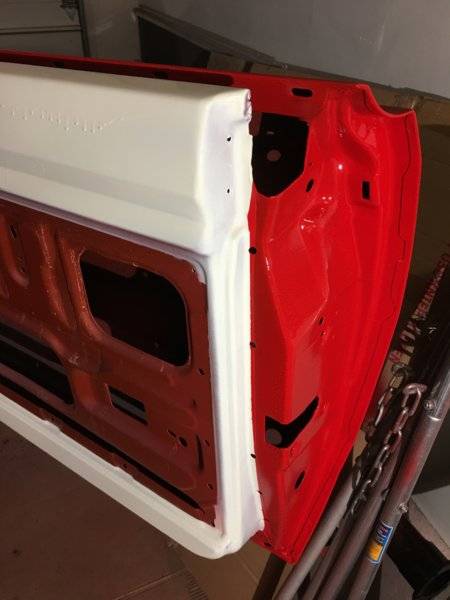

            This is great! I am just starting to re-assemble my doors and quarter windows.
            71079545-D04E-4FE4-8E7C-AA0708551620.jpeg 10DDA41C-7C17-4758-8AD3-7EA052045744.jpeg

          • RedFish

            RedFish Well-Known Member

            Messages:
            23,516
            Likes Received:
            2284
            Joined:
            Sep 5, 2007
            Local Time:
            8:53 AM
            For what its worth.... My 67 drivers door regulator had a lot of wobble and lost motion at the winder handle. Some binding also. I went to parts yard, pulled the interior panel from the rear door of a 75 Valiant. drilled out 3 rivets and took that drive bearing assembly. Used some of its parts to renew mine. Works like new.

            • Like Like x 1
            • mbaird

              mbaird mbaird FABO Gold Member

              Messages:
              4,993
              Likes Received:
              2042
              Joined:
              Dec 10, 2005
              Location:
              boise, Id
              Local Time:
              7:53 AM
              I have about5 doors worth of regulators and latch assemblies so I can pick the best one. Still need a few new rollers and misc components though.

              The idea to use the parts book diagram is Good thinking ... I forget that I have them.

              Now to figure out the sequence of what to do first, second etc. Do I install lock rods and latch assemblies before or after window tracks ... and so forth.

            • ch1ll

              ch1ll FABO Gold Member FABO Gold Member

              Messages:
              587
              Likes Received:
              164
              Joined:
              Jun 12, 2009
              Location:
              Belgium,wi
              Local Time:
              8:53 AM
              • Like Like x 1
              • Thanks! Thanks! x 1
              • RedFish

                RedFish Well-Known Member

                Messages:
                23,516
                Likes Received:
                2284
                Joined:
                Sep 5, 2007
                Local Time:
                8:53 AM
                With window rolled up I have managed to disconnect rods/linkages from the latch and removed it but it would have been much easier if that track wasn't in the way. I think latch, linkages to can openers, etc.. first, then tracks regulator, next, cat whiskers last, will be the way to go.
                There's a eccentric stop on the regulator that will let the glass go farther down into the door. Makes cat whisker install easier. So glass alignment and travel stops set, is last.

                • Thanks! Thanks! x 1
                • RAT ROD AL

                  RAT ROD AL I know just enough to be dangerous FABO Gold Member

                  Messages:
                  1,975
                  Likes Received:
                  1865
                  Joined:
                  Jan 18, 2013
                  Location:
                  St. James City. FL.
                  Local Time:
                  9:53 AM
                  I hope the door glass is easier than the 1/4 glass. Lol.

                • Mattax

                  Mattax Just the facts, ma'am FABO Gold Member

                  Messages:
                  7,432
                  Likes Received:
                  4272
                  Joined:
                  Feb 7, 2013
                  Location:
                  Phila. Pa
                  Local Time:
                  9:53 AM
                  Careful with the 67 lock rod clip. Talking about the one for the rod that goes up for unlocking and locking the door from the inside of the car.
                  This seems to be a one year only clip.
                  Missing the d/s one on mine..

                • mycuda

                  mycuda FABO Gold Member FABO Gold Member

                  Messages:
                  5,178
                  Likes Received:
                  2485
                  Joined:
                  Feb 15, 2011
                  Location:
                  Chicago/ Metro
                  Local Time:
                  8:53 AM
                  Never understood why people remove all those mechanisms to begin with....
                  Unless they don't function or operate....I get it.

                • RAT ROD AL

                  RAT ROD AL I know just enough to be dangerous FABO Gold Member

                  Messages:
                  1,975
                  Likes Received:
                  1865
                  Joined:
                  Jan 18, 2013
                  Location:
                  St. James City. FL.
                  Local Time:
                  9:53 AM
                  Got the L/S in yesterday, wasn't any easier. Lol.
                  Going on a road trip for about a month, so will get back to this later.
                  Thanks for sharing the information.

                • mbaird

                  mbaird mbaird FABO Gold Member

                  Messages:
                  4,993
                  Likes Received:
                  2042
                  Joined:
                  Dec 10, 2005
                  Location:
                  boise, Id
                  Local Time:
                  7:53 AM
                  Do you have an image of that clip ? I have taken many doors apart and never throw out a clip.

                  • Thanks! Thanks! x 1
                  • mbaird

                    mbaird mbaird FABO Gold Member

                    Messages:
                    4,993
                    Likes Received:
                    2042
                    Joined:
                    Dec 10, 2005
                    Location:
                    boise, Id
                    Local Time:
                    7:53 AM
                    I had my body stripped to bare metal. The components wouldnt have faired well if I left them in.

                    • Thanks! Thanks! x 1
                    • Mattax

                      Mattax Just the facts, ma'am FABO Gold Member

                      Messages:
                      7,432
                      Likes Received:
                      4272
                      Joined:
                      Feb 7, 2013
                      Location:
                      Phila. Pa
                      Local Time:
                      9:53 AM
                      'fraid not.
                      I might have a sketch somewhere based on what I could see of the passenger side. I'll look through old notes and files this week and see if I can find it.

                    • 4spdragtop

                      4spdragtop FABO Gold Member FABO Gold Member

                      Messages:
                      26,744
                      Likes Received:
                      6305
                      Joined:
                      Aug 28, 2009
                      Location:
                      Ontario
                      Local Time:
                      8:53 AM
                      Are you talking the one where my finger is pointing in my 3rd pic? Altho I'm using 69 door as reference.

                    • Mattax

                      Mattax Just the facts, ma'am FABO Gold Member

                      Messages:
                      7,432
                      Likes Received:
                      4272
                      Joined:
                      Feb 7, 2013
                      Location:
                      Phila. Pa
                      Local Time:
                      9:53 AM
                      Steve, I recall it being on a bellcrank, so maybe that is the spot. Except as you say, on a 67 thats placed further back?
                      I think I made a sketch in a spiral notebook. I'll look there first.

                      • Like Like x 1
                      • Mattax

                        Mattax Just the facts, ma'am FABO Gold Member

                        Messages:
                        7,432
                        Likes Received:
                        4272
                        Joined:
                        Feb 7, 2013
                        Location:
                        Phila. Pa
                        Local Time:
                        9:53 AM
                        • Like Like x 1
