Big Block ported 906 heads - $1100 pair


Freshened up my 493 stroker over the winter with Edebrock RPM aluminum heads so the ported 906 heads need to find a new home


Oversized valves 2.14 / 1.81, dual springs – pressure tested 125 lbs @ 1.960 +/- .010 & 355 lbs @ .600 lift
Ported for Mopar 590 cam, Flowed 280 @ 600 lift, 86cc combustion chamber, 7 deg locks & keepers


Ready to bolt on; great for FAST or Factory Stock racing
Checked by Owner John @ Muscle Machining Pinellas Park, FL (phone number available) - flowed,
magnafluxed w good existing 3 angle valve job

Would consider trades towards comparable 340 X-heads

Also have other adds to follow for MSD 8536 distributer w/ Accel 9mm wires, 800 Holley DP, 3/8” ball-cup pushrods which worked w/ adj rockers & good harmonic balancer.


Located in St. Petersburg, FL 33710, have the Edelbrock boxes to ship but would definitely prefer local pickup or could meet within 2 hours of Tampabay - buyer pays shipping from zip 33710
Accept Postal Money order or Paypal (user covers paypal fee)




906 combustion chamber.JPG


906 topside exhaust.JPG

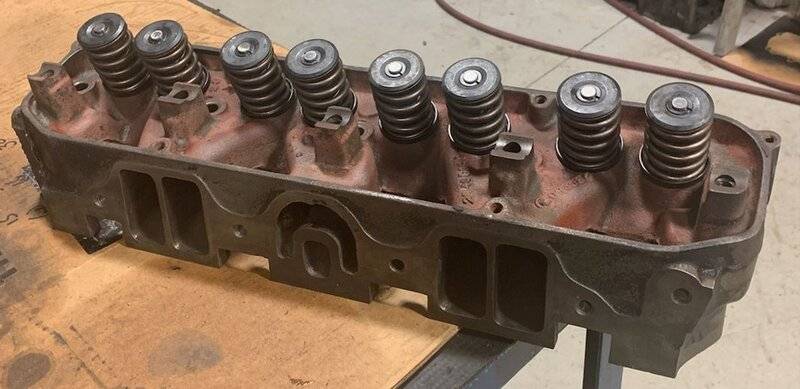

906 topside intake.JPG


906 Intake port.JPG


906 flow #s edit.jpg
