QUESTION, For the Day. Anybody Know What These Parts Are For?

[hemi71x]

I dug out some more parts, buried deep in the storage shelving, in the garage, and haven't a clew anymore what they are for.

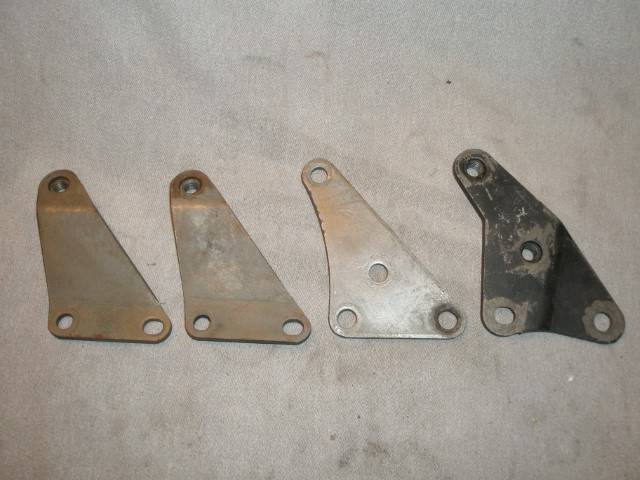

Anyone looking at the picture know what they are for, that i saved for some reason or other?

Thank's a lot.



[413]

2 on left Power steering brackets SB mopar 1970 and up. The two open holes bolt to the lower timing cover. The welded nut is for the pivot bolt for adjusting the pump.

#3 bare metal looks like alternator bracket for non AC.

#4 black is bent, unsure of what it is.



[CFD244]

Great Info below. I deleted mine.



[1WildRT]

Two on the left are SB P/S lower mount
One on the right is big block alternator with A/C, actually after a second look I'm starting to think maybe not... Confirmed, not the right answer... That looks like this..

second from the right no idea



[E7polyhachett]

I think the 3rd bracket from the left looks like
a poly 318 alternator brk, bolted to the cast iron water pump.



[cudamark]

I think the 3rd bracket from the left looks like
a poly 318 alternator brk, bolted to the cast iron water pump.

I think this bracket is for a '67-9 small block alternator without A/C.



[413]

I think the 3rd bracket from the left looks like
a poly 318 alternator brk, bolted to the cast iron water pump.

Poly 318 bracket is a one piece unit.



[hemi71x]

Poly 318 bracket is a one piece unit.

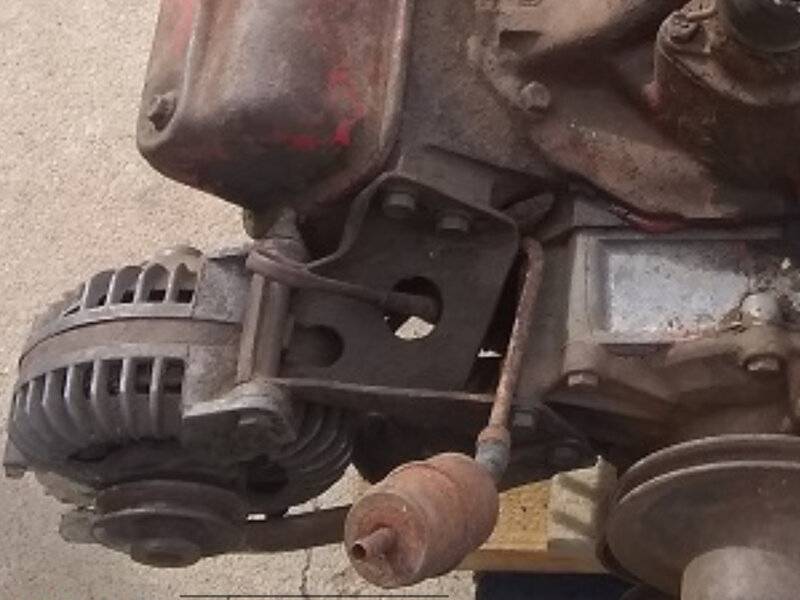

View attachment 1716241501

Thank's
I have one of those brackets, and know what it is, as i have it labeled as such.



[65 Cuda 340]

Thank's
I have one of those brackets, and know what it is, as i have it labeled as such.

Same bracket as the early (64-66) 273s. That's why there are two sets of holes to mount to the head. You'll notice that the two lower holes are used on the wedge. (This bracket may have been used on 318s and 340s after 66, don't know. Mine is now on the 340 that's in my 65 Barracuda.)



[oldkimmer]

3rd bracket from the left is 69 small block. Kim
