Hi all. I replaced column shifter steering column auto on my 67 Dart with a manual shifter column (installed a Hurst Quarter Stick floor shifter) from a 67 Barracuda. Everything went well, but its apparent that the pin out on the Cuda column plug must be a bit different as I don't have brake or direction on the left rear, or a horn now. Can anyone tell me what the pin assignments are on that plug for a 67 Barracuda manual column? I have the Dart diagram, but not the Plymouth version. Thanks!
67 Barracuda manual steering column instrument panel wiring diagram
- Thread starter MassDart
- Start date
-
Vaanth
Well-Known Member

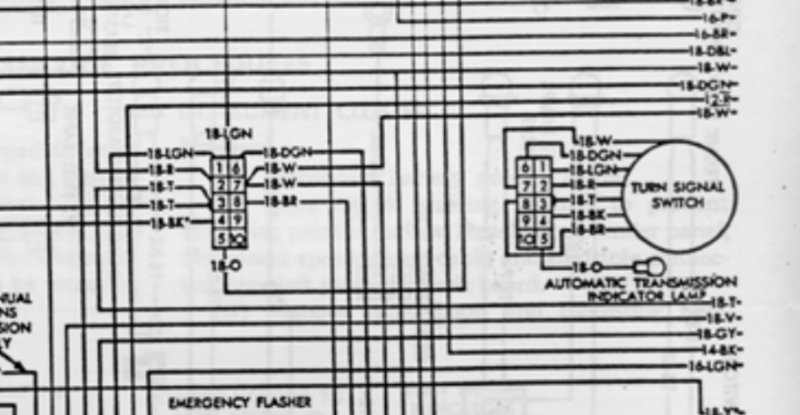

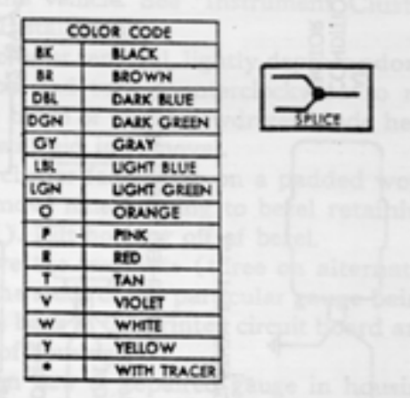

The following images show excerpts from the 1967 Plymouth service manual supplement wiring diagrams of the column connector wiring and color code chart:
The full service manual is available for download at: 1967 Plymouth Service Manual and Supplement for Barracuda (compressed PDFs).
The full service manual is available for download at: 1967 Plymouth Service Manual and Supplement for Barracuda (compressed PDFs).
