Brake line diagram

[A Body 440 WHY NOT]

ok.
So the project is slowly moving forward. I am getting the rear finished with the new 355 gear set and moser axles. When I bought the 69 dart it was in pieces. No brake lines among other things. ( like an engine , trans , ....) Does anybody have a diagram of where the brake should run ? No master yet , front suspension is stock.
Thanks all, be safe .



[Oldmanmopar]

This is a 71 with disc it would be the same as yours if using the one piece proportioning valve. Note the 71 housing is different and takes different lines then a 67-69. The T for the hose is on the hill of the housing on the early years. 70-72 it is on the axle tube. When ordering the line kit make sure you know what proportioning valve you have and what year housing. This info will change the kit. Also Darts and Scamps are 3 inches longer bodies the Dusters and Demons.

You can get what ever you need from Jims. Mopar Brake Parts | Jim's Auto Parts



[A Body 440 WHY NOT]

Pics are great. Going to be a big help.Just the placement of the porportioning valve will be a big help. The line from the porportioning valve to the front right wheel goes along the firewall or the crossmember.
Thanks!!



[A Body 440 WHY NOT]

Pics are awesome ! I now see that f r line goes along the firewall.
The porportioning valve bolts to the inside frame just rearward of the front left suspension
Thank you.



[Dfr360cuda]

Helps m

Pics are great. Going to be a big help.Just the placement of the porportioning valve will be a big help. The line from the porportioning valve to the front right wheel goes along the firewall or the crossmember.
Thanks!!

Pics are awesome ! I now see that f r line goes along the firewall.
The porportioning valve bolts to the inside frame just rearward of the front left suspension
Thank you.

Helps me too
Thanx



[A Body 440 WHY NOT]

This is a 71 with disc it would be the same as yours if using the one piece proportioning valve. Note the 71 housing is different and takes different lines then a 67-69. The T for the hose is on the hill of the housing on the early years. 70-72 it is on the axle tube. When ordering the line kit make sure you know what proportioning valve you have and what year housing. This info will change the kit. Also Darts and Scamps are 3 inches longer bodies the Dusters and Demons.

You can get what ever you need from Jims. Mopar Brake Parts | Jim's Auto Parts

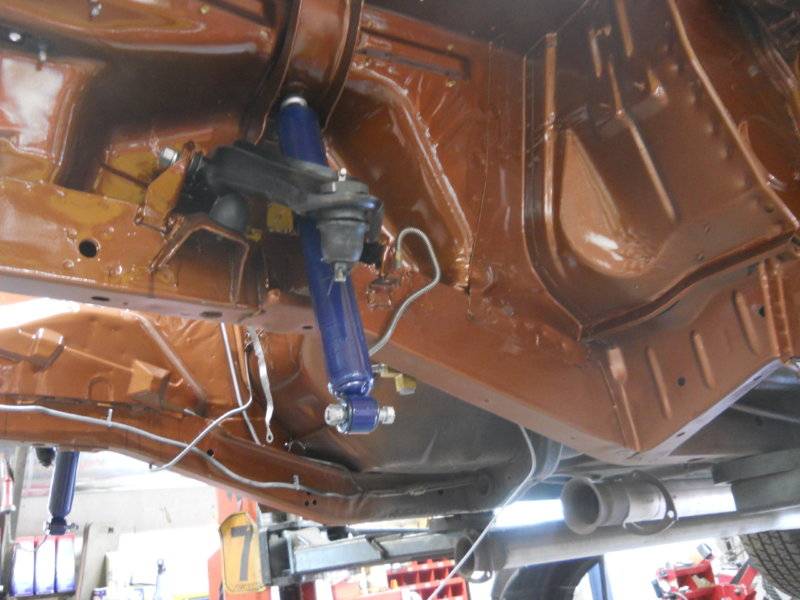

View attachment 1715495563

View attachment 1715495564

View attachment 1715495565

View attachment 1715495566

View attachment 1715495567

View attachment 1715495568

View attachment 1715495569

Old man mopar
Thanks again for the pics. I worked in the car this weekend and those pics helped out tremendously.
You are the man !!!



[A Body 440 WHY NOT]

Dartfreak75.



[CFD244]

Thanks for taking the time @Oldmanmopar



[Oldmanmopar]

The car pictured above had a front clip installed from and earlier model.
