Need a new front pump for. 904 Torqueflight, I’ll take the whole unit or just the shaft portion! V8 car, not certain if the 6 cyl parts are different! Shipped to 29566 or arrange for pickup! Thanks FABO




Check with Torqueflite Patty on Ebay. He has quite a few pieces for TF transmissions & a boat load of knowledge.

Ok. I have 2 pumps. One I know is from a 67. One is from 68 and newer.
They have the same spline (26).
The splines shafts are the same dia on the outside but the 68 is larger dia inside.

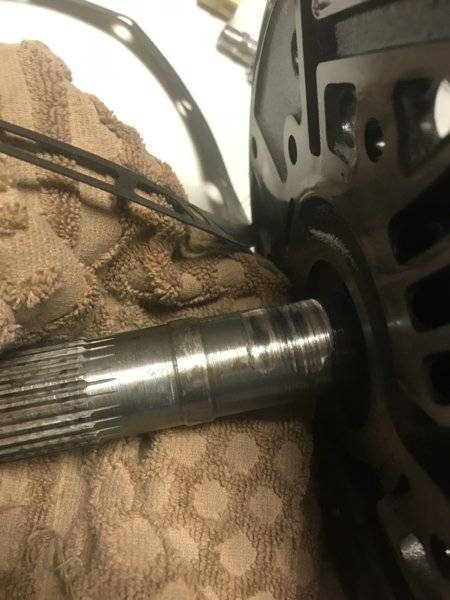

On the back side of the pumps the shafts are different. 67 on the right.
What year is yours.
