I'm looking at schematics and the colors for the bulkhead connector does not line up. Does anyone have a photo or can take one for me. I need a close up of the connector on the firewall side!
1966 Dodge Dart 270 Slant Six Bulkhead Connector (Need Photo)
- Thread starter Cliff'sDodge
- Start date
-
rod7515
Well-Known Member
I could get you a pic of an 8 cyl one but don't know how many differences there may be. I would think they would be the same. Let me know if you need it. I removed mine so I have it totally out.
Rod
Rod
67Dart273
Well-Known Member
Exactly what diagram are you looking at? By that I mean EG the aftermarket one posted at MyMopar, or the factory service manual, or what?

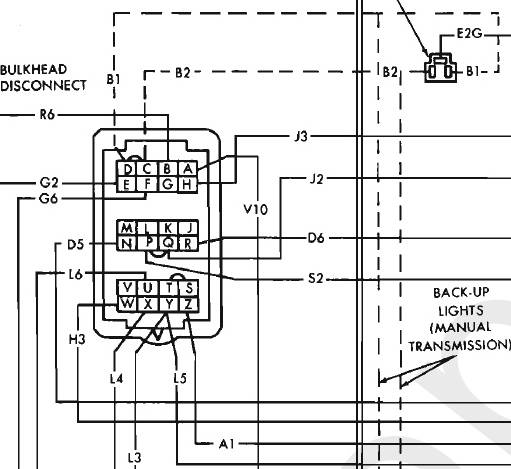

Here are screenshots out of the factory manual............
Last edited:
I can get you photos from a 66 Valiant 100 if that would help. Hell, I can get you two of them, one from my ride and another from the parts car. Both are slants, one manual one auto. Shoot me a PM if needed.
Cliff'sDodge
Cliff's66Dart
That would be great! Send me a pic. My photo is not lining up with the factory schematic!
Cliff'sDodge
Cliff's66Dart
The V8 and the 6 should be the same. A photo would help!
Here are photos of mine. First two pix are the stick car, the last three are the auto.
-
