[Found!] 4x4 truck RB Engine mount brackets

[Craig Burriss]

Looking to see if anyone has engine mount brackets from a 75 and up 4x4 big block truck/RamCharger.
The driver side bracket is what I’m really after, because it’d be a lot harder to fabricate than the passenger side. But if you have both I might be interested.
Mancini and Bouchillon both have a kit that would work, but I don’t want to pay $250 for some bent metal that I could probably make on a bench vice.
2wd truck brackets will not work.
Thanks, Craig.



[Deweywinger&howe]

Looking to see if anyone has engine mount brackets from a 72 and up 4x4 big block truck/RamCharger.
The driver side bracket is what I’m really after, because it’d be a lot harder to fabricate than the passenger side. But if you have both I might be interested.
Mancini and Bouchillon both have a kit that would work, but I don’t want to pay $250 for some bent metal that I could probably make on a bench vice.
2wd truck brackets will not work.
Thanks, Craig.

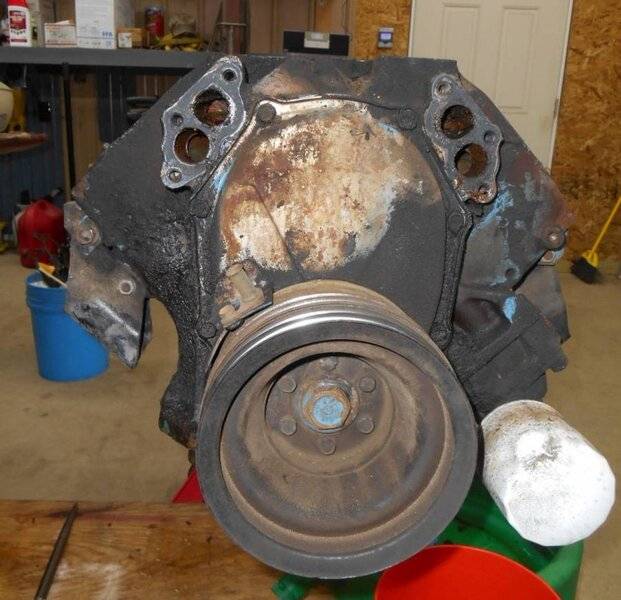

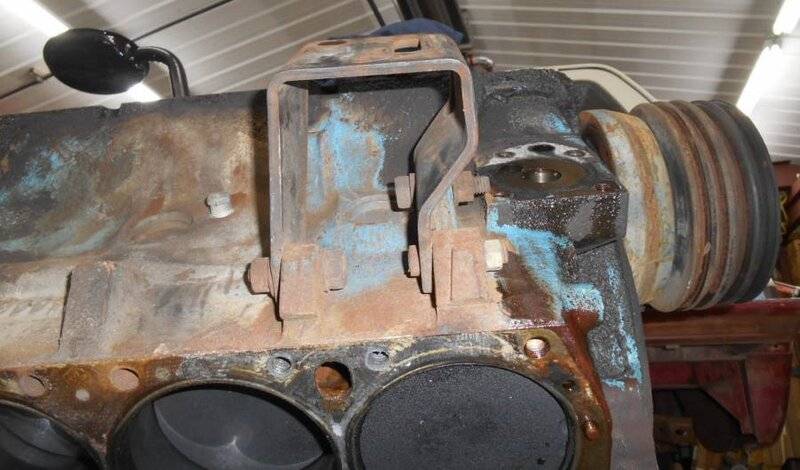

View attachment 1715854073 View attachment 1715854074 View attachment 1715854075 View attachment 1715854076

Are the pictures 4x4
I’ll have em $120 plus shipping
Tim@52537



[Craig Burriss]

Are the pictures 4x4
I’ll have em $120 plus shipping
Tim@52537

Yes, the 4x4 has the bend in the drivers side mount



[moparmarks]

The ones shown are 75-up 4wd.



[Craig Burriss]

The ones shown are 75-up 4wd.

I believe 72-75 should work too, these are the only pictures I could find.



[moparmarks]

72-74 has a divorced 205 transfer case and uses the same mounts as 72-up 2wd. 75-up has a married 203 transfer case and uses the mounts that you show.



[Craig Burriss]

72-74 has a divorced 205 transfer case and uses the same mounts as 72-up 2wd. 75-up has a married 203 transfer case and uses the mounts that you show.

View attachment 1715854149

Cool, I have a married TC. I updated the original post.



[QuickBpBp]

I have these never listed them.. I wanted to know about what I had and all the differences. Let me know if they are what you need. 72-up Big Block Truck Motor mounts - Moparts Forums



[Craig Burriss]

I have these never listed them.. I wanted to know about what I had and all the differences. Let me know if they are what you need. 72-up Big Block Truck Motor mounts - Moparts Forums

If these are what you’re talking about, then yes I believe those would work

Pm sent



[rbkt65]

too many pics of different mounts. is this the mount you need?



[Craig Burriss]

too many pics of different mounts. is this the mount you need?View attachment 1715854189 View attachment 1715854190

Yes, that’s the driver side mount



[QuickBpBp]

If these are what you’re talking about, then yes I believe those would work

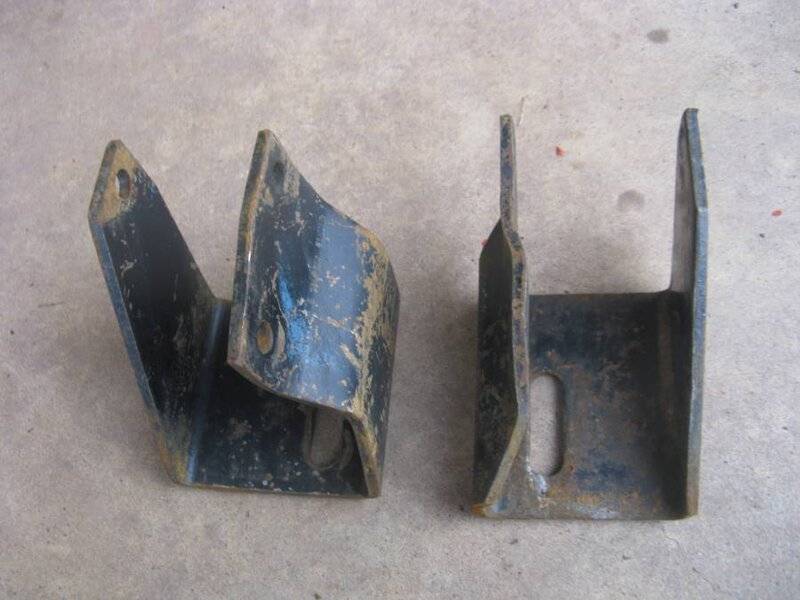

View attachment 1715854162 View attachment 1715854163
Pm sent

Yes those are it and I answered your PM.
